CAD Detail
TempZone™ Floor Heating

Click on the buttons below to download the .DWG file.

Return to Specs

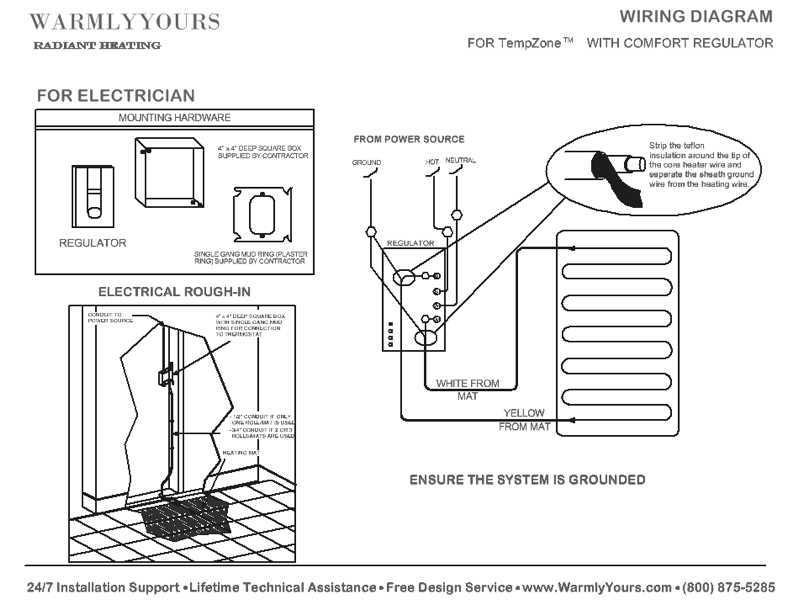

TempZone™ Wiring Diagram / Comfort Regulator

Wiring Diagram CAD
Download .DWG

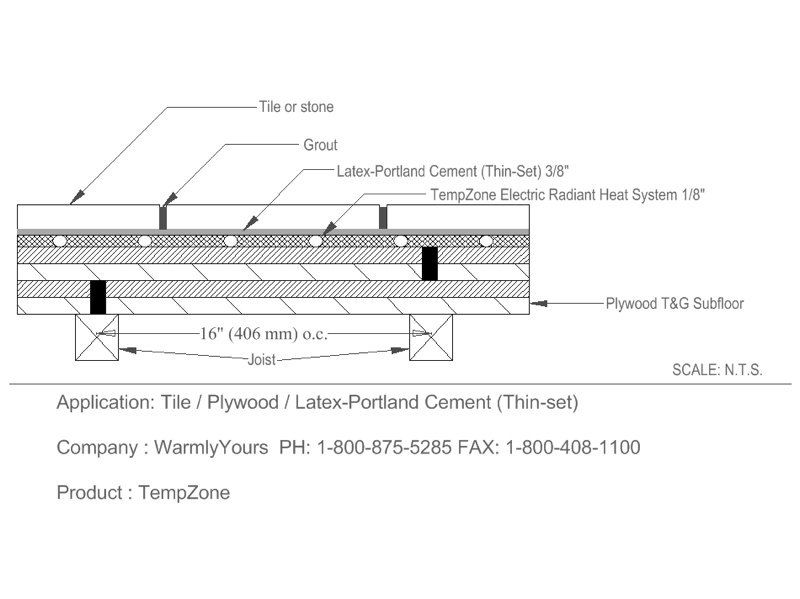

TempZone™ under Tile on Wood / Thin-set Mortar

TempZone™ under Plywood w/ Thinset
Download .DWG

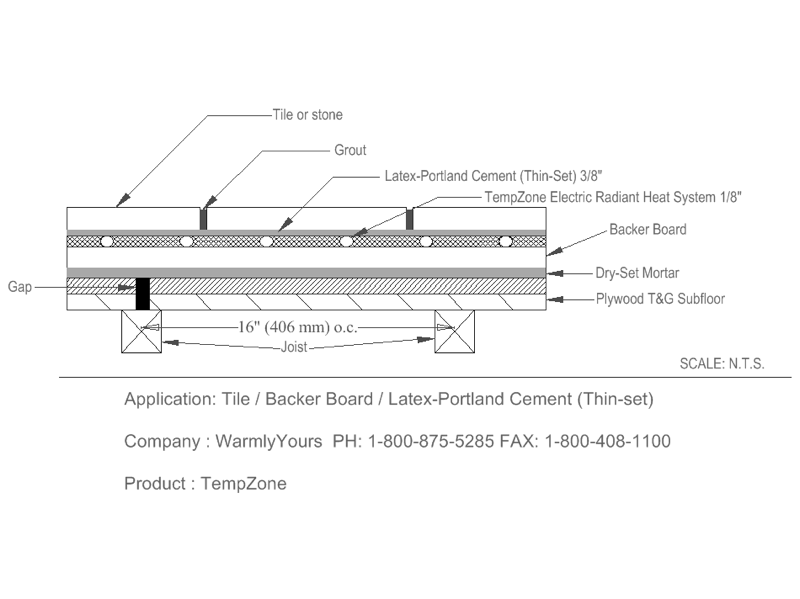

TempZone™ under Tile on Backer Board / Thin-set Mortar

TempZone™ under Backer Board w/ Thinset
Download .DWG

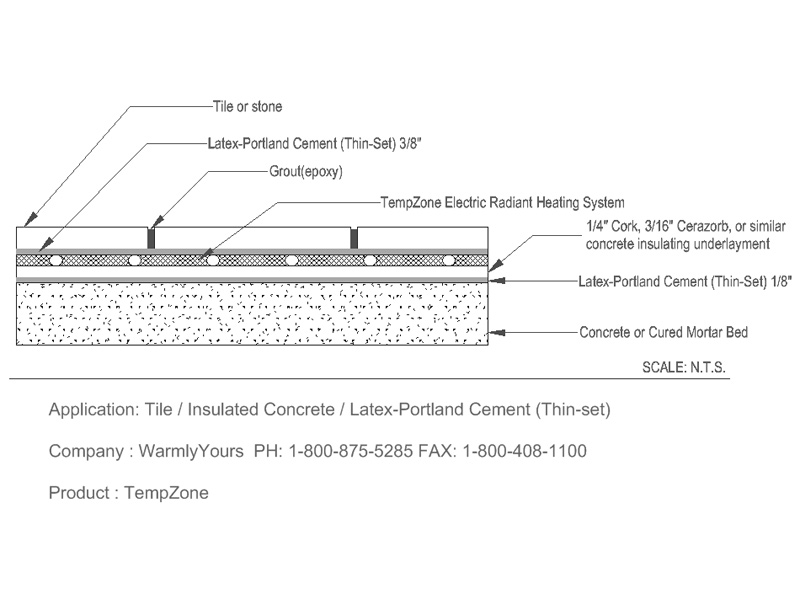

TempZone™ under Tile on Insulated Concrete / Thin-set Mortar

TempZone™ under Tile w/ insulate concrete and Thinset
Download .DWG

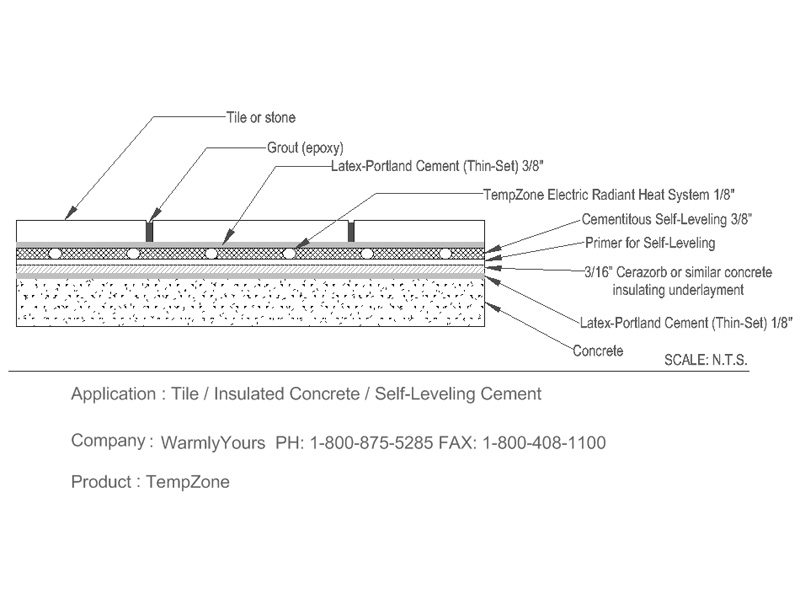

TempZone™ under Tile on Insulated Concrete / Self Leveling Cement

TempZone™ under Tile w/ insulated concrete and Self Leveling Cement
Download .DWG

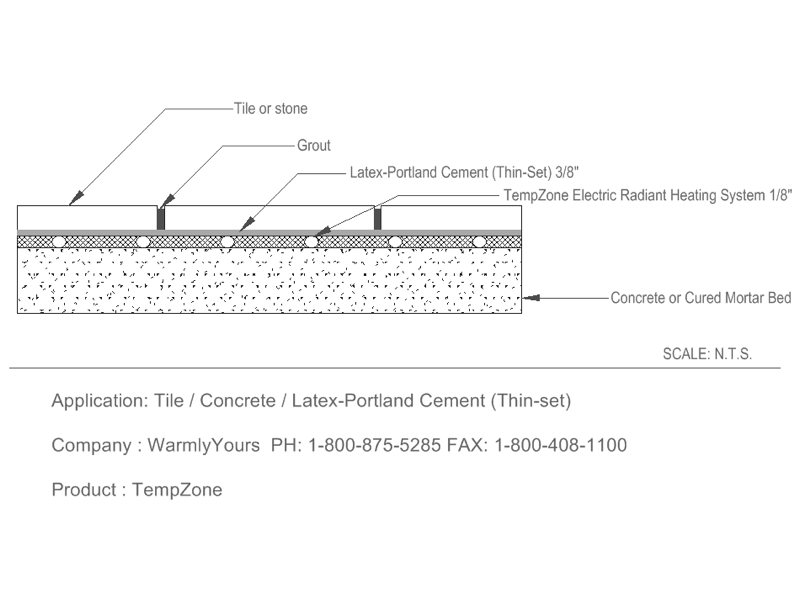

TempZone™ under Tile on Concrete / Thin-set Mortar

TempZone™ under Tile w/ concrete and Thinset Download .DWG

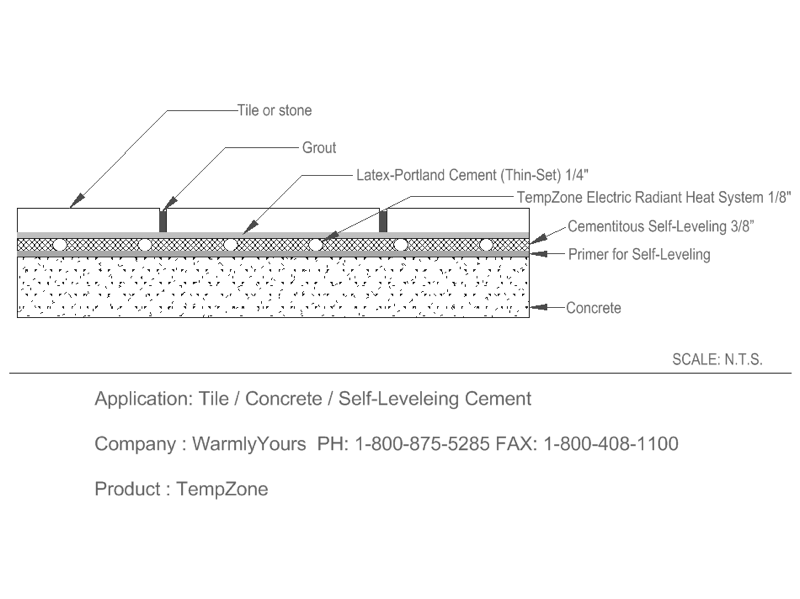

TempZone™ under Tile on Concrete / Self Leveling Cement

TempZone™ under Tile w/ concrete and Self Leveling Cement
Download .DWG

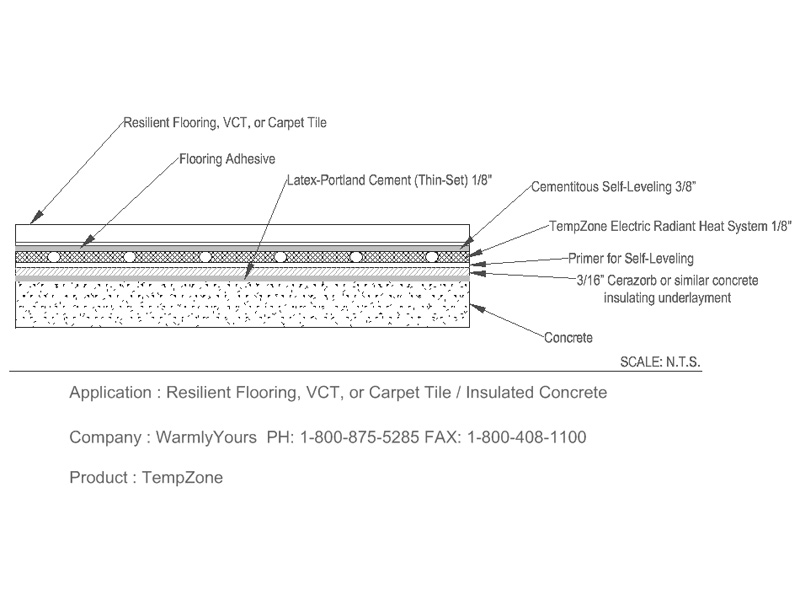

TempZone™ under Resilient Flooring on Insulated Concrete / Self Leveling Cement

TempZone™ under Resilient Flooring on Insulated Concrete / Self Leveling Cement
Download .DWG

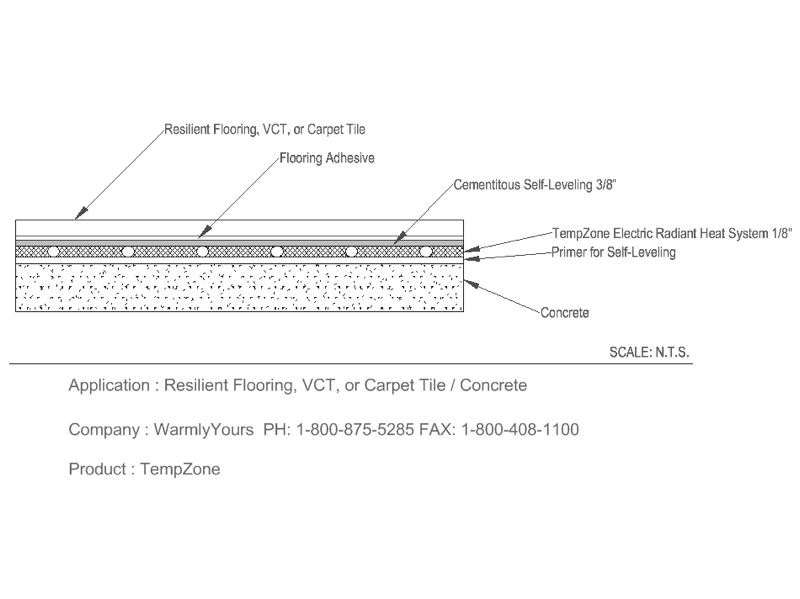

TempZone™ under Resilient Flooring on Concrete / Self Leveling Cement

TempZone™ under Resilient Flooring on Concrete / Self Leveling Cement
Download .DWG

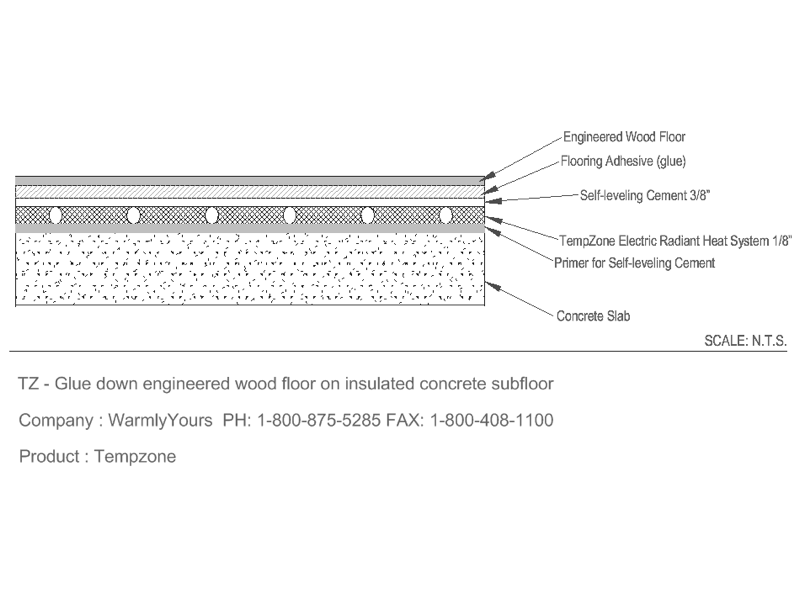

TempZone™ under Glued Engineered Wood on Insulated Concrete / Self Leveling Cement

TempZone™ under Engineered Wood on Insulated Concrete / Self Leveling Cement
Download .DWG

TempZone™ under Glued Engineered Wood on Concrete / Self Leveling Cement

TempZone™ under Nailed Down Hardwood / Self Leveling Cement
Download .DWG

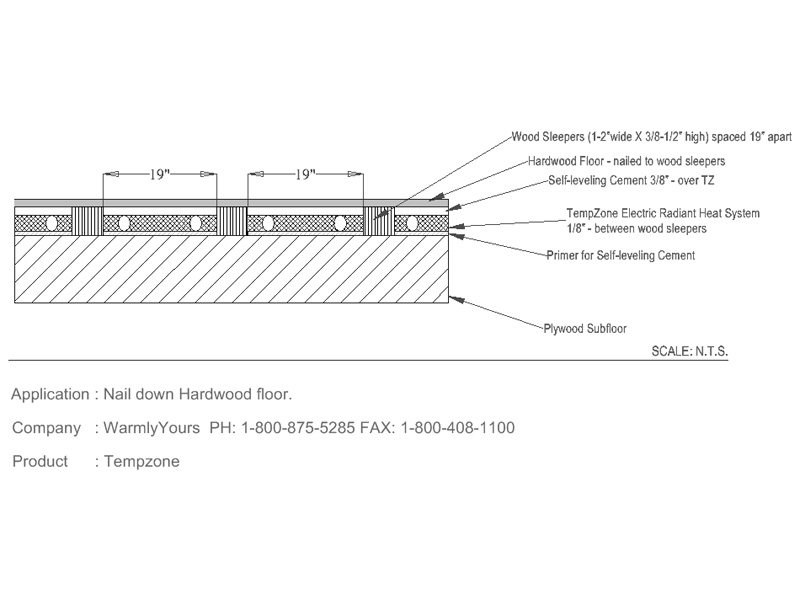

TempZone™ under Nailed-down Hardwood / Self Leveling Cement

TempZone™ under Nailed Down Hardwood / Self Leveling Cement
Download .DWG

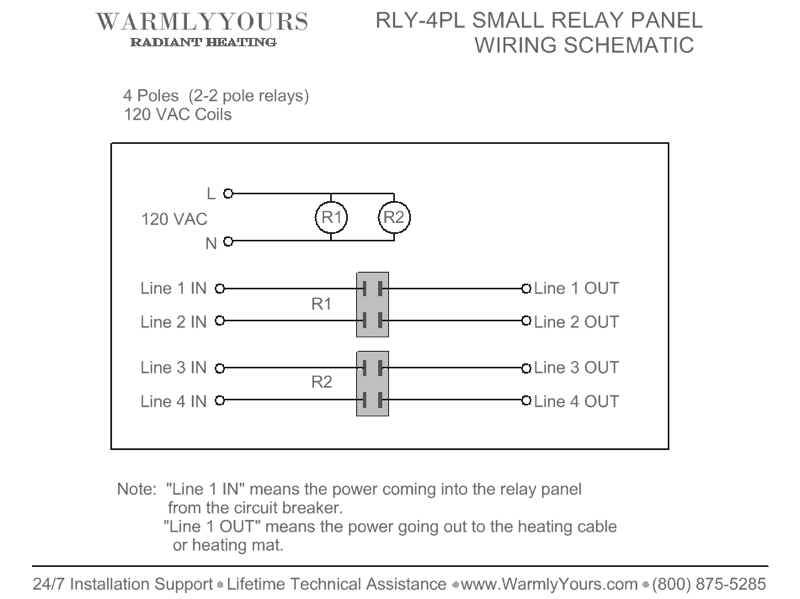

Relay 4 PL Wiring Diagram

Wiring Relay 4-PL
Download .DWG

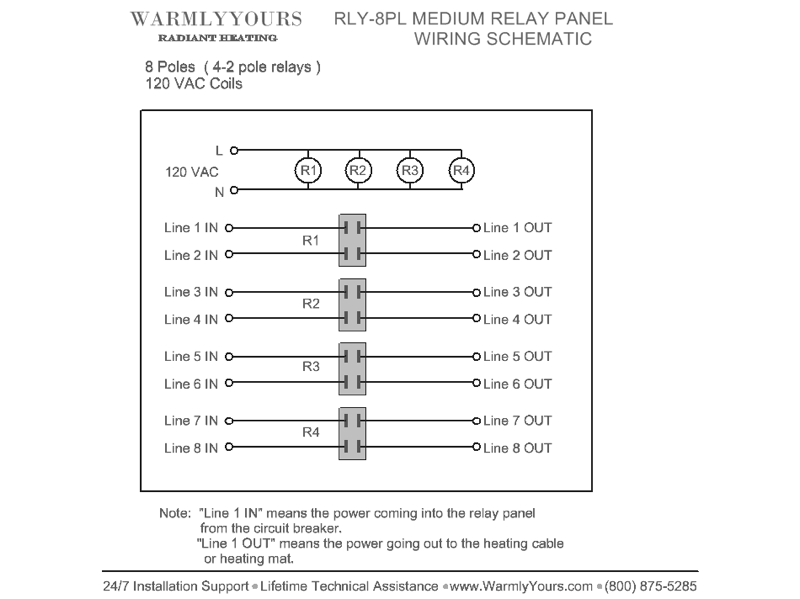

Relay 8 PL Wiring Diagram

Wiring Relay 4-PL
Download .DWG

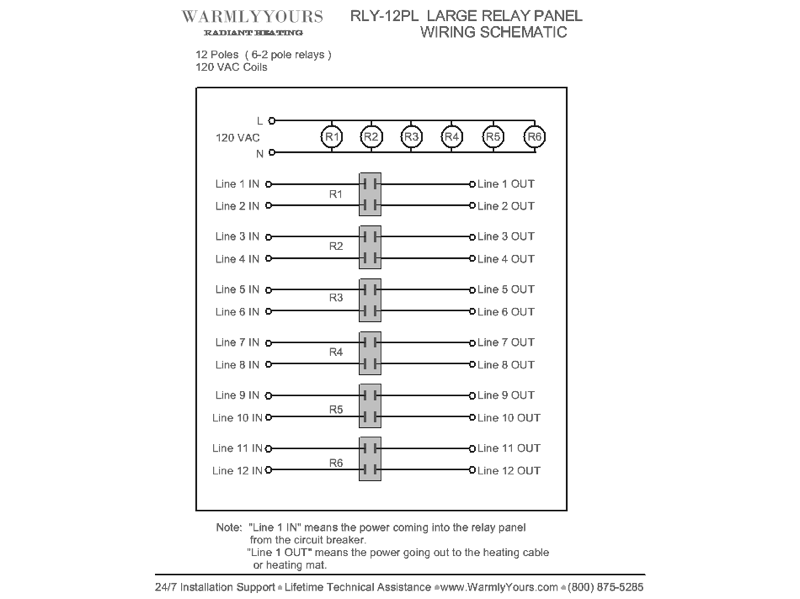

Relay 12 PL Wiring Diagram

Wiring Relay 4-PL
Download .DWG
