The premium control has an adjustable dial on the front cover which provides the option of setting the slab temperature up to 90˚ F. This feature limits how hot the slab will get, and is particularly beneficial when using the WHCA or WHMA constant watt snow melting cables and mats in asphalt driveways.
The control works in conjunction with a slab temperature sensor and an aerial mounted snow sensor (AIR-SS). The SCP-120 panel has a hold-on timer for user adjustment allowing the user to keep the system on for up to 10 additional hours, after snowfall has stopped. An optional RCO unit may be added to manually override the control panel from a remote location. This control option is ideally suited for pavers.
|

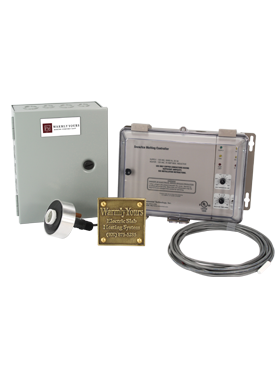

SCP-120 Premium Snow Melt Control
- Provides maximum control of your heated driveway, walkway or stairway.
- Includes a hold-on timer to keep the system on for up to 10 hours
after snowfall has stopped.
Snow Melting SCP-120 Installation Manual
Snow Melting SCP-120 Specifications
|
|
|
AIR-SS Aerial Mounted Snow Sensor
- Detects falling or blowing snow at temperatures below 38°F (3.3°C)
- Most versatile and effective snow melt detection when used with
SCP-120 premium snow melt control.
Snow Melting AIR-SS Specifications
|
|
|
RLY-Series Relay Panels
- Virtually silent load switching panels are ideally suited for
snow heating Mats and cables.
- Power relays are rated for up to 24 amps and include NEMA1 rated
metal enclosures.
- All relays utilize 120v Coils.
- Available in 3 sizes: small (4 Pole), Medium (8 Pole) and
Large (12 Pole).
Snow Melting Relay Panel Specifications
|
|
|
SMP Snow Melting Plaque
- Durable brass plaque identifies presence of snow melting system.
- Required to meet the NEC 426-13 identification.
Snow Melting Plaque Specifications
|
|
|
Remote Control Override (Optional)
- Provides a convenient and economical means of monitoring and
controlling a snow melting system from a remote location.
Snow Melting RCO Specifications
|
|
