Homeowners in Idaho Falls wanted to upgrade their large 510-square-foot dining room with a beautiful new tile floor. To combat the chill of Idaho winters, they chose a WarmlyYours electric floor heating system to ensure their new floor would be a source of constant comfort, not a shock of cold. This invisible solution adds significant value and luxurious warmth, turning their dining room into the coziest gathering space in the house.
Project Details
- Location: Idaho Falls, ID
- Heated Space Type: Dining Room
- Square Footage: 414 sq. ft.
- Watts: 6125 W
- Volts: 240 V
- Amps: 26 A
- Operating Cost: ~$0.70 per hour
- Products Used: TempZone™ Flex Roll, nSpire Touch Thermostat, nJoin Power Module
The Story
The challenge for this Idaho Falls home was a common one: how to keep a large room with a notoriously cold flooring material, like tile or stone, comfortable during the state's frigid winters. The homeowners were planning a beautiful renovation for their 510 sq. ft. dining room but knew that without the right heating solution, the new floor could become a source of discomfort. They wanted a proactive solution that was both effective and invisible, preserving the clean aesthetic of their design.

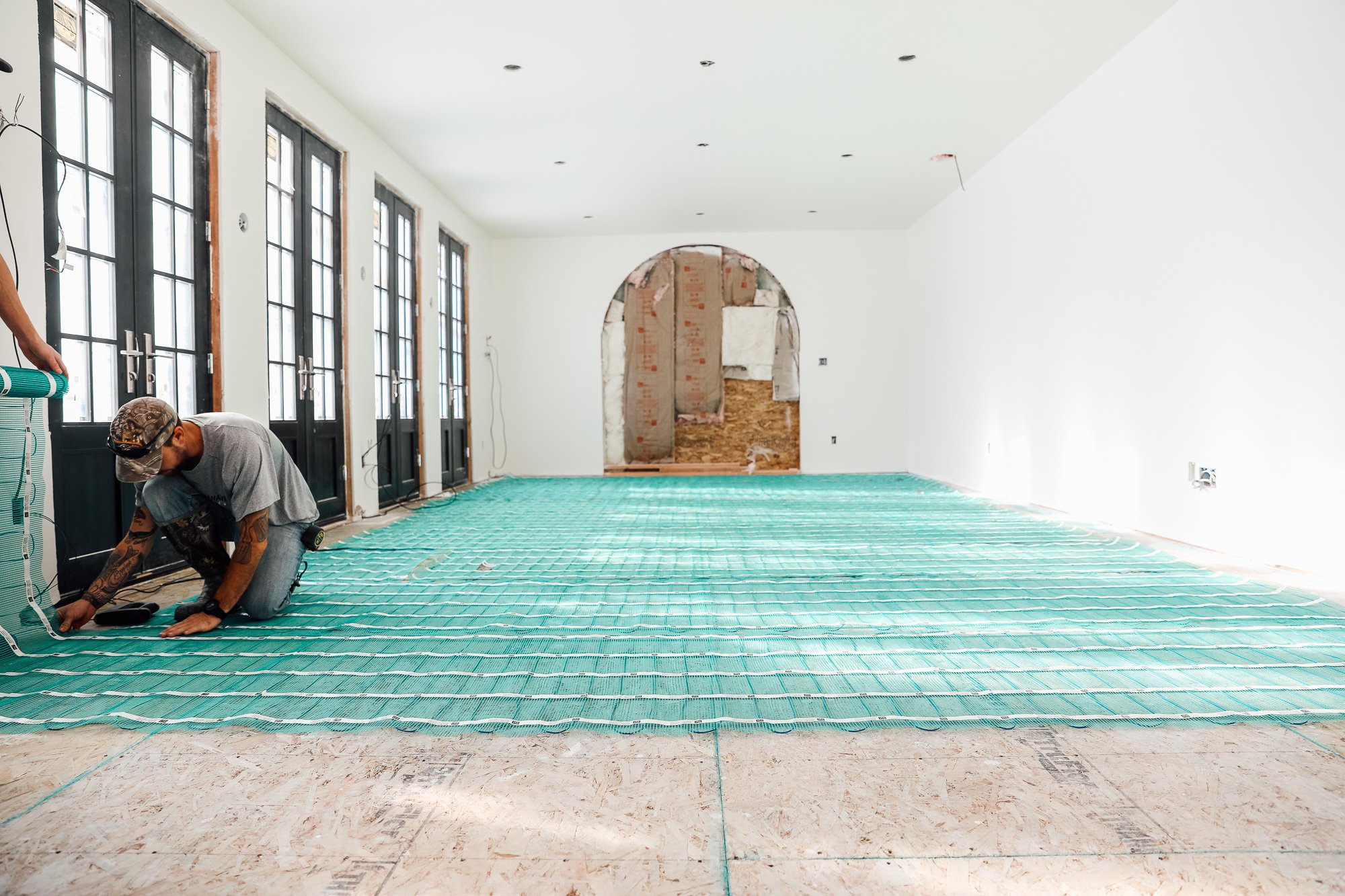

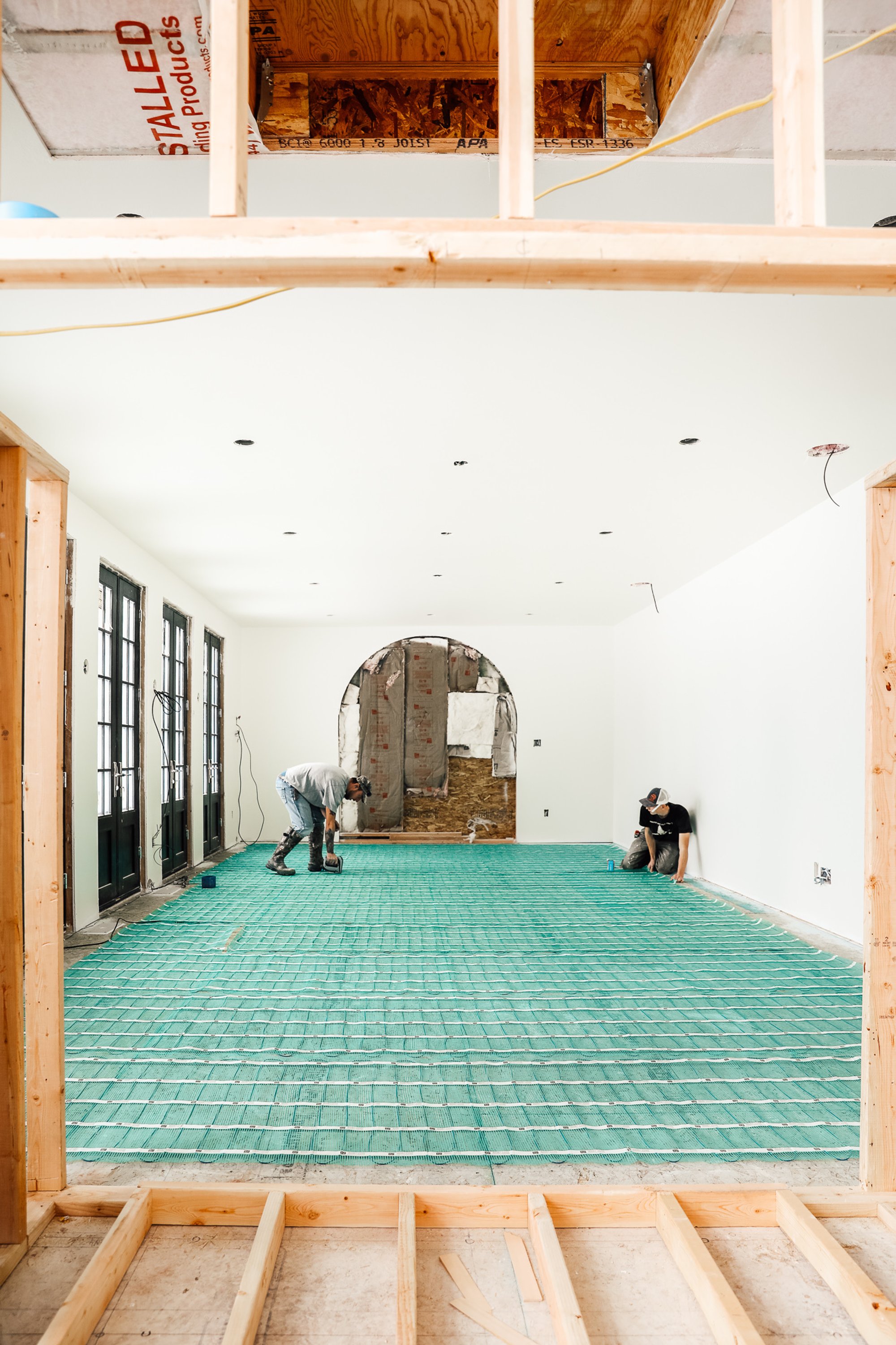

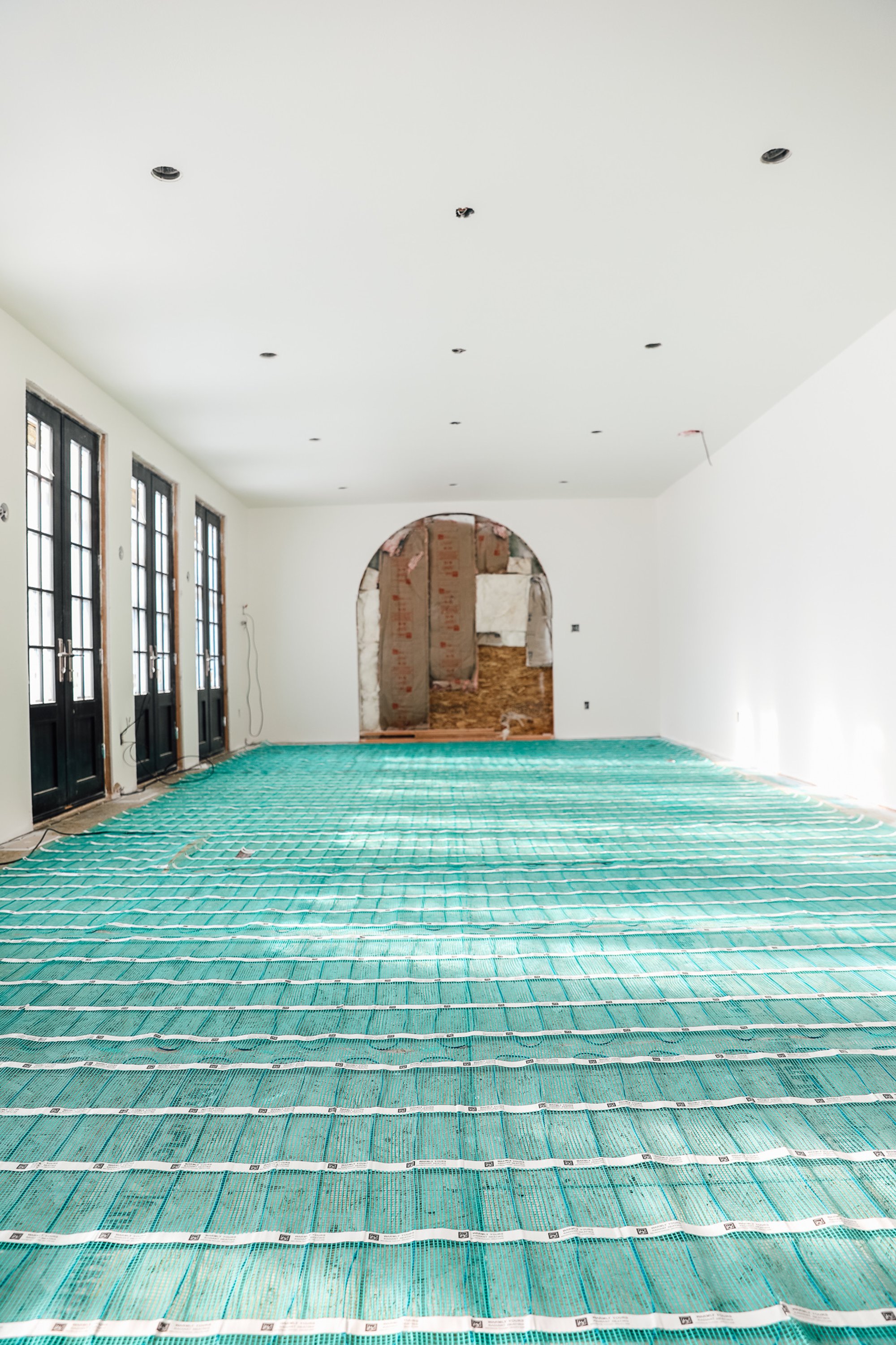

WarmlyYours provided the perfect answer with an electric radiant heating system featuring TempZone™ Flex Rolls. Designed to cover 414 sq. ft. of the floor, the rolls allowed for a fast and straightforward installation over the existing wood subfloor. Because the system is silent and installed directly beneath the tile, it provides consistent, even heat that radiates upward from the floor without affecting air quality or taking up any space with vents or radiators.
The result is a complete transformation. The dining room is now the heart of the home, a warm and inviting space for family meals and entertaining guests, regardless of the temperature outside. The homeowners can enjoy the beauty and durability of their stone tile floor with the added luxury of gentle, consistent warmth underfoot, proving that comfort and style can go hand-in-hand.
Featured Products in This Project

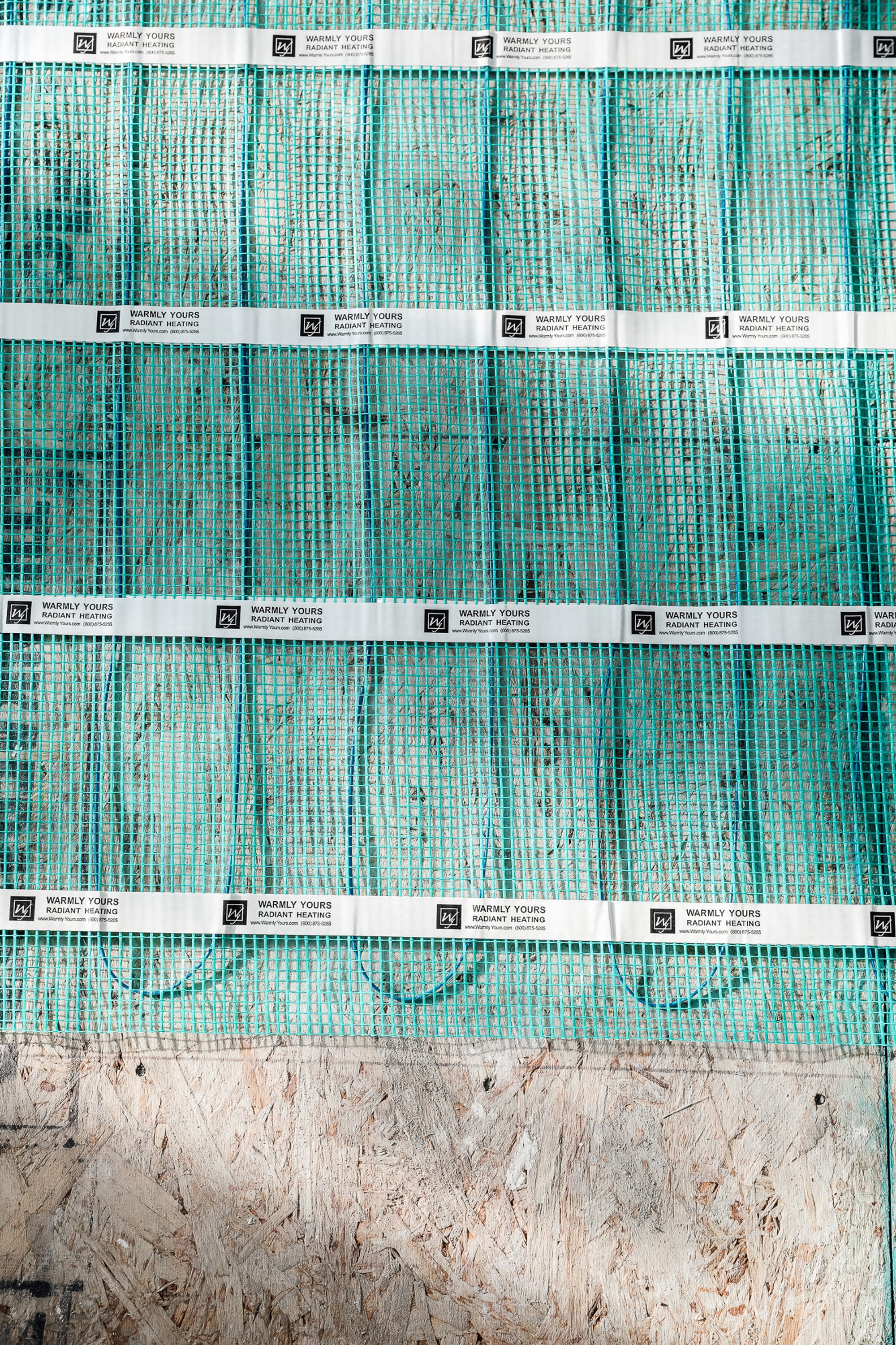

- TempZone™ Flex Rolls: The ideal solution for large, regularly shaped rooms. These rolls feature our TempZone™ heating cable affixed to a durable mesh backing, allowing for rapid installation. The roll is simply secured to the subfloor and can be easily cut and turned to achieve full coverage.
- nSpire Touch Thermostat: This programmable thermostat offers precise temperature control with its intuitive color touchscreen. It includes a floor sensor to ensure optimal comfort and efficiency, along with Class A GFCI protection for safety.
- nJoin Power Module: For large projects like this where the system's amperage exceeds the limit of a single thermostat, the nJoin Power Module is used. It works in conjunction with the main thermostat to safely power an additional section of the heated floor, ensuring seamless operation across the entire space.
