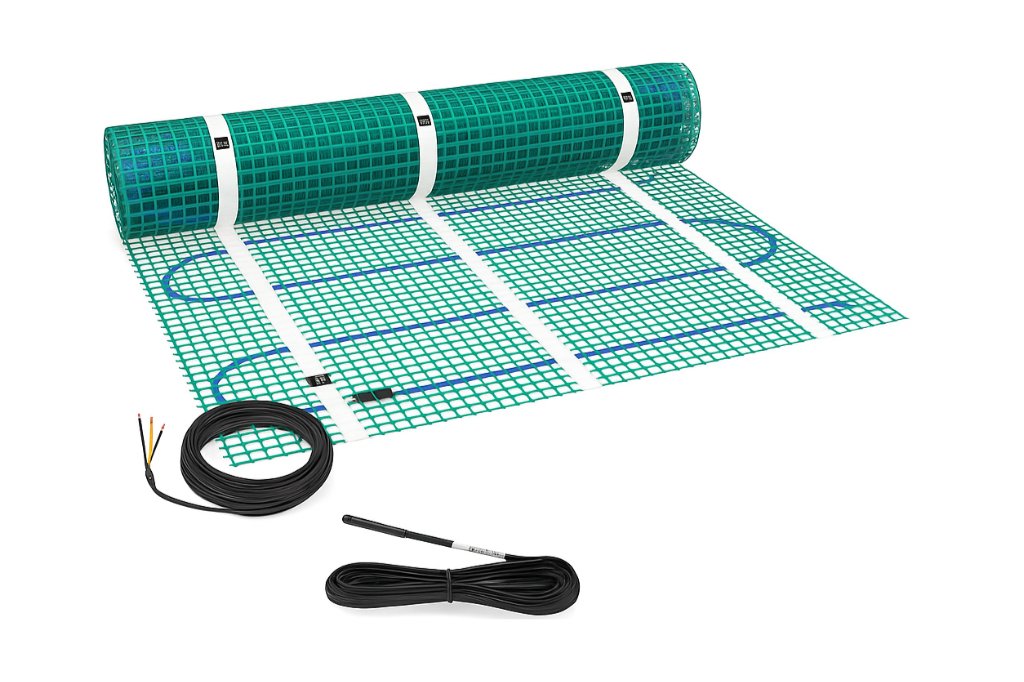

TempZone Floor Heating Mat with BackUp Sensor

Installing electric floor heating under tile is easier than you think—especially with TempZone™ Mats. These DIY-friendly systems are designed for fast, safe, and efficient installation, making them a top choice for first-time installers and seasoned pros alike. Whether you’re upgrading a bathroom or tackling a new build, this guide will walk you through every step of the process.


Why Choose TempZone™ Mats?

TempZone™ Mats from WarmlyYours are pre-spaced electric heating cables attached to a fiberglass mesh for simple layout and consistent heat distribution. They’re ideal for tile, stone, or marble floors and are embedded directly into thinset or self-leveling cement.

Unlike cable-only systems, TempZone™ Mats reduce layout time and installation errors—perfect for DIYers and homeowners who want a smooth project from start to finish.


Planning Your Installation

Before jumping into installation, you’ll need a solid plan. Start by measuring the usable floor space—excluding areas beneath vanities, tubs, or toilets. Then, submit a sketch to WarmlyYours to receive a SmartPlan™. This detailed layout includes:

  • A custom installation diagram

  • Electrical plan with circuit requirements

  • Estimated operating costs

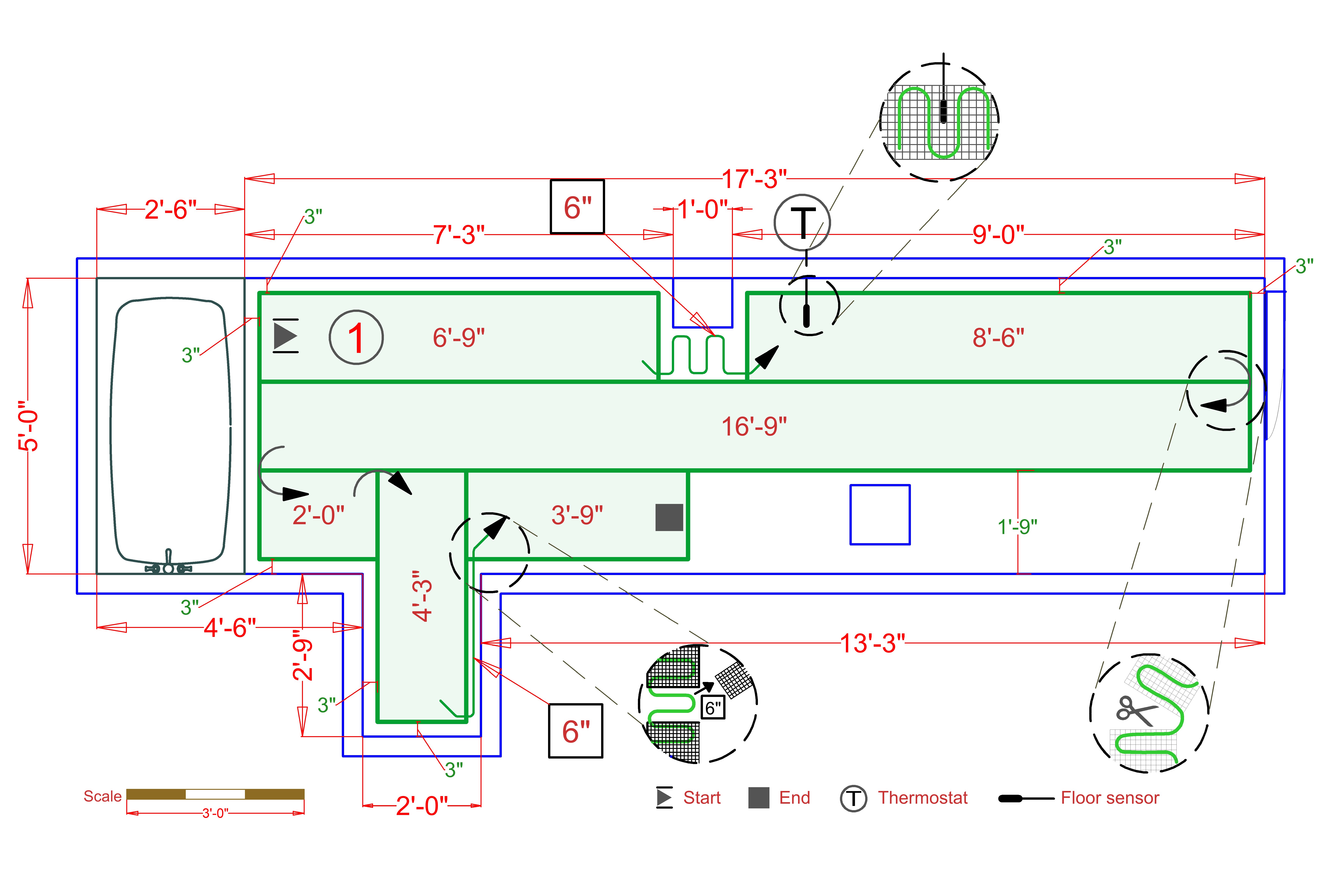

SmartPlan layout diagram from WarmlyYours showing floor heating mat placement and electrical connections for a bathroom installation.
A WarmlyYours SmartPlan™ provides a custom layout and electrical diagram to guide your radiant floor heating installation.


A SmartPlan also ensures clear communication between flooring installers and electricians—both trades must coordinate for a successful installation.

Bonus: WarmlyYours keeps records of all SmartPlans to assist with anything you might need in the future—whether it’s technical support, coordinating with a contractor, or transferring ownership to a new homeowner.


Step-by-Step Guide to Installing TempZone™ Mats Under Tile

1. Measure and Sketch Your Floor

Start by determining the usable heated area—this means excluding fixed objects like vanities, tubs, and toilets. Then, draw a sketch with accurate dimensions.

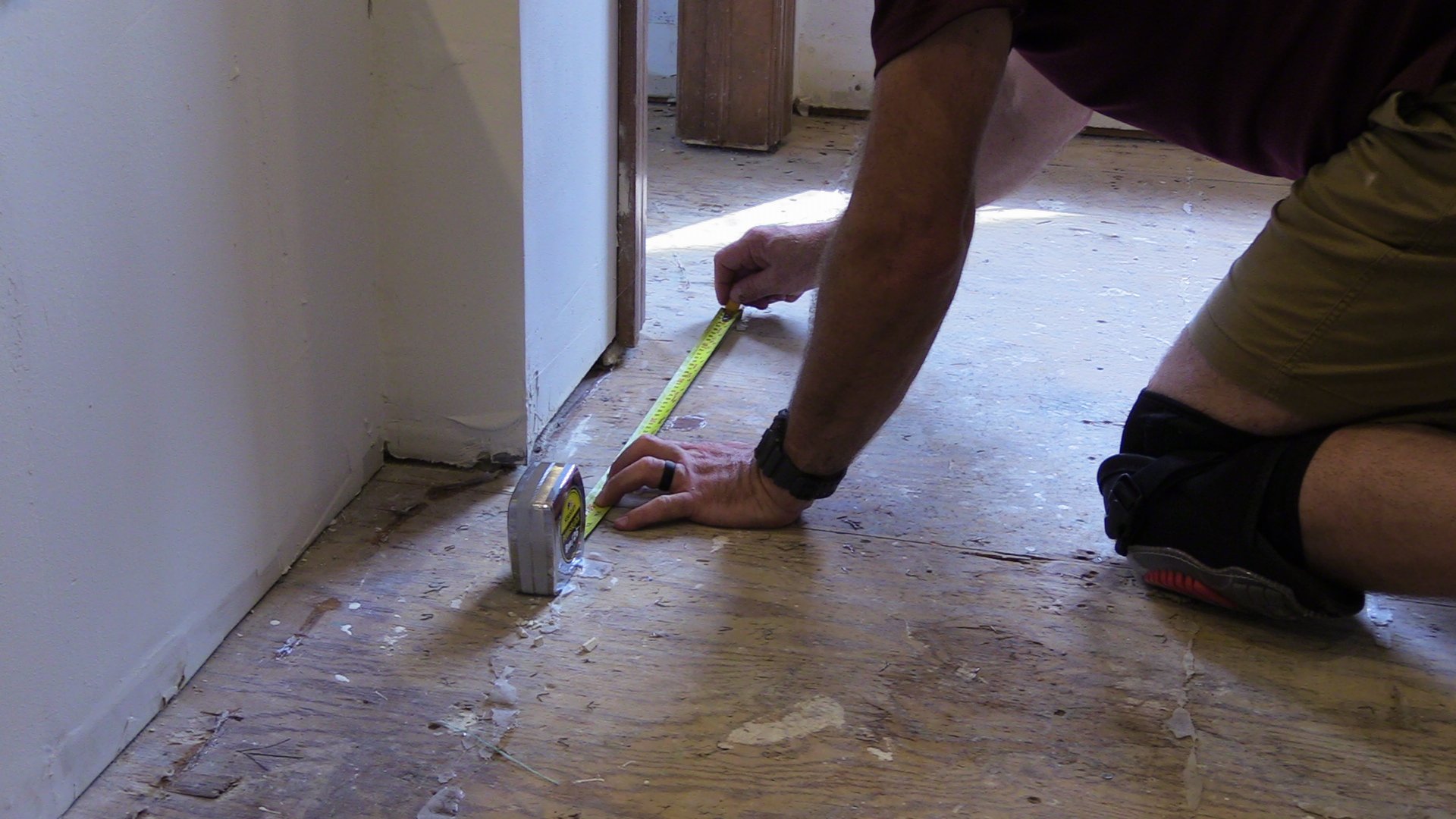

Person measuring the usable floor space with a tape measure and sketching the layout for an electric floor heating installation
Accurate measurements are the first step to a successful floor heating installation—always exclude cabinets, tubs, and toilets.


Your sketch is required to receive a custom SmartPlan™ from WarmlyYours. Be sure to include:

  • The room layout with dimensions

  • Any floor vents

  • The desired wall location for the floor heating thermostat

The SmartPlan also helps set expectations by highlighting which areas will be heated and which may not—such as within 12 inches of any wall, where floor heating is typically not prioritized.



2. Prepare the Subfloor

Ensure the subfloor is clean, dry, and free of debris or sharp objects.

  • For concrete slab subfloors, install ThermalSheet insulation in a staggered pattern to prevent heat loss.

  • For wood subfloors, insulation isn’t necessary but a clean, level surface is essential.

Submit Your Floor Plan for a SmartPlan


3. Test the Heating Mats

Before installation, test each TempZone™ Mat using a digital ohmmeter. Readings should fall within 15% of the value listed on the UL label, which is permanently attached to the heating element.

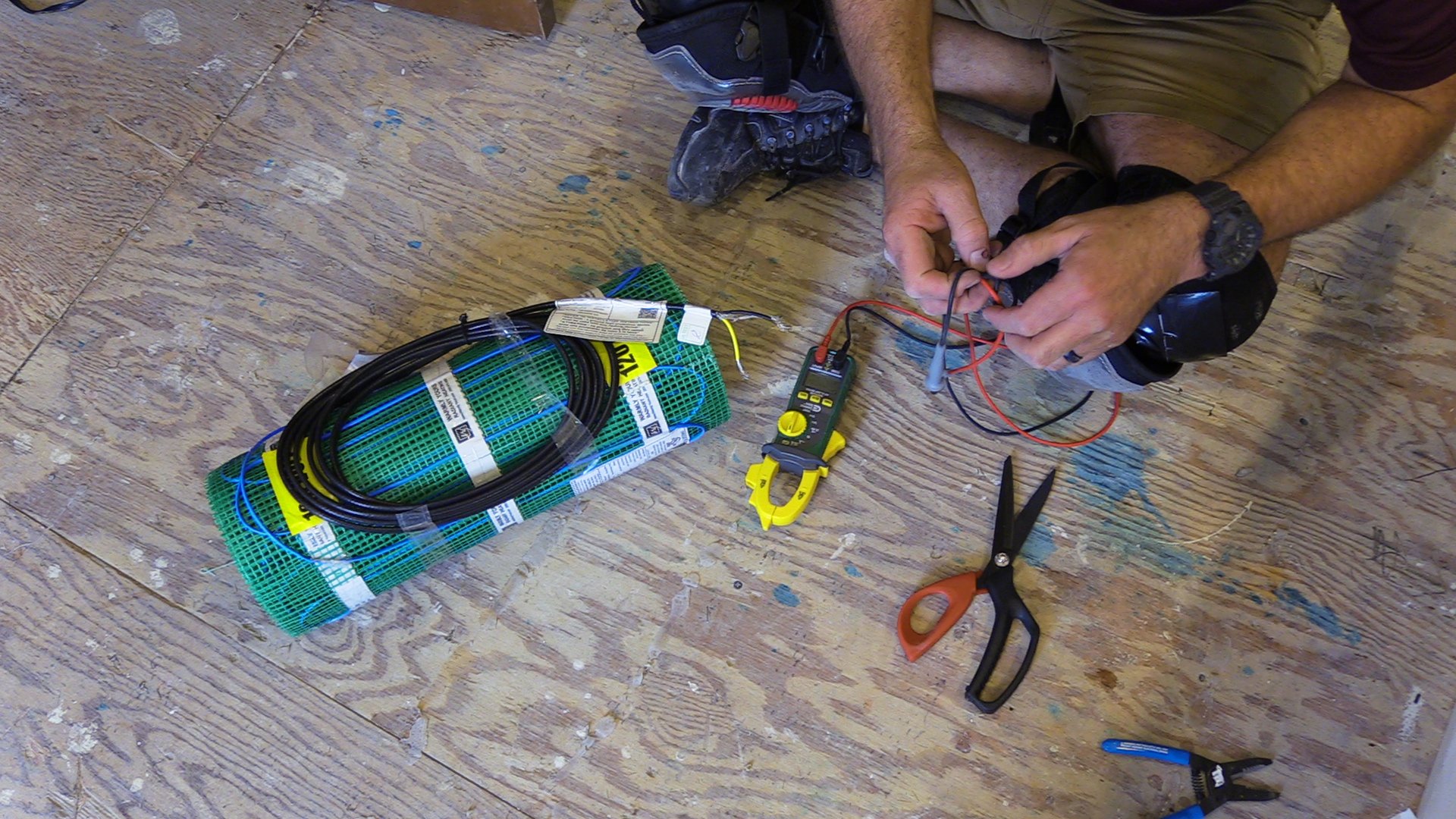

Digital ohmmeter testing a TempZone floor heating mat to confirm electrical continuity before installation
Digital ohmmeter testing a TempZone floor heating mat to confirm electrical continuity before installation


For added quality assurance, each TempZone™ Mat is tested three times at our factory—before, during, and after production. This rigorous process ensures your heating mat is in perfect working condition when it arrives at your home or job site.


4. Connect the Circuit Check

Before unrolling the mat, attach a Circuit Check device to the system wires.

This tool emits an audible alert if the heating cable is cut, nicked, or damaged at any point during installation—allowing you to fix the issue before tile is installed.

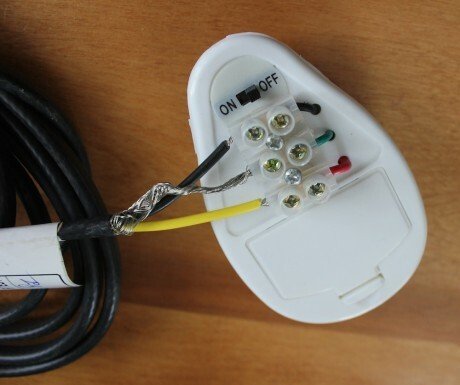

Circuit Check tool connected to radiant floor heating system to detect cable damage during tile installation.
The Circuit Check device provides audible alerts during installation to ensure the heating element remains intact and undamaged.


Leave the Circuit Check connected until tile installation is complete.


5. Lay Out the Heating Mats

Following your SmartPlan, roll out the mats. To change direction, cut the mesh—not the cable—and rotate the mat. Use hot glue or tape to secure it to the subfloor.

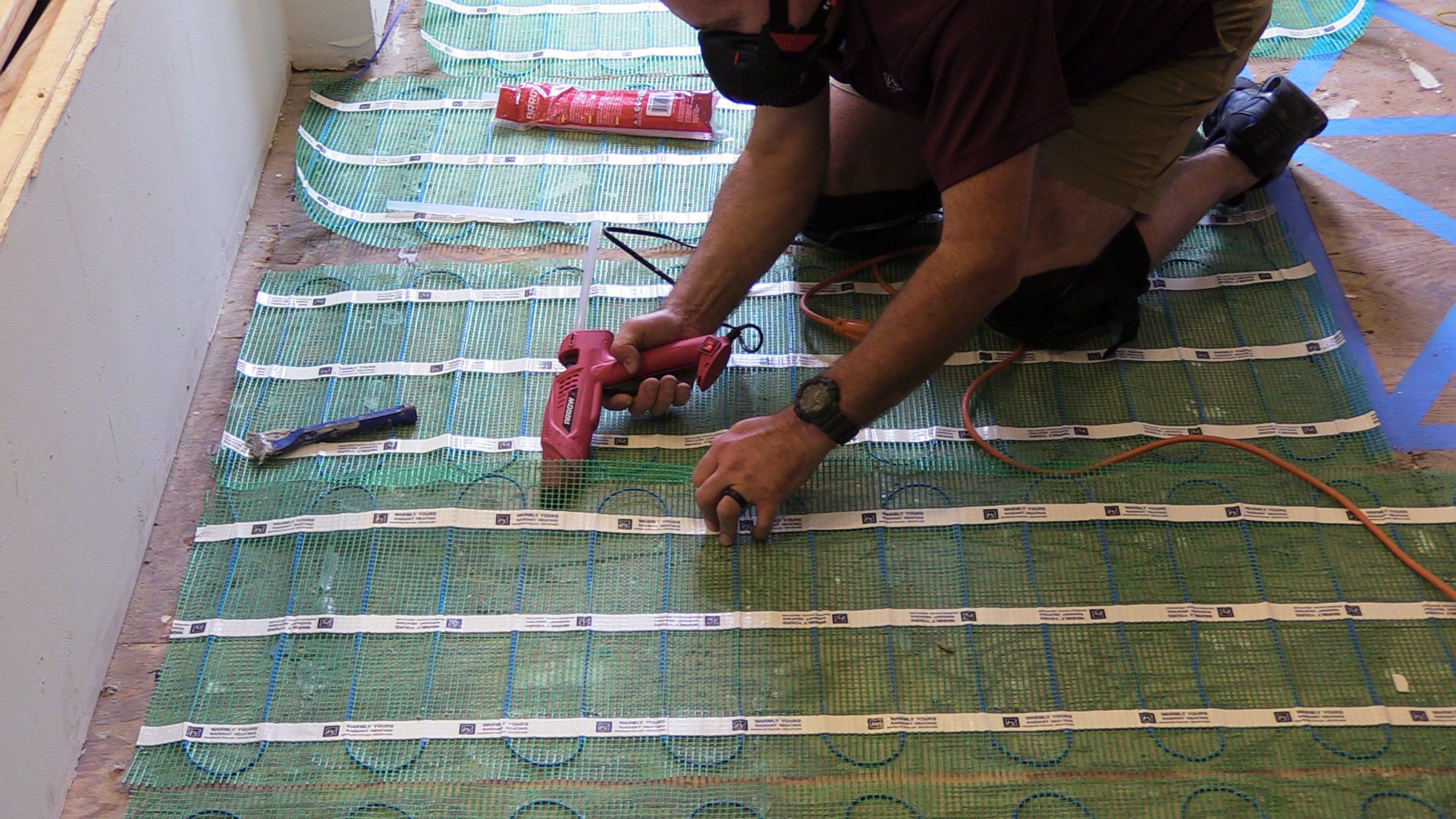

Installing a TempZone™ heating mat with a hot glue gun to fasten it to the subfloor during floor heating layout.
Secure the TempZone™ heating mat to the subfloor using a hot glue gun or non-metal staples during layout.

6. Install the Floor Sensor (Backup included)

Every WarmlyYours floor heating thermostat comes with two sensors—a primary and a backup. While only one sensor is connected to the thermostat, the second is installed in the floor and left unconnected as a built-in backup.

The active sensor should be placed between two heating cables, approximately 6 inches into the heated area. Avoid crossing it over any heating wires. Secure it using hot glue or by tucking it into the mesh per your SmartPlan.

The backup sensor remains dormant in the floor. If the primary sensor ever fails (which is rare), the backup can be connected without needing to remove tile—saving time, money, and hassle.

Diagram of a radiant floor heating installation with one floor sensor positioned between heating cables and a second backup sensor placed in the wall cavity for future use
A floor heating layout diagram showing proper placement of the primary sensor between two heating cables and a backup sensor routed through the wall.

7. Retest the System

After the heating mat is installed and secured to the subfloor, use a digital ohmmeter to retest the system before covering it with thinset or self-leveling compound.

This step confirms that the heating element has not been accidentally damaged during layout or positioning. Even small, unnoticed issues—like pressure points or minor abrasions—can cause problems if not detected now.

Compare your new reading to the previous one to ensure consistency—values should be within 15% of the UL label. Any significant difference should be addressed before proceeding.

Important: Record your ohmmeter readings on the WarmlyYours warranty document and submit it to ensure full warranty coverage. This documentation confirms the system was tested properly at key stages of installation.


8. Connect the Thermostat

A licensed electrician should complete all wiring connections for safety and compliance with local codes.

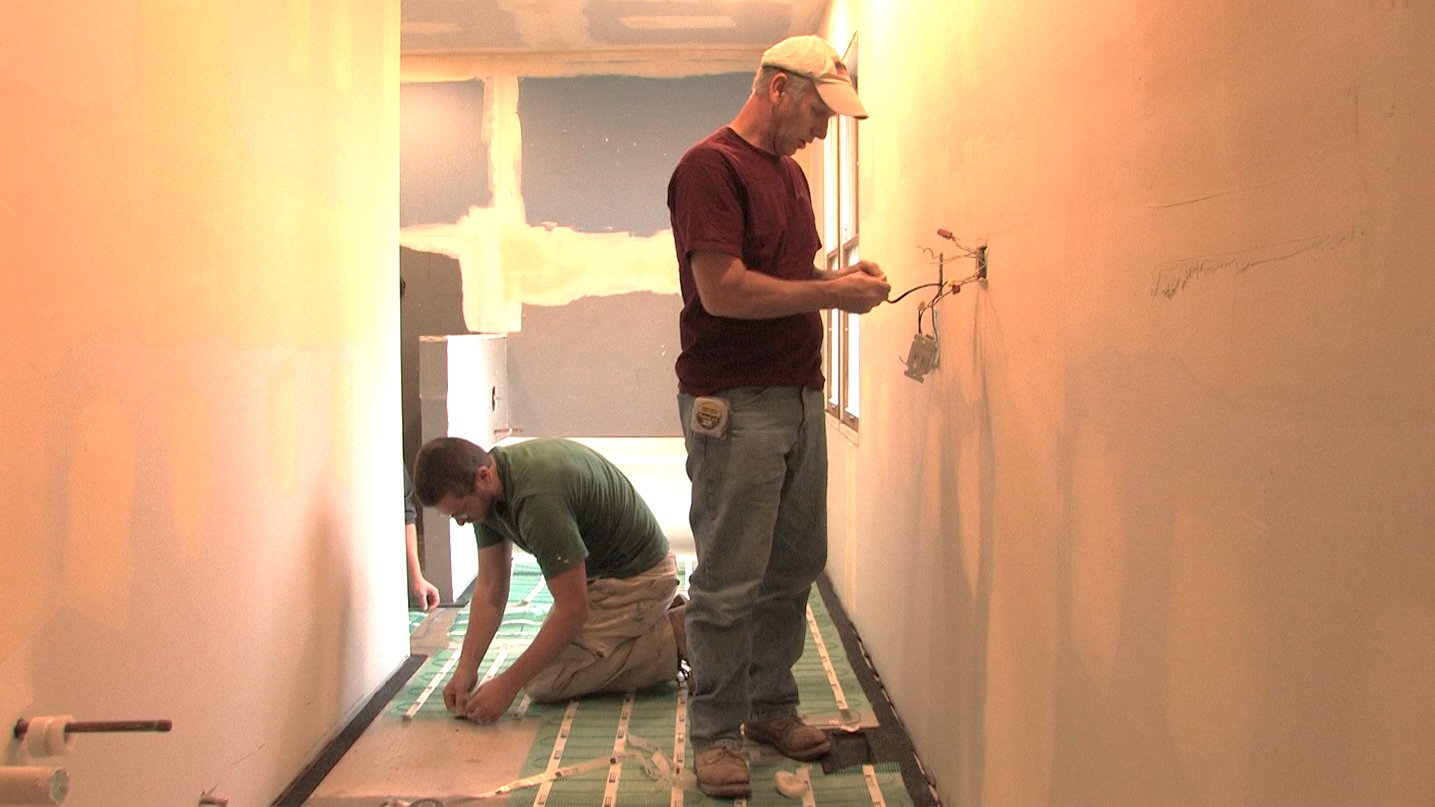

Electric floor heating thermostat being installed on a bathroom wall, with wiring connected to radiant heating system. Photo by Phil Green of P.G.C. Construction.
Installing a radiant floor heating thermostat as part of a bathroom remodel. Image courtesy of Phil Green, P.G.C.


We recommend placing the heating system on a dedicated circuit—while not mandatory, doing so helps prevent interference from other electrical devices and ensures the floor warming system performs at its best.

Always use a thermostat with a built in GFCI to meet safety standards and protect against electrical issues.


9. Apply Thinset or Self-Leveling Compound and Install Tile

Spread modified thinset over the heating mats and set your tile. Use a leveling system to prevent lippage. Allow the mortar to cure fully before powering on your system.

Cover the TempZone™ Mat with either a modified thinset mortar or a self-leveling compound (SLC)—both are suitable depending on your project preference and installer experience.

After embedding the heating element, set your tile directly on top. Using a tile leveling system can help prevent lippage and ensure a flat, professional-looking finish.

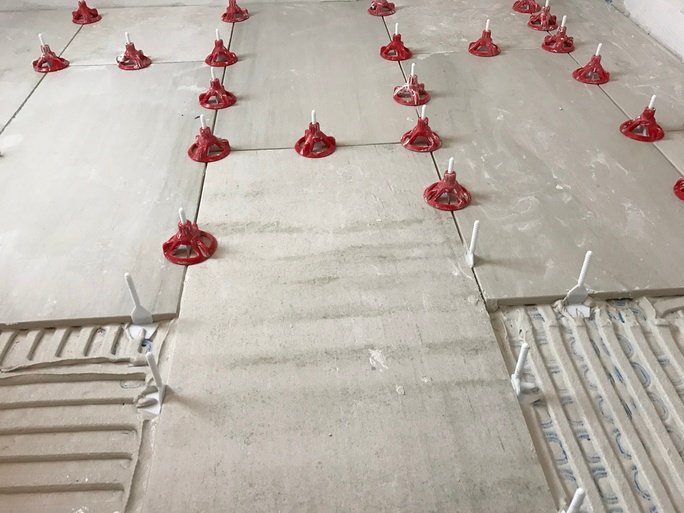

A mechanical leveling system can ensure that you don't experience any undesired tile lippage.


Always allow the mortar or compound to fully cure before powering on your radiant floor heating system.


Watch It in Action

See how easy it is to install a TempZone™ Floor Heating Mat with this step-by-step video. Whether you’re a DIYer or a seasoned pro, this walkthrough highlights key installation tips and best practices so you can confidently create a warm, luxurious tile floor.


Explore Other Electric Floor Heating Products

Looking for something more custom or flexible than TempZone™ Mats—our most DIY-friendly system? Check out these additional options:

Each is compatible with tile and offers efficient, reliable warmth tailored to your project’s needs.


Frequently Asked Questions

How thick is the TempZone™ Mat with thinset and tile?

Approximately 3/8” to 1/2”, depending on tile thickness and thinset depth.

Can I cut the heating cable?

Never cut the heating cable. Only cut the mesh to turn or reposition the mat.

Do I need insulation under the mat?

It’s highly recommended on concrete subfloors to prevent downward heat loss. Use ThermalSheet™ for best results.

Is a floor sensor required?

We recommend it for temperature precision and energy efficiency.

How long before I can turn on the system?

Wait 7–14 days for the mortar to cure fully, as specified by the thinset or SLC manufacturer.
