This project centered on transforming a cold, underused basement in Mississauga, Ontario, into a warm, comfortable living space. The challenge was combating the pervasive chill radiating from the large-format tile flooring, which made the area feel unwelcoming, especially during the long Canadian winter. By installing a 74 sq. ft. TempZone™ Flex Roll in-floor heating system, WarmlyYours provided a silent, invisible, and highly energy efficient heating solution that added measurable comfort and value to the home.
Project Details
- Location: Mississauga, ON
- Heated Space Type: Basement
- Floor/Surface Type: Tile, Marble or Stone
- Square Footage: 74 sq. ft. (Full Coverage)
- Watts: 1,104 Watts (1.104 kW)
- Volts & Amps: 120 Volts / 9 Amps
- Operating Cost Per Hour: ~ $0.13 CAD
- Operating Cost Per Day (8 hrs): ~ $1.06 CAD
- Operating Cost Per Month (30 days): ~ $31.80 CAD
- Products Used: TempZone™ Flex Roll, SmartStat™ Thermostat
Project Information
The homeowner's primary challenge was the typical coldness associated with basement spaces and the naturally low temperature of tile and stone flooring. Even with existing forced-air heat, the floor was always frigid, rendering the basement unpleasant for daily use. The goal was a complete comfort upgrade with a system that could be installed quickly and efficiently.

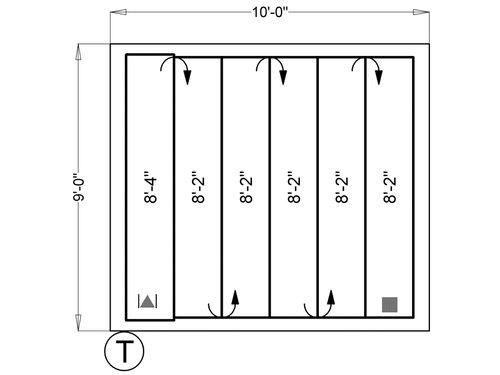

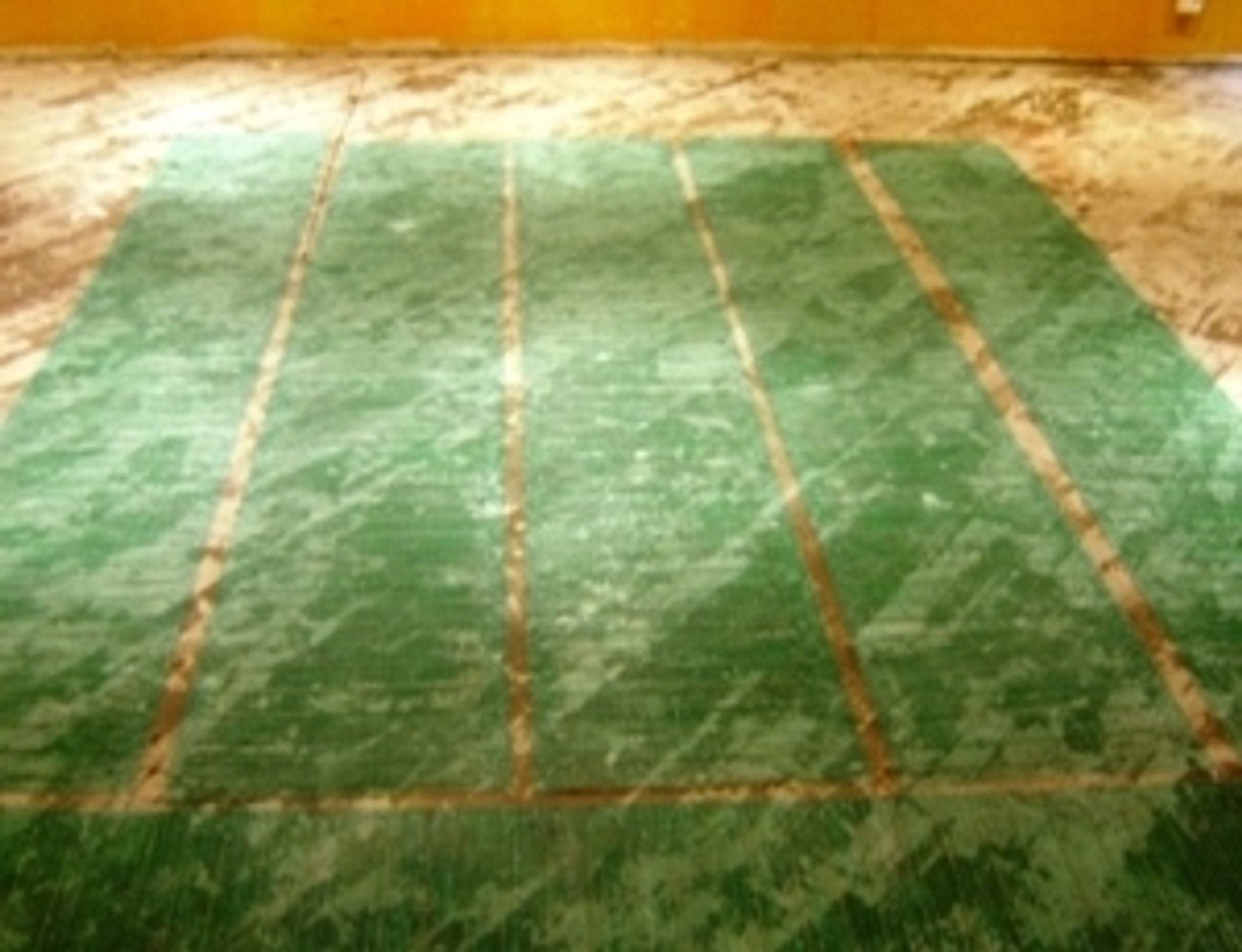

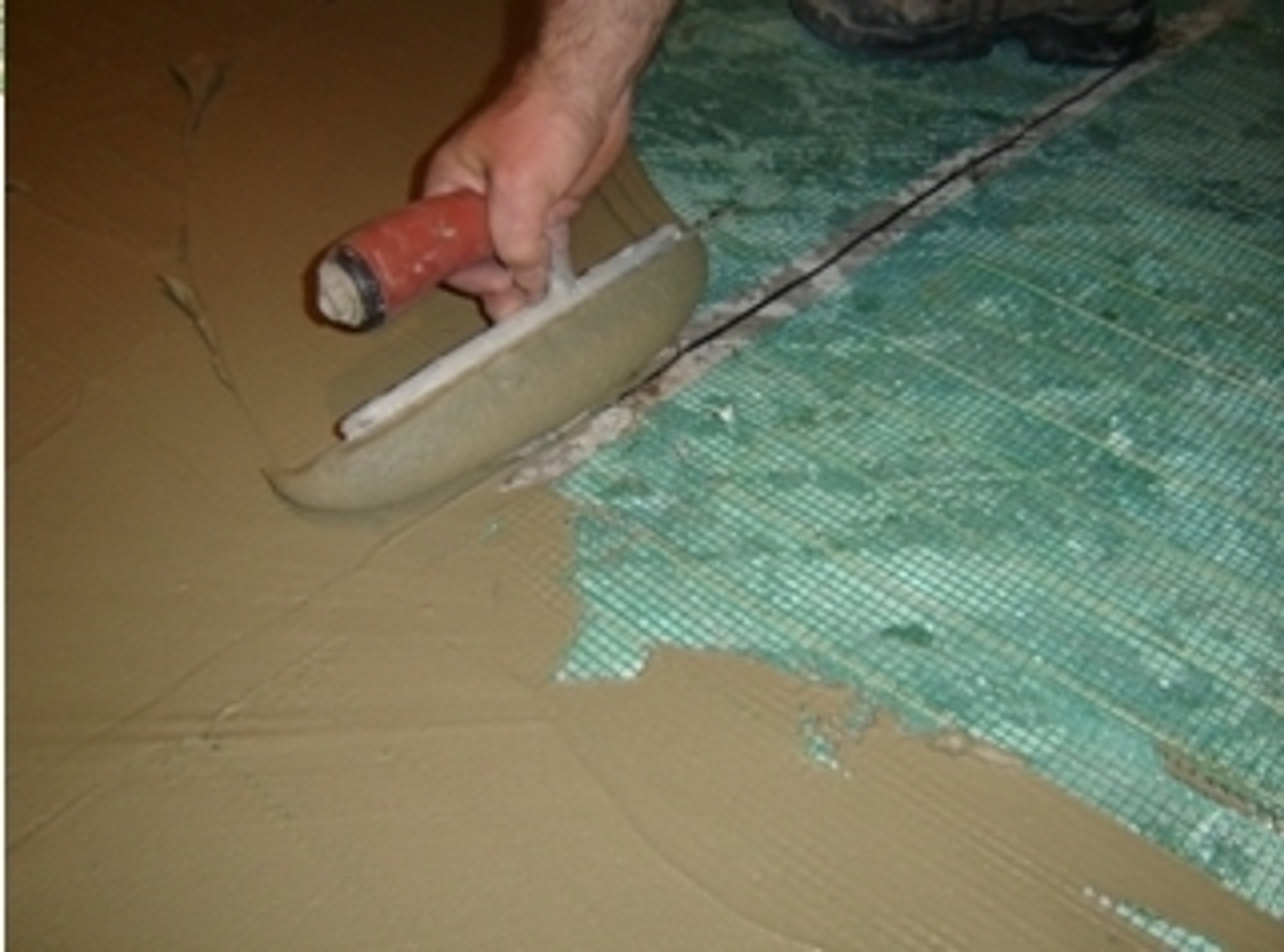

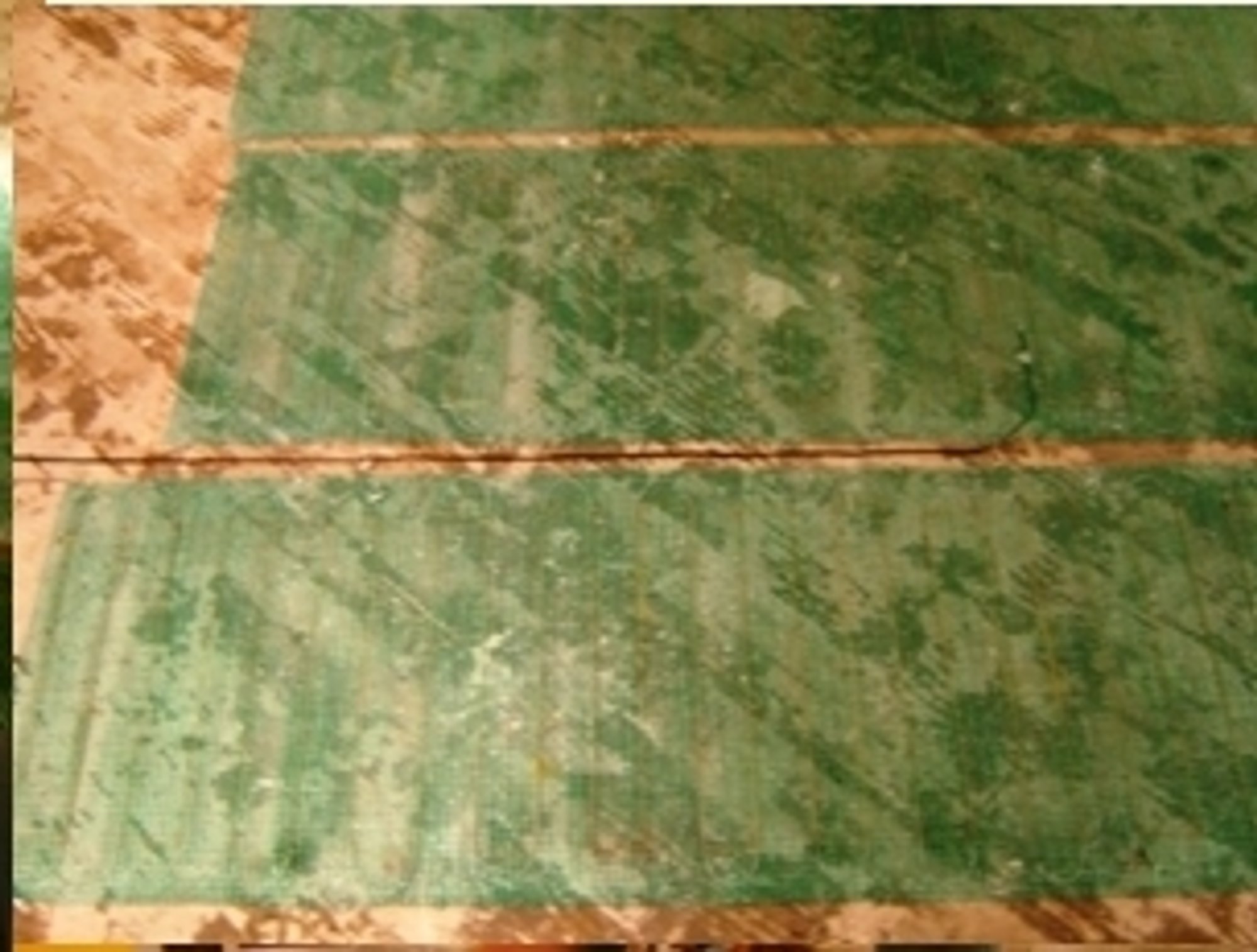

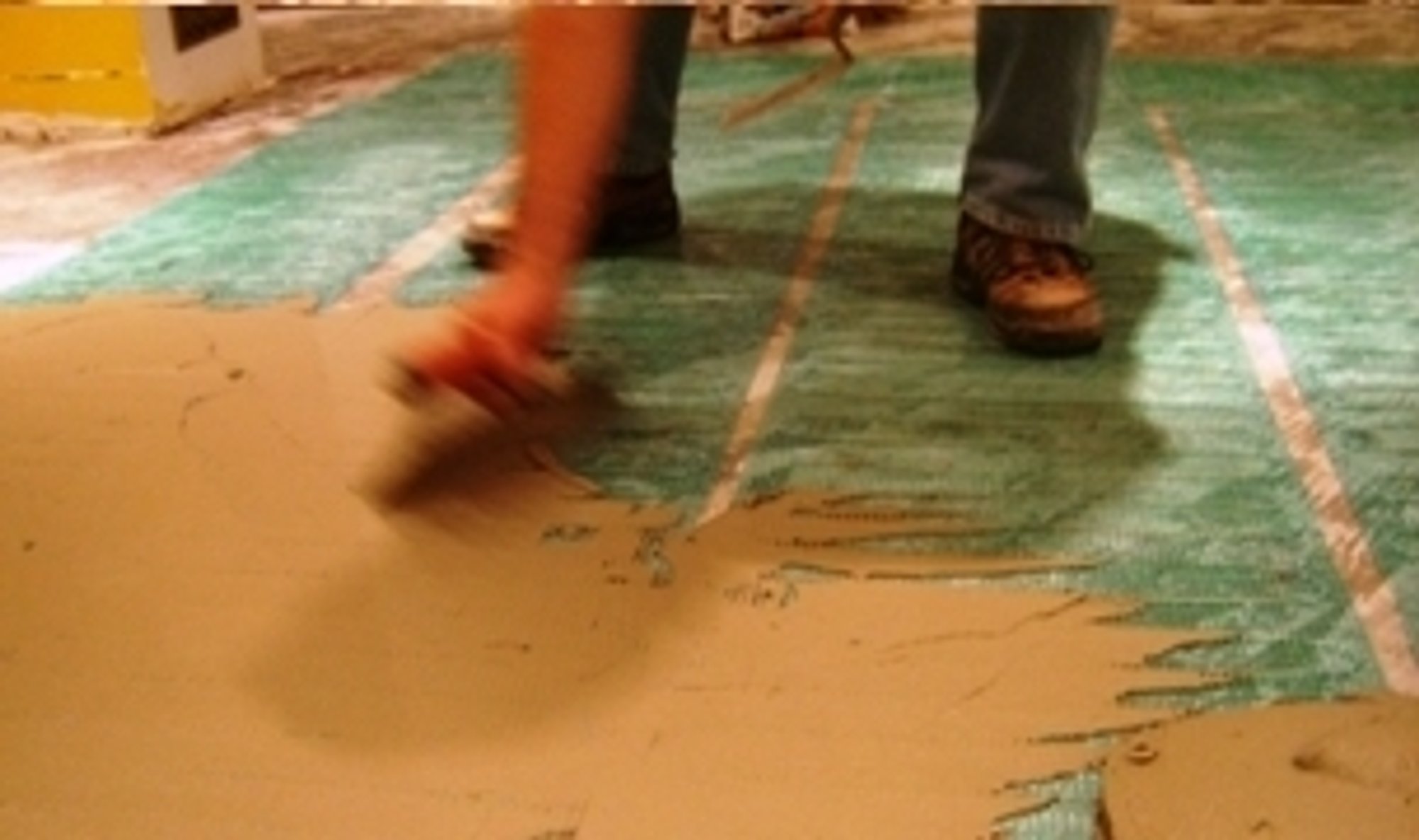

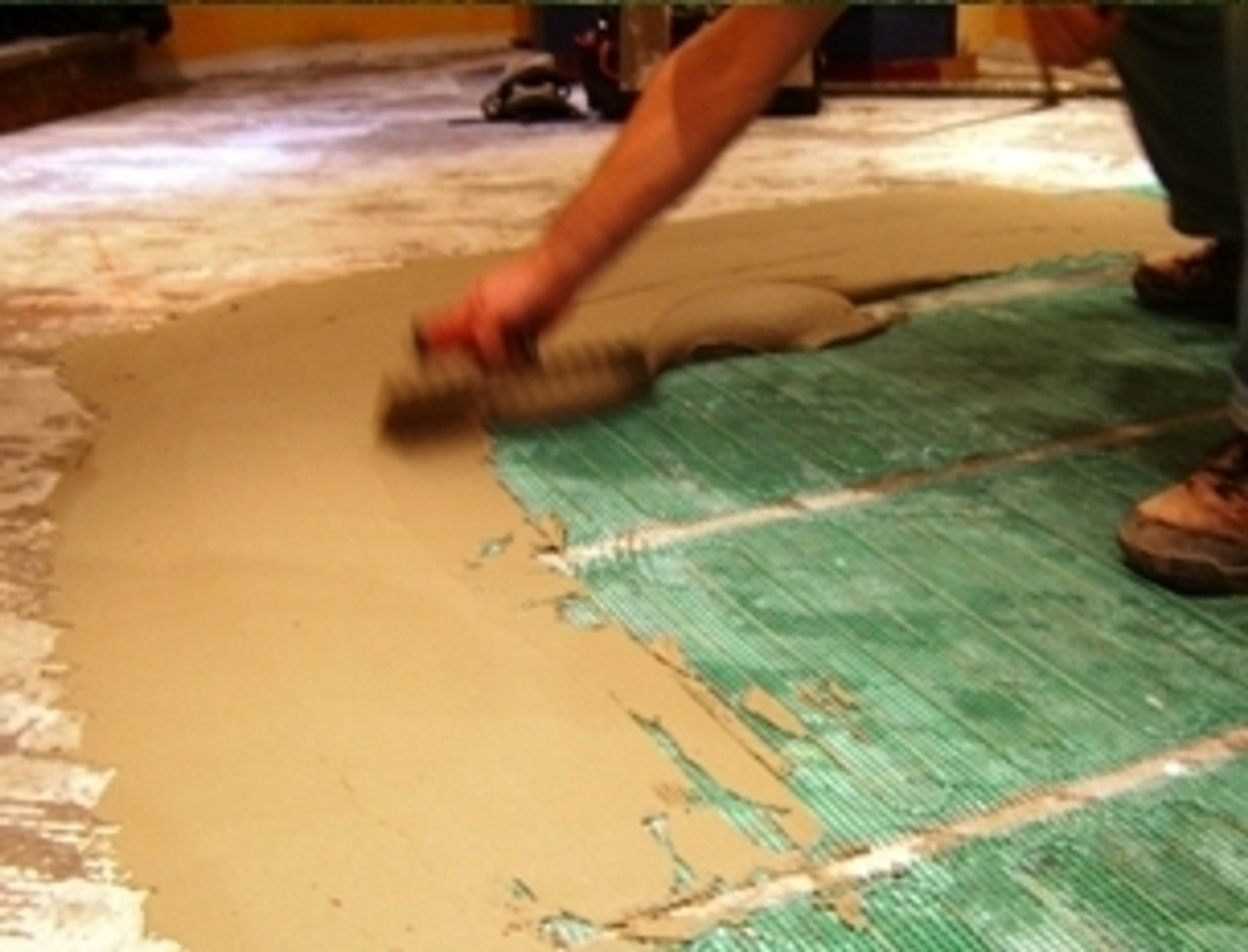

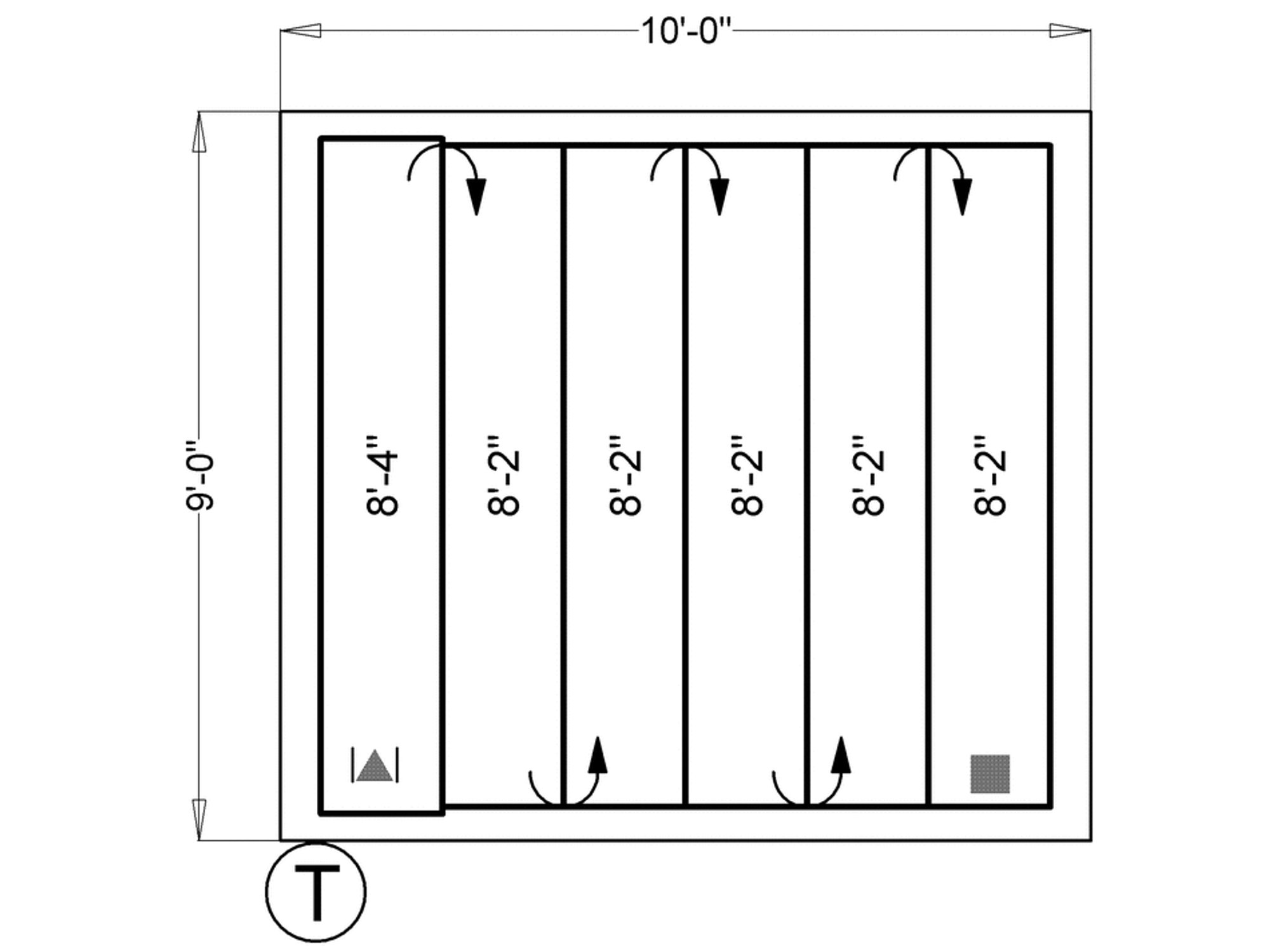

The solution involved the installation of the TempZone™ Flex Roll, which was selected for its ease of use and ability to cover the 74 sq. ft. area quickly. Since the homeowner required a Next Day solution, the system's simple roll-out design helped facilitate a rapid installation process, minimizing disruption. The electric floor heating system was secured directly over the wood sub-floor, ready to be embedded in thin-set mortar beneath the beautiful final stone finish.
The outcome was a fully transformed living space. The radiant floor heating system eliminated the problem of cold tile, replacing it with gentle, consistent warmth that rises from the floor and warms all objects in the room. This not only provided unparalleled comfort but also delivered superior energy efficiency by heating only the targeted living space, making the basement a cozy, high-value extension of the main home.
Cost Highlight
This 74 sq. ft. in-floor heating system, which draws 1,104 Watts, is exceptionally cost-effective to run, based on local Mississauga, ON electricity rates (calculated using a blended rate of ~$0.12 CAD/kWh).
This system costs just about $0.13 CAD per hour → $1.06 CAD per day → less than $32/month to run, assuming the system operates for 8 hours daily. This minimal operating cost is a small investment for the huge boost in comfort and permanent luxury value added to the home.
Featured Products
The core of the system, this durable twin-conductor heating roll is ideal for rectangular areas like this basement. It provides 15 Watts per square foot for rapid and effective warming of tile, marble, or stone surfaces.
This high-end control includes a GFCI safety device and a floor sensor to accurately monitor and regulate the radiant floor heating. Its smart features allow the homeowner to program the system to operate primarily during off-peak energy hours, maximizing the energy efficient nature of the system.
A crucial installation tool that continuously monitors the heating cable during installation to ensure it has not been damaged, providing peace of mind for the installer.
