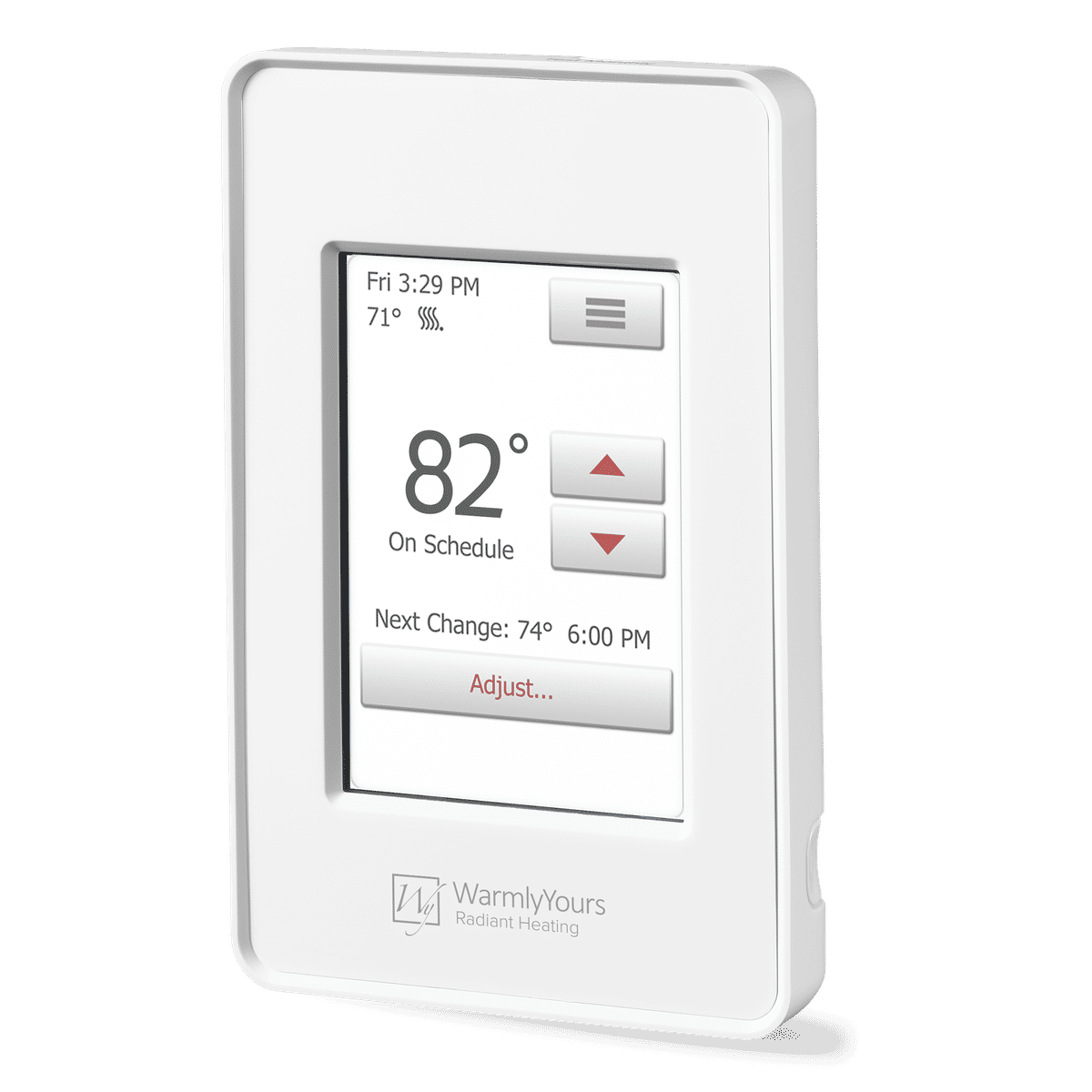

nSpire Touch Programmable Thermostat

4.92
Based on 479 reviews
  • Program up to 6 setting changes for each day of the week
  • It’s never been easier to set up a radiant heating system according to your preferences and schedule
  • With an included floor sensor, your system can cycle on and off and continuously adjust to save energy
  • With its crystal-clear 3.5” full color touchscreen display, the nSpire Touch is as easy to operate as it is to look at
  • Dual voltage (120V/240V)
Need help? Call our experts at (800) 875-5285
Support Page

nSpire Touch Programmable Thermostat Description

Finally, a radiant heating thermostat that looks as good as floor heating feels. This version comes with a white faceplate that allows the unit to blend seamlessly with a large variety of room designs. The programmable nSpire Touch features a 3.5” full color touchscreen and a modern design that instantly augments any room’s style.

With an integrated Install Wizard, it’s never been easier to set up a radiant heating system according to your preferences and schedule. The nSpire Touch allows you maximum control over the floor temperature with 6 programmable events for each day of the week, which is great for “Goldilocks households” where there will be frequent adjustments to the temperature or thermostat’s schedule until it’s “just right.”

This dual voltage (120V/240V) thermostat puts the control where it belongs, at your fingertips. Includes floor sensor.

Features:

  • 3.5” Touchscreen: The crystal-clear full color touchscreen display is easy to navigate and provides an energy log for tracking usage
  • Included Floor Sensor: This thermostat comes with a complimentary 10k ohm floor sensor
  • Integrated Install Wizard: the easy-programming options make set up a breeze
  • Programmable: You can set 6 separate temperature events per day, which means you can customize your comfort while cutting down on operating cost
  • 3-year Warranty: Limited 3-year warranty and lifetime technical support
  • Safe: This thermostat comes with a Child-Lock function, built-in self-testing GFCI, and is cULus listed
  • Radiant Heating Thermostat: You can use the nSpire Touch to control both electric floor heating systems and hardwired radiant panels

Specifications

Warranty / Certifications

Approvals cULus listed
Ingress Protection (IPxx) Rating IP20
Warranty Limited 3-year warranty and lifetime technical support

Electrical

Battery 5-year battery backup of clock and calendar
Connection 4 wires, double pole
Connection Method Hardwired
Dual Voltage t
Ground Fault Protection GFCI, Class A, 5 mA
Ground Fault Protection (GFCI) Class A, 5 mA
Maximum Current 15 A
Maximum Load (Resistive Only) 1800 W - 120 V, 15 A / 3600 W - 240 V, 15 A
Maximum Power 1800 W @ 120 V, 3120 W @ 208 V, 3600 W @ 240 V
Supply 120 VAC - 50/60Hz, 240 VAC - 50/60Hz

Appearance

Color White

Product Dimensions

Depth 2″
Installed Depth 0.75″
Length 5.125″
Weight 0.6 lbs
Width 3.25″

Controls

Display Backlit Display
Display Size 2″ W x 3″ H (3.5″ Diagonal)
Languages English, French, Spanish

Thermostat

Floor Sensor Compatibility 10k ohms, 12k ohms and custom
Included Floor Sensor 10k ohms, 15' lead
Maximum Ambient Temperature Setting 77 °F
Maximum Floor Temperature Setting 104 °F
Minimum Ambient Temperature Setting 32 °F
Minimum Floor Temperature Setting 41 °F
Temperature Rise Limit in Laminate Floor Protection ~10°F/hr (~5.58°C/hr)

Identifiers

SKU UDG4-4999
UPC (GTIN-12) 881308052850

Frequently Asked Questions

Showing all 5 questions

While WarmlyYours electric radiant floor heating systems are typically installed by your floor covering contractor, a licensed electrician is recommended for the final thermostat hook-up. With every quote, we provide an Installation Plan layout, together with an electrical plan that has all the info required for the electrician.

40 people found this helpful Was this helpful? Yes No

A floor heating system can work as a supplemental heating source and make the basement warmer. If more heat needs to be added to the room, you can experiment with setting the floor heating thermostat to higher temperatures.

6 people found this helpful Was this helpful? Yes No

The breaker and wire sizes are selected based on the total amperage of the WarmlyYours heating system connected to a single thermostat. This information is on the WarmlyYours heating system's installation plan, electrical plan, or UL label. Based on guidelines from the National Electrical Code: loads up to 16 Amps may utilize 12 gauge wire with a 20-Amp breaker, and loads up to 12 Amps - 14 gauge wire with a 15-Amp breaker. Local code and/or other factors may change these guidelines.

6 people found this helpful Was this helpful? Yes No

No, floor heating thermostats are not compatible with the towel warmers. We would also not recommend using both devices on the same control, as it does not take the same amount of time to reach the ideal temperature for each product, which could lead to one unit to overheat and the other to not function properly.

5 people found this helpful Was this helpful? Yes No

WarmlyYours's floor heating thermostats are typically universal and can be used with the majority of electric floor heating systems as a new or replacement controller. Please review the electrical specs of both the thermostat and the heating system to ensure a proper match for the heating system, sensor, etc. You can also give us a call at (1-800-875-5285) and we can help answer any remaining questions.

2 people found this helpful Was this helpful? Yes No
