Heated Shower Floor
A heated shower floor eliminates the cold-tile shock every morning. Electric radiant heating warms your shower floor and bench from below—waterproof, safe in wet areas, and easy to control with a programmable thermostat.
Get an Instant Quote
Answer a few quick questions and we'll match you with the best floor heating system.
Jump to
Why Install Floor Heating in the Shower?
Heated shower floors and benches transform your daily routine into a spa experience. Our systems are specifically designed for wet environments.
Spa-Like Comfort
Step onto warm tile every time you shower. Heated floors and benches eliminate cold tile shock and make your shower a personal retreat.
Custom-Fit for Any Shower
TempZone Shower Mats and Cables fit floors, walls, and benches. Custom layouts ensure complete coverage for any shower size or shape.
Safe in Wet Areas
Installed beneath waterproofing layers and UL-listed for moisture-rich environments. Completely safe and invisible under your tile.
Shower Floor Heating Customer Reviews
We take pride in providing both exceptional service and great products. But don't just take our word for it, check out what some of our customers have had to say or View All Reviews.
Featured Floor Heating Projects
See how real homeowners warmed their shower floors with radiant heat.
How Much Does Shower Floor Heating Cost?
Heated shower floors are one of the most affordable radiant heating projects because shower zones are small. TempZone Shower Floor Mats typically cost $10–$15 per square foot. For a standard 25 sq.ft. shower with about 15 heated square feet, expect to spend between $150 and $225 on the heating mat alone. Add a programmable thermostat ($100–$250) for a complete system.
Operating costs are minimal—a shower zone this size costs just $0.02–$0.05 per hour to run. Many homeowners program the thermostat to warm the shower floor for an hour or two each morning, keeping monthly costs well under $5. Use the calculator below to estimate your exact operating costs based on your shower size and local electricity rates.
Operating Cost Calculator for Floor Heating
Estimate your daily and monthly energy costs based on room size and local rates.
ft²
¢/kWh
Estimated Cost
$0.03
per hour
$0.11
per day
$3.30
per month
Free SmartPlan
Get a custom installation plan for your shower floor in just 1 business day.
"I'll create a custom installation layout showing exactly where your heating elements go, plus a complete materials list with pricing."
Heating Systems for Your Shower
Whether you're installing a traditional tiled shower, a curbless shower, or an entire wet room, radiant heating can help make these beautiful installations feel as good as they look. Our TempZone™ Shower Floor Mats and Shower Bench Mats are a great option for these applications. Both products are easy to install in either a tiled shower floor or a tiled shower bench.
Step In, Warm Up, Relax
TempZone™ Shower Mats have been exclusively designed to provide warmth to a shower floor. The TempZone™ Shower Floor Mats ensure that your first step into your shower is a warm and soothing experience. The Shower Floor Mats are engineered to cover traditional shower floor areas and have taken the shower drain into consideration with a pre-cut hole to accommodate it.
Features
- Pre-shaped mats designed for shower floors
- Adds luxury comfort to bathrooms & spa showers
- Compatible with waterproofing systems
- 25 Year Warranty
- 15 Watts Per Sq. Ft
Sit, Soak, and Stay Warm

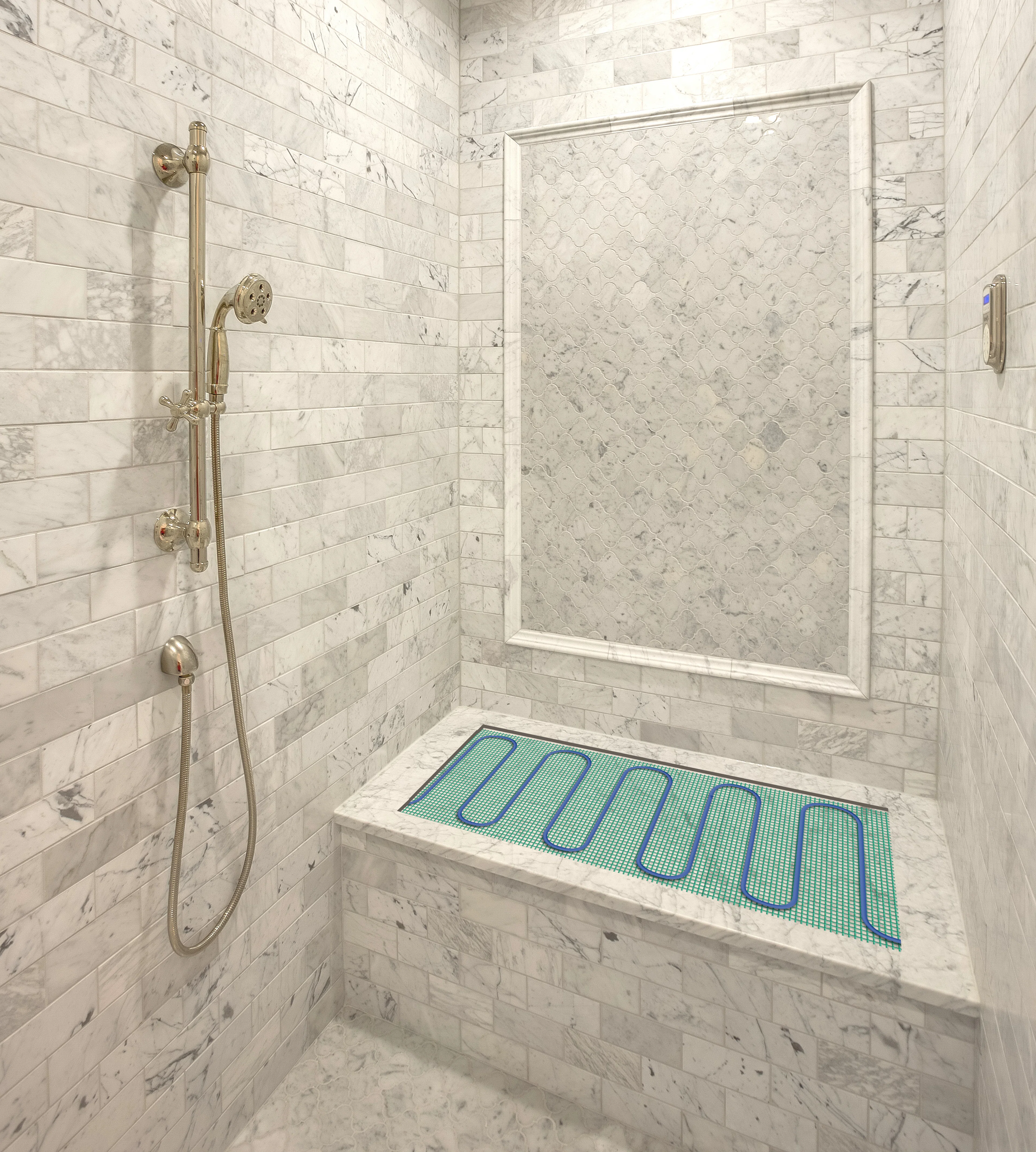

TempZone™ Shower Bench Mats have been designed to provide warmth to a shower bench and provide a luxuriant experience. Our Shower Bench Mats are installed beneath the shower bench itself so that they can efficiently radiate heat upwards.
Features
- Pre‑sized mats warm benches for spa‑like comfort
- Pairs perfectly with in‑shower floor heating
- Compatible with popular waterproofing systems
- 25 Year Warranty
- 15 Watts Per Sq. Ft
We've Got Your Back: A Backup Floor Sensor
Every complete WarmlyYours floor heating system—TempZone™, Environ™, or Slab Heat—ships with two floor sensors: one with the heating mat or cable and one with the thermostat. Install the backup right beside the primary sensor and run both leads to the thermostat box, but connect only the primary; the backup stays disconnected until it is needed.
The floor sensor lives under your tile, wood, carpet, or concrete, where it tells the thermostat how warm the floor really is. If that sensor is ever nicked during installation or fails years down the road, replacing it would normally mean tearing up the finished floor.
With the backup already embedded in the floor, the fix takes minutes: turn off power at the breaker, disconnect the original sensor at the thermostat, connect the backup, and your heat is back on. No torn-up floor, no new flooring, no second installation. Follow your thermostat's instructions, or have a qualified electrician make the swap.
Installer tip: Install both sensors side by side, centered between the heating wires, and test each one for 8–15 kΩ before covering the floor. For Slab Heat, place the sensors in capped 3/4″ rigid metal conduit between cable runs, clear of the heating cable, as the Slab Heat installation manual describes.
How to Install Floor Heating in a Shower
TempZone Shower Mats install under tile in shower floors and benches. The key difference from standard floor heating is the waterproofing step—a waterproofing membrane must be applied over the entire assembly before tile is installed. Our shower mats are UL-listed for wet environments.
Step-by-Step Installation
- Step 1: Ensure the shower pan or substrate is properly sloped for drainage and structurally sound.
- Step 2: Apply a layer of modified thinset to the shower floor or bench surface.
- Step 3: Press the TempZone Shower Mat into the thinset, following your SmartPlan layout.
- Step 4: Test the heating system with an ohmmeter—check resistance before, during, and after installation.
- Step 5: Apply a waterproofing membrane over the entire assembly, including the mat and all seams.
- Step 6: Install tile over the waterproofing membrane using modified thinset and the back-butter method.
- Step 7: Allow thinset to fully cure before turning on the heating system. Wire the thermostat and enjoy a warm shower floor.
Important Considerations
- Waterproofing is mandatory: A waterproofing membrane must cover the entire heated area, the mat, and all seams. This protects both the heating element and the structure beneath.
- UL-listed for wet locations: TempZone Shower Mats are specifically listed for use in moisture-rich environments including shower floors and benches.
- Curbless showers: For curbless or walk-in showers, check out our detailed installation guides for waterproofing techniques specific to barrier-free designs.
Shower Floor Heating Videos
Shower Floor Heating Documents
PDF
PDF
PDF
PDF
PDF
Shower Floor Heating Articles
Other Products for Your Bathroom
Shower Floor Heating FAQs
Showing 10 of 26 questions
Pre-formed pans are easily modifiable and easy to install on any substrate. They are great for DIY, as well as for a fast and clean installation by a professional. Drypack kits do not work well for tiles smaller than 2" x 2" without additional work.
The actual cost of operating your floor heating system varies with the cost of electricity in your area and how long you run the system. The WarmlyYours TempZone™ Shower Floor Heating Mat uses 15 watts per square foot, so a 4’ x 4’ shower floor (16 sq. ft.) draws about 240 watts. Running it a full 8 hours a day costs approximately $0.31/day at the current national average electricity rate. Try our Operating Cost Calculator for a quick estimate.
- Jigsaw (for subfloor drain hole) & drill (for pilot hole)
- Premium modified (Latex/Polymer) thinset mortar (not premixed)
- 5-gallon bucket
- Mixer and caulking gun
- 3/16"x 3/16" square notch trowel
- Margin trowel
- Utility knife
- PVC or ABS cement, and section of coupler pipe for connection
- Level
A complete kit will include the following:
- Shower pan
- 108 sq. ft. of waterproofing membrane
- 33 linear feet of waterproof joint band
- 4 pre-shaped inside corners
- 1 drain flange with ABS or PVC neck (check your local standards for using ABS or PVC)
- Drain grate riser with construction plug and hair trap
- Drain grate cover
- Curb piece/s
- 2 outside corners for the curb

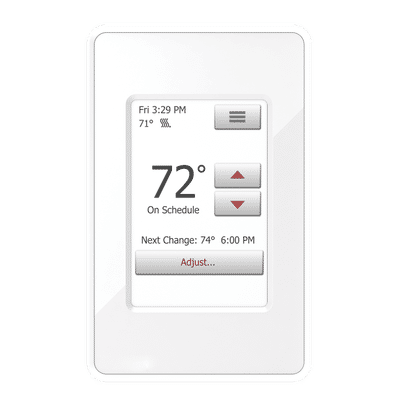

Note: If you elect to include floor heating, a complete kit will also include a TempZone Shower Floor Heating Mat, an nSpire Touch programmable thermostat, and a Circuit Check.
Bathrooms designed with shower and floor heating will include only one thermostat by default. But it is possible to design with a thermostat for each zone if desired. Installing a separate thermostat for the shower area can help reduce cost and energy usage. This also allows you to heat the bathroom floor alone for everyday use and only heat the shower area when needed.
For shower kits, most of the modified thinsets you are looking for are listed as compliant with ANSI 118.4 and ANSI 118.11. Unmodified thinsets will be listed as compliant with ANSI 118.1. Modified thinset is an industry term for any thinset mortar which has additives (usually latex or acrylic).
TempZone™ is an electric floor heating system that operates like an electric blanket for your floors. TempZone™ is covered in thinset, and is installed over the top of your shower pan and beneath your flooring. The system provides a warm, even temperature across your floor. The TempZone™ floor heating system is easy to install, operate, and maintain.
The shower floor heating kits can be tied into floor heating for the rest of the bathroom - allowing for one thermostat to control both areas as long as both areas are using less than 15 amps. When designing installation plans, we design with only one thermostat by default. If you prefer two separate thermostats, it might be a good idea, since the shower floor application is usually thicker and takes longer to heat. Be sure to let us know when discussing your quote with our team.
Yes, with the right product. TempZone™ Shower Mats and TempZone™ Flex Rolls carry a wet-location listing for the U.S. and Canada, so they can be installed in a shower under tile or stone. TempZone™ Custom Mats are rated for dry locations only (bathrooms, but not shower areas), so they are not used inside a shower.
Every system must be on ground-fault protection. WarmlyYours thermostats include a Ground Fault Circuit Interrupter (GFCI); if another control is used, the heating element must be connected through a separate ground-fault device.
The Pro GEN II shower kits come with pre-formed pan. They have the same level of warranty as competing brands, but Pro GEN II shower kits have many improvements, and often total to a lower price than competitors.
- The Pro GEN II shower kits use the Pro WP membrane which is rated at .07perm for water vapor, meaning it is the best protection you can get in a membrane system (nearly double the rating of the competitors)
- The Pro GEN II shower kits are rated for use with modified thinsets, meaning a stronger install and ease of material sourcing (modified thinsets are often required for installing porcelain or glass tiles)
- Our preformed pan system is stronger, featuring a denser foam pan, and a stronger drain flange
- Our drain flange is supported by both the pan and the subfloor, meaning it is much stronger than the competitors' flanges which rely only on the pan for support. Our flanges even include a built-in removable and easy-to-clean hair trap inside the drain riser
- The Pro Gen II shower kits are fully customizable with 3 pan options and multiple grate cover finishes to choose from
When waterproofing a curbless shower, most guidelines require a continuous surface, created by a bonded waterproof membrane, on the floor and walls of the shower itself. The waterproofing should extend outside the shower enclosure for at least one foot beyond the highest point of the floor. Additional waterproofing outside the shower is suggested as a consideration, but is not required.
Yes, we offer several options to help make your floor heating system water resistant or waterproof. Our TempZone product line is designed for wet areas - making it completely safe for rooms that will have water on the floor at times or may experience leaks or flooding. We also offer waterproofing bands for our TempZone Cable + Prodeso Uncoupling Membrane system. Allowing you to waterproof all seams and the perimeters of the wall - guaranteeing that your floor heating system stays safe and prevents water from leaking to areas below.
Yes, with the right product. TempZone™ Shower Mats are made for shower floors and benches, and TempZone™ Flex Rolls are listed for wet locations. Both install under tile or stone in a mortar bed sloped to the drain, with a secondary waterproofing membrane.
TempZone™ Custom Mats are different: they are rated for dry locations only. Their manual counts bathrooms as dry locations but excludes shower areas, so a Custom Mat must not be extended into a shower. Use a Shower Mat for the shower floor instead.
Yes, you can use a single thermostat to control both the bathroom floor and the shower heating, provided the total amperage does not exceed the thermostat’s limit (typically 15 amps). However, we recommend using separate thermostats if you prefer different temperature settings or schedules for each area.
Yes. Because replacing a sensor under a finished shower floor or bench is difficult, our shower heating kits include a built-in backup floor sensor. If the primary sensor ever fails, you can simply connect the backup sensor to your thermostat without having to remove any tile.
Keep the power lead factory splice and the cable end seal outside the shower area and at least 1 ft. away from shower openings or other spots normally exposed to water. The control must be located at least 4 ft. from shower openings, where it cannot be exposed to water or touched by someone in the shower.
