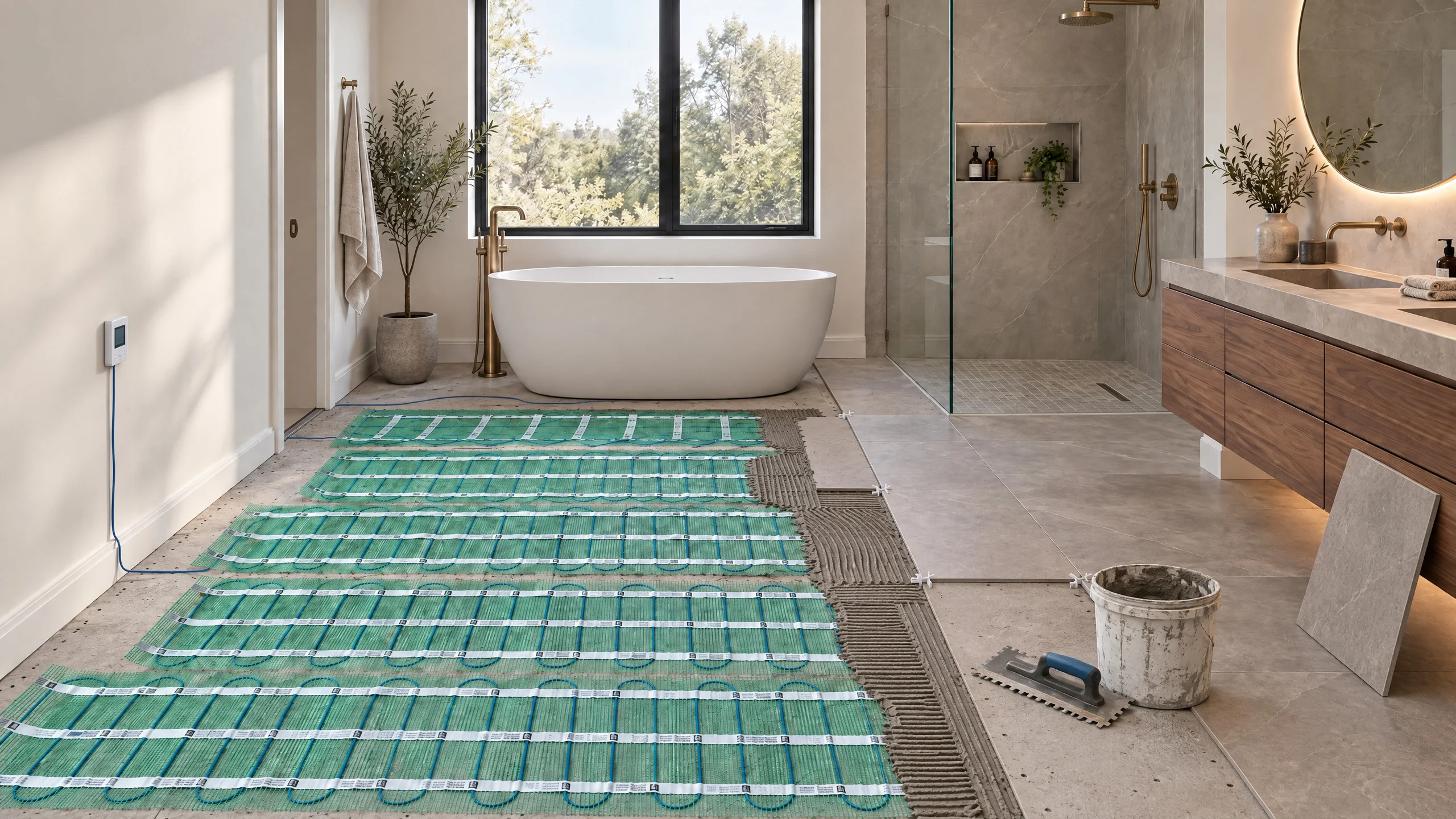

TempZone™ Heated Floor Mats
Fast, Easy Radiant Heat for Tile, Stone & LVT
TempZone™ mats are the fastest, easiest way to add radiant warmth under tile, stone, marble, and luxury vinyl tile. Pre-spaced heating elements eliminate guesswork—installation is straightforward for DIYers and pros alike—starting at just $5 per square foot.
Get an Instant Quote
Answer a few quick questions and we'll match you with the best floor heating system.
Jump to
Why Choose TempZone™ Heated Floor Mats?
Fast Installation
Pre-spaced heating elements mean no measuring cable spacing. Roll out the mat, embed in thinset, and tile over—it's that simple.
Perfect for Square Rooms
Mats work best in rectangular spaces like bathrooms, hallways, and bedrooms. For irregular layouts, consider our heating cables.
Even Heat Distribution
Factory-spaced heating elements deliver consistent warmth across the entire floor—no hot spots or cold zones.
Customer Reviews
We take pride in providing both exceptional service and great products. But don't just take our word for it, check out what some of our customers have had to say or View All Reviews.

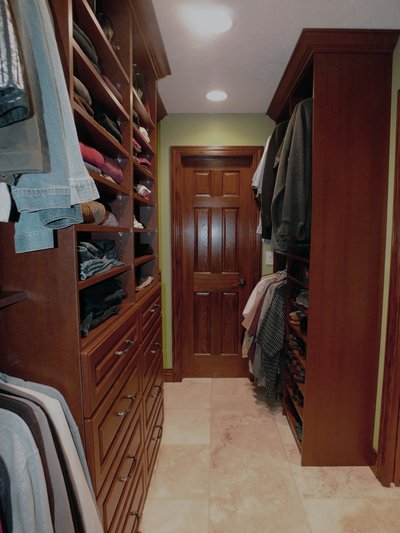

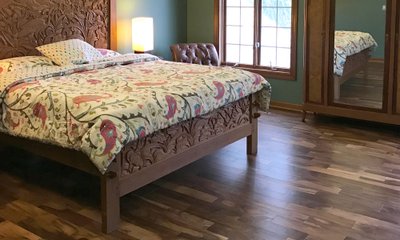

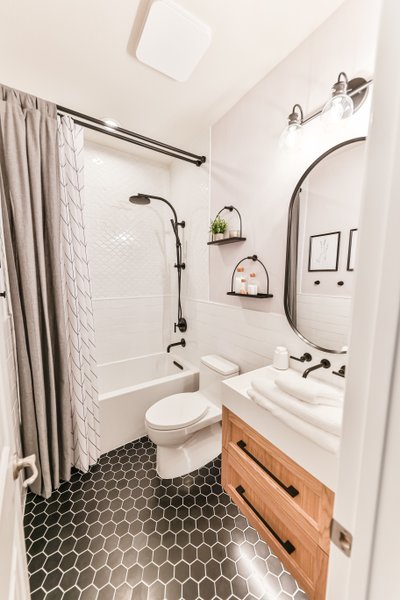

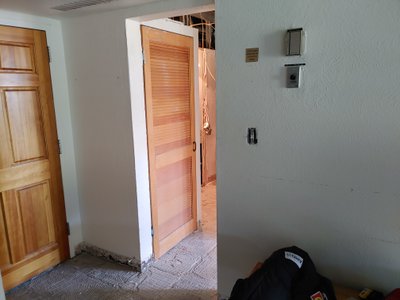

Heated Floor Mat Projects
See real customer installations featuring heated floor mats in bathrooms, kitchens, and living spaces.
TempZone™ Heated Floor Mats for Tile & Stone
Our most popular floor heating mats for tile, stone, marble, and luxury vinyl tile (LVT) installations. TempZone mats feature a durable fiberglass mesh backing that embeds directly in thinset mortar for a permanent, maintenance-free heating solution.
Heat Output
15 watts per sq ft delivers comfortable warmth for primary or supplemental heating in any room.
Quick Installation
Pre-spaced elements mean no measuring—just roll out, cut, and embed in thinset. Most bathrooms done in hours.
Wet Location Rated
UL listed for wet locations including bathrooms, kitchens, and entryways. Safe under tile in any room.
Roll Out, Cut, and Fit
TempZone™ Flex Roll installs underneath ceramic tile, natural stone, hardwood, wood, and other popular flooring materials, giving homeowners radiant in-floor heating that's truly luxurious.
Features
- Ideal for full-room coverage (primary or supplemental heat)
- Pre-spaced heating cable for fast, consistent installation
- Most popular choice for bathrooms & kitchens
- 25 Year Warranty
- 15 Watts Per Sq. Ft
Place, Connect, and Heat
TempZone™ Easy Mats allow for radiant heating of smaller, simpler areas at an affordable cost. These under floor mats are perfect for providing targeted heating for moderately sized bathroom and kitchen floors.
Features
- Pre-sized mats for quick installs with no complex cuts
- Perfect for spot heating (vanities, entryways, small spaces)
- Cost-effective and beginner-friendly option
- 25 Year Warranty
- 15 Watts Per Sq. Ft
Shower Floor Heating Mats
Pre-configured heated mats for shower floors and benches. These specialized systems are designed for wet environments and provide targeted warmth exactly where you need it most.
UL Wet Location
Specifically tested and certified for direct water exposure in showers, steam rooms, and wet areas.
Pre-Sized Mats
Pre-sized with drain holes for convenient installation in shower floors and benches.
Waterproofing
Install over your waterproof membrane. The mat embeds in thinset just like standard floor mats.
Step In, Warm Up, Relax
TempZone™ Shower Mats have been exclusively designed to provide warmth to a shower floor. The TempZone™ Shower Floor Mats ensure that your first step into your shower is a warm and soothing experience. The Shower Floor Mats are engineered to cover traditional shower floor areas and have taken the shower drain into consideration with a pre-cut hole to accommodate it.
Features
- Pre-shaped mats designed for shower floors
- Adds luxury comfort to bathrooms & spa showers
- Compatible with waterproofing systems
- 25 Year Warranty
- 15 Watts Per Sq. Ft
Sit, Soak, and Stay Warm
TempZone™ Shower Bench Mats have been designed to provide warmth to a shower bench and provide a luxuriant experience. Our Shower Bench Mats are installed beneath the shower bench itself so that they can efficiently radiate heat upwards.
Features
- Pre‑sized mats warm benches for spa‑like comfort
- Pairs perfectly with in‑shower floor heating
- Compatible with popular waterproofing systems
- 25 Year Warranty
- 15 Watts Per Sq. Ft
Other Floor Heating Systems
TempZone™ mats are built for tile, stone, and LVT installations. For other flooring types or applications, we offer dedicated systems:
How Much Does It Cost to Run a Heated Floor Mat?
Heated floor mats are highly efficient and typically cost just pennies per hour to operate. Use the calculator below to estimate costs for your specific room size, flooring type, and local electricity rates.
Operating Cost Calculator for Floor Heating
Estimate your daily and monthly energy costs based on room size and local rates.
ft²
¢/kWh
Estimated Cost
$0.04
per hour
$0.15
per day
$4.50
per month
Free SmartPlan
Get a custom installation plan for your heated floor mat project in just 1 business day.
"I'll create a custom installation layout showing exactly where your heating elements go, plus a complete materials list with pricing."
What Affects Operating Cost?
Room size
A small bathroom costs far less than a large basement
Flooring type
Tile and stone transfer heat most efficiently
Daily usage
2 hours vs 6 hours makes a big difference
Electricity rates
Local kWh pricing directly impacts costs
Pre-Configured Heated Floor Mat Kits
Save time and money with our pre-configured heated floor mat kits. Each kit includes everything you need—mat, thermostat, floor sensor, and installation accessories—all matched for compatibility and sized for your project. Perfect for DIYers who want the confidence of a complete solution, or professionals who appreciate the convenience of pre-packaged materials.
Popular mat kit with simple touch control

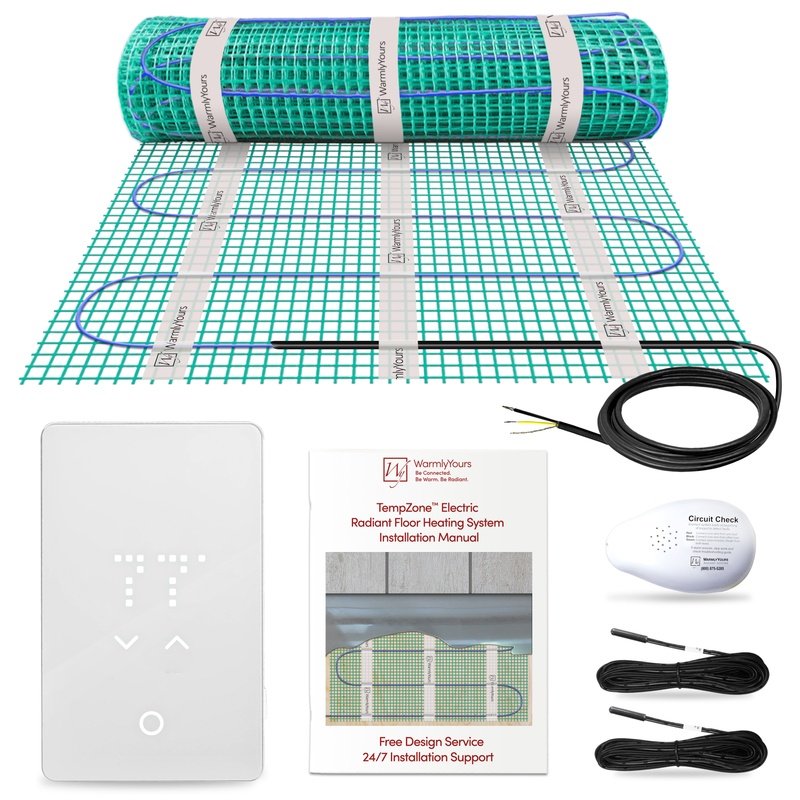

Our most popular floor heating kit: TempZone Flex Roll mat with nTrust 2.0 LED touch thermostat. Roll out, embed in thinset, and enjoy radiant warmth. Perfect for tile, stone, and marble. 25-year warranty.
Features
- 25 Year Warranty
- 15 Watts Per Sq. Ft
- 1/8″ Super thin rolls or mats to fit any room shape

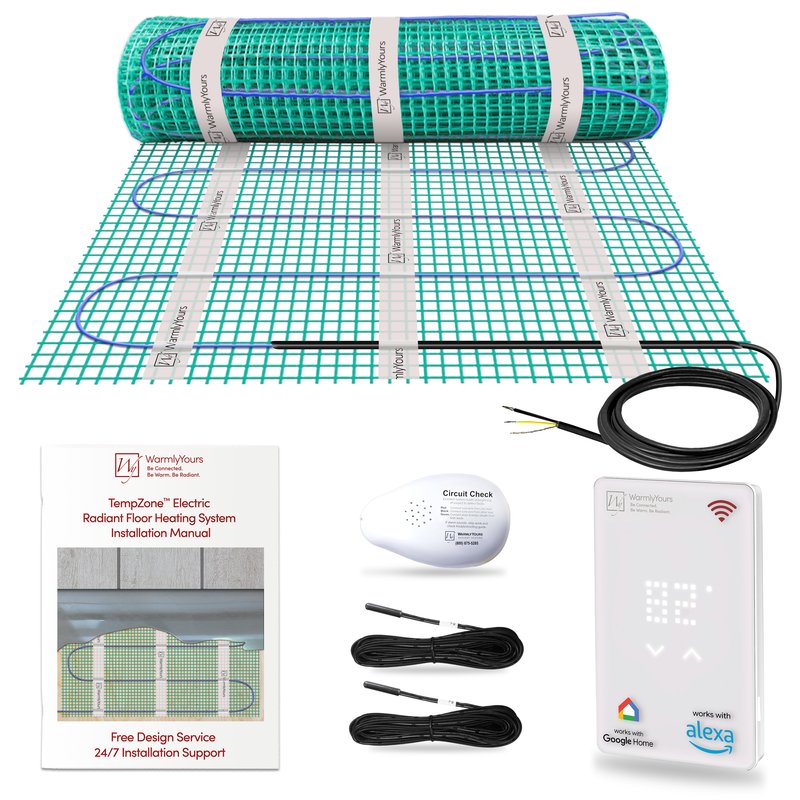

Smart mat kit with WiFi thermostat for connected homes
TempZone Flex Roll mat paired with nJoy WiFi thermostat for smartphone control and voice assistant compatibility. Ideal for tile and stone installations. Includes floor sensor and 25-year warranty.
Features
- 25 Year Warranty
- 15 Watts Per Sq. Ft
- 1/8″ Super thin rolls or mats to fit any room shape

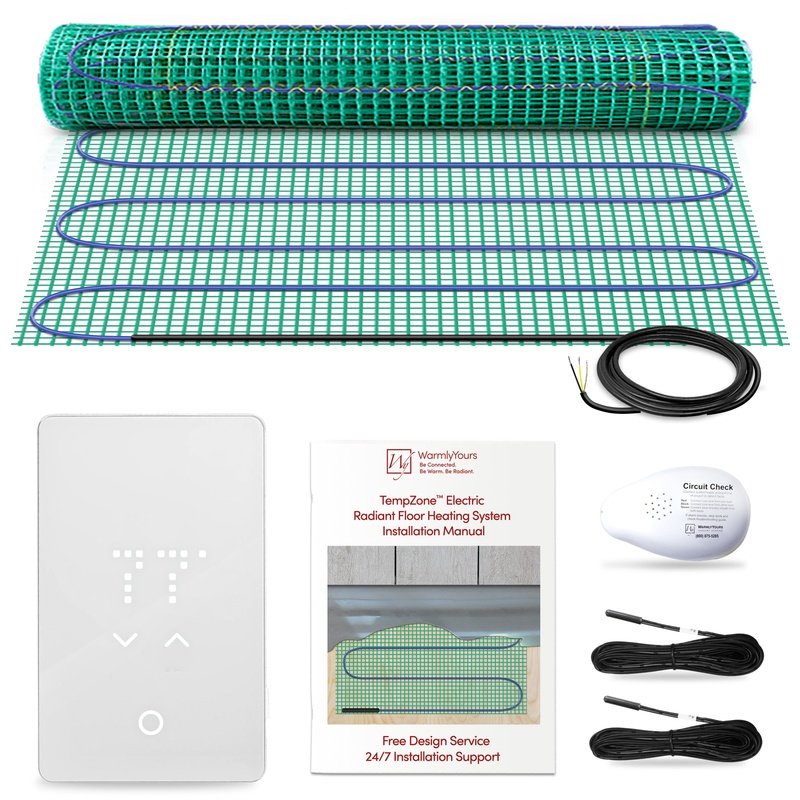

Pre-sized mat kit for quick, simple installation
TempZone Easy Mat in convenient pre-sized dimensions with nTrust 2.0 thermostat. Simply lay the mat, connect, and enjoy radiant warmth. Great for standard-sized rooms. Includes 25-year warranty.
Features
- 25 Year Warranty
- 15 Watts Per Sq. Ft
- Use for targeted spot heating of high-traffic areas to ensure warm floors where you need them most
- Covered by WarmlyYours’ 25-year No Nonsense Warranty™
- Can be embedded under a huge variety of floor coverings including tile, marble, stone, and luxury vinyl tile/plank

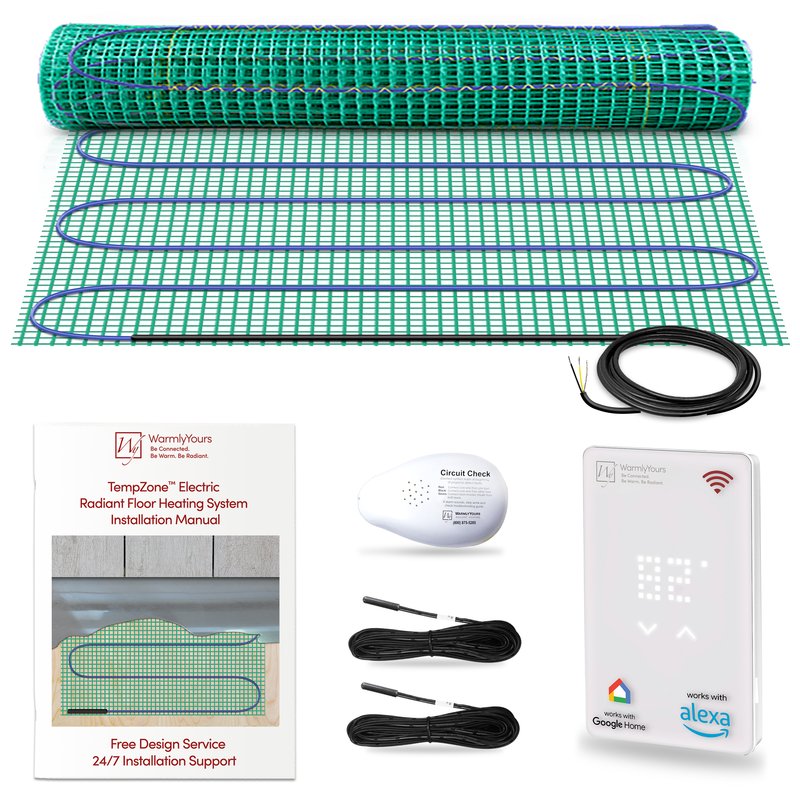

Easy installation meets smart WiFi control
Pre-sized TempZone Easy Mat with nJoy WiFi thermostat for effortless installation and smart home integration. Control from your phone or voice assistant. Includes floor sensor and 25-year warranty.
Features
- 25 Year Warranty
- 15 Watts Per Sq. Ft
- Use for targeted spot heating of high-traffic areas to ensure warm floors where you need them most
- Covered by WarmlyYours’ 25-year No Nonsense Warranty™
- Can be embedded under a huge variety of floor coverings including tile, marble, stone, and luxury vinyl tile/plank
We've Got Your Back: A Backup Floor Sensor
Every complete WarmlyYours floor heating system—TempZone™, Environ™, or Slab Heat—ships with two floor sensors: one with the heating mat or cable and one with the thermostat. Install the backup right beside the primary sensor and run both leads to the thermostat box, but connect only the primary; the backup stays disconnected until it is needed.
The floor sensor lives under your tile, wood, carpet, or concrete, where it tells the thermostat how warm the floor really is. If that sensor is ever nicked during installation or fails years down the road, replacing it would normally mean tearing up the finished floor.
With the backup already embedded in the floor, the fix takes minutes: turn off power at the breaker, disconnect the original sensor at the thermostat, connect the backup, and your heat is back on. No torn-up floor, no new flooring, no second installation. Follow your thermostat's instructions, or have a qualified electrician make the swap.
Installer tip: Install both sensors side by side, centered between the heating wires, and test each one for 8–15 kΩ before covering the floor. For Slab Heat, place the sensors in capped 3/4″ rigid metal conduit between cable runs, clear of the heating cable, as the Slab Heat installation manual describes.
Floor Type Compatibility
Choose the right heated floor mat system based on your flooring type and installation method. TempZone™ mats are designed for adhered floors (tile, stone, glued wood). Environ™ mats are specifically engineered for floating floors (laminate, carpet, click-lock).
| Floor Type | Installation |
TempZone™ Mats (Flex Roll & Easy Mats) 15W/sq ft |
Environ™ Mats 12W/sq ft |
Slab Heat Mat 20W/sq ft |
|---|---|---|---|---|
| Tile, Marble, Stone | Thinset | *1 | ||
| Hardwood | Nailed | *4 | *1 | |
| Glued | *5 | *1 | ||
| Engineered Wood | Nailed | *4 | *1 | |
| Glued | *5 | *1 | ||
| Floating | *3 | *2 | *1 | |
| Bamboo | Nailed | *4 | *1 | |
| Glued | *5 | *1 | ||
| Floating | *3 | *2 | *1 | |
| Laminate | Floating | *3 | *2 | *1 |
| Nailed | *4 | *1 | ||
| LVT / Vinyl | Glued | *5 | *1 | |
| Floating | *3 | *2 | *1 | |
| Carpet | Stretch-In | *6 | *6 | *1 |
| Glued | *5 | *6 | *1 | |
| Cork | Floating | *3 | *2 | *1 |
| Concrete Slab | In-slab |
*1 Slab Heat systems are embedded in the concrete slab; any finished flooring can be installed over the cured slab.
*2 Consult your flooring manufacturer to ensure the flooring can be installed directly over a heating system. If embedding is required, you must use a TempZone or Slab Heat system.
*3 Floating floor can be installed over an embedded TempZone system in 3/8–½" self-leveling cement (SLC), fully cured.
*4 Nailed floors: Install wood sleepers across subfloor, lay mat between sleepers, cover with self-leveling cement, then nail flooring into sleepers only.
*5 Glued floors: Embed mat in 3/8–½" self-leveling cement, allow to cure, then install flooring with adhesive.
*6 Carpet floor heating is available in the U.S. only.
Not sure which system you need?
Call us at (800) 875-5285,
request a free quote, or
get an instant quote with our Instant Quote Builder tool.
TempZone™ Mat vs Cable: Which Should You Choose?
TempZone™ Mats
Best for rectangular rooms with minimal obstacles. Pre-spaced heating elements make installation faster and easier.
- Faster installation (roll out and embed in thinset)
- Ideal for DIY projects
- Consistent spacing guaranteed
- Perfect for bathrooms, kitchens, entryways
TempZone™ Cables
Best for irregular rooms, custom layouts, or when you need maximum flexibility around obstacles.
- Maximum layout flexibility
- Works around any obstacle
- Adjustable heat output (via spacing)
- Preferred by professional installers
Featured Thermostats for Heated Floor Mats
Every heated floor mat needs a compatible thermostat. Our most popular options combine easy
installation with precise temperature control and floor sensor technology.
Explore all thermostats
Features
- Sleek, Modern Design: Features an LED display and capacitive touch interface for intuitive temperature adjustments
- User-Friendly Operation: No programming required—simply set your desired temperature for consistent warmth and comfort
- Versatile Compatibility: Compatible with both 120V and 240V electric floor heating systems and infrared heating panels
- Safety Assured: cULus listed with a built-in GFCI for peace of mind
- Included Floor Sensor: Comes with a 10k ohm floor sensor to monitor and maintain optimal floor temperatures
$159
View Details
Features
- WiFi capabilities allow you to control your thermostat with your smart device
- Allows for remote troubleshooting and software updates
- Can be paired with a Google Assistant or Amazon Alexa enabled device for voice control
- Program up to 10 different schedules along with setting up schedule overrides like vacation mode
- With an included floor sensor, your system can cycle on and off and continuously adjust to save energy
$249
View Details
Features
- Program up to 6 setting changes for each day of the week
- It’s never been easier to set up a radiant heating system according to your preferences and schedule
- With an included floor sensor, your system can cycle on and off and continuously adjust to save energy
- With its crystal-clear 3.5″ full color touchscreen display, the nSpire Touch is as easy to operate as it is to look at
- Dual voltage (120V/240V)
$259
View Details
Explore TempZone™ Mats by Room
TempZone™ mats work great under tile in any room. Explore room-specific guidance, costs, and project examples:
Find Floor Plans by Room
Select a room type to browse floor plans with instant quotes, operating costs, and installation plans for layouts similar to yours.
Bathroom
Ideal for tile installations and quick warm-up—our most popular room.
Shower
Warm shower floors and benches for spa-like comfort.
Kitchen
Great under tile or LVP—keep high‑traffic areas comfortably warm.
Living Room
Even heat across large spaces without noisy vents or dust.
Bedroom
Cozy mornings and night-time comfort under carpet, LVP, or wood.
Sunroom
Fight cold slab floors and extend shoulder seasons with gentle radiant heat.
Basement
Warm concrete slabs from the ground up for lasting comfort.
Get Your Own Floorplan
Send us your sketch and receive a free SmartPlan with a custom installation layout and itemized quote.

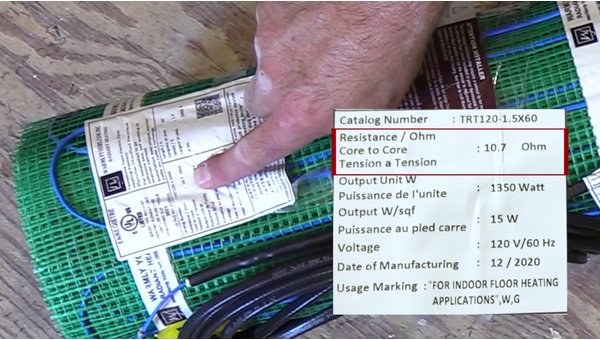

Heated Floor Mat Installation Videos
Documents
PDF
Heated Floor Mats Radiant Floor Heating Posts
TempZone™ Heated Floor Mat FAQs
Showing 10 of 14 questions
Yes. While there are some floor heating systems that can be installed beneath floor joists, most electric radiant floor heating systems will need to be installed beneath the floor itself. This is why the best time to install electric floor heating is during a remodel or as a part of a new construction, when a floor is being installed anyways.
If you’re interested in alternative radiant heating methods, check out our Infrared Heating Panels, which are wall-mounted and use infrared technology to provide supplemental heating.
Electric floor heating works by having an electric heating cable installed underneath the flooring (embedded or floating, depending on the system and floor type), which is then wired to a special thermostat (either one specifically designed for electric radiant floor heating, like a WarmlyYours’ nSpiration Series control, or a third-party thermostat). When turned on, the heating cable emits heat upward through the flooring which is then radiated throughout the room, heating all solid surfaces.
No. Never cut the heating mat. The floor heating mat is designed with a very specific resistance in order to consistently maintain heating at the chosen wattage per square foot. Trimming the heating cable in the mat would lower the resistance of the cable causing the system to overheat. Adding heating cable to the system would raise the resistance and the system would not heat properly.
If you think you have the wrong heating element, contact our 24/7 Technical Support Team by calling 1-800-875-5285.
Yes, the areas without heating elements installed directly under them will be largely the same temperature as they would be if there was no heating system at all. So you'll want to keep that in mind when you're looking to use spot heating in your floor heating project. You can always choose to have multiple TempZone Easy Mats incorporated into your project to created several heated "spots".
Many homeowners successfully install electric floor heating as a DIY project, especially with a detailed SmartPlan™. However, the level of professional help needed depends on your skills and project scope:
DIY-Friendly Aspects:
- Layout and installation of heating mats or cables following your SmartPlan™
- Securing cables to subfloor using installation strips or adhesive
- Testing resistance with a multimeter (we provide testing logs)
- Tile or flooring installation if you're experienced with that trade
You'll Need a Licensed Electrician For:
- Thermostat wiring and connection to your electrical panel
- GFCI protection installation (required by code)
- Dedicated circuit installation if needed
- Code compliance and final inspection
Consider Professional Installation For:
- Large or complex room layouts
- Multiple rooms or whole-home installations
- Time-sensitive projects
- Commercial applications
Your SmartPlan™ includes detailed installation instructions that make the mechanical installation straightforward. Our 24/7 tech support is available to answer questions during your project, whether you're DIY or working with a contractor.
TempZone™ Flex Rolls, Easy Mats and Shower Mats deliver 15 watts per square foot, and Custom Mats 12 to 15. TempZone™ Cable and Ruler Cable deliver 3.7 watts per linear foot, so their output depends on spacing: about 15 watts per square foot at 3 inches, 11 at 4 and 9 at 5. See TempZone Cable spacing and attachment.
Operating cost depends on your local electricity rate, the size of the heated area, and how long the system runs. A 120-watt-per-square-meter (about 11 watts per sq. ft.) system heating a 100 sq. ft. room draws roughly 1,100 watts — about $0.18/hr per hour, or $1.43/day for a typical 8-hour day at the current national average electricity rate. Because floor heating is usually zoned and thermostat-controlled, real-world costs are typically lower than these maximums.
Both TempZone Floor Heating Mats and Cables deliver excellent results—the choice depends on your project size, layout, experience level, and climate needs.TempZone Floor Heating Mats are pre-spaced at a fixed 3" spacing (15 watts/sq.ft.) and come in standard sizes (6–210 sq.ft.). They're ideal for:
- DIY homeowners and first-time PRO installers
- Straightforward rectangular rooms
- Faster installation (no spacing calculations)
- Smaller to medium projects
- Consistent heat output across all climates
TempZone Floor Heating Cable offers complete flexibility and is preferred by experienced installers:
- Adjustable spacing based on local climate conditions — you control the watt density
- Colder climates (like New York): 3" spacing (15 watts/sq.ft.) for maximum heat output
- Standard climates: 4" spacing (11 watts/sq.ft.) — our default recommendation
- Warmer climates (like California): 5" spacing (9 watts/sq.ft.) for efficient, moderate heating
- Works in any room shape or size
- Ideal for complex layouts, odd-shaped rooms, or climate-optimized designs
The bottom line: Choose mats for simplicity, DIY projects, and standard applications. Choose cable for customization, climate optimization, complex layouts, and experienced installers. Both systems are compatible with thinset and self-leveling compound, backed by our industry-leading warranties, and supported by 24/7 expert guidance.
Pro Tip: Combining Both Systems
Many projects use a combination of both—mats for large open areas and cables for detailed work around fixtures and in tight spaces. Your free SmartPlan™ will recommend the best approach based on your room layout.
In TempZone™ Flex Rolls, Easy Mats and Shower Mats, the heating cable is fixed 3 inches apart. Custom Mats follow each design. TempZone™ Cable and Ruler Cable are spaced as you install them: 3, 4 or 5 inches on GripStrips™, or set by the membrane, and never closer than 3 inches. See TempZone Cable spacing and attachment.
All three systems deliver excellent results—the choice depends on your bathroom layout, complexity, and installation experience.
TempZone Flex Rolls
Roll Out, Cut, and Fit. Flex Rolls offer flexibility for custom bathroom layouts and irregular shapes. You can cut and turn the mat to navigate around fixtures like toilets, vanities, and shower bases. They're ideal for bathrooms where you need to work around obstacles or want a custom fit.
- Flexible for any bathroom shape
- Cut and turn as needed
- Great for DIY and professional installations
- Starting at $119
TempZone Easy Mats
Place, Connect, and Heat. Easy Mats come pre-spaced at a fixed 3" spacing (15 watts/sq.ft.) in standard sizes. They're the fastest option for straightforward bathroom layouts—just lay them down, connect them, and you're ready for flooring. Perfect for rectangular bathrooms without complex obstacles.
- Pre-spaced and ready to install
- Standard sizes (6–210 sq.ft.)
- Fastest installation for simple layouts
- Ideal for smaller to medium bathrooms
- Starting at $130
TempZone Cable
Snap-In, Secure, and Heat. Cable offers maximum flexibility and is preferred by experienced installers working on complex bathroom projects. You can space the cable exactly as needed (9–15 watts/sq.ft. depending on spacing), making it ideal for bathrooms with challenging layouts, multiple zones, or specific climate needs.
- Maximum customization
- Professional-grade for complex layouts
- Available in multiple voltage options
- Ultra-low EMF by design
- Starting at $139
How to Choose
- Easy Mats if your bathroom is rectangular and straightforward
- Flex Rolls if your bathroom has curves, angles, or fixtures to work around
- Cable if you're an experienced installer or need precise spacing for climate optimization
All three systems are compatible with tile, stone, and work with both thinset and self-leveling compound. Get a free SmartPlan to see which system is best for your specific bathroom layout.
Both systems provide comfortable radiant heat, but they're designed for different installation scenarios:
Floor Heating Mats (TempZone™)
- Pre-spaced heating cables attached to a mesh backing for consistent coverage
- Faster installation – Simply roll out, secure, and cover with thin-set
- Best for: Standard rectangular rooms like bathrooms, kitchens, and laundry rooms
- Fixed sizes available in common dimensions, or custom-cut to your exact measurements
- Higher wattage options for tile and stone (15 W/sq ft standard)
Floor Heating Cables (TempZone™ or Environ™)
- Flexible loose cables that you space according to your SmartPlan™
- Custom coverage for any room shape or size
- Best for: Irregular layouts, curved walls, rooms with many obstacles, or areas requiring varied spacing
- More labor-intensive but provides complete design flexibility
- Lower wattage options available for vinyl and laminate (Environ™ at 10 W/sq ft)
Which Should You Choose?
Your SmartPlan™ will recommend the best option based on:
- Room shape and layout complexity
- Flooring type and heating requirements
- Installation timeline and budget
- DIY vs. professional installation
Many projects use a combination of both—mats for large open areas and cables for detailed work around fixtures and in tight spaces.
