This project showcases a complete comfort upgrade for a master bathroom in Gilberts, Illinois. Tired of stepping onto cold tile, the homeowner sought an efficient, luxurious solution. WarmlyYours delivered a custom-sized TempZone Flex Roll system installed with self-leveling compound, providing silent, energy-efficient electric floor heating that transforms the room into a spa-like retreat, significantly enhancing the home's daily comfort and long-term value.
Project Details
- Location: Gilberts, IL
- Heated Space Type: Master Bathroom
- Square Footage: 65 sq. ft.
- Power: 967 Watts, 120 Volts, 8 Amps
- Flooring: Tile, Marble or Stone
- Operating Cost Per Hour: $0.05
- Approx. Daily Operating Cost (8 hours): $\approx \$0.40$
- Approx. Monthly Operating Cost (30 days): $\approx \$12.00$
- Primary System: TempZone™ Flex Roll
The Comfort Upgrade for Cold Tile
The challenge in this Gilberts, IL master bathroom was the common problem of cold ceramic or porcelain tile, which can make the room feel unwelcoming, especially during the long Midwestern winters. The homeowner wanted a discreet, reliable radiant floor heating system that would effectively heat the floor surface and provide supplemental warmth to the entire room.

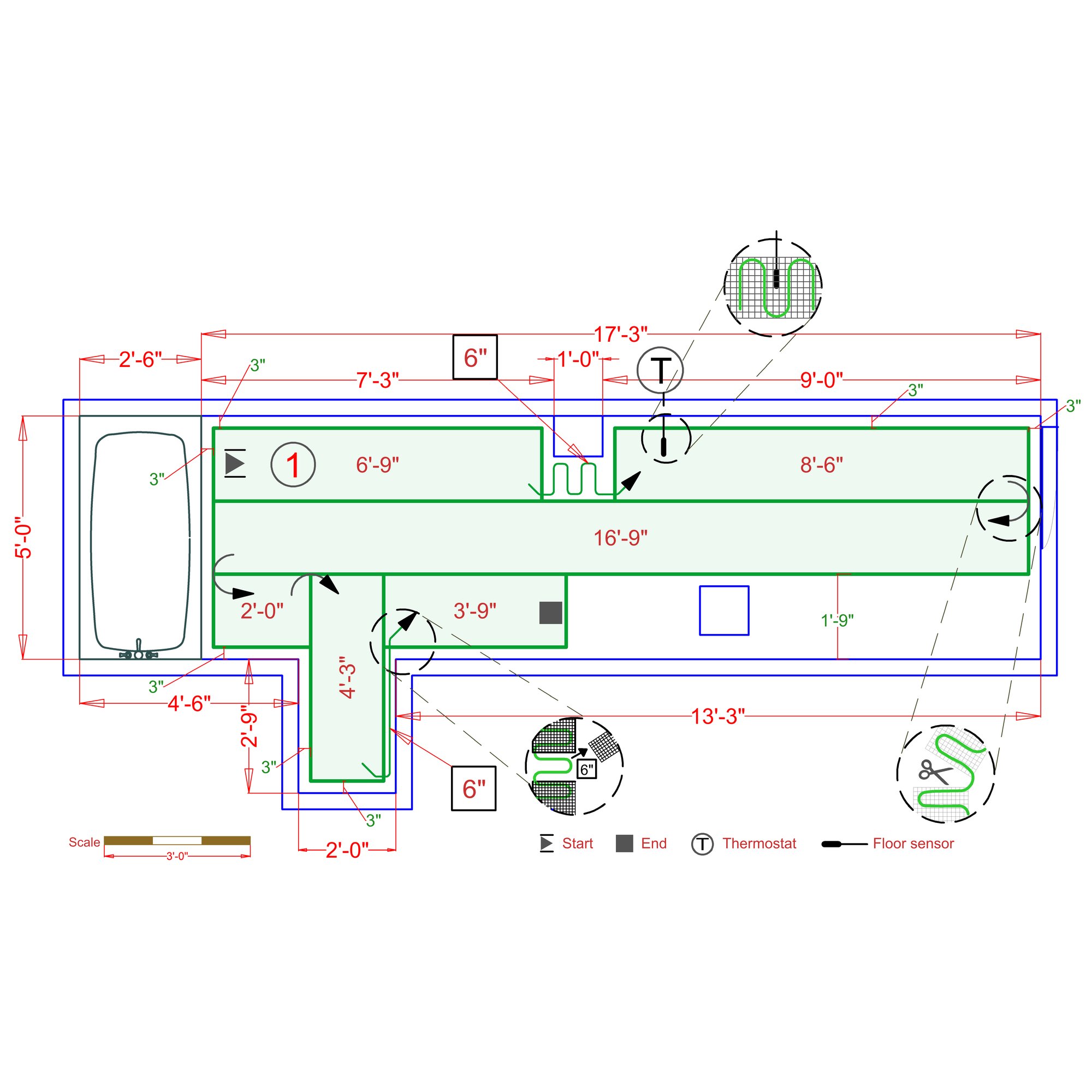

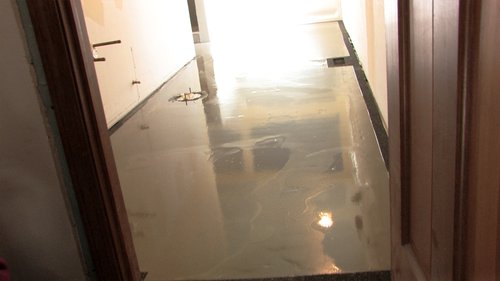

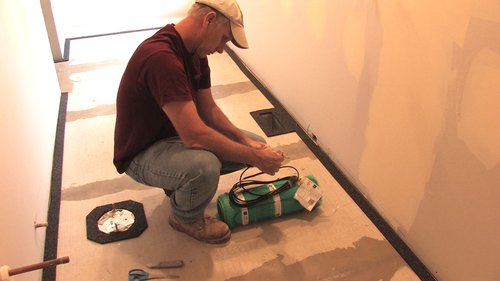

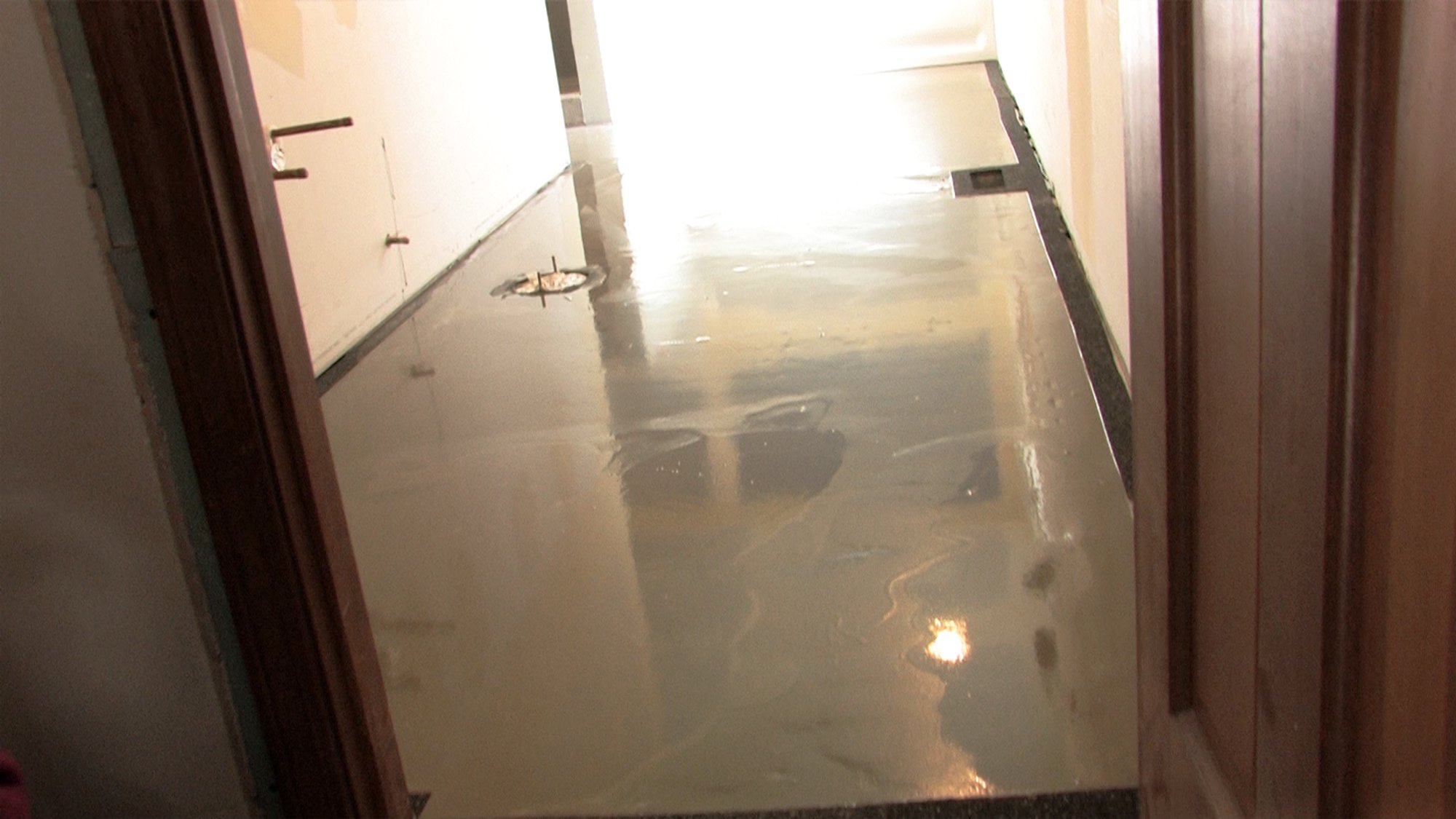

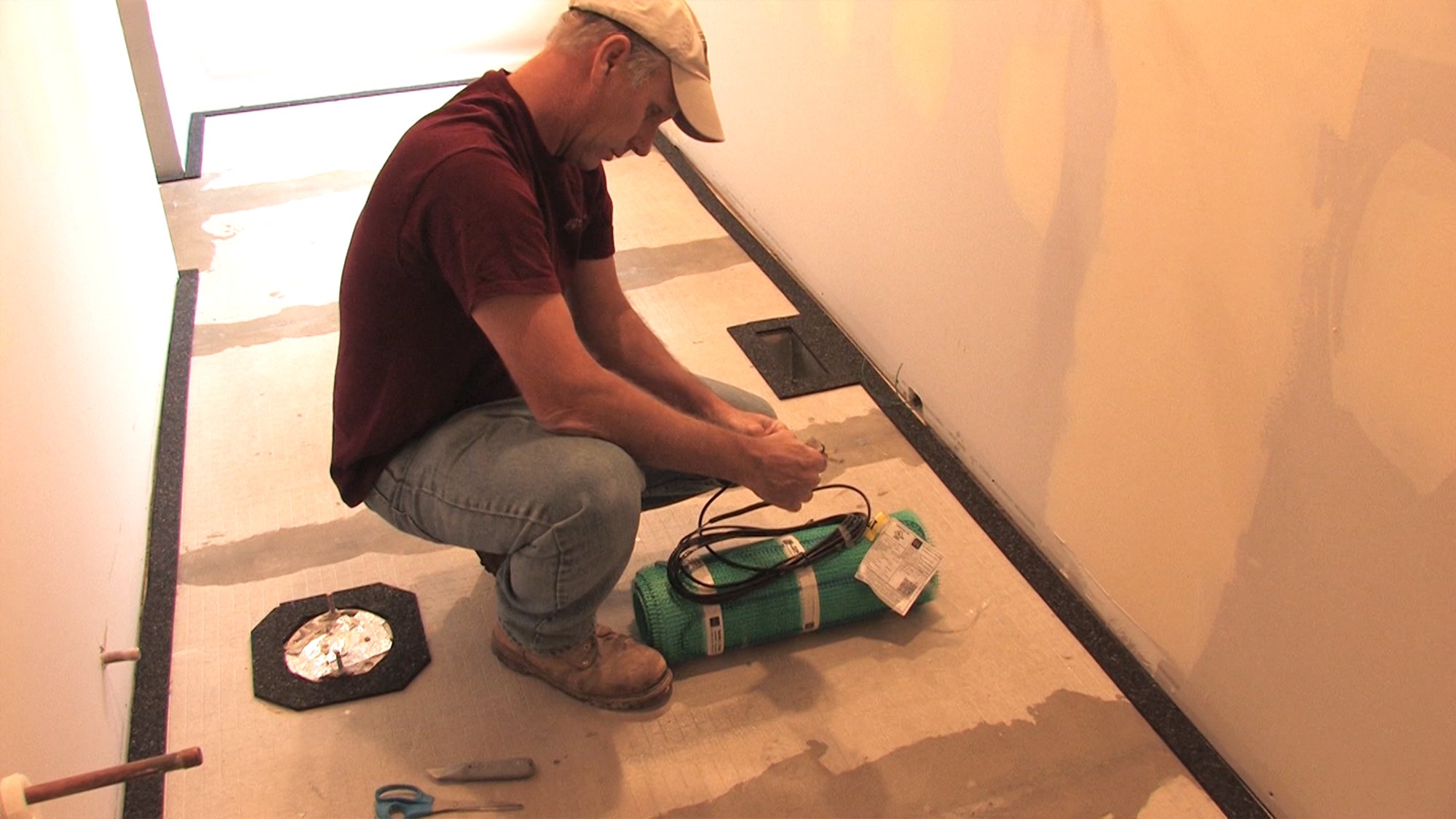

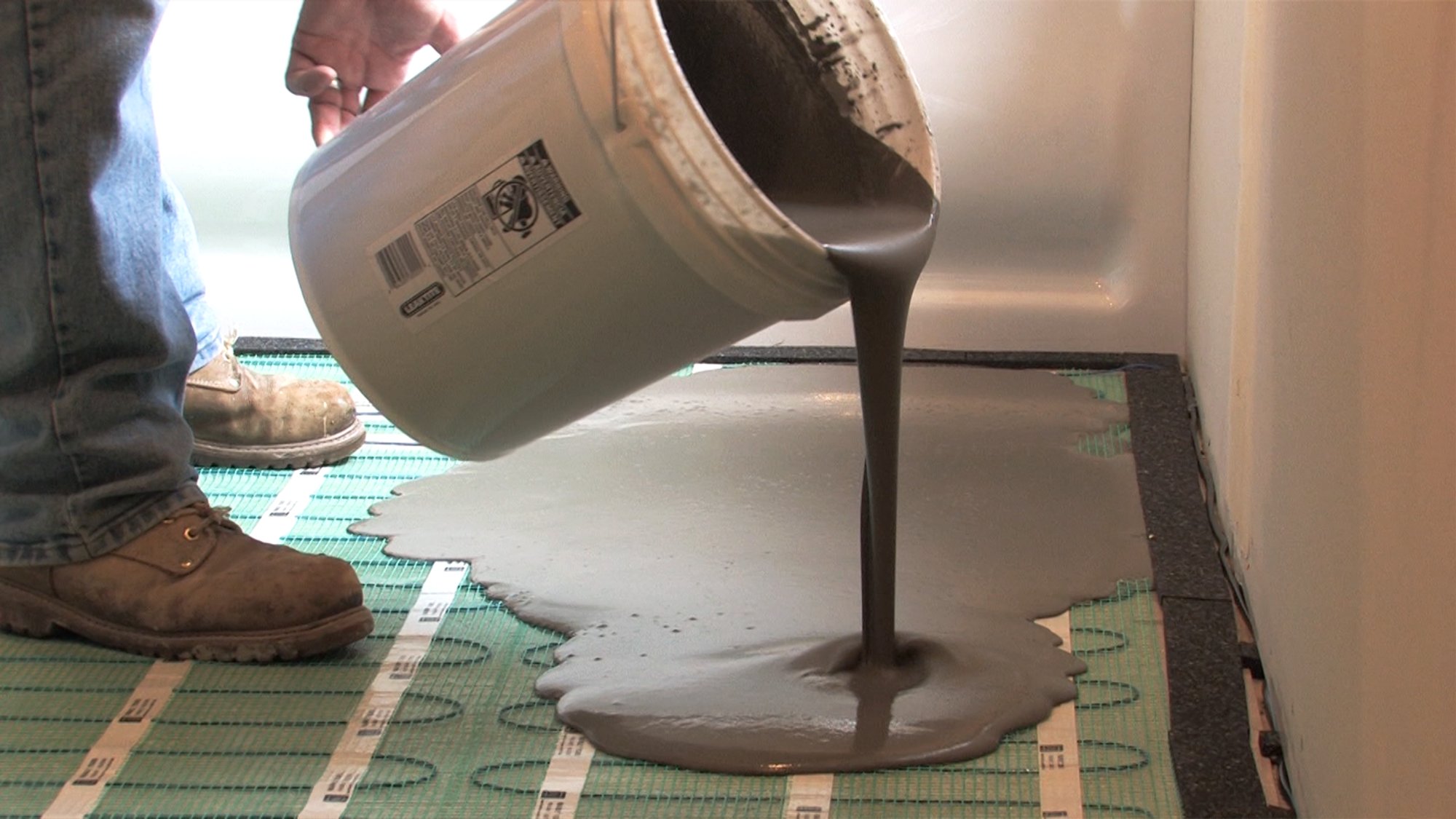

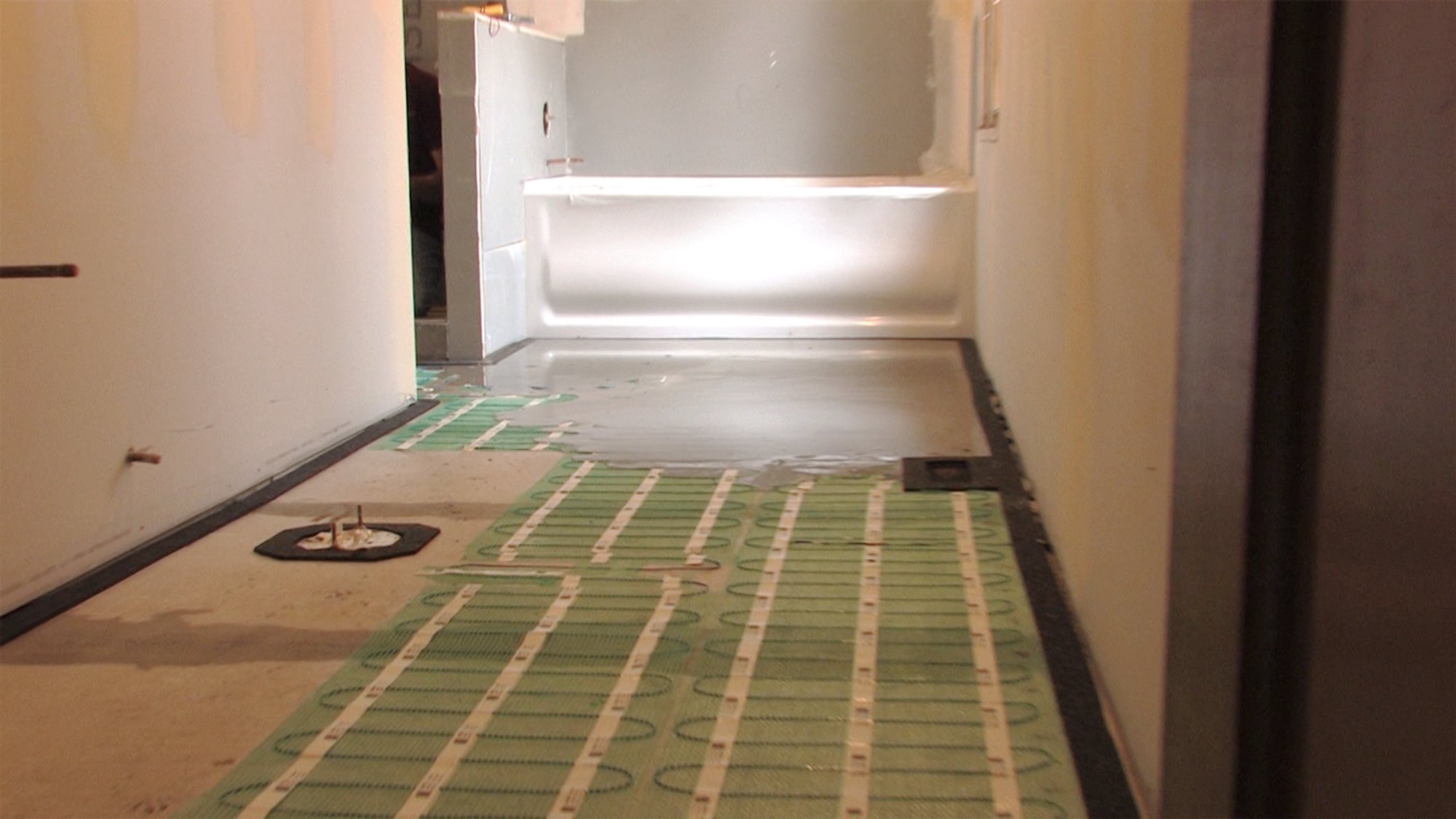

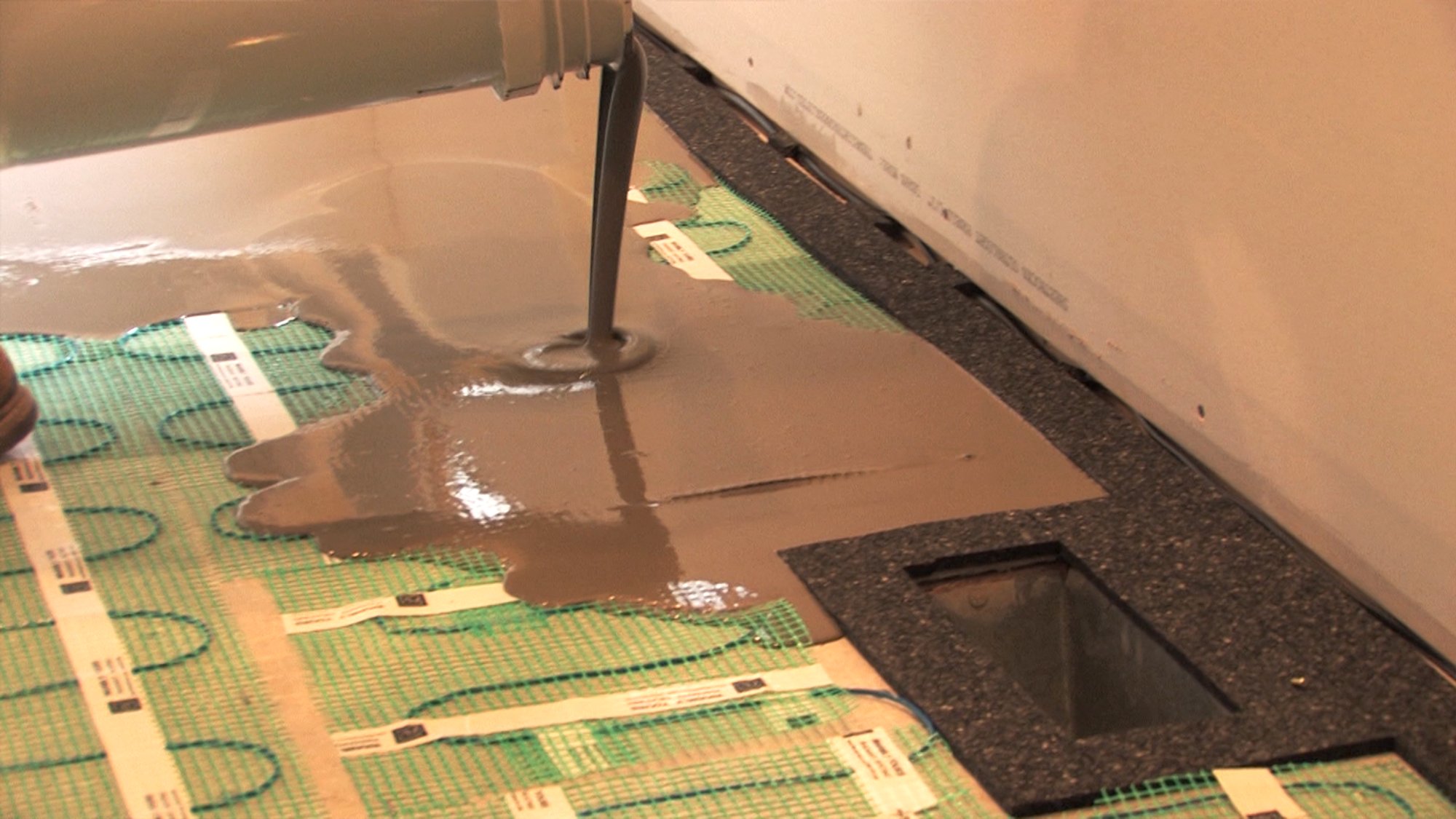

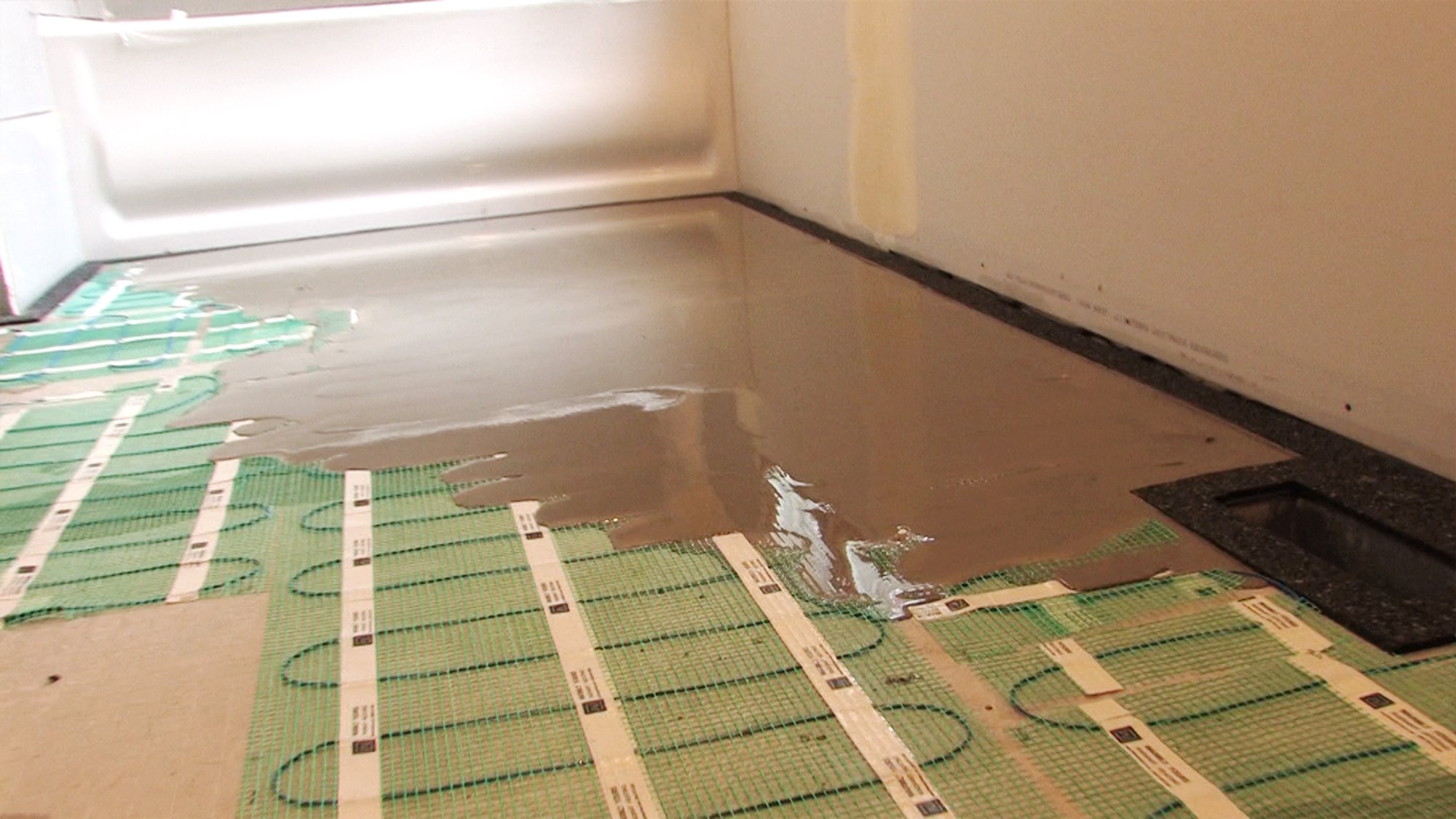

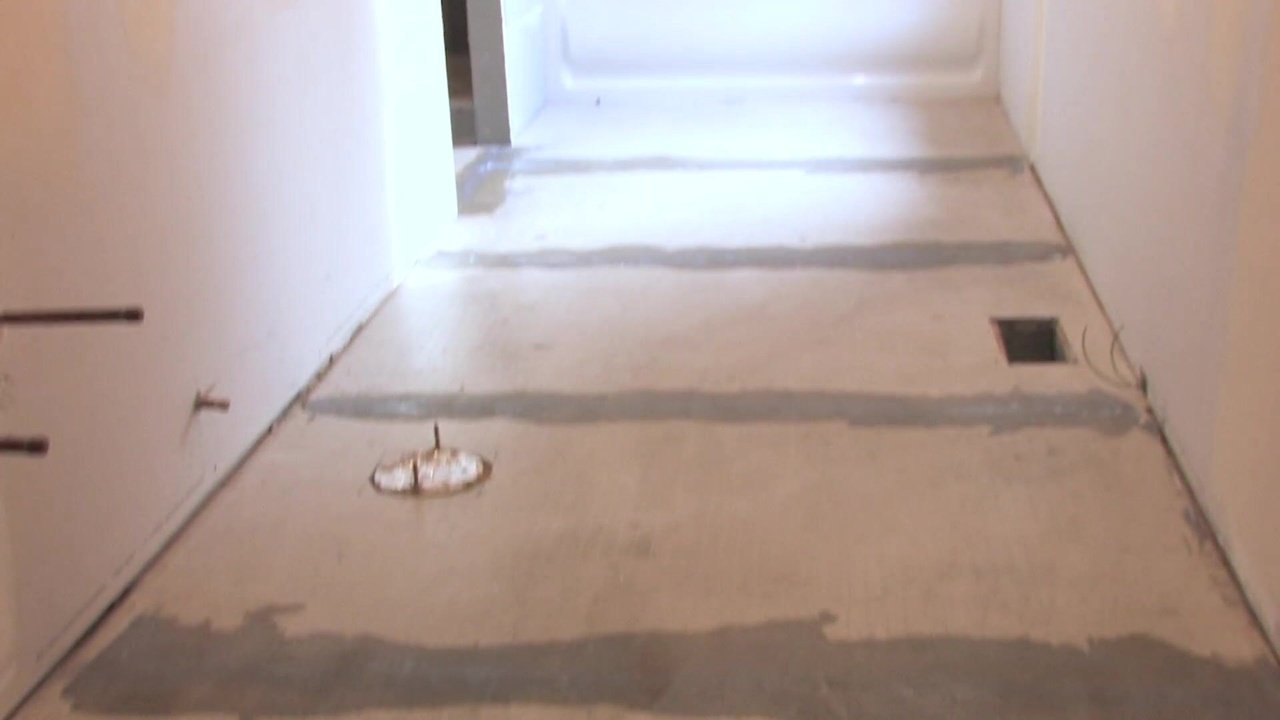

The solution was the WarmlyYours TempZone Flex Roll, a highly versatile and easy-to-install product. The 65 sq. ft. area was perfectly covered by a 1.5' x 43' roll. The installation utilized a self-leveling compound (SLC) over the substrate to embed the heating element. Using SLC is an excellent method for ensuring the entire heating cable is encased, which maximizes heat transfer efficiency and protects the system beneath the new floor.1
By installing the in-floor heating system, the homeowner achieved continuous, silent floor warming right where they need it most—underfoot. Paired with a SmartStat Programmable Thermostat, the system can be scheduled to run only when the bathroom is in use, making this a highly energy efficient heating solution that provides unparalleled daily luxury.
Featured Products
WarmlyYours Snow Melting Systems are the perfect radiant heating solution for outdoor concrete, asphalt, or paver surfaces, eliminating the need for shoveling and salt.

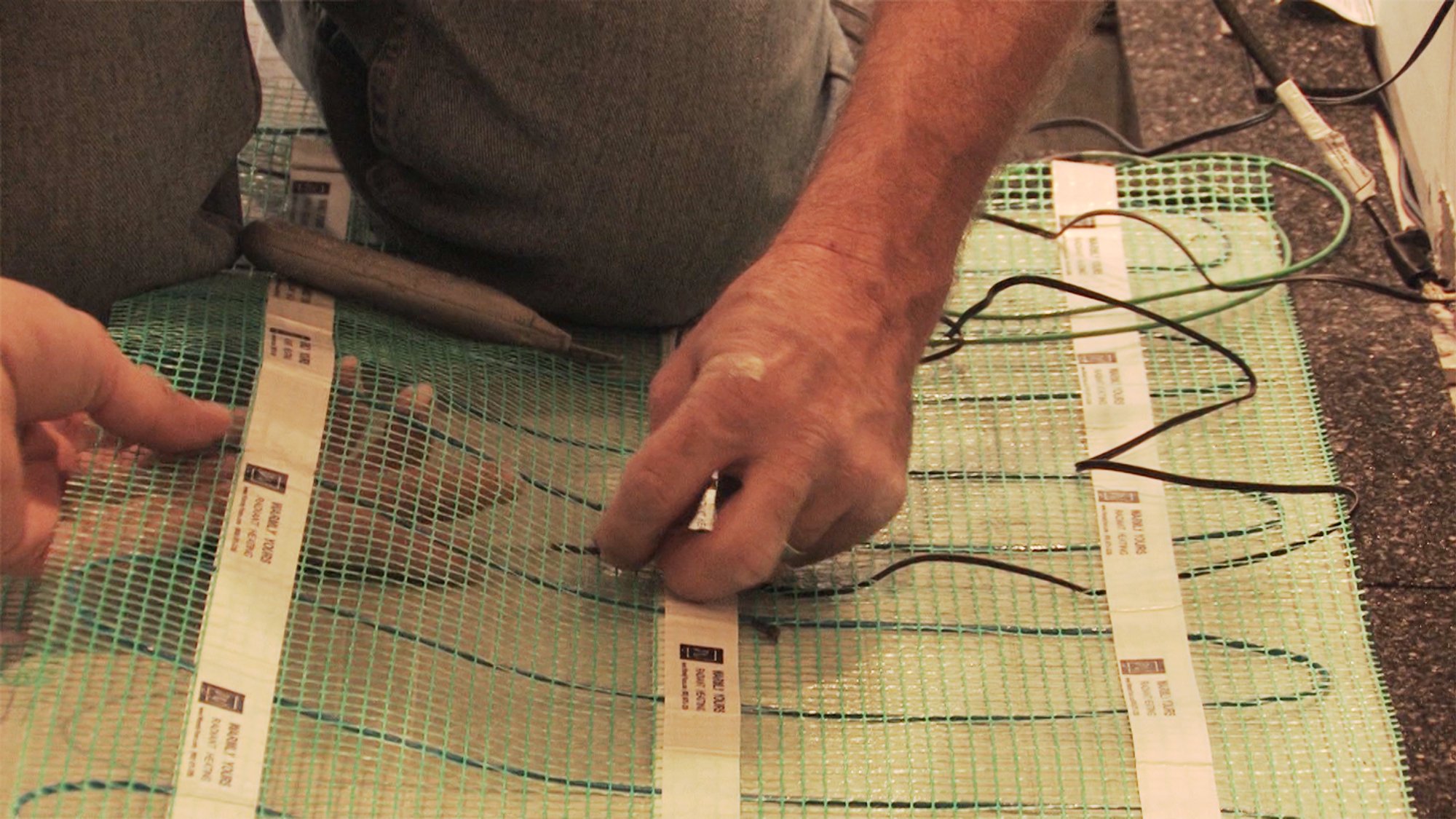

- SmartStat Programmable Thermostat w/Floor Sensor (TH115-AF-GA-08): This state-of-the-art thermostat features a floor sensor to precisely maintain the desired floor temperature. It is fully programmable, offering scheduling features to maximize energy efficiency and comfort.

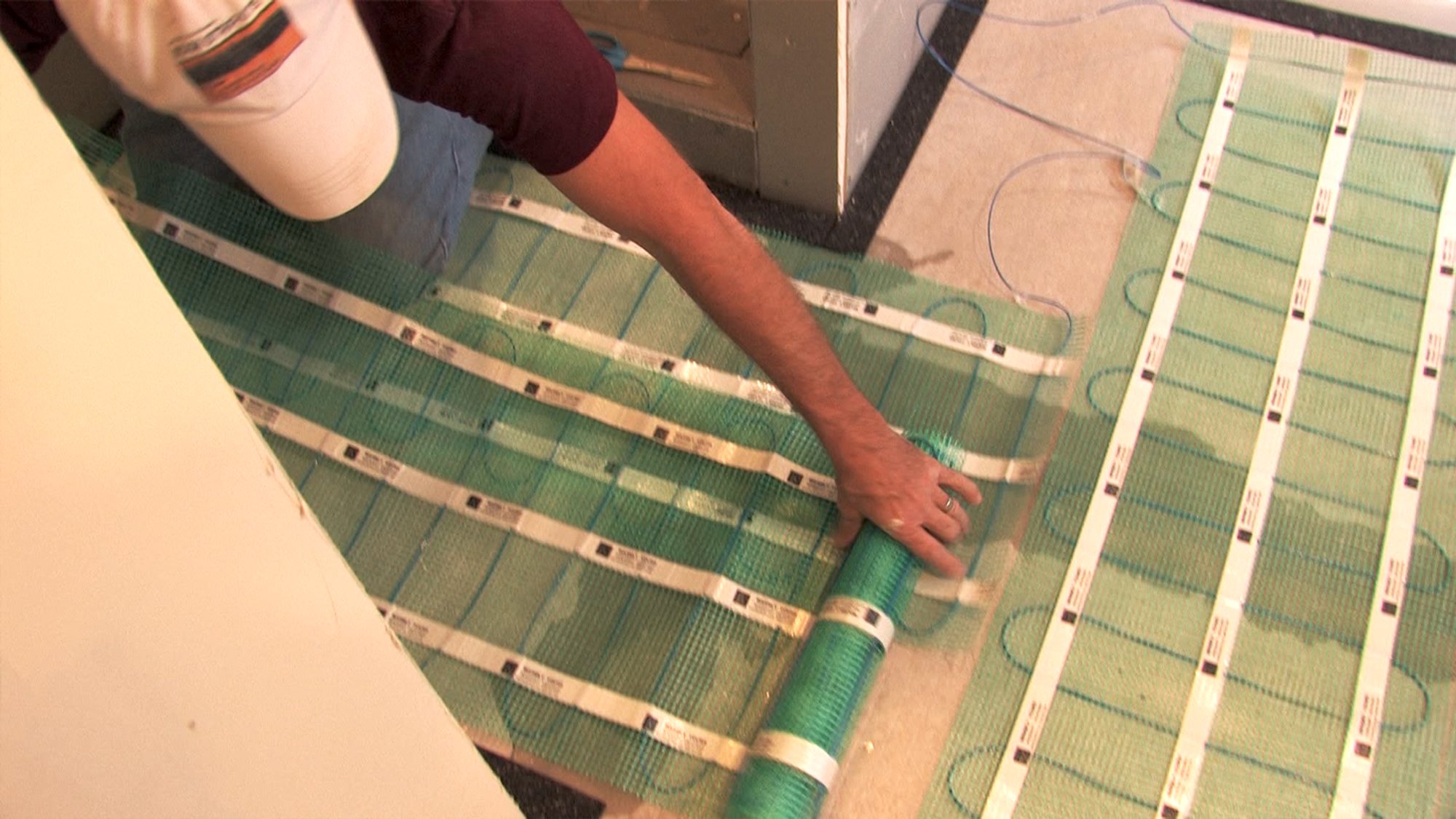

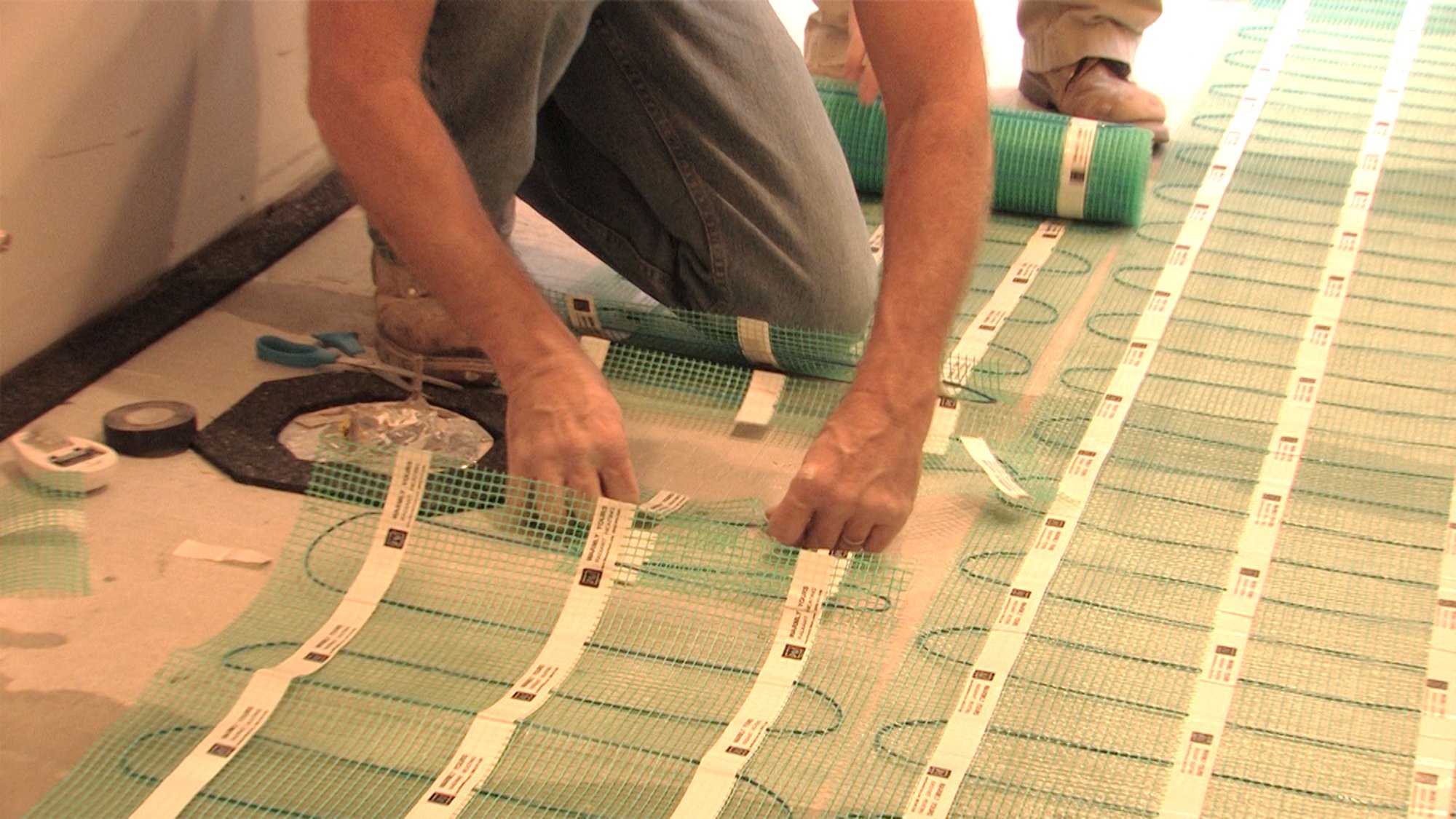

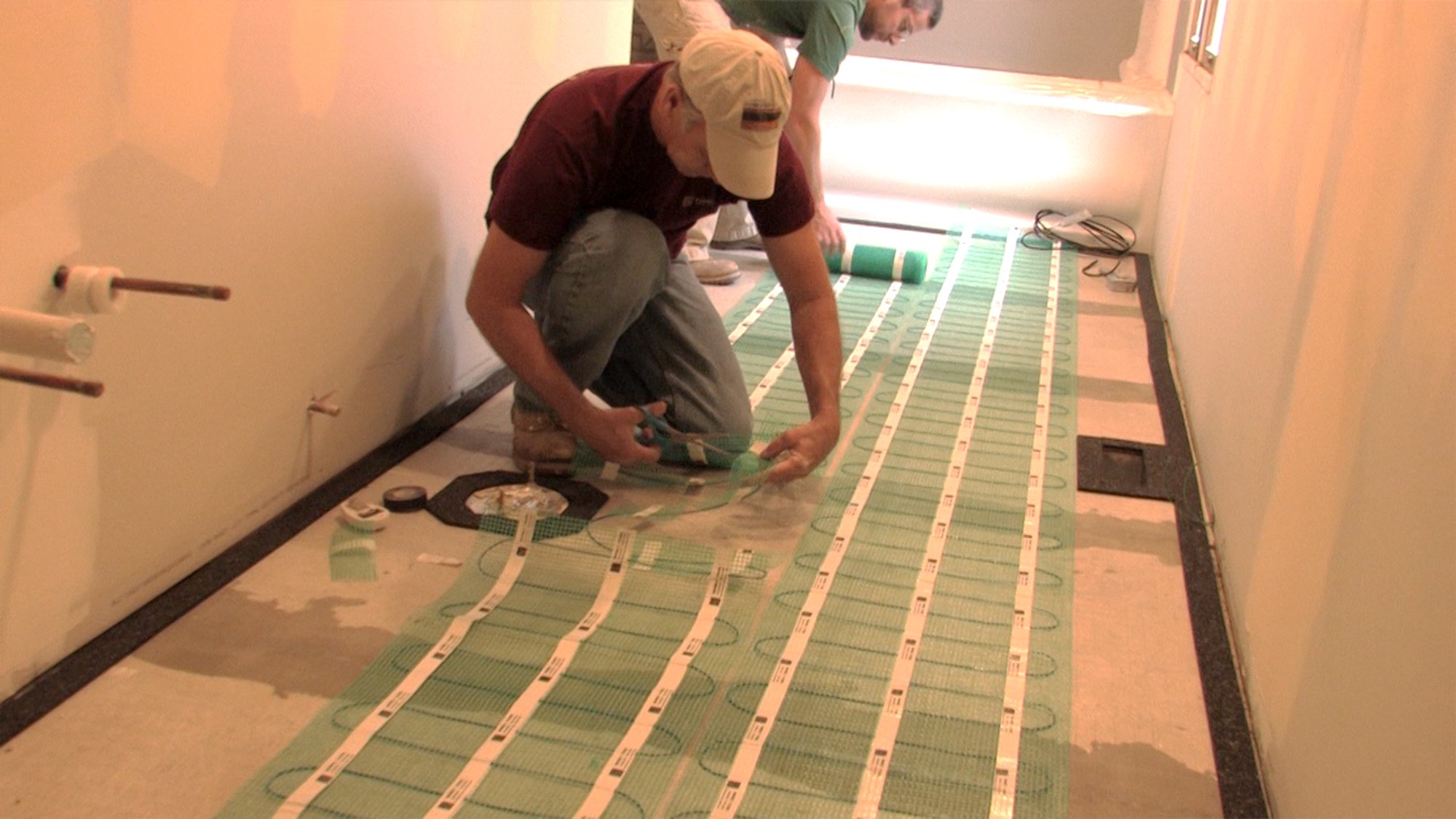

- TempZone™ Flex Roll 120V (TRT120-1.5x43): The core of the system. This TempZone Flex Roll features a thin heating cable factory-attached to a rollable mesh, simplifying the installation process. Perfect for large, regularly shaped areas like this master bathroom, it provides uniform radiant floor heating coverage.
