In North York, Ontario, freezing winter temperatures turn below-grade concrete slabs into massive thermal sinks that siphon warmth out of the home. Homeowners frequently find that standard forced-air heating leaves basement floors cold and drafty, making valuable lower-level living space uncomfortable and underutilized throughout the long Canadian winter.
Project Details
| Specification | Detail |
|---|---|
| Location | North York, ON |
| Space Type | Basement |
| Flooring / Surface Type | Laminate |
| System Type | Radiant Floor Heating |
| Total Square Footage | 546 sq. ft. |
| Technical Specs | 240V / 4,879W / 21A |
| Watt Density | 9–12 W/sq. ft. |
| Cable / Mat Spacing | Pre-spaced Mat / Flex Roll |
| Products Used | WarmlyYours TempZone™ Heating Elements, nSpire Touch Thermostat, nJoin Power Module |
| Operating Cost | ~$0.22 / hour |
| Installer / Contractor | DIY Installation |
The Problem: A Freezing Concrete Slab That Kept the Basement Unused
Below-grade concrete basement floors in Southern Ontario naturally absorb sub-surface ground chill, creating a perpetually cold surface that forced-air registers cannot effectively warm. For this 546 sq. ft. finished basement renovation in North York, the cold laminate surface created an uninviting barrier to daily relaxation, home entertainment, and family activities during freezing weather.
The Solution: Tailored Radiant Floor Heating with Dual-Circuit Controls

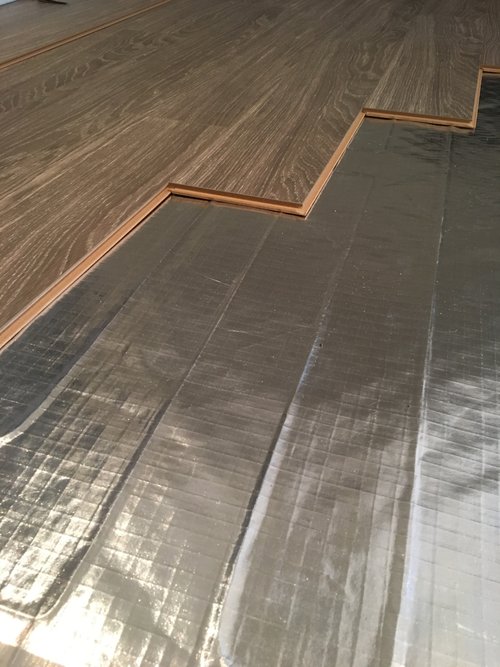

To deliver complete, consistent warmth across the 546 sq. ft. living area, a 240V electric radiant heating layout generating 4,879 total watts was integrated beneath the new laminate flooring. Drawing 21 total amps, the system was configured with the WarmlyYours nSpire Touch color touchscreen thermostat paired with an nJoin power module, seamlessly expanding load capacity while providing 7-day programmable scheduling and precise floor-temperature limiting.
The Outcome: Warm Laminate Floors and Year-Round Lower-Level Comfort
The radiant system converted the once-frigid basement into a cozy, energy-efficient extension of the home's main living space. Gentle, upward-radiating heat warms feet, furniture, and surrounding air evenly without circulating dust, allergens, or drafts, ensuring complete barefoot comfort through the coldest Ontario winter days.
Operating at approximately $0.22/hour, this system costs roughly $53.00/month—less than a daily cup of coffee or a streaming subscription—while providing unmatched barefoot comfort across 546 sq. ft. of finished basement.
Featured Products
- WarmlyYours TempZone™ Electric Radiant Heating Elements: Deliver uniform, low-profile heat distribution engineered specifically to protect floating laminate flooring while eliminating subfloor cold spots.
- nSpire Touch Programmable Thermostat (UDG4-4999): Features a 3.5-inch color touchscreen, built-in Class A GFCI protection, and a 10K floor temperature sensor with flooring limit controls.
- nJoin Power Module (USG-4000): Extends switching capacity beyond 15 amps, enabling seamless single-thermostat control for large 21A, 240V basement heating layouts.
