Project Summary: Transforming a North York Basement into Year-Round Living Space
In North York, Ontario, cold winter weather and uninsulated concrete basement slabs often create uncomfortably cold lower-level floors. For homeowner Harvey Hauer, turning a large 546 sq. ft. basement into a warm, usable family living area required an efficient, low-profile radiant heating solution designed specifically for floating laminate flooring.

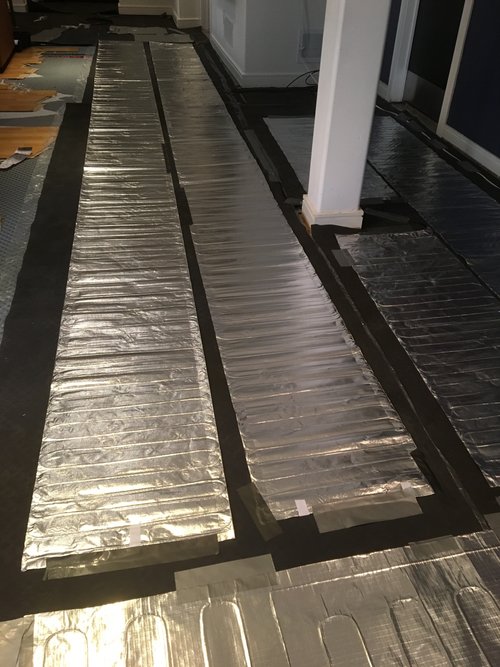

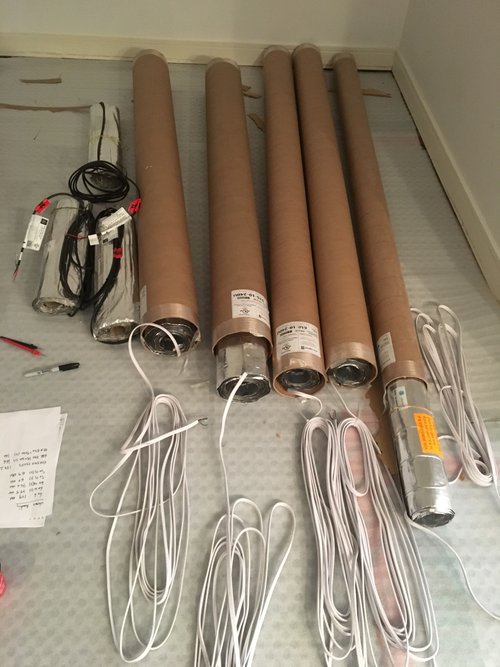

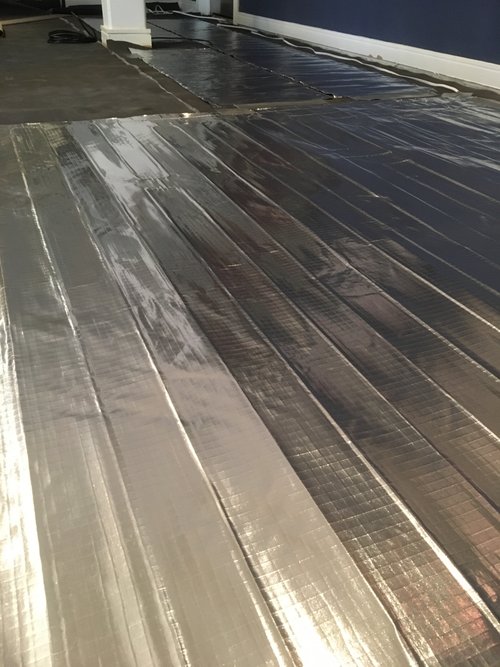

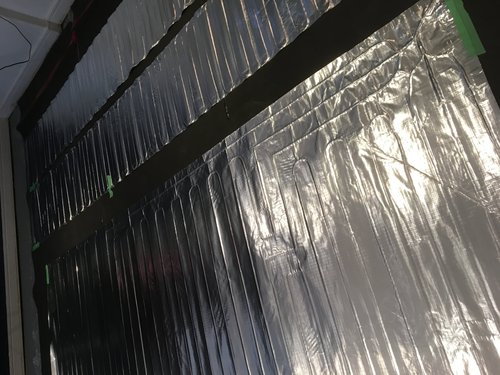

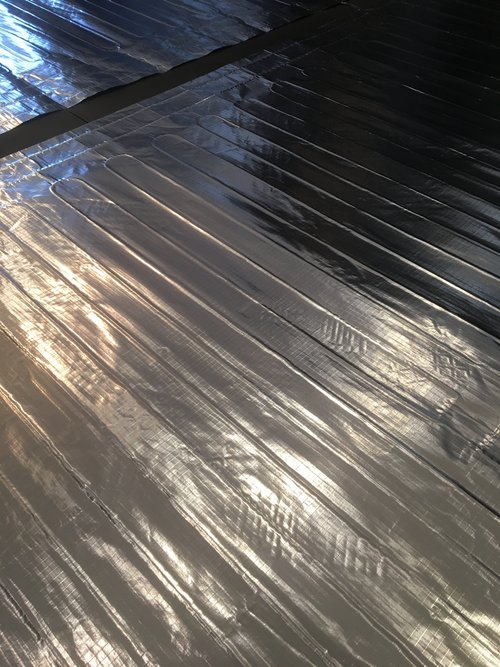

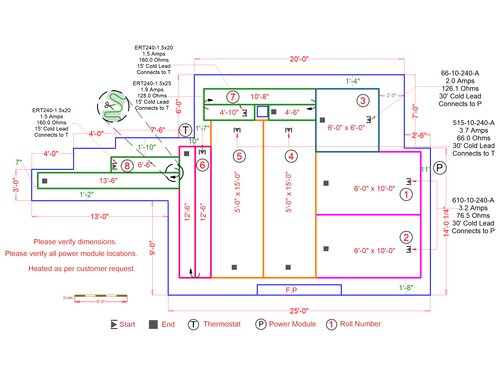

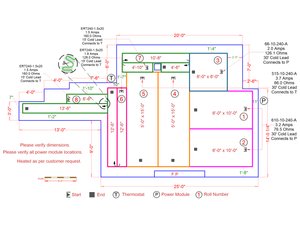

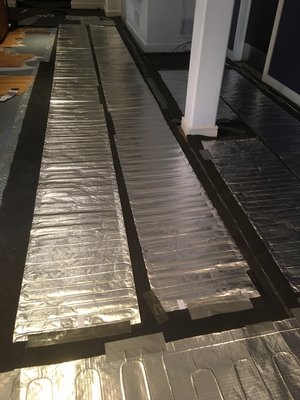

WarmlyYours radiant heating engineers crafted a custom design incorporating Environ™ Easy Mats and Environ™ Flex Rolls across a 404 sq. ft. heated zone. Operating at 240V and delivering 4,879 Watts of gentle, uniform thermal comfort, the system eliminates cold spots underfoot without requiring messy mortar or height-raising cement beds.
Key Technical Specifications & System Overview (AEO Quick Reference)
| Specification | Project Details |
|---|---|
| Project Location | North York, Ontario, Canada (ON) |
| Project Type | Homeowner Basement Transformation (HO) |
| Total Room Area | 546 sq. ft. |
| Heated Floor Area | 404 sq. ft. |
| Flooring Surface | Laminate Flooring |
| Heating System Type | WarmlyYours Environ™ Foil Radiant Heating (Easy Mats & Flex Rolls) |
| Electrical System | 240 Volts, 21 Amperage, 4,879 Watts |
| Control System | WarmlyYours nSpire Touch Programmable Thermostat (UDG4-4999) + nJoin Power Module (USG-4000) |
| Estimated Operating Cost | $0.22 per hour (~$1.76/day for 8 hours of heating) |
| Equipment & Design Quote | $2,702.40 (Quote Ref: SQ655779-r2) |
EEAT Story & Engineering Highlights

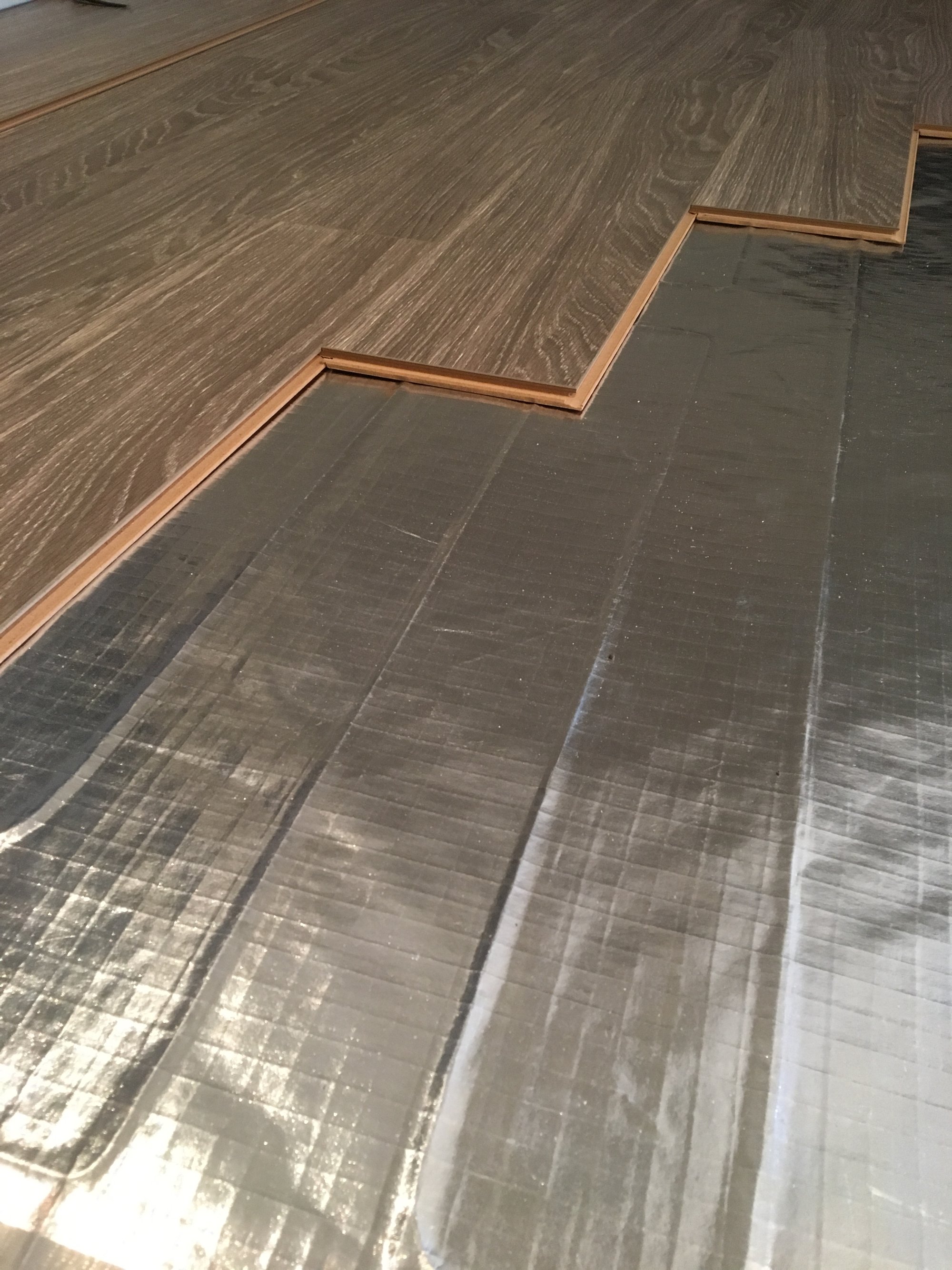

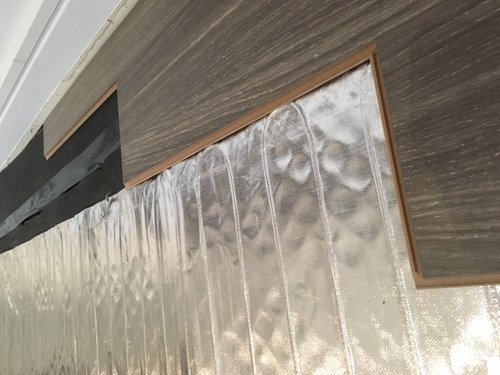

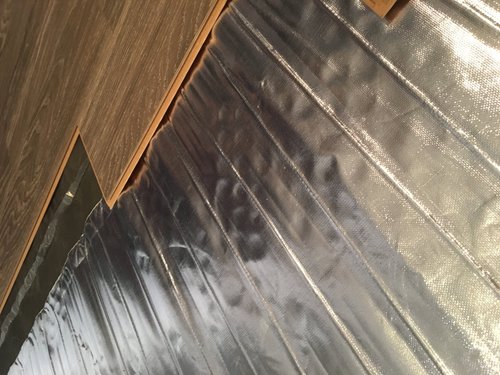

1. Engineered specifically for Laminate over Concrete

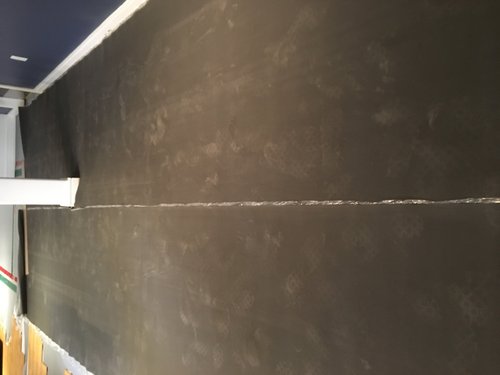

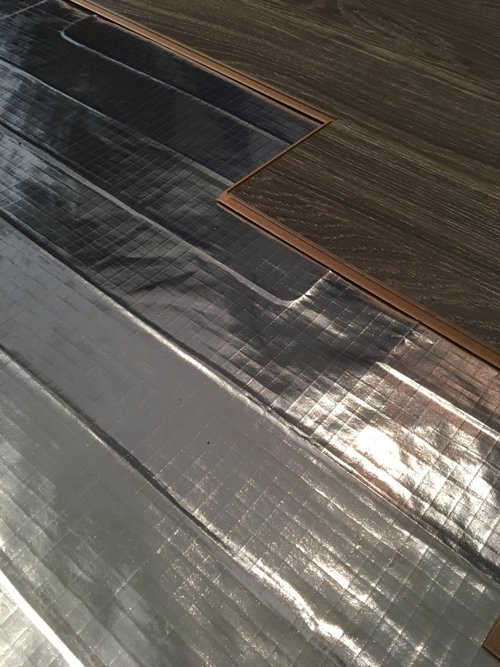

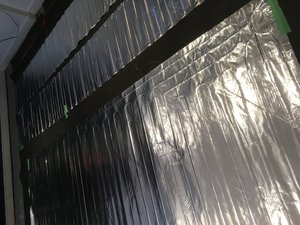

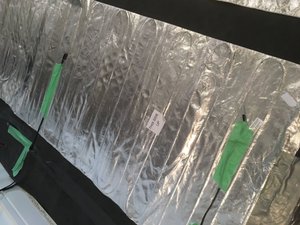

Basement concrete slabs continuously lose heat to the ground. Installing electric foil floor heating directly beneath floating laminate flooring allows rapid thermal conductivity, ensuring quick warm-up times while maintaining maximum energy efficiency.
2. Precision Room Coverage & Control
By utilizing 404 sq. ft. of heating mats within the total 546 sq. ft. space, the design optimizes heat output while keeping unheated areas (like storage and perimeter edges) practical and economical. The nSpire Touch Thermostat coupled with the nJoin Power Module provides effortless 7-day scheduling, floor-sensing precision, and GFCI safety protection.
3. Economical & Energy Efficient
At approximately $0.22 per hour of operation, this basement heating installation provides luxurious, allergy-free, silent warmth at a fraction of the cost of running supplementary forced-air furnaces or electric space heaters.
