Underlayment for Heated Floors


While not every floor heating project requires an underlayment, they are particularly useful for projects where there is concern about heat loss to the subfloor or when subfloor issues threaten to compromise the integrity of relatively fragile flooring types like tile, marble, or stone. WarmlyYours offers 2 different underlayment products: Prodeso Cable Installation Membrane and ThermalSheet.


Get an Instant Quote

Contact a Radiant Heating Expert


Which Radiant Heating Underlayment Option is Right for You?

Selecting the perfect floor heating underlayment will depend on information that is unique to your project like the type of subfloor you're installing over and the flooring type you'll put over the heating system.

The Prodeso Cable Installation Membrane is an uncoupling membrane that can only be used with the TempZone Floor Heating Cable. The membrane provides long lasting uncoupling and crack isolation benefits for tile, marble, and stone floors. The benefit of uncoupling is that it allows for a small degree of foundational movement (which occurs when a house “settles”) without causing the tiles in the floor to crack, break or “pop.” The idea behind crack isolation is that it stops cracks (up to a certain size) in the subfloor from “telegraphing” upwards into the floor which can cause extensive damage. An additional benefit of the membrane is that it can greatly decrease installation time as it allows an installer to complete most residential installations in a single day. Check out our design guide on Floor Heating with Prodeso Membrane and Tiles.

ThermalSheet is a synthetic “insulating” underlayment that has a higher degree of thermal resistance (R-value of 1.5) than cork. ThermalSheet is also the recommended underlayment for heating on top of a concrete slab and is often paired with our TempZone and Environ electric floor heating elements.

Request SmartPlan

Provide us with a sketch of your room that includes dimensions and other relevant information, you’ll receive a free SmartPlan within one business day.


Underlayment Solutions

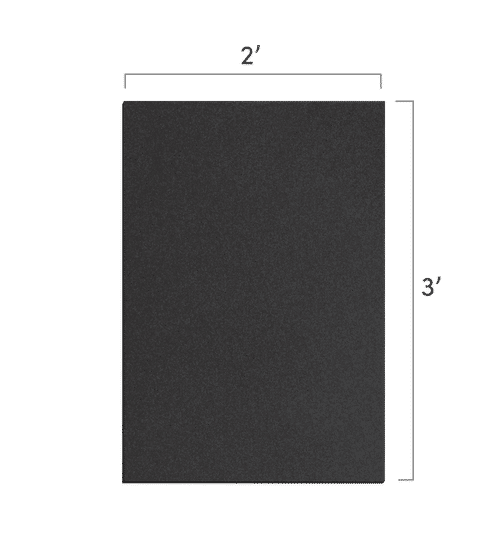

ThermalSheet™ Synthetic Cork Underlayment


Description

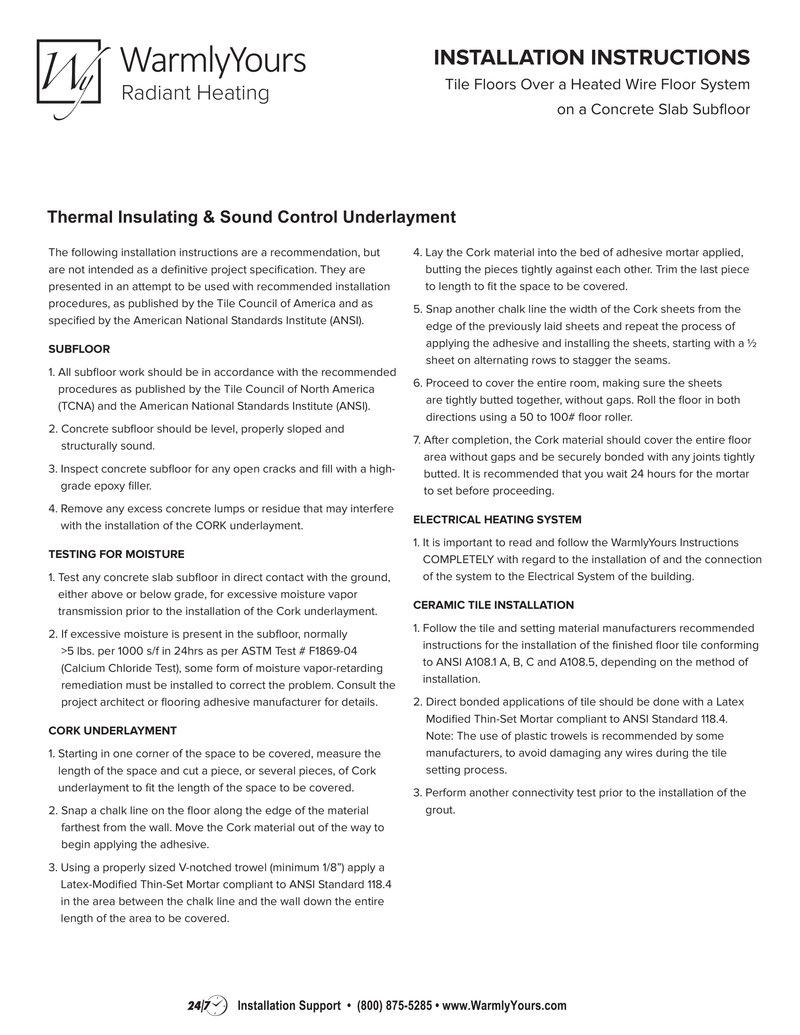

ThermalSheet is lightweight, synthetic cork underlayment system that is specifically designed for setting tile and stone and is an excellent insulation choice under our TempZone™ and Environ electric floor heating elements.

Download Sell Sheet
Features
  • Synthetic cork insulating underlayment that functions as a thermal break with an R-value of 1.5 to increase the energy efficiency of your floor heating system
  • Can be used under a wide range of floor coverings like tile, stone, LVT, and laminate and can be used over any acceptable subfloor
  • Heat and cold resistant, and will not rot, support mold and mildew, or absorb moisture

Available Sizes
  • 2’ x 3’ sheet (1 sheet) for a total coverage of 6 sq. ft.

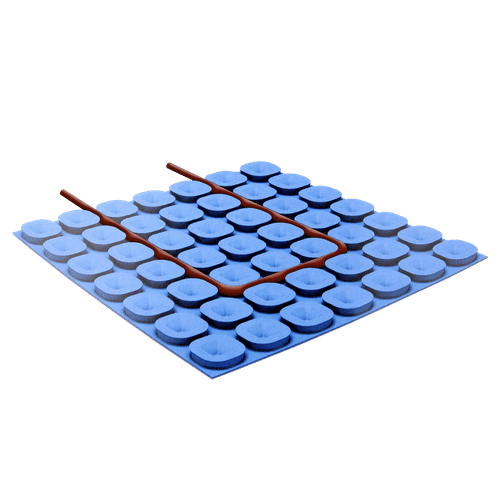

Prodeso Installation Membrane


Description

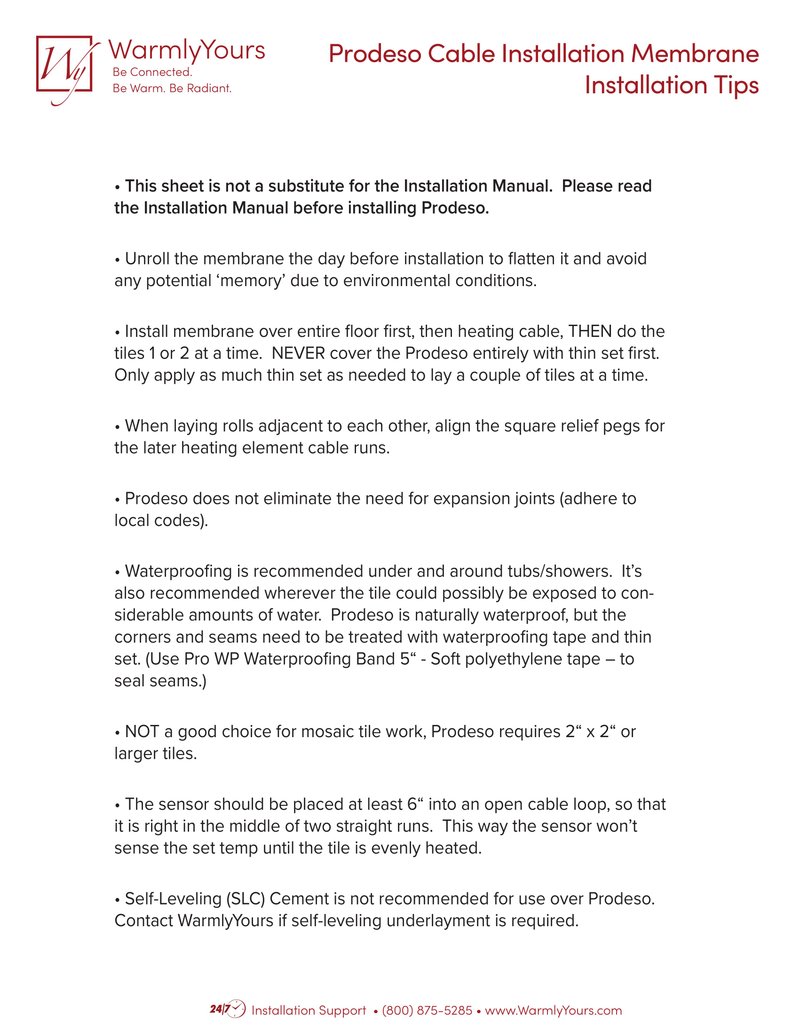

Prodeso Cable Installation Membrane is an uncoupling membrane that is designed to be used with TempZone electric floor heating cable. The unique design of the membrane allows for greatly accelerated installations of floor heating.


Features
  • Energy-efficient, radiant heat installation membrane.
  • Unique design allows quick and easy installation – in and out in one day.
  • Flexibility to adjust to any room size and requires no waiting.

Available Sizes
  • 3’ x 16’ roll for a total coverage of 54 sq. ft.
  • 3’ x 49’ roll for a total coverage of 162 sq. ft.

Frequently Asked Questions


How can I determine what I need for my floor heating project and how can I find out what my floor heating system will cost?

You can use the Instant Quote Tool, which gives you many options for your floor heating coverage. Use this interactive tool to design your room online and receive an instant quotation with product recommendations, rough-in and installation kits, cost of your control, etc. Planning your floor heating project is made easy when using our Instant Quote Tool.

Send us your floor plan or fax it to (800) 408-1100 and we will send you a quote, product recommendation and a free custom installation plan for your project.

25 people found this helpful.  Did you find this helpful? Yes No

What type of flooring can I install along with an electric floor heating system?

WarmlyYours’ TempZone™ product is most commonly installed under tile, stone, and marble flooring, but can also be installed under many other popular floor covering options such as hardwood, vinyl and linoleum. We also have our Environ system, which is an electric floor heating product as well and is specially designed for installation under carpet (in the U.S. only), laminate and floating wood. WarmlyYours can accommodate any flooring type with either of the electric radiant floor heating products that we offer. If your flooring type isn't listed here, just give us a call at (800) 875-5285 and we will be happy to discuss it with you.

23 people found this helpful.  Did you find this helpful? Yes No

Can electric floor heating be installed under a vanity?

Electric radiant floor heating should not be installed under permanent fixtures that may trap heat. However, if the vanity or cabinets are "floating" or are on legs, then a floor heating system may be installed under it.

11 people found this helpful.  Did you find this helpful? Yes No

How do I know if I am installing my electric floor heating system properly?

Please keep in mind that you must check your electric floor heating system with a digital ohmmeter in conjunction with a Circuit Check™. Take an initial reading as soon as you take the product out of the box to verify that it is within -5% / +10% of the values stated on the product’s label. This will give you a basis of comparison for future readings. Take a second reading once you have positioned the system to match your custom installation plan. It is also advisable to take an additional reading in the middle of the tile installation, just to make sure that the Circuit Check™ is doing its job. Then, take a final reading when you are finished with the floor installation and are ready to hook up the thermostat.

The Circuit Check™ is a tool developed by WarmlyYours to give you peace of mind and ensure trouble-free installations. Simply hook up the cold leads to the tool while you position the system to match your custom installation plan.

The Circuit Check™ will continuously monitor the continuity of the circuit during the installation of your system and during the installation of your flooring. The Circuit Check™ beeps immediately when a short in the system is detected, alerting you to a potentially damaged cable in the area you are working, before you lay the tile over the electric floor heating system.
 The WarmlyYours technical support team is available 24/7 to provide assistance if the alarm sounds, or if you would have any questions during your installation.

11 people found this helpful.  Did you find this helpful? Yes No

Will electric floor heating help with moisture issues like mold and mildew?

Yes, the drying effects of electric radiant floor heating will reduce the humidity coming from the slab, which is the largest source of moisture.

9 people found this helpful.  Did you find this helpful? Yes No

How much does it cost to run an electric floor heating system?

The answer to this question will depend on a whole host of variables related to electric floor heating, including, but not limited to, the run time (for supplemental heating, we usually recommend between 4-8 hours per day), the electric radiant floor heating system you're using, the total square footage, and your local electrical cost. Typically, the cost is just a few cents a day.

To figure out how much electric floor heating might cost to run for you, make sure to use our interactive Operating Cost Calculator.

9 people found this helpful.  Did you find this helpful? Yes No

How are hydronic and electric floor heating systems different?

While both hydronic (heated water) and electric floor heating systems perform a similar function by providing radiant heat from beneath your floor, they do differ in some pretty crucial ways. Typically, using hot water instead of electricity will result in lower operational costs but significantly higher investment and maintenance costs. This usually means that hydronic heating systems are reserved for new construction projects (where it is easier to incorporate the boilers and pumps needed to operate the system) and electric floor heating is often used for remodeling projects in bathrooms, kitchens, etc. To learn more about the differences between these systems, check out this post

7 people found this helpful.  Did you find this helpful? Yes No

Can I use electric floor heating as a primary heat source?

Yes, in most cases, an electric floor heating system can be effective as a primary heat source. However, our TempZone™ and Environ™ systems are most commonly used as a secondary heat source, providing floor-to-ceiling radiant heat to any room in your home where you desire more warmth and comfort.

If you are considering electric floor heating for an addition to your home, such as a sunroom where you have no other source of heat, WarmlyYours offers an innovative online tool which calculates approximate heat loss. This tool can help you to determine if a WarmlyYours’ electric radiant floor heating system will provide your desired comfort temperature throughout the year. You can access the Heat Loss Calculator or you can call us at (800) 875-5285 and a Customer Service Representative will make the calculation for you.

7 people found this helpful.  Did you find this helpful? Yes No

How much does it cost to heat a bathroom floor with electric floor heating?

A typical bathroom floor can be heated for about a quarter a day with electric radiant floor heating.

6 people found this helpful.  Did you find this helpful? Yes No

How can I make my basement warmer?

A floor heating system can work as a supplemental heating source and make the basement warmer. If more heat needs to be added to the room, you can experiment with setting the floor heating thermostat to higher temperatures.

6 people found this helpful.  Did you find this helpful? Yes No

Do I have to replace my floor to install electric floor heating?

Yes. While there are some floor heating systems that can be installed beneath floor joists, most electric radiant floor heating systems will need to be installed beneath the floor itself. This is why the best time to install electric floor heating is during a remodel or as a part of a new construction, when a floor is being installed anyways.

If you're interested in alternative radiant heating methods, check out our Radiant Panels, which are wall-mounted and use infrared technology to provide supplemental heating.

5 people found this helpful.  Did you find this helpful? Yes No

How do I figure out how much underlayment I’ll need for my floor heating project?

The best way is to use our Radiant Floor Heating Quote Builder tool. It’s a great way to get an estimation by simply providing project information like room size and subfloor type.

4 people found this helpful.  Did you find this helpful? Yes No

What temperature will my heated floor reach?

The temperature of your floor can range anywhere between 75°F to 95°F. The floor's actual temperature will depend on a number of factors including the amount of heat loss that the room experiences as well as the room’s configuration. For instance, the warmth contained in a two story entry way would likely be less than that of a smaller, more enclosed area such as a bathroom. In a bathroom that is located on the second floor of your home or over another floor in your home that is typically heated, the temperature of your heated floor should easily reach a comfortable temperature of 85 degrees Fahrenheit, if the electric floor heating system is installed correctly. For the heat loss calculation for your specific room, you can access the Heat Loss Calculator or you can call us at (800) 875-5285 and a Customer Service Representative will make the calculation for you.

4 people found this helpful.  Did you find this helpful? Yes No

Is a floor heating underlayment always required?

No, an underlayment isn’t always necessary.

However, there are some situations in which the use of an underlayment would be required, such as heating over a cement slab (where an insulating underlayment would most likely be required). When heating over a cement slab, our recommendation is to use ThermalSheet as your underlayment.

3 people found this helpful.  Did you find this helpful? Yes No

How does electric floor heating compare to central or forced air heating?

Typically, electric floor heating is used as a supplemental heat source but in some cases, it can be used as a primary heat source. Electric floor heating is more energy efficient, less prone to spreading dust and allergens, and easier to control from room to room. Air-based heating systems can be used for both heating and cooling and can be a good way to control air quality in the home with regular maintenance.

For a more in-depth answer to this question, check out Your ‘Cheat Sheet’ for Radiant Heat vs. Forced Air

3 people found this helpful.  Did you find this helpful? Yes No

How does electric floor heating work?

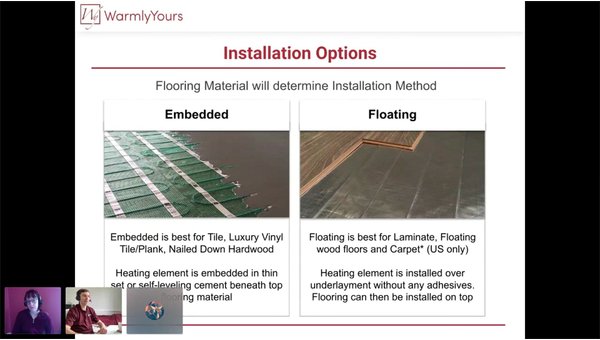

Electric floor heating works by having an electric heating cable installed underneath the flooring (embedded or floating, depending on the system and floor type), which is then wired to a special thermostat (either one specifically designed for electric radiant floor heating, like a WarmlyYours’ nSpiration Series control, or a third-party thermostat). When turned on, the heating cable emits heat upward through the flooring which is then radiated throughout the room, heating all solid surfaces.

3 people found this helpful.  Did you find this helpful? Yes No

How are insulating underlayments different from uncoupling membranes?

Insulating underlayments and uncoupling membranes share some key characteristics like providing crack isolation benefits, but they are separated by their primary functions.

Insulating underlayments, like WarmlyYours ThermalSheet, provide a thermal break between a subfloor and the heating elements, which can help prevent the concrete from acting as a “heat sink” and increase energy efficiency. ThermalSheet has a 1.5 R-value, and it offers crack isolation of up to ¼”. This can be particularly beneficial if you are trying to heat a room above a cement slab or above an unheated garage.

Uncoupling membranes, like the Prodeso membrane, are great for protecting relatively fragile floor coverings like tile from foundational movement. They also allow for faster installation times than many other types of floor heating.

2 people found this helpful.  Did you find this helpful? Yes No

Which floor heating underlayment is best for a high-moisture installation like a bathroom?

Typically, an uncoupling membrane like Prodeso will be best for this application because it can be paired with accessories to effectively waterproof the subfloor.

However, if you have a cement subfloor, then ThermalSheet synthetic cork is a good choice because of its high 1.5 R-value and moisture resistance.

1 person found this helpful.  Did you find this helpful? Yes No

What should I do with the floor sensor that was included with my floor heating element?

WarmlyYours has recently begun including floor sensors with our heating elements to help ensure customers will have everything they need for optimal operation of their radiant heating systems.

The sensor included with your floor heating element can be installed with the heating system (the sensor is equally spaced between runs of the heating wire--see your install manual for more info). Installing this sensor with your floor heating control will enable energy efficient operation of the floor warming system based on the floor temperature instead of the ambient room temperature.

We generally recommend that you install a second, unconnected backup floor sensor alongside the primary one. In the very unlikely event that your first floor sensor is damaged, this install method will save you from having to pry up flooring to replace a floor sensor. You simply disconnect the damaged sensor from the thermostat and connect the backup sensor.

In addition to the floor sensor that was included with your heating element, our nSpiration Series thermostats also come with a floor sensor. If you purchase both a heating element and an nSpiration Series thermostat from WarmlyYours, you'll have a primary and a backup floor sensor for your system.
