Cold Coastal Tile, Solved: Radiant Warmth Under a Camden Master Bath
Winter mornings on the Maine coast turned this master bathroom's tile into the coldest surface in the house. During the renovation, 40.5 sq. ft. of the floor was heated with a WarmlyYours TempZone™ Flex Roll and put on a programmable schedule. The result is silent, even warmth underfoot for roughly $0.17 an hour.
Project Details
| Specification | Detail |
|---|---|
| Location | Camden, Maine |
| Space Type | Master Bathroom |
| Flooring / Surface Type | Tile, Marble or Stone |
| System Type | Electric Radiant Floor Heating |
| Total Square Footage | 76 sq. ft. room / 40.5 sq. ft. heated |
| Technical Specs | 120V / 607W / 5A |
| Watt Density | 15 W/sq. ft. |
| Cable / Mat Spacing | Pre-spaced cable on mesh backing (Flex Roll) |
| Products Used | TempZone™ Flex Roll; nSpire Touch Thermostat (UDG4-4999); Circuit Check (SS-01) |
| Operating Cost | ~$0.17 / hour |
| Installer / Contractor | Not specified |
The Problem: A Beautiful Floor Nobody Wanted to Step On
Tile holds the temperature of whatever sits beneath it, and in a coastal Maine winter that means a surface that feels punishing at six in the morning. The homeowners were already living around it — rugs covering the stone they had chosen on purpose, slippers never far from the door. Warm air rising from central heat did little for the one surface their feet actually touched.
The Solution: Heat Placed Only Where Feet Land

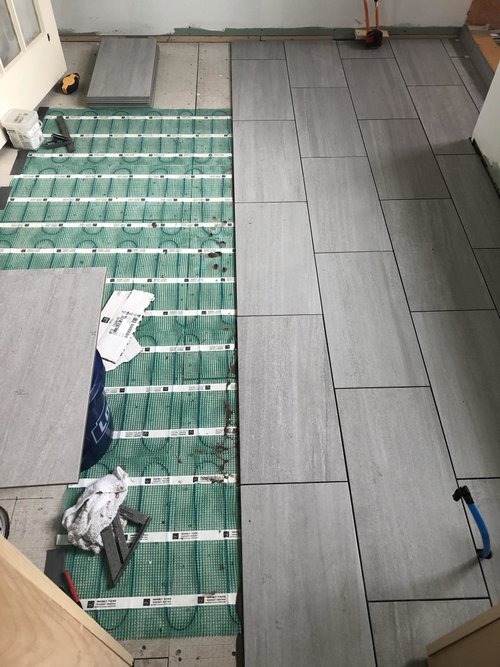

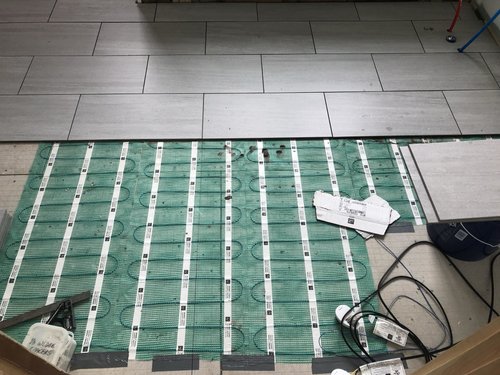

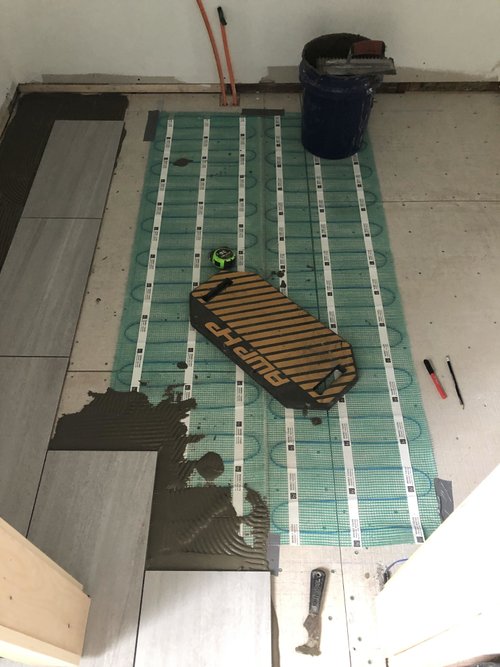

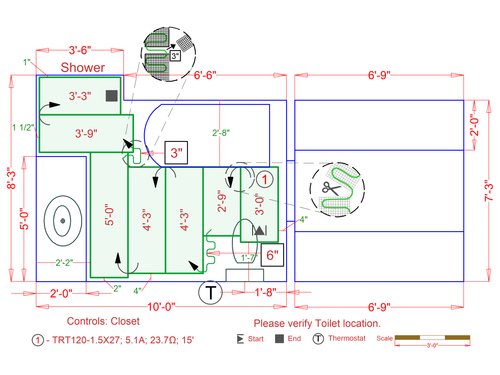

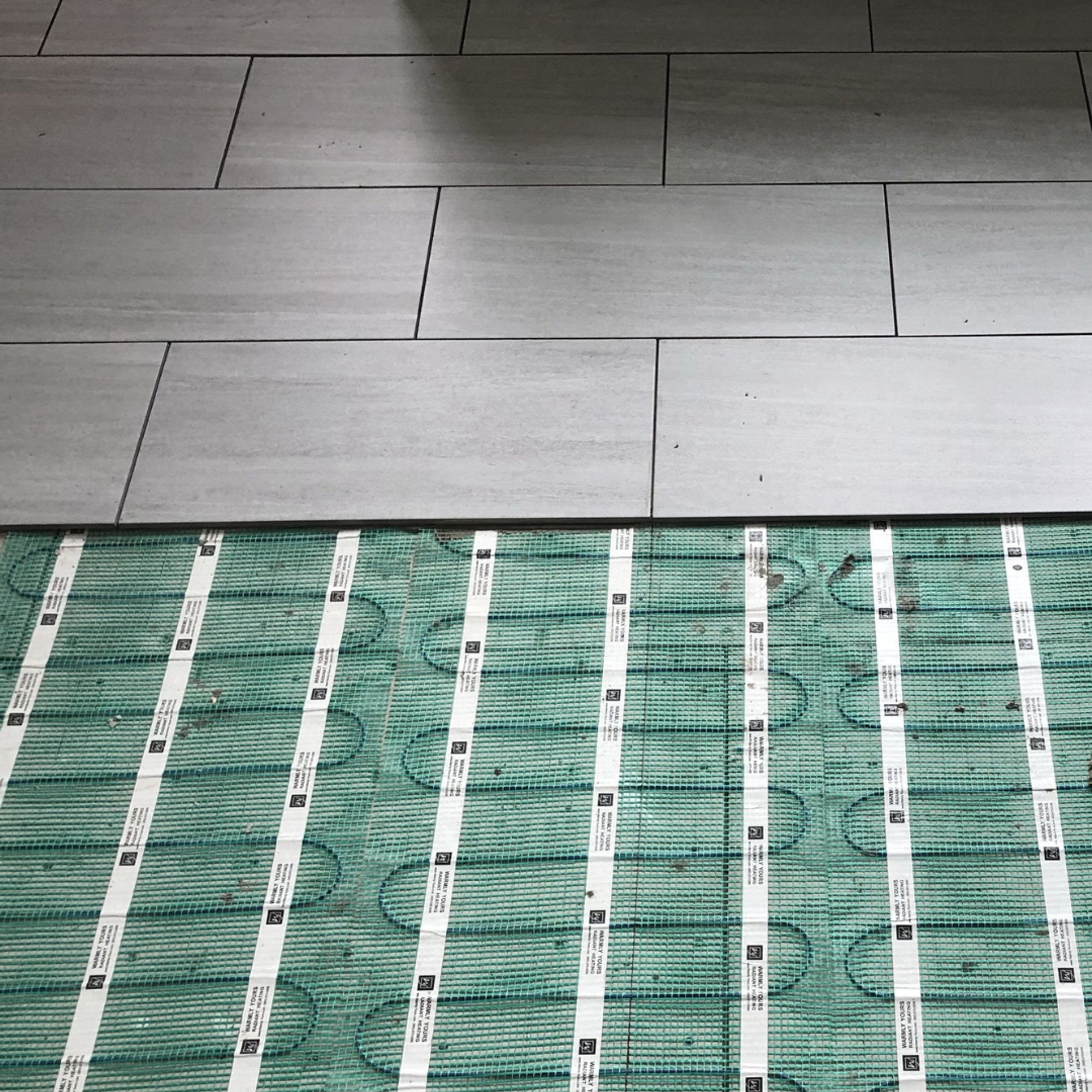

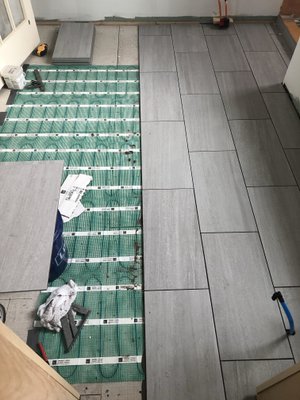

Rather than heat all 76 sq. ft., the plan mapped the 40.5 sq. ft. of genuine walking area — vanity, shower approach, and the path between them — and covered it with TempZone™ Flex Roll. The mesh backing can be cut and turned to follow an irregular bathroom footprint without ever cutting the heating cable, and the element is embedded in thin-set directly beneath the finished tile. At 607W across the heated area, the system runs at about 15 watts per square foot.
The Outcome: A Floor That Is Already Warm When the Alarm Goes Off
An nSpire Touch programmable thermostat with a floor sensor brings the tile up to temperature ahead of the morning routine and steps it back down once the room empties, so comfort is scheduled rather than constant. The rugs came up, and the tile the homeowners picked is finally the surface they wanted it to be.
What It Costs to Live This Way
Operating at approximately $0.17/hour, this system costs roughly $41.00/month at eight hours of daily use — less than a week of takeout coffee — while providing unmatched barefoot comfort through a Maine winter.
Featured Products
- TempZone™ Flex Roll — pre-spaced heating cable on a mesh backing, which is what allowed the heated zone to follow an irregular bathroom layout at tile-setting speed instead of hand-spacing loose cable.
- nSpire Touch Thermostat (UDG4-4999) — a programmable touchscreen control with an in-floor sensor and built-in Class A GFCI protection, so the system targets a tile temperature on a schedule rather than chasing air temperature.
- Circuit Check (SS-01) — monitors the heating circuit during installation so any damage to the element is caught before the tile goes down, not after.
