Luxury Warmth for a Tile Bathroom Floor in Kearney, NE

This project showcases how WarmlyYours electric radiant floor heating transformed a chilly bathroom in Kearney, Nebraska, into a spa-like retreat. The homeowners wanted to eliminate the shock of cold tile underfoot, and the TempZone™ Flex Roll system was the perfect energy-efficient heating solution. The installation provides consistent, comfortable floor warmth, adding significant luxury and long-term value to the home.

Project Details

Location: Kearney, Nebraska
Heated Space Type: Full Bathroom
Floor/Surface Type: Tile, Marble, or Stone
Sub-Floor/Surface Type: Wood
Heated Square Footage: 14 sq. ft.
Watts, Volts, Amps: 203 Watts, 120 Volts, 1.7 Amps
Operating Cost Per Hour: $0.03 per hour (Based on Nebraska's average residential electricity rate of $0.1317/kWh)
- Per Day Breakdown: $0.24 per day (Based on 8 hours of operation)
- Per Month Breakdown: Less than $7.30 per month (Based on 8 hours of operation per day)
Products Used: TempZone™ Flex Roll, nSpire Touch Thermostat

A Cold Floor Solved with Electric Radiant Floor Heating

The homeowners in Kearney, NE, faced a common cold-climate challenge: a beautiful tile floor in their master bathroom that was unpleasantly cold, especially in the early mornings. The primary goal was a comfort upgrade—they sought a way to make the space feel warm and inviting, not just functional.

The solution was the WarmlyYours TempZone™ Flex Roll system. Its simple, roll-out design made the installation straightforward for the contractor, even in the compact 14 sq. ft. area. The heating cable was installed directly beneath the new tile, providing gentle, consistent floor warming right where it’s needed. The system’s low wattage and energy-efficient heating design meant the homeowners achieved their desired comfort without a spike in utility bills. The end result is a luxurious, warm bathroom floor that elevates the entire room and provides daily comfort.

Featured Products

TempZone™ Flex Roll The flagship product for this project. It is an electric floor-heating roll with thin, durable heating cable pre-spaced on a fiberglass mesh, simplifying installation. It is specifically designed for quick coverage under tile, stone, and marble floors. (120V, 1.5′ x 9′, 13.5 sq. ft., 203W)

nSpire Touch Thermostat A sleek, programmable touchscreen thermostat that controls the system. It features a Class A GFCI for safety, a floor sensor for precise temperature control, and a user-friendly interface to schedule heat times, ensuring energy-efficient operation.

Circuit Check An essential installation tool that continuously monitors the heating cable during the installation process, ensuring the system remains protected from damage before the tile is laid.

Electrical Rough-in Kit This kit provides the necessary electrical components for the installation, including a single-gang box with double conduits. It streamlines the wiring process, ensuring the electrical connections for the thermostat and the heating system are safely and properly configured within the wall.

Project Gallery

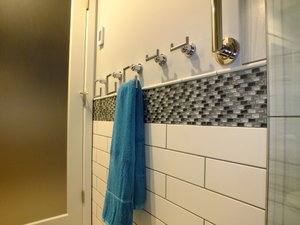

Bathroom Remodel with floor heating close-up of towel

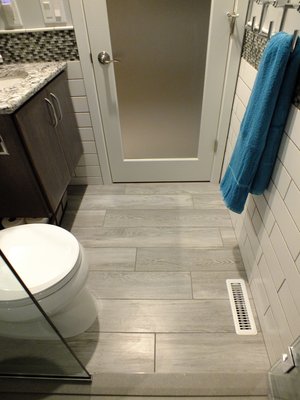

Bathroom Remodel with floor heating for tile

Quotes

These quotes are linked to this showcase and include the products used in this project or recommended for a similar-sized project.

Frequently Asked Questions

How much does it cost to run heated floors in a small bathroom?

The operating cost for this electric floor heating system in a 14 sq. ft. bathroom is extremely low. Based on local Kearney, NE, electricity rates of $$$0.1317/kWh, this 203W system costs approximately $0.03 per hour to run. Even running it for 8 hours a day, your monthly cost is typically under $7.30, making floor warming very affordable.

Can electric radiant heating replace the main heating system in a small bathroom?

While this specific 14 sq. ft. system was designed for floor warming and comfort, WarmlyYours radiant floor heating is a highly efficient supplementary heat source. For rooms with moderate heat loss, like this small, well-insulated bathroom, the system can often serve as the primary heat source (or "sole source") when installed with adequate coverage. Always consult a heat loss calculation for your specific space.

What type of flooring works best with this TempZone™ system?

The TempZone™ Flex Roll system is specifically ideal for use under hard, thermal-mass flooring materials. It works exceptionally well under tile, marble, and stone floors, as these materials retain heat well and efficiently transfer the radiant comfort to the room. It is also suitable for concrete.

Is electric radiant floor heating energy efficient?

Yes, electric radiant floor heating is an energy-efficient heating solution. Unlike forced-air systems that heat the air (which rises and is easily lost), in-floor heating warms objects directly, delivering heat where people are. When controlled by a programmable thermostat like the nSpire Touch, you only use energy when you need it, maximizing efficiency and minimizing the overall operating cost.

How is electric floor heating installed under tile floors?

For tile floors, the TempZone™ Flex Roll is simply unrolled onto the wood subfloor and secured, then the heating cable is embedded in a layer of thin-set mortar or self-leveling cement before the tile is laid. The process is straightforward for a qualified installer, and the system is permanently installed for maintenance-free radiant comfort.
