Luxury Warmth for a Master Bathroom in Dracut, MA

This Massachusetts master bathroom remodel by Briscoe Remodeling Group was transformed into a luxurious, warm retreat by installing electric floor heating. The homeowner aimed to eliminate the shock of cold tile underfoot, a common challenge in the chilly New England climate. WarmlyYours's TempZone™ Flex Roll system provided a quiet, energy-efficient, and comfortable in-floor heating solution, dramatically enhancing the value and daily enjoyment of the home's largest bathroom.

Project Details

Location: Dracut, Massachusetts (MA)
Heated Space Type: Master Bathroom with Large Shower
Heated Square Footage: 32 sq. ft. (Total Room Area: 60 sq.ft.)
Flooring: Tile, Marble or Stone
System Power: 472 Watts, 120 Volts, 3.9 Amps (Total)
Operating Cost Per Hour: $0.03
Installer: Briscoe Remodeling Group

A Warm Foundation for a Luxurious Master Bath

Briscoe Remodeling Group, the company behind this stunning master bathroom in Dracut, MA, recognized that cold tile was the one factor that could detract from the otherwise luxurious remodel. Installing electric radiant floor heating was the key to ensuring year-round comfort. The TempZone™ Flex Roll was selected because its pre-spaced cable mat construction is specifically designed for quick, straightforward installation beneath tile, marble, or stone flooring—ideal for a large, regularly shaped space like a master bathroom.

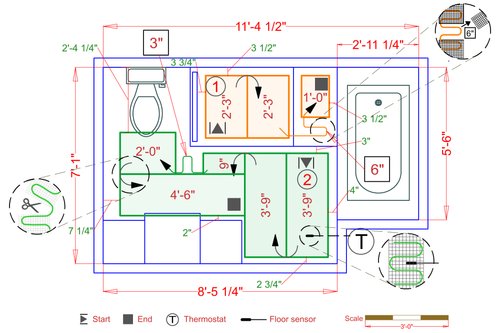

The installation was simplified using a custom installation plan, allowing the installers to quickly lay the mat and ensure 32 square feet of targeted floor warming coverage in the high-traffic areas. The system, monitored by a Circuit Check™ for integrity during the tiling process, was paired with a SmartStat Programmable Thermostat. This provided the homeowners with the ability to program a schedule, ensuring the floor was perfectly warm before they stepped out of bed or shower, ultimately transforming the master bath from a chilly utility space into a spa-like retreat that provides luxurious, energy-efficient comfort every single day.

Featured Products

This Master Bathroom in-floor heating project was completed using the following high-quality WarmlyYours electric floor heating products:

TempZone™ Flex Roll (120V): This system features a heating cable pre-attached to a fiberglass mesh, which simplifies installation and ensures consistent heat spacing. The Flex Roll can be cut-and-turned to easily adjust the mat to fit the contours of the room, providing 15 watts per square foot for fast, effective floor warming beneath the tile.¹
- Products Used: TRT120-1.5x15 (22.5 sq.ft.) and TRT120-1.5x06 (9 sq.ft.)
SmartStat Programmable Thermostat (TH115-AF-GA-08): This dual-voltage (120/240V) programmable thermostat allows the homeowner to set up a 7-day heating schedule with four events per day, ensuring optimal comfort and energy efficiency.² It features an in-floor sensor and a built-in GFCI for safety.
Circuit Check™ Continuity Tester (SS-01): An essential tool for a worry-free installation. This device connects to the heating element during the flooring installation and sounds an alarm immediately if the heating cable is damaged, protecting the system before it is covered by the floor.³

Quotes

These quotes are linked to this showcase and include the products used in this project or recommended for a similar-sized project.

Frequently Asked Questions

1. How much does it cost to run heated floors in a master bathroom in Massachusetts?

Electric radiant floor heating is highly energy efficient. For this 32 sq. ft. system in Dracut, MA, the cost is exceptionally low—around $0.03 per hour, or less than $7.50 per month, based on the local residential electricity rate of approximately 30.63 cents per kWh.

2. Can electric radiant floor heating replace the main heating system in a bathroom?

In many well-insulated rooms, especially smaller spaces like a bathroom, a floor warming system with a power density of 15 watts per square foot can act as the primary heat source. Our systems are often used as supplemental heat, but a heat loss calculation can be performed to confirm if it can fully meet the heating requirements of a specific room, providing both ambient and floor comfort.

3. What type of flooring works best with this TempZone™ heating system?

The TempZone™ Flex Roll system is ideal for installation under thermally conductive materials like tile, marble, and stone. These materials efficiently transfer the heat generated by the electric floor heating system, resulting in a warm floor and comfortable ambient temperature.

4. Is electric radiant floor heating energy efficient?

Yes, electric radiant floor heating is very energy efficient, particularly when paired with a programmable thermostat like the SmartStat. The system delivers heat directly to the occupants and objects in the room, unlike forced-air systems. Programming it to run only during peak usage times, such as mornings and evenings, further maximizes energy savings and minimizes the operating cost.
