Basements are notoriously difficult to heat, often leaving valuable square footage abandoned during colder months due to inefficient forced-air layouts. Homeowner David Pisano solved this common winter dilemma by upgrading a drafty 117-square-foot New Jersey basement during a major remodel. By installing a WarmlyYours radiant floor heating system beneath sleek new tile, the family successfully converted a freezing, underutilized zone into a warm, inviting living space.
Project Details
| Specification | Detail |
| Location | New Jersey |
| Space Type | Basement |
| Surface / Flooring | Tile, Marble, or Stone |
| System Type | Electric Floor Heating |
| Total Square Footage | 117 sq. ft. (Heated Area) |
| Technical Specs | 120V / 1,766W / 15A |
| Wattage per Sq. Ft. | 15.1 W/sq. ft. |

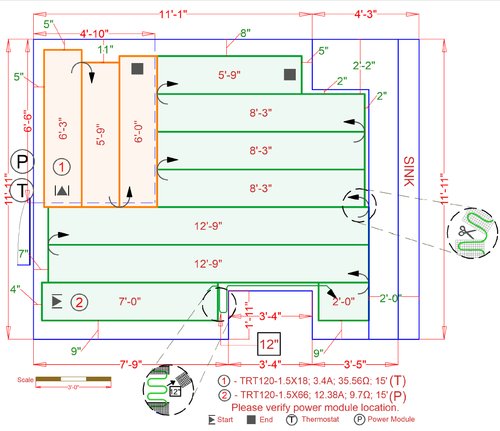

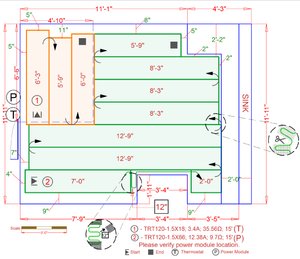

| Cable Spacing | 3 inches OC (Pre-spaced on mesh) |
| Products Used | TempZone™ Flex Rolls,nSpire Touch Thermostat |
| Professional Installer | DIY / Homeowner Installed (David Pisano) |
The Story & Project Overview
The Problem
Standard forced-air heating systems frequently fall short in lower levels, leaving basements feeling uncomfortably cold and damp. For New Jersey homeowner David Pisano, the basement was a clear source of frustration. Even though the space had a dedicated central heat source, the original ductwork failed to distribute warmth properly, forcing family members to bundle up in multiple layers just to spend time downstairs during the winter months.
The Solution

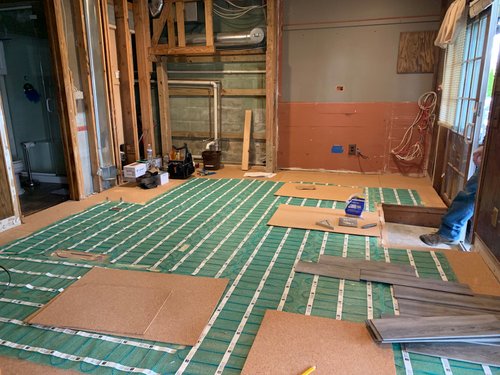

Realizing that re-routing complex central ductwork would be invasive and cost-prohibitive, David integrated an electric floor warming system into the room's planned tile remodel. The project utilized WarmlyYours TempZone™ Flex Rolls, which feature pre-spaced heating cables on a cut-and-turn mesh backing for rapid installation over concrete slabs. The flexible design allowed the heating element to fit perfectly across the open floor plan before the final tile was laid.

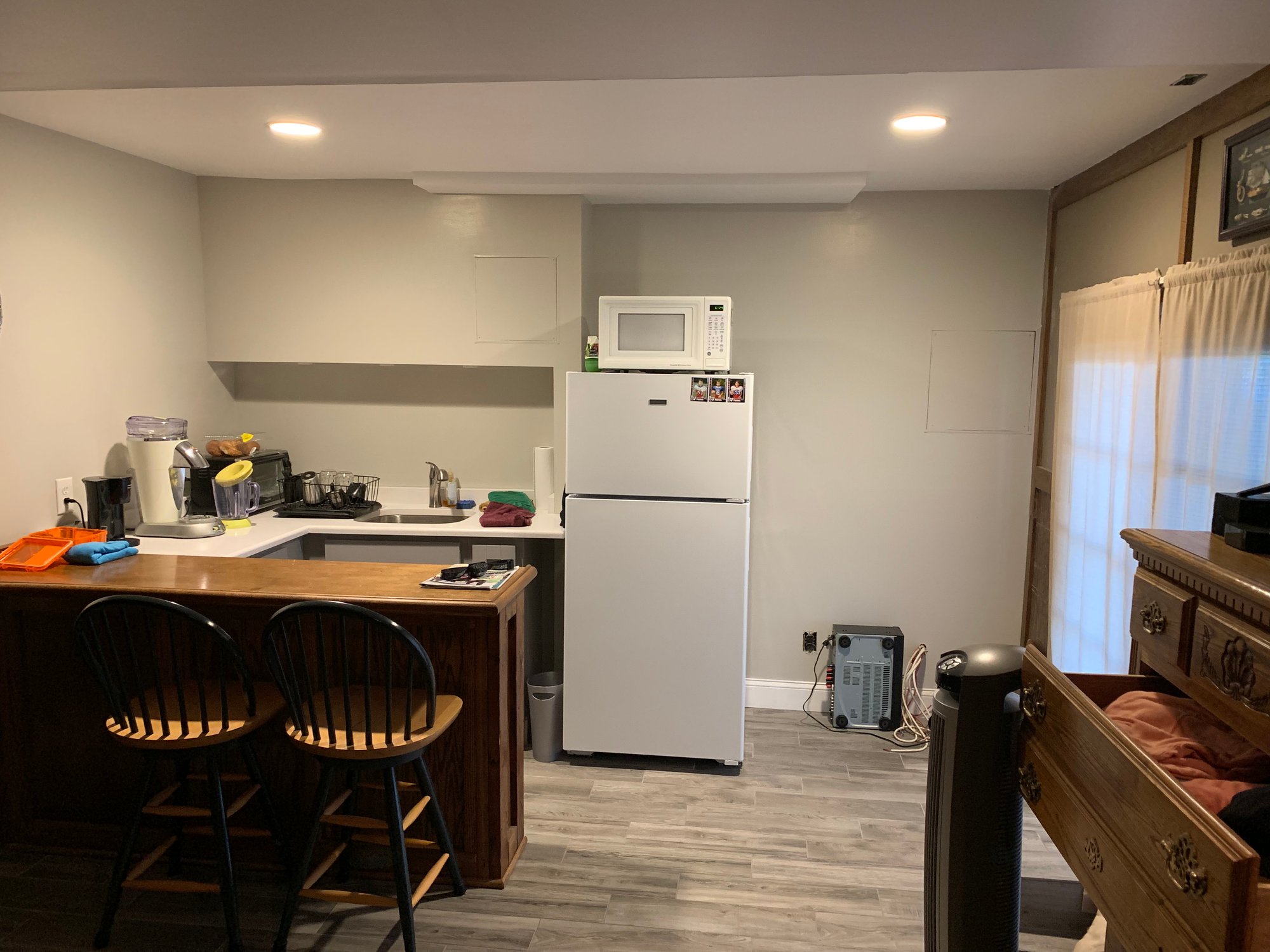

The Outcome
The impact of the radiant upgrade was immediate and highly effective. Instead of battling the rising cold from the subfloor, the space now enjoys uniform, silent heat radiating from the ground up. The transformation turned an avoided, shivering zone into a high-value, comfortable gathering space backed by reliable technical support throughout the installation process.
Featured Products
- TempZone™ Flex Rolls(1.5' x 66' and 1.5' x 12'): Selected to tackle the intense chill of the basement subfloor, these rolls allow for rapid layout customization around the room’s perimeter. The pre-spaced mesh eliminated the risk of cold spots, ensuring that the new tile floor stays consistently warm to the touch.
- nSpire Touch Thermostat: This sleek control unit was introduced to manage energy efficiency seamlessly. By allowing the homeowners to program heating schedules to match their actual usage, it prevents unnecessary energy draw while ensuring the basement is perfectly warm the moment they step downstairs.
