Pipe Freeze Protection End Seal Termination Kit (Hazardous Location Rated)


Pipe Freeze Protection End Seal Termination Kit (Hazardous Location Rated)
Support Page

PRO-Tect: Pipe Freeze Protection Self-Regulating Heating Cable Description

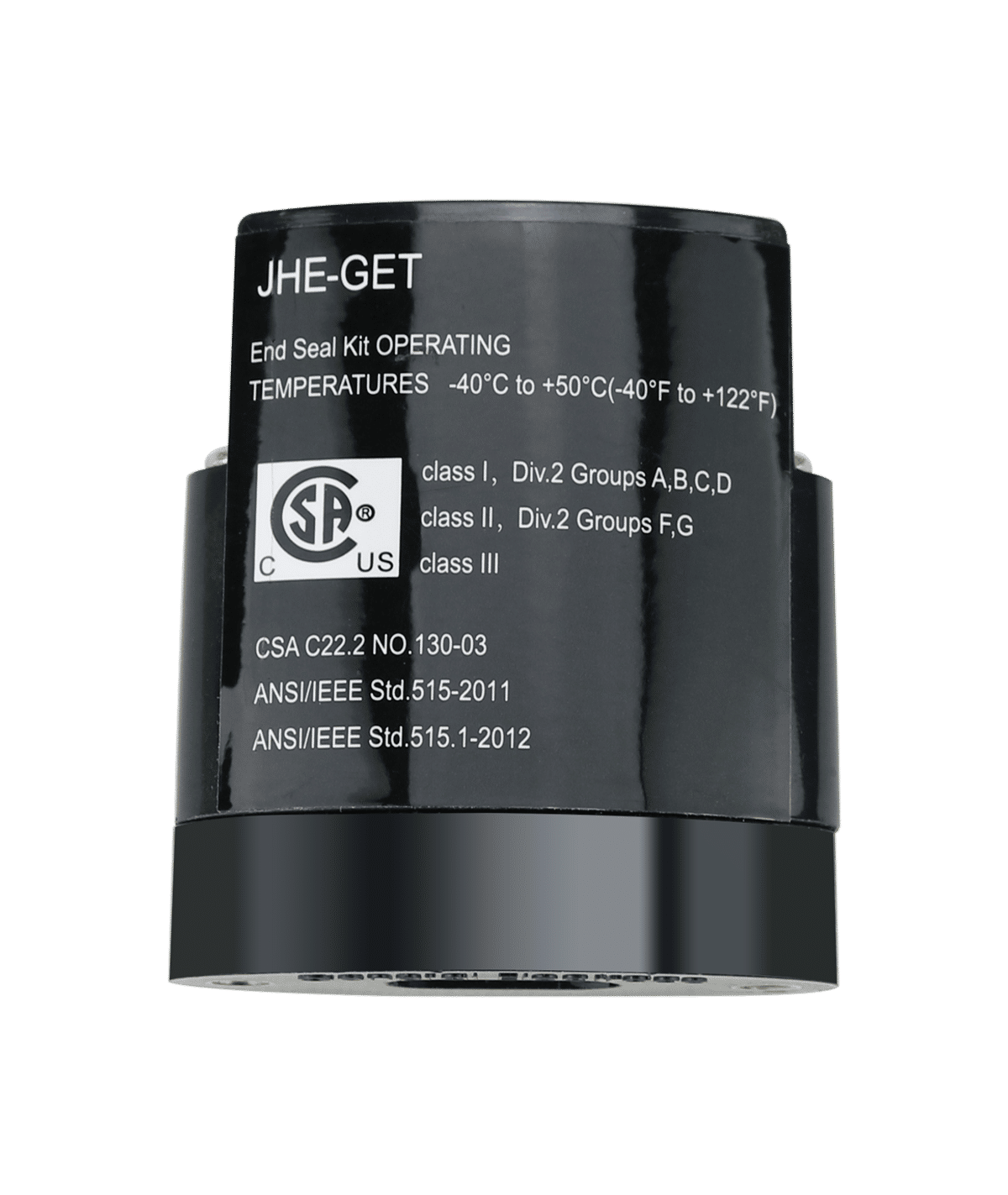

This three-piece kit is used to properly terminate a run of cut-to-length pipe freeze protection cable.  It includes: a main end seal box, a seal plate, and a sealing grommet. The kit is rated NEMA 4X waterproof and should be installed beneath any insulation used for installation.

The use of another manufacturer's end seal kit with a WarmlyYours pipe freeze protection system will void the warranty.

This kit is Hazardous Location Rated.

Specifications

Warranty / Certifications

Approvals cCSAus Listed
Hazardous Locations Ratings Class l, Div. 2, Groups A, B, C, D Class ll, Div. 2, Groups E, F, G Class lll
Waterproofing NEMA 4X

Logistics

Country of Origin (COO) China

Identifiers

SKU PT-END-KIT-H
UPC (GTIN-12) 881308050962

Customer Questions & Answers

PRO-Tect: Pipe Freeze Protection Self-Regulating Heating Cable has 21 Questions and Answers.

Don't see the answer you're looking for? Post your question

Will heat tape really keep my pipes from freezing?

Simply put, yes--the right type of heat tape will really keep your pipes from freezing. By applying gentle heat, heat tape can prevent the water in your pipes from turning to ice and blocking the flow of water--or worse. Combined with proper insulation, heat tape regulates the overall temperature of your water pipes.

7 people found this helpful.  Did you find this helpful? Yes No

Can heat tape start a fire?

No, as long as it's properly installed. However, improper installation, use, and/or maintenance of electrical heating cable can cause fires, electric shock, and/ or frozen pipes.

5 people found this helpful.  Did you find this helpful? Yes No

Will pipe freeze protection cables work on DC voltage?

No. They are not designed to be powered by DC voltage. They must be used with AC voltage.

4 people found this helpful.  Did you find this helpful? Yes No

What is heat trace?

Heat trace, heat tape, or heating cable for pipes is typically an electric heating cable that can be attached to the pipe which helps keep non-flowing water pipes in poorly insulated perimeter walls flowing despite harsh winter temperatures.

4 people found this helpful.  Did you find this helpful? Yes No

How long does it take for pipes to unfreeze if heat tape is installed?

Unfortunately there's no set answer for this because it depends on many factors such as the diameter of the pipes, the installation density of the heating cables, the outdoor temperature, the installation of thermal insulation sleeves, etc.

There are too many variables to provide an accurate answer. Even though this product is designed to keep pipes from freezing, it is not designed to thaw pipes. If your pipe has frozen with the heat tape installed and energized, please check the placement of the built-in thermostat and verify that the insulation has been properly installed and waterproofed.

3 people found this helpful.  Did you find this helpful? Yes No

View all 21 Questions and Answers
