Ember Mirror Radiant Panel Heater - 600W - 35ʺ x 24ʺ - Dual Connection
Features
-

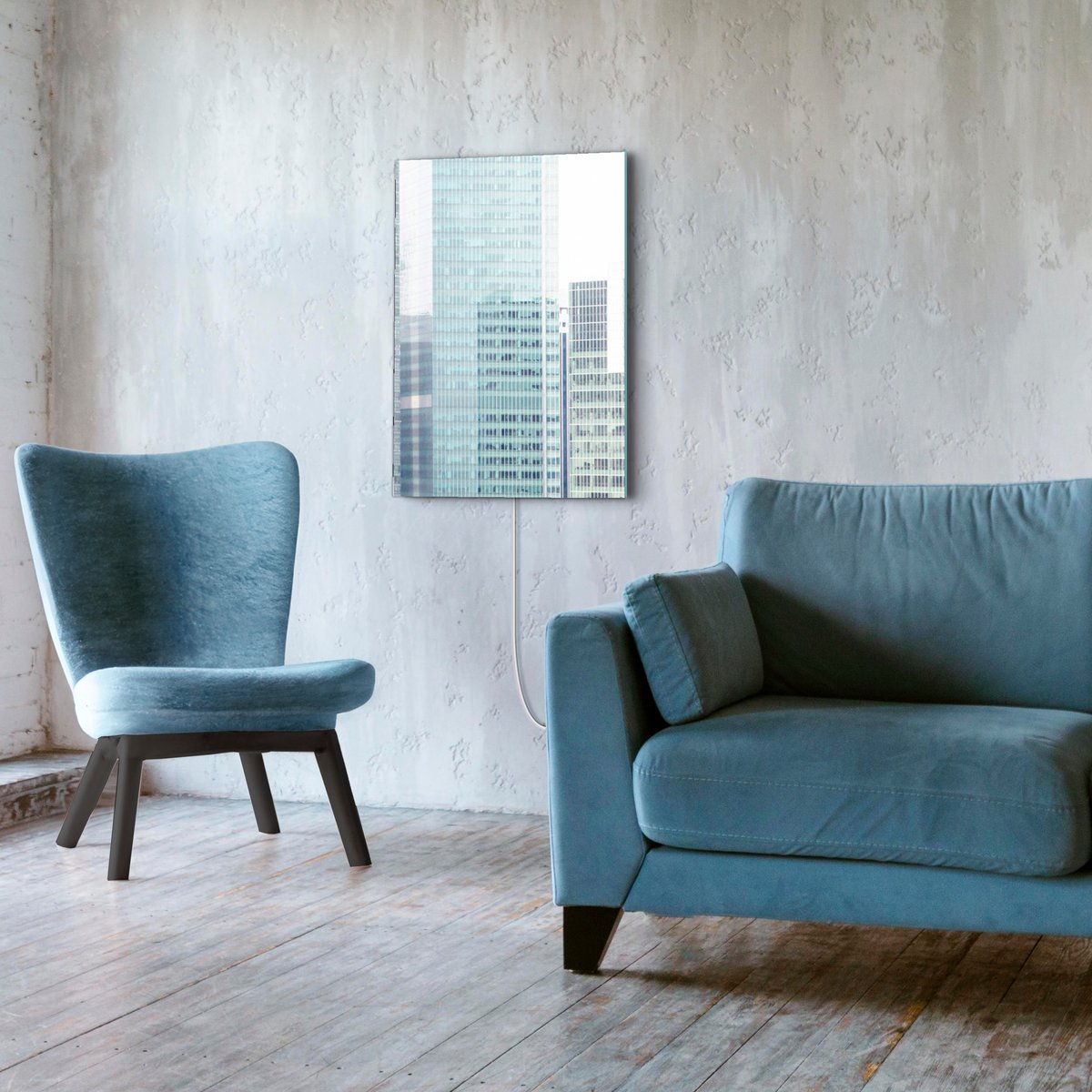

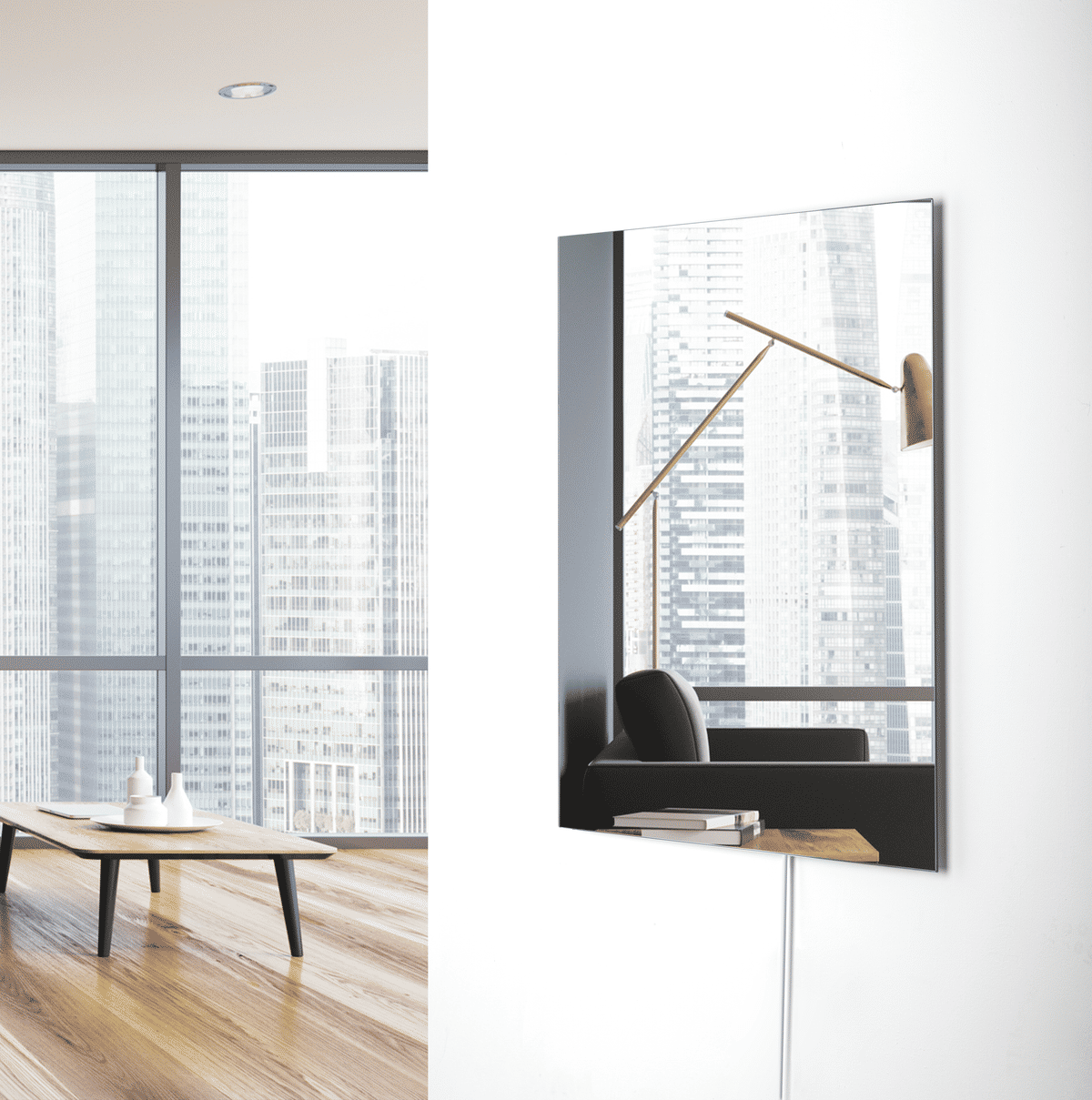

Wall mounted: this 35” x 24” infrared heating panel can be installed vertically or horizontally on your wall
-
High heat output: this panel heater delivers an impressive heat output of 2,046 BTUs per hour
-
Energy efficient: it only costs approximately 7 cents per hour on average to run this electric wall heater
-
Dual connection: can be hardwired to a thermostat or plug-in a standard outlet (120 VAC)
-
Covered by a 5-year limited warranty
Ember Mirror Radiant Panels Description

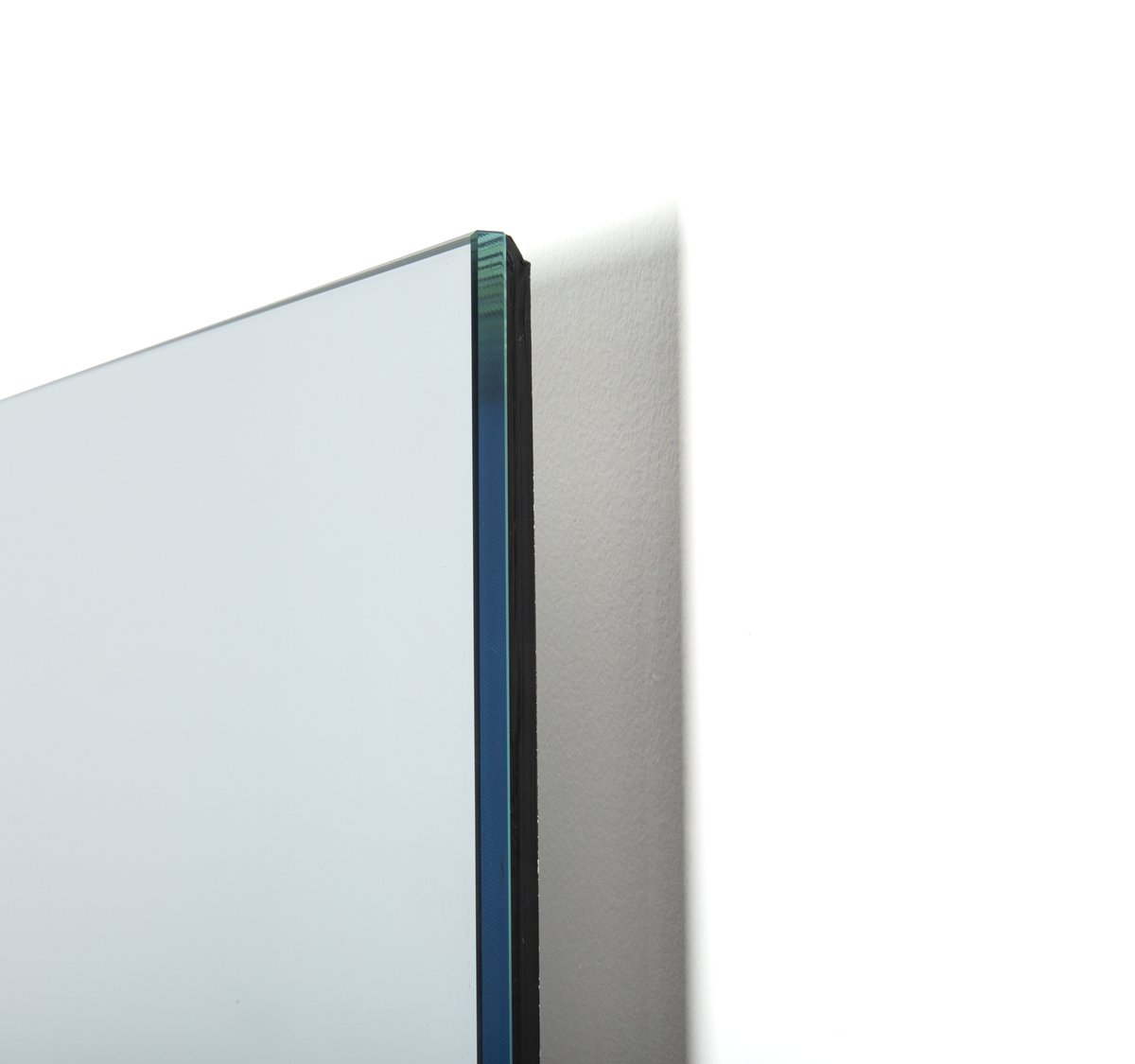

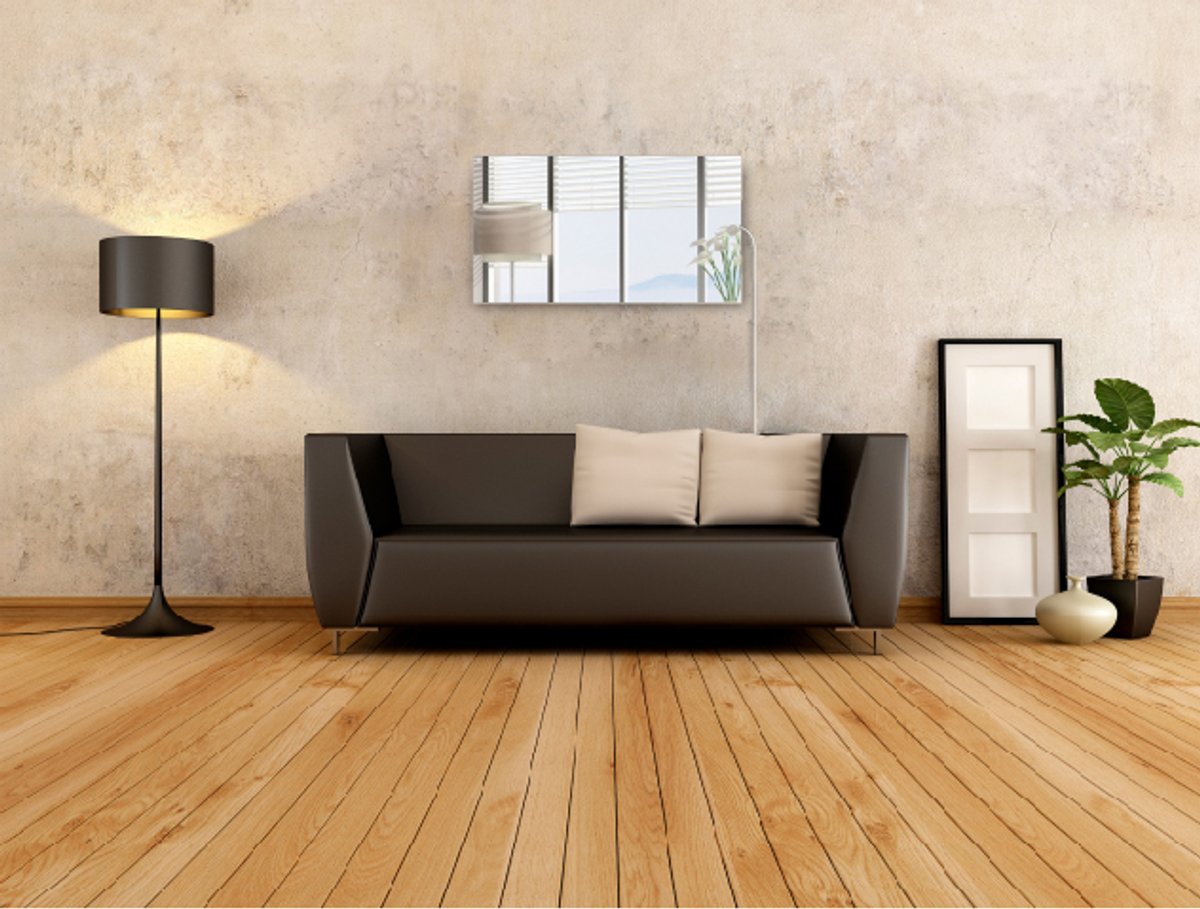

The Ember Mirror radiant panel looks just like an ordinary mirror. Yet, looks can be deceiving. This 2.9- by 2-foot mirror emits 600 watts of heat so that it can heat a room and even function as a heating source/mirror defogger in bathrooms. Furthermore, mount it vertically in a dry area of your bathroom, accessorize it with a towel bar, and you have a beautiful, fully functional towel warmer. Of course, the panel can be mounted to a wall in any room of your home to provide comforting, even heat. Furthermore, unlike convection heating, this radiant panel does not circulate dust or other allergens into the air. It also is unique in that it delivers heat in the most energy efficient way possible. Ember radiant panels have one of the highest possible efficiency rates and consume the least amount of energy possible*.

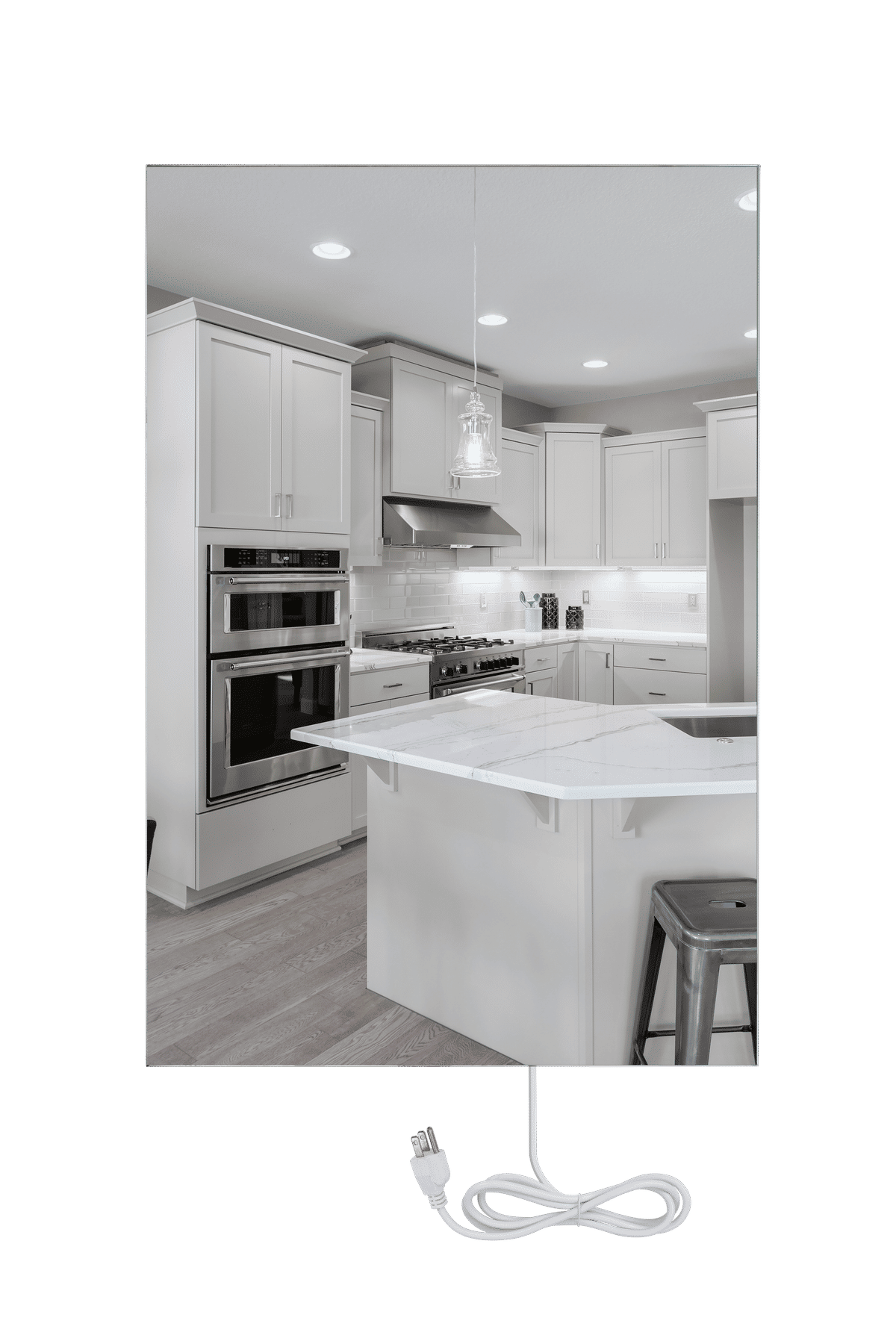

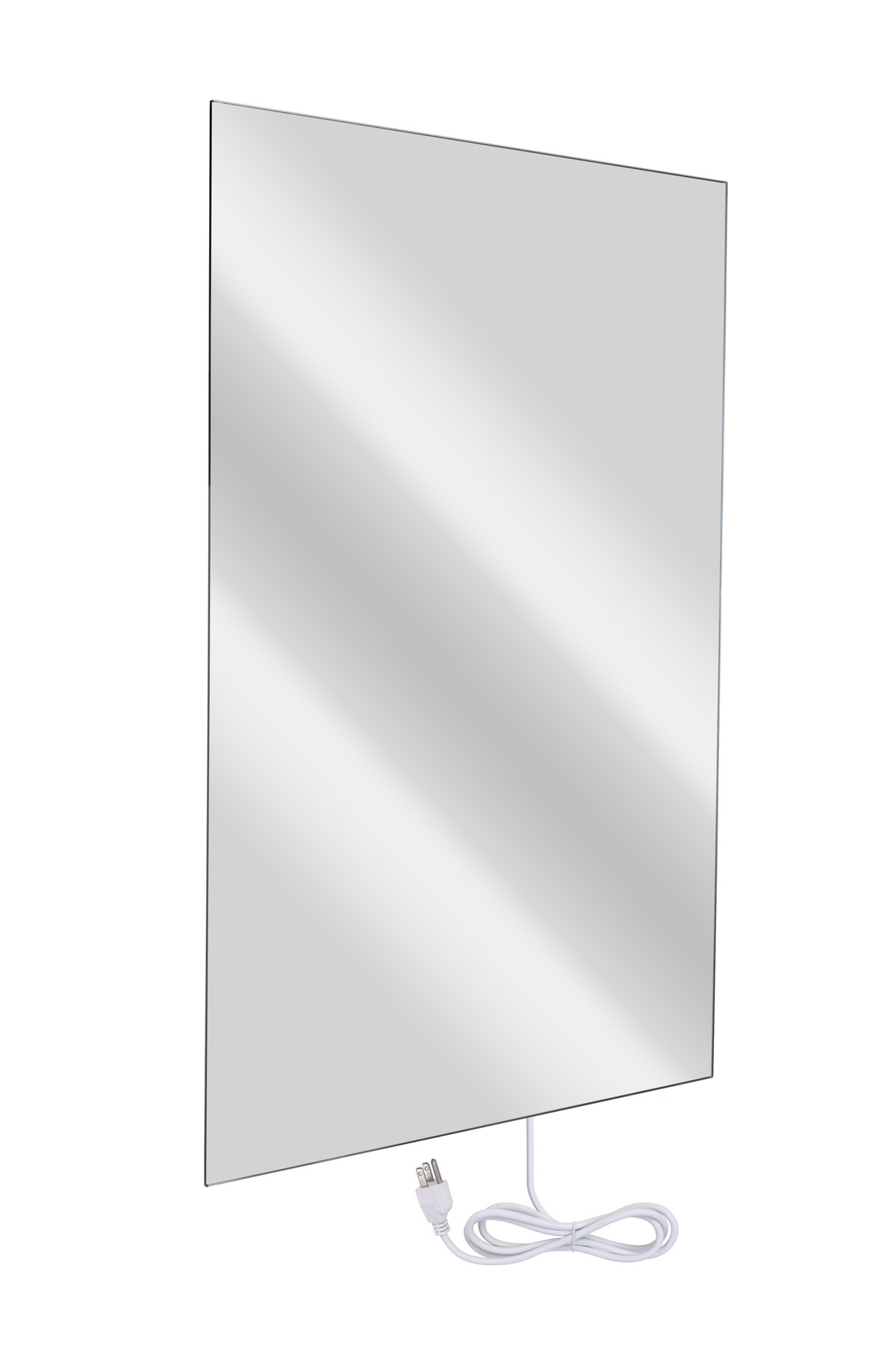

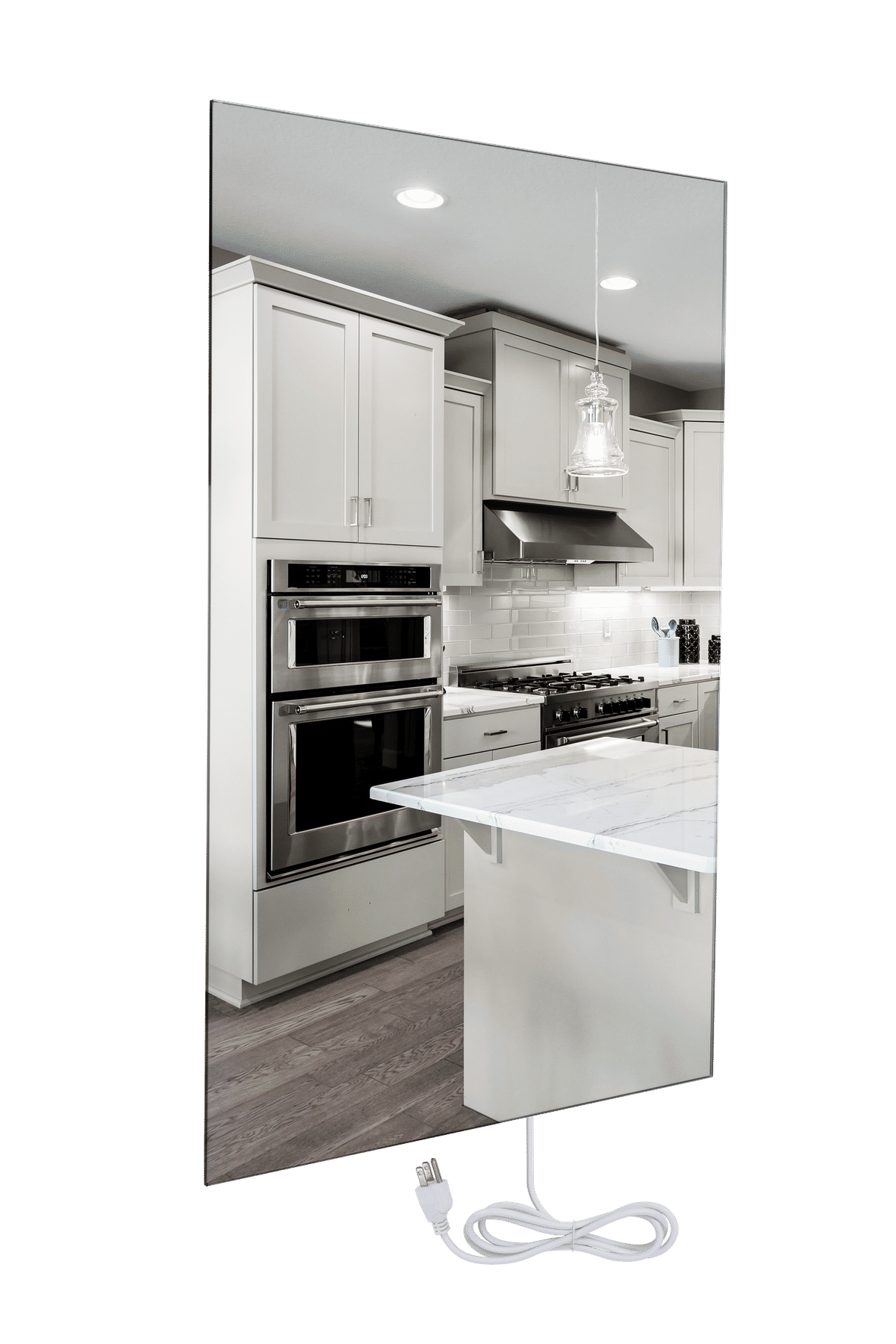

These panels are also dual connection, meaning they can be used “as is” to plug into a standard 120 VAC outlet or they can be modified by a licensed electrician to have a hardwired 120 VAC electrical connection.
Note: Towel bars must be purchased separately.
* Infrapower Manufacturing Ltd.
Features:
- Wall Mounted: This 35” x 24” radiant panel can be installed vertically or horizontally on your wall
- Dual Connection: Can be hardwired to a thermostat or plug-in a standard outlet (120 VAC)
- High Heat Output: This infrared heating panel puts out 2,046 BTUs per hour
- Low Operating Cost: It only costs roughly $0.07 per hour to run this model (based on a national average electrical cost of 12 cents per kWh)
- Safe and Stylish: This radiant panel is not only more aesthetically pleasing than a propane space heater but it’s also safer
- 5-year Warranty: This product is covered by a 5-year limited warranty
Specifications
Electrical
| Amps | 5 A |
| Connection Method | Plug-in or Hardwired |
| Cord Length | 6′ |
| Ohms | 24 Ω |
| On/Off Switch | No |
| Plug-Type | NEMA 5-15 (Type B) |
| Thermal Power | 0.6 kW |
| Voltage | 120 V |
| Watts | 600 W |
Warranty / Certifications
| Approvals | cTUVus certified |
| Ingress Protection (IPxx) Rating | IP65 |
| RoHS Compliance | 2002/95/EC (RoHS 1) |
| Warranty | 5 years |
Performance
| Average Surface Temperature | 194 °F |
| BTU Per Hour | 2047 Btu |
| Heating Coverage | 85 ft² |
| Surface Safety Limit | 248 °F |
Product Dimensions

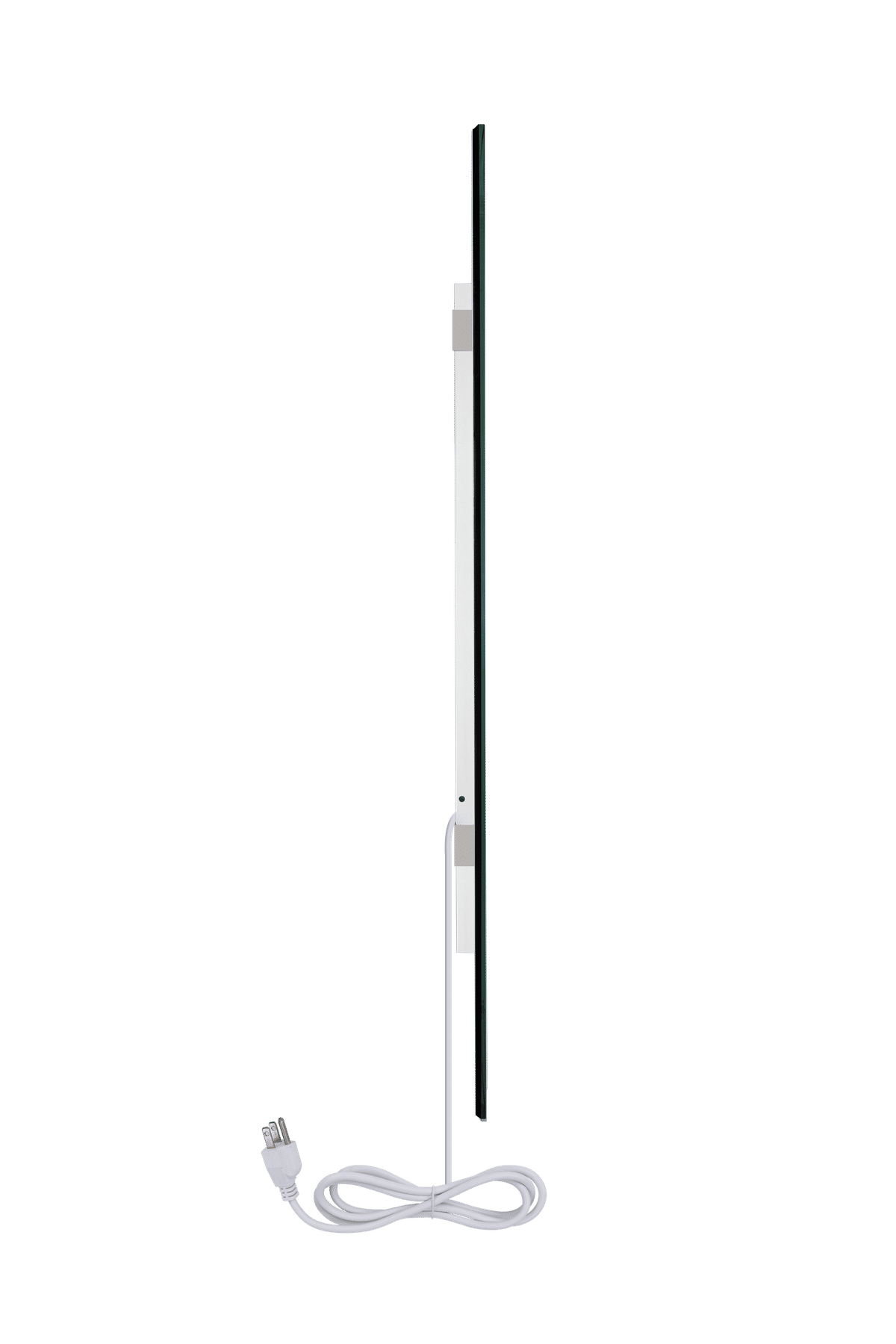

| Depth | 1.375″ |
| Depth with Towel Bar Accessory | 4.5″ |
| Height | 35.4″ |
| Length | 35.4″ |
| Weight | 30.8 lbs |
| Width | 23.6″ |
Appearance
| Finish | Glass Mirror |
| Model | Ember Mirror - 35″ x 24″ |
| Size | 35″ x 24″ - 600W |
Installation

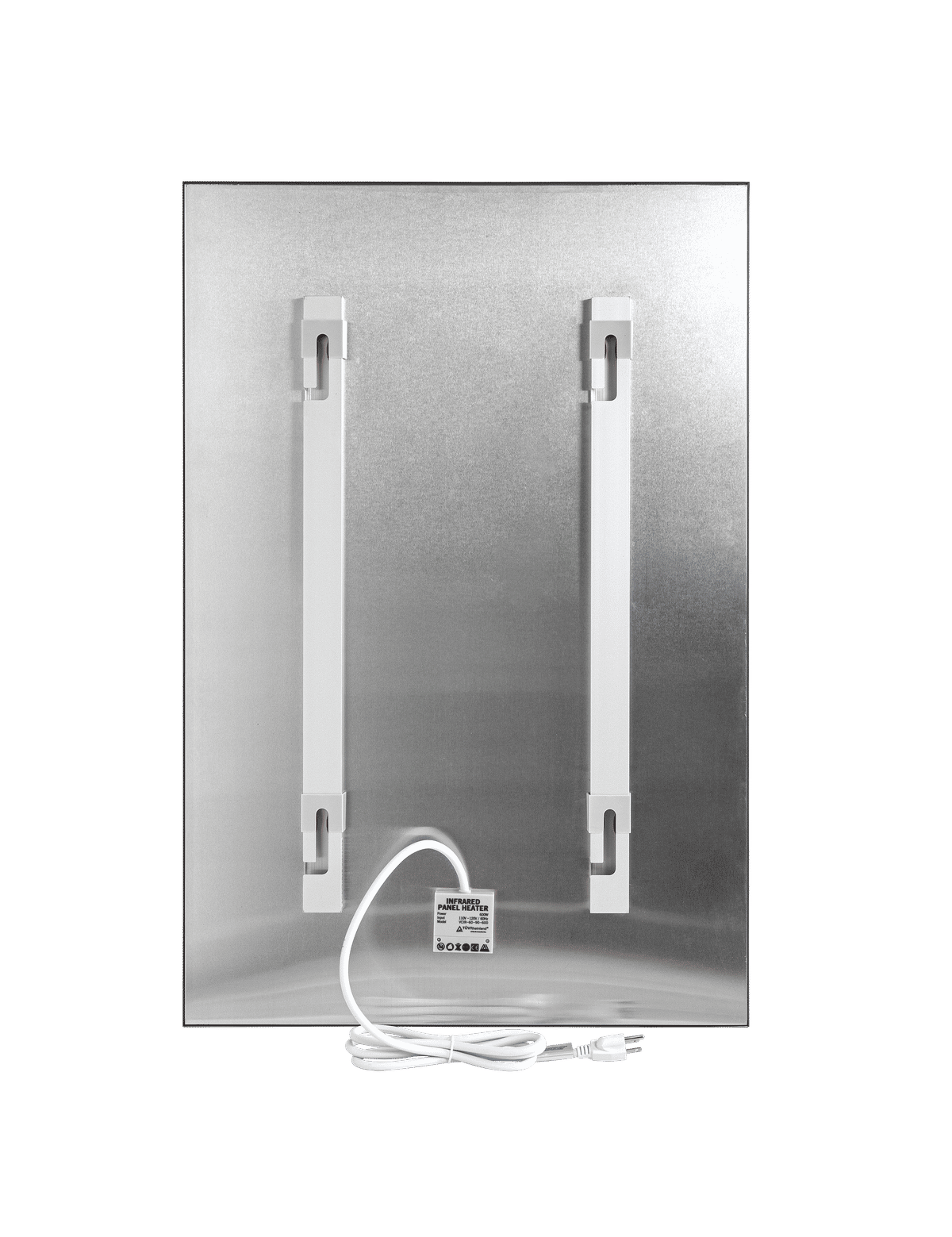

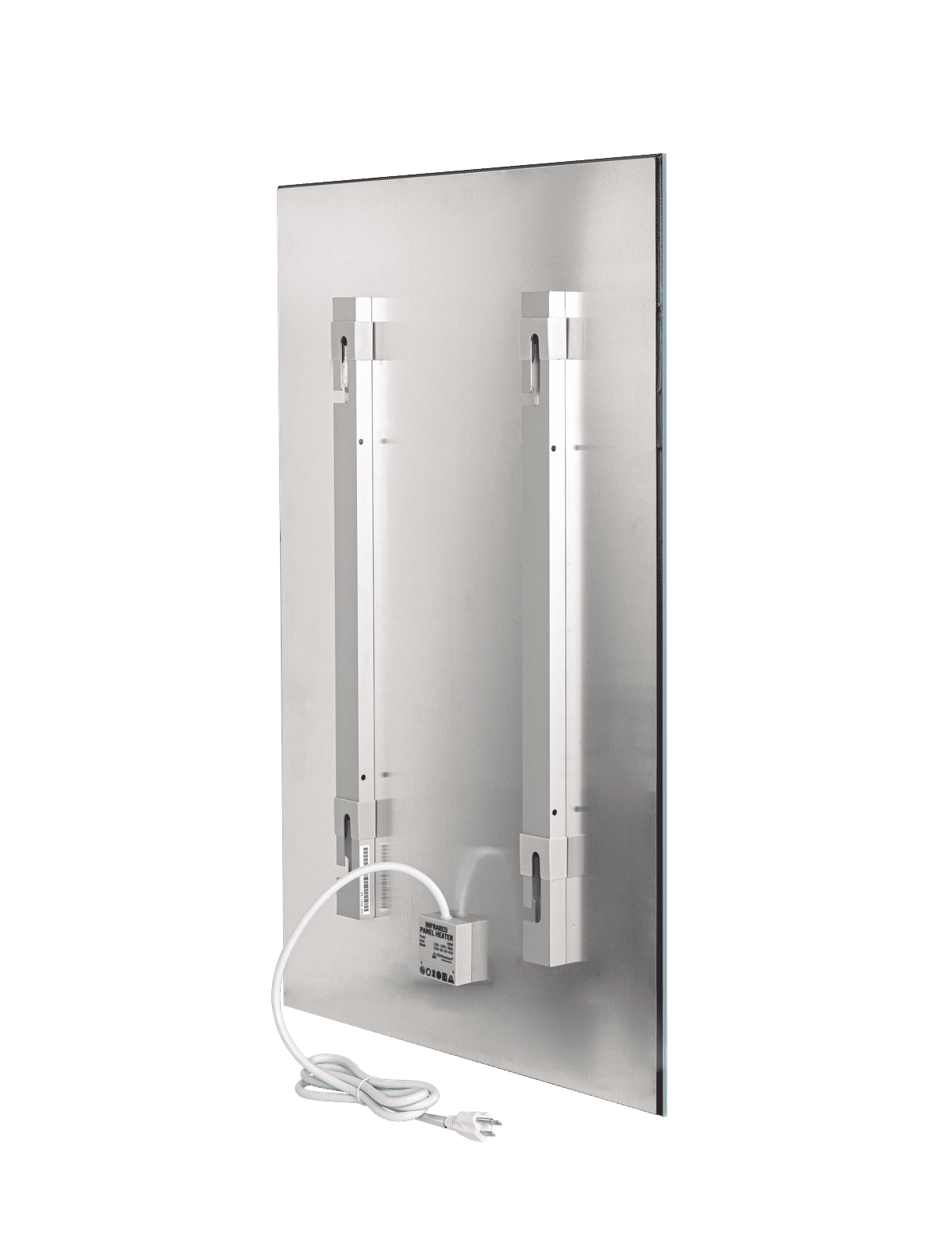

| Mounting Locations | Wall |
| Mounting Orientation | Horizontal or Vertical |
Identifiers
| SKU | IP-EM-GLS-MIR-0600 |
| UPC (GTIN-12) | 881308039196 |
Controls
A great control is the secret to any great heating system.
Accessories and Spare Parts
Feel free to chat us if you have any questions about these items.
Documents & Manuals
Customer Questions & Answers
Ember Mirror Radiant Panels has 8 Questions and Answers.
How hot is the infrared heating system when in use?
What should I do if my Ember radiant panel won’t heat up?
Verify 120V power at the connection of the panel to the circuit at the junction box in the wall (for hardwired connections), or at the outlet (for plug-in connections). Each Ember heater has a built-in safety switch that turns off the heating element automatically if it overheats. By unplugging or disconnecting the unit and waiting for about 10 to 15 minutes, the safety switch will reset automatically and the unit will be operational again.
If you experience additional issues, please give us a call at 1-800-875-5285.
8 people found this helpful. Did you find this helpful? Yes NoIs there a concern with children touching the radiant panels if they get too hot?
Do you have a calculator for monthly radiant panel heating cost?
We do not have a Radiant Panels Running Cost Calculator. However, this can be determined easily by taking the panel’s wattage, dividing it by 1000, and then multiplying the result by the local kW/hr cost – then take this hourly cost and multiple by 730 hours to get a monthly estimate.
7 people found this helpful. Did you find this helpful? Yes NoWhere is the on/off button for an Ember radiant heating panel?
There is no on/off button. If you're using your dual connection Ember radiant panel in the plug-in configuration, it can be unplugged when not in use or paired with compatible plug-in control devices like a timer. If you've elected to convert your dual connection radiant panel to a hardwired connection, the radiant panel should be wired to a hardwired control option like a switch, a hardwired timer, or a hardwired thermostat.
6 people found this helpful. Did you find this helpful? Yes NoView all 8 Questions and Answers
Customer Reviews
Ember Mirror Radiant Panels achieved an average rating of 4.7 stars with 15 reviews by our customers.
Wonderfully Warm Mirror
Anonymous, Challis, ID on 12/01/2023
This mirror is great. Our master bathroom is warm and luxurious. I highly recommend this mirror after about two months. We used the Sheetrock anchors they provided but the wasn’t really secure. I fixed the mirror to a couple of 1x4 attached to studs. I’d give them 5 stars except for the marginal Sheetrock anchors .
Love it!
James W., Rockland, ME on 11/20/2023
We have the radiant panels in our master bath. Although we haven’t hit the absolute cold of a Maine winter yet, they work phenomenally well. I’m glad we did not have to tear up the floor to put in a radiant floor system. We connected three panels all on a 15 amp circuit and thermostat. Bottom line, we love it.
Perfect For the space
Paul N., Pleasant Prairie, WI on 02/02/2023
Customer needed some extra warmth in the workout room above garage. They had forced air but it wasn’t sufficient for cold Wisconsin winters. The large glass panel looked great in the space and made the 20x40 space warm and comfortable.
Great Product
Mark V., Oneonta, NY on 02/03/2022
I love the heat panel that doubles as a mirror in our bathroom. So nice to get out of the shower and feel the radiant heat.
Great product and courteous customer service
Viola M., Barnstable, MA on 12/09/2021
I appreciated Lynn from customer service reaching out to us before shipping the radiant panel to see if we had any questions and offer help. The electrician who hardwired the unit with a countdown timer said the installation went smoothly. The panel looks great and works as described. It heats up pretty quickly, but it takes about 30-45min to feel the effect in the room. The panel matches the room size and is used as supplemental heat to increase the temperature in the room for short periods.
Nice panel, easy ceiling install
Jeremy L., Erie, CO on 11/17/2021
Installed and using the Ember Flex Radiant Panel Heater- White - 500W - 35” x 24”. Panel install was easy but programming the Leviton Digital Timer Switch is a challenge. For us it's critical to have the panel on a timer of some sort because it not temperature controlled (either on or off) and consumes 500w of electricity when on or about $2/day.
Customer Service (Account Manager, Jennifer Melus) was great.
Jay S., Seattle, WA on 07/15/2021
Customer Service (Account Manager, Jennifer Melus) was great. I had a problem with a defective panel that was burning off the white paint, emitting VOC. Jennifer was very helpful in replacing the defective panel. Although there were a few glitches during the process, their over all customer service was excellent! This is a huge reflection on the company, as they not only stand by their product but their Customer Service was very good!
Review
Jay S., Seattle, WA on 07/15/2021
Customer Service (Account Manager, Jennifer Melus) was great. I had a problem with a defective panel that was burning off the white paint, emitting VOC. Jennifer was very helpful in replacing the defective panel. Although there were a few glitches during the process, their over all customer service was excellent! This is a huge reflection on the company, as they not only stand by their product but their Customer Service was very good!
Shipping issues
Shawn H., London, ON on 03/16/2021
I ordered this product and quickly received shipment of not one but 2 heated panels both were white glass and the plug in versions problem was I ordered ONE mirror hardwired version, It took many calls texts and emails to get sorted out and after 4 weeks I finally got another shipment This time it was a mirror but it WAS NOT a hardwired version, After consulting my electrician and WarmlyYours tech support I decided to keep it and cut off the plug to wire it directly, Throughout this somewhat frustrating transaction the salesman Troy Barton was extremly helpful prompt and pleasant to deal with. The problems with wrong product shipment were elsewhere in the supply chain. Mirror is not installed yet but seems very well made.
Response from WarmlyYours:
Shawn, we apologize for the original shipment issue. Our current version of Ember panels are dual connection, meaning they can be used “as is” to plug into a standard 120 VAC outlet or they can be modified by a licensed electrician to have a hardwired 120 VAC electrical connection.
No on/off switch
Deborah S., Philadelphia, PA on 02/15/2021
Unit works fine but I would have appreciated an on/off switch and some indicator that the unit is on. I feel this is a poor design.
Response from WarmlyYours:
Deborah, thank you for your review. I wanted you to know that our radiant panels are best paired with controls for proper operation and visual indications. You can add that to your setup at anytime. We have two plug-in models: wifi-enabled and countdown timer. https://www.warmlyyours.com/en-US/products/code/GK17-30090-0002 https://www.warmlyyours.com/en-US/products/code/GK16-30090-0005. I hope that helps! Stay warm. - Julia Billen (Owner)
