Hardwired 4-Setting Countdown Timer

5.00
Based on 5 reviews


  • Four preset heating duration options: 4 hr, 2 hr, 1 hr, and 30 min
  • Can be used to control hardwired towel warmers or infrared heating panels safely

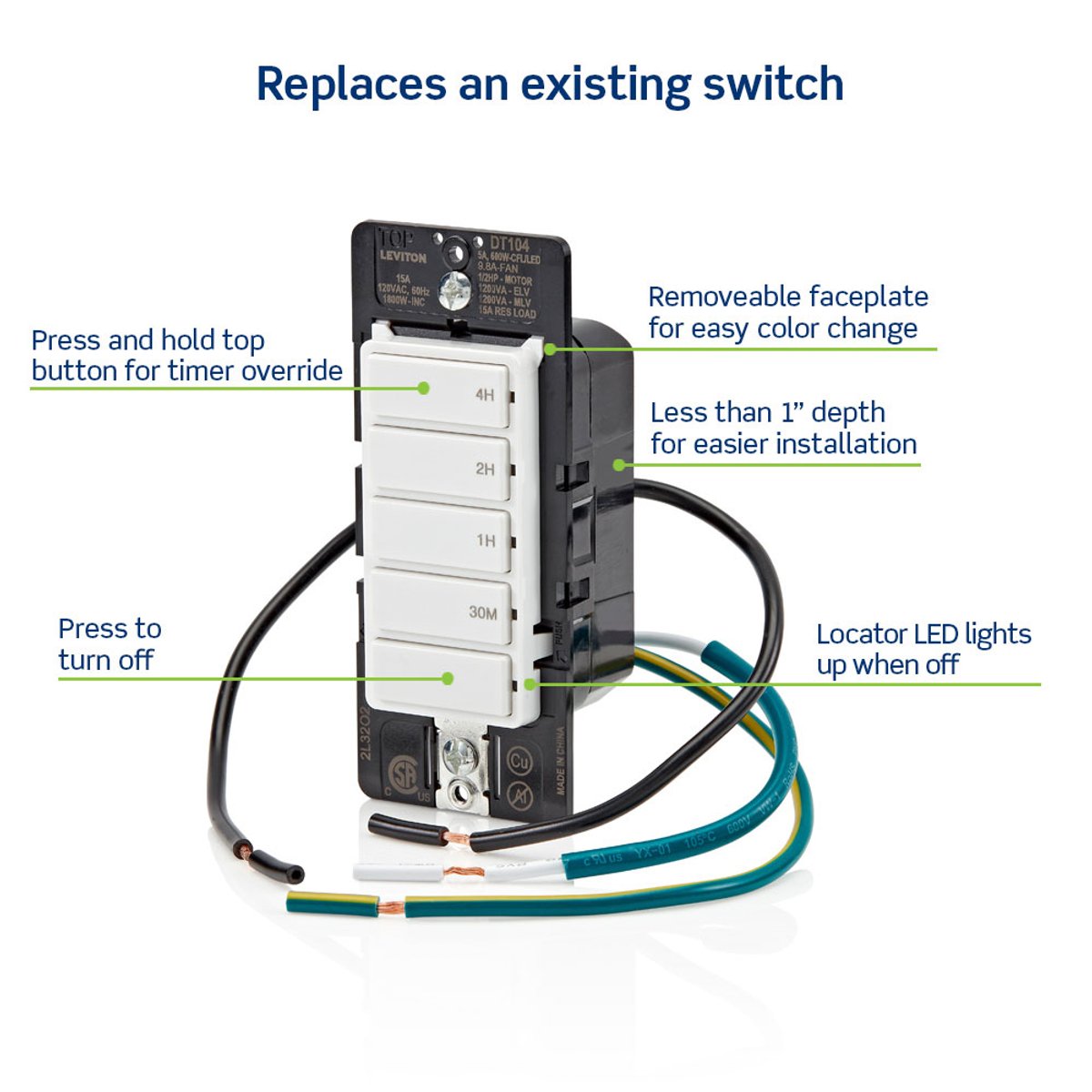

  • Simple 'press-and-hold' override functionality
  • Shallow depth of the control ensures an easy fit in the electrical box behind the wall

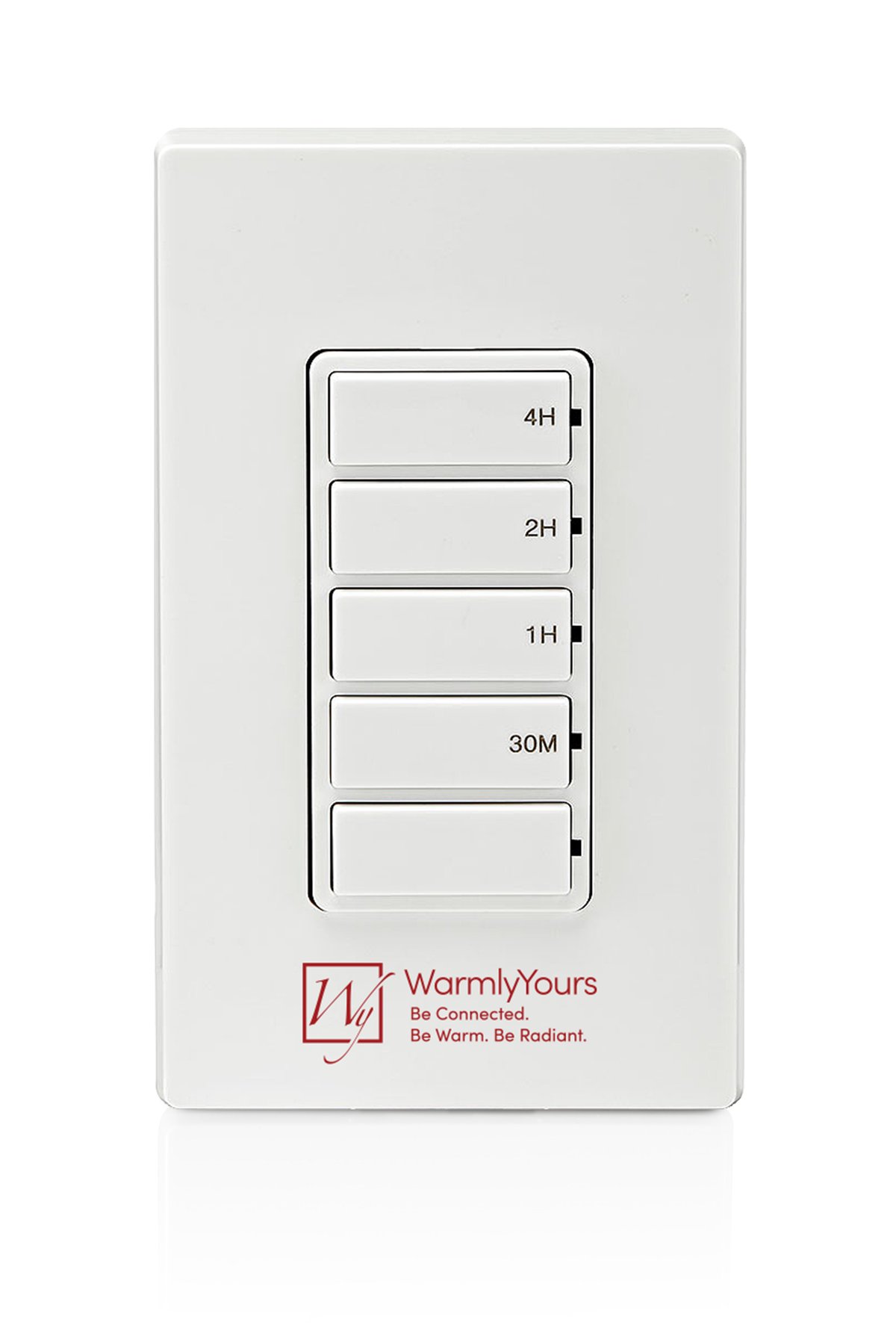

  • Comes with a white, WarmlyYours branded wallplate

Support Page

Description

The Hardwired 4-Setting Countdown Timer from WarmlyYours is an effective control option for towel warmers or infrared heating panels. With 4 different countdown settings (4 hr, 2 hr, 1 hr, and 30 min) and an on/off button, this timer control is the perfect option for those of us with unpredictable schedules. You just select the running duration you want for your device and continue on with your day. This also helps cut down on running your device unnecessarily, which can translate to significant energy savings. With just 4 preset buttons and an on/off button, the operation of this control couldn’t be easier. Comes with a white, WarmlyYours branded wallplate.

Features:

  • 4 preset heating duration options: 4 hr, 2 hr, 1 hr, and 30 min
  • Comes with a white, WarmlyYours wall plate
  • Simple “press-and-hold” override functionality
  • Hardwired 120 VAC electrical connection
  • Can be used to control hardwired towel warmers or infrared heating panels
  • Safe: cCSAus listed
  • 5-year limited warranty
  • Lifetime technical support from WarmlyYours

Specifications

Installation

Circuit Type Single Pole
Control Faceplate Compatibility Leviton DTKIT faceplates
Ground Wire Required Yes
Indoor Outdoor Usage Indoor
Mounting Type Wall Mount
Neutral Wire Required Optional; neutral or earth ground connection required
Terminal Type Wire Leads

Appearance

Color White
Mounting Method In-wall, single-gang box

Electrical

Connection Method Hardwired
Frequency 60 Hz
Load Ratings 120 V AC: 15 A resistive; 600 W LED/CFL; 1800 W incandescent/halogen; 1200 VA magnetic/electronic low voltage or fluorescent; 1/2 HP motor.
Maximum Load Resistive Only 15 A
Power Source Type Corded Electric
Standby Power Less than 1 W
Voltage 120 V

Control

Control Manufacturer Leviton
Indicator Behavior Green LED shows selected interval and changes as time remains
Manual Override Up to 24-hour continuous-on override; canceled by selecting a timer preset or OFF
Manufacturer Control Model DT104-1LW
Number Of Positions 5
Operation Mode ON-OFF
Switch Type Push Button
Switching Technology Zero-cross turn-on
Timer Presets 30 minutes; 1 hour; 2 hours; 4 hours
Timer Type Countdown timer

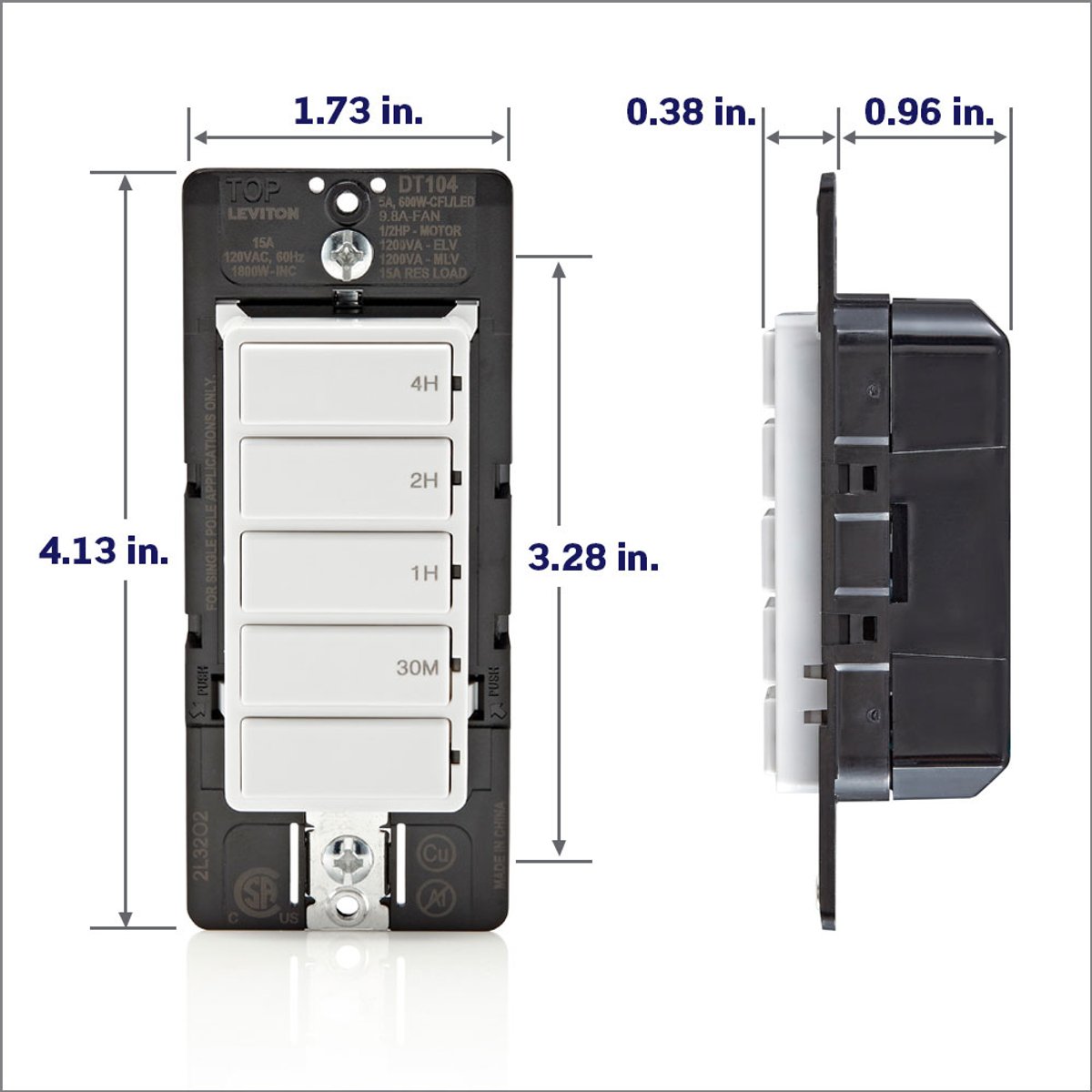

Product Dimensions

Depth 1.4″
Height 4.13″
Installed Dimensions 4.13 in x 1.75 in x 1.40 in
Weight 0.2 lbs
Width 1¾″

Environmental

Lower Temperature Rating 0 °C
Operating Humidity 0–90% RH, non-condensing
Upper Temperature Rating 40 °C

Warranty

Manufacturer Warranty 5-year limited manufacturer warranty

Identifiers

SKU GK16-30090-0006
UPC (GTIN-12) 881308076993

Certifications

Specification Met CSA, FCC, IC; cCSAus

Warranty / Certifications

Warranty 5-year limited warranty
