Prodeso Membrane Roll 162 Sq. Ft. (3′ 3.4″ x 49′ 2.6″)
Prodeso Cable Installation Membrane Description
The Prodeso Cable Installation Membrane is an uncoupling membrane that is designed to be used with TempZone electric floor heating cable*. This 161.59 sq. ft. roll of the membrane is great for use in larger projects.

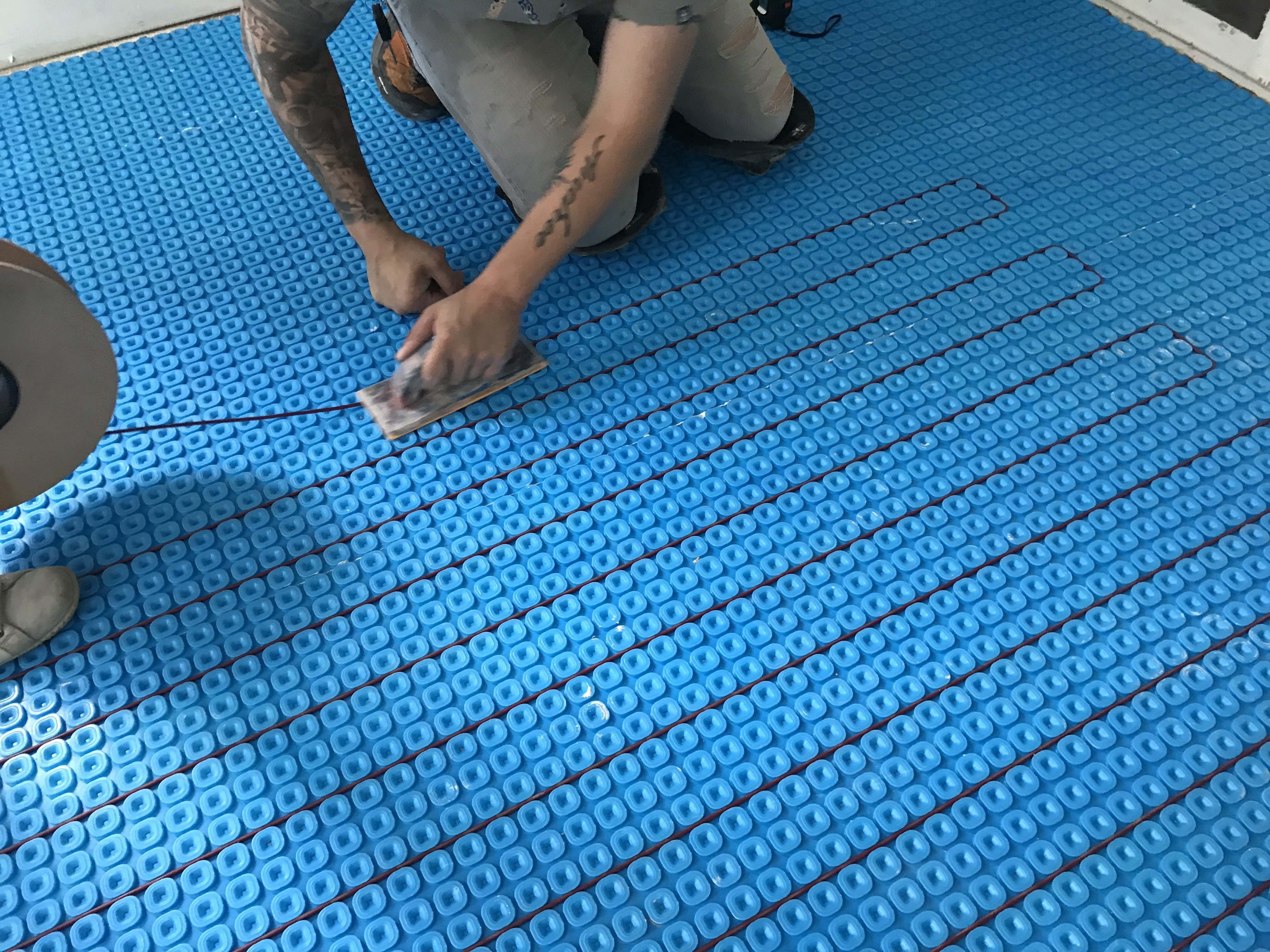

The unique design of the membrane allows for greatly accelerated installations of radiant floor heating—in fact, most floor heating installs with this membrane can be completed in a single day.
The polypropylene membrane features integrated channels are shaped to easily and securely hold the 3.7-watt TempZone Heating Cable. This makes it easy to maintain proper spacing throughout an entire project. The Prodeso membrane also provides uncoupling and crack isolation benefits, which can greatly extend the life of tile, marble, and stone floors. With the use of ProBand accessories, the membrane can also be waterproofed for high-moisture applications like kitchens or bathrooms. The low 7/32" profile of this membrane means its installation won't significantly increase overall floor height. The membrane comes with a 10-year warranty.
* TempZone electric floor heating cable sold separately.
Specifications
Logistics
Country of Origin (COO) | Italy |
Product Dimensions
Coverage | 161.59 ft² |
Length | 49′ 2.6″ |
Stud Spacing | 1.25″ |
Thickness | 0.219″ |
Width | 3′ 3.4″ |
Installation
Minimum Tile Size | 2″ x 2″ |
Recommended Cable Spacing | 3.75″, 5″ |
Identifiers
SKU | TC-MEM-BL-162 |
UPC (GTIN-12) | 881308051426 |
Appearance
Type | Membrane |
Warranty / Certifications
Warranty | 10 years |
Documents & Manuals
Installation
- Installation Tips - Prodeso Cable Installation Membrane (English)
- Prodeso Membrane Installation Manual (English)
- Prodeso Shower Floor Cross Section (English)
- TempZone Cable Cross Section with Prodeso Heat Membrane (English)
Project Planners
Sell Sheets
Case Studies
Customer Questions & Answers
Prodeso Cable Installation Membrane has 51 Questions and Answers.
What type of flooring can I install along with an electric floor heating system?
WarmlyYours’ TempZone™ product is most commonly installed under tile, stone, and marble flooring, but can also be installed under many other popular floor covering options such as hardwood, vinyl and linoleum. We also have our Environ system, which is an electric floor heating product as well and is specially designed for installation under carpet (in the U.S. only), laminate and floating wood. WarmlyYours can accommodate any flooring type with either of the electric radiant floor heating products that we offer. If your flooring type isn't listed here, just give us a call at (800) 875-5285 and we will be happy to discuss it with you.
How can I determine what I need for my floor heating project and how can I find out what my floor heating system will cost?
You can use the Instant Quote Tool, which gives you many options for your floor heating coverage. Use this interactive tool to design your room online and receive an instant quotation with product recommendations, rough-in and installation kits, cost of your control, etc. Planning your floor heating project is made easy when using our Instant Quote Tool.
Send us your floor plan or fax it to (800) 408-1100 and we will send you a quote, product recommendation and a free custom installation plan for your project.
Should I be concerned about electric floor heating melting the toilet connection's wax ring?
To prevent any overheating, we recommend that you do not install any electric radiant floor heating elements closer than 4" from the wax ring.
Should I add insulation before installing electric floor heating and how will that affect the system's performance?
When installing electric floor heating over a concrete slab, an insulating underlayment like CeraZorb is highly recommended to ensure efficient operation, faster heating times and warmer floor temperatures.
How do I know if I am installing my electric floor heating system properly?
Please keep in mind that you must check your electric floor heating system with a digital ohmmeter in conjunction with a Circuit Check™. Take an initial reading as soon as you take the product out of the box to verify that it is within -5% / +10% of the values stated on the product’s label. This will give you a basis of comparison for future readings. Take a second reading once you have positioned the system to match your custom installation plan. It is also advisable to take an additional reading in the middle of the tile installation, just to make sure that the Circuit Check™ is doing its job. Then, take a final reading when you are finished with the floor installation and are ready to hook up the thermostat.
The Circuit Check™ is a tool developed by WarmlyYours to give you peace of mind and ensure trouble-free installations. Simply hook up the cold leads to the tool while you position the system to match your custom installation plan.
The Circuit Check™ will continuously monitor the continuity of the circuit during the installation of your system and during the installation of your flooring. The Circuit Check™ beeps immediately when a short in the system is detected, alerting you to a potentially damaged cable in the area you are working, before you lay the tile over the electric floor heating system. The WarmlyYours technical support team is available 24/7 to provide assistance if the alarm sounds, or if you would have any questions during your installation.
View all 51 Questions and Answers
