120V TempZone™ Electric Shower Floor Heating Kit 32ʺ x 60ʺ with pre-built Offset Drain and nSpire Touch Thermostat




Request a Free Product Sample

Features

  • Designed for shower applications

  • Includes the floor heating element of 32" x 60" with a offset drain hole and a Touch Programmable Thermostat

  • This dual voltage (120V/240V) thermostat comes with energy log for tracking use and built-in self-testing GFCI, features "Child-Lock" function and a 3.5” full color touchscreen, complimentary floor sensor allows for energy efficient operation of your floor heating system, with the ability to set up 6 separate temperature events per day and the integrated install wizard, lets you customize your comfort while cutting down on operating cost

  • This exclusive Circuit Check was developed by WarmlyYours for use in monitoring the floor heating system before, during and after installation, gives you peace of mind and ensures trouble-free installation of your radiant floor heating system, beeps immediately if the heating cable is damaged and a short or break occurs, will alert the installer to a potential problem before the floor covering is installed

  • 15 Watts Per Sq. Ft, 15' Cold Lead

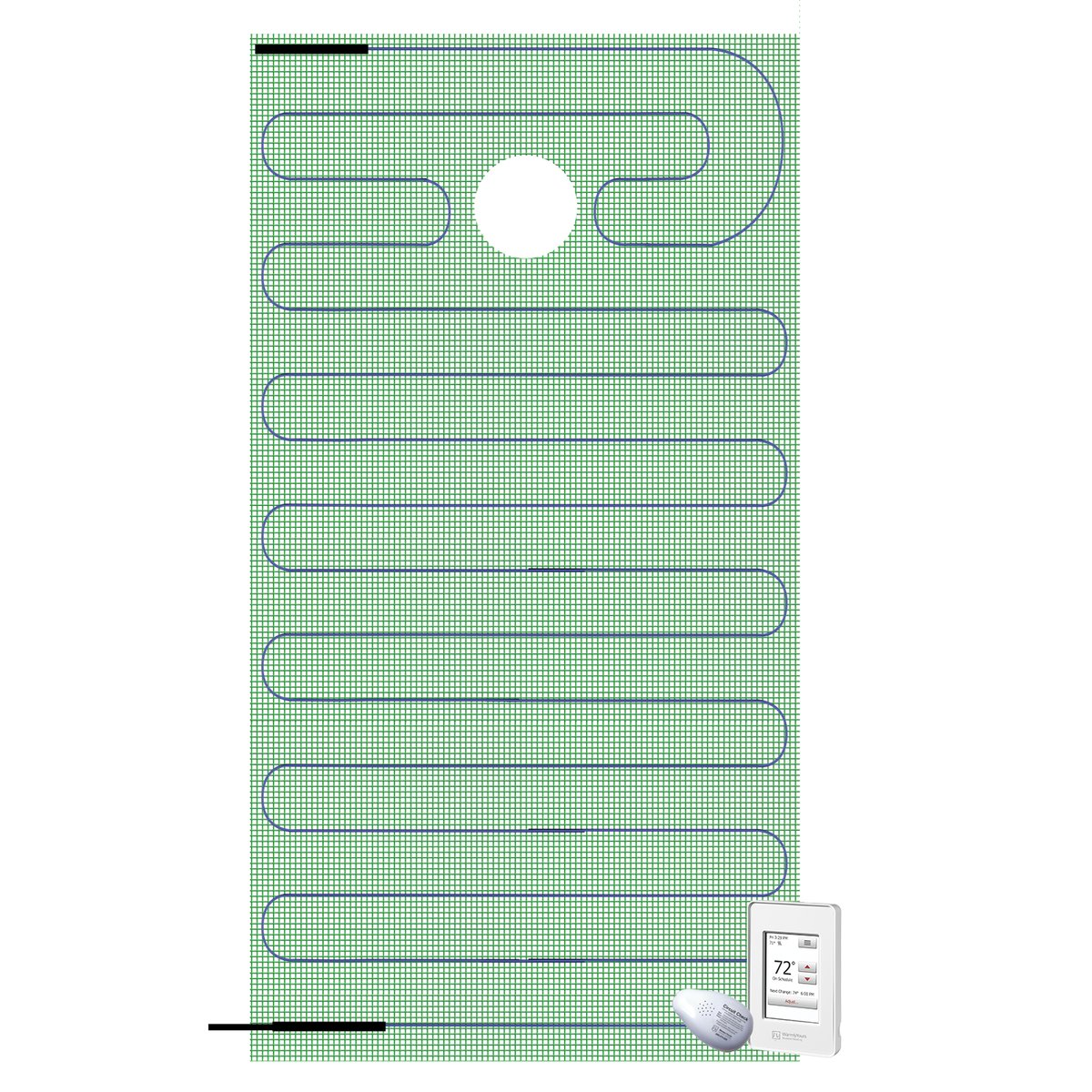

TempZone Shower Floor Heating Kit with nSpire Touch Description

This is a complete floor heating system that can be paired with a Pro GEN II shower waterproofing system. This 32” by 60” TempZone™ Shower Mat with an offset drain should be paired with a Pro GEN II 32” by 60” shower pan with an offset drain so that the drain holes in each will line up correctly to accommodate a drain assembly. The TempZone™ Shower Mat will deliver a heat output of 15-watts per sq. ft. and is UL rated for wet locations in both the U.S. and Canada. In addition to the shower floor heating mat, this kit comes with a Circuit Check electric continuity alarm which is used during installation to alert you if a heating element is damaged and an nSpire Touch programmable floor heating thermostat. The TempZone™ Shower Mat is warrantied for 25-years and the nSpire Touch thermostat is warrantied for 3-years.

Specifications

Electrical (TRT120-2.7O5.0)

Amps 1.67 A
Floor Load 0.2 kW
Ohms 72 Ω
Ohms Per Ft 14.4 Ohm/ft
Thermal Power 0.2 kW
Voltage 120 V
Watts 200 W
Watts Per Sq. Ft. 15 Watts Per Sq. Ft.

Warranty / Certifications (TRT120-2.7O5.0)

Approvals cULus listed
Warranty 25 Year Warranty
Wet Location Listed US, Canada

Performance (TRT120-2.7O5.0)

BTU Per Hour 682 Btu

Product Dimensions (TRT120-2.7O5.0)

Cold Lead Length 22′
Coverage 13.3 ft²
Drain Hole Diameter 5″
Heating Element Thickness 1/8″
Length 5′
Weight 2.2 lbs
Width 2′ 8″

Installation (TRT120-2.7O5.0)

Floor Types Tile, Marble, Stone, Vinyl, LVT, LVP, Wood, Bamboo, Carpet, and more

Logistics (TRT120-2.7O5.0)

Package Contents (1) TempZone Shower Mat 120V 32″ x 60″ with Offset Drain Hole 13.3 Sq. Ft. 1.7A (TRT120-2.7O5.0); 1x Floor Heating Sensor (FH-BACKUP-SENSOR)
UNSPSC Code 40101830

Identifiers (TRT120-2.7O5.0)

SKU TRT120-2.7O5.0
UPC (GTIN-12) 881308061227
