Outdoor Snow Melting Junction Box - Small - In-Ground


Outdoor Snow Melting Junction Box - Small - In-Ground


Support Page

Snow Melting System Junction Boxes Description

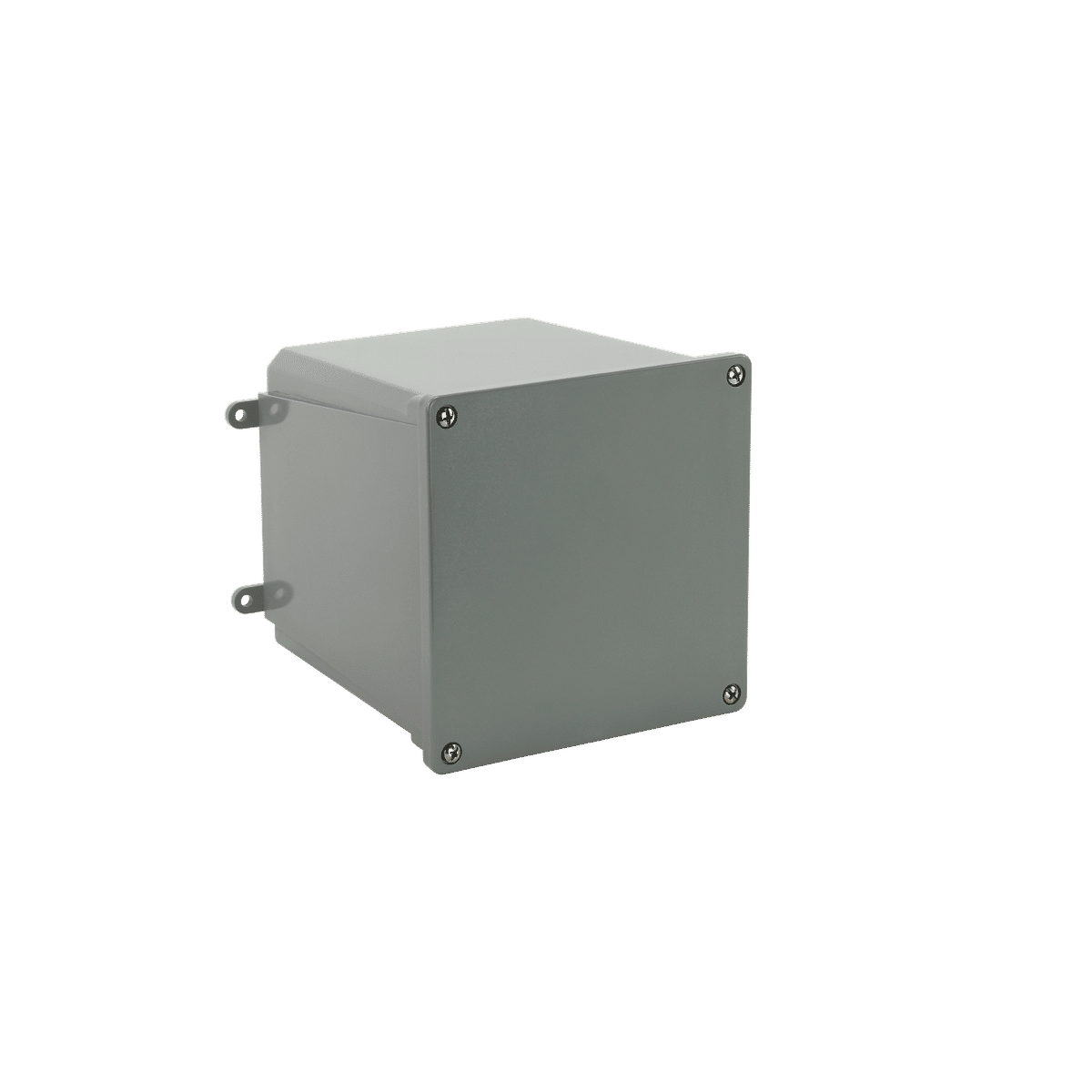

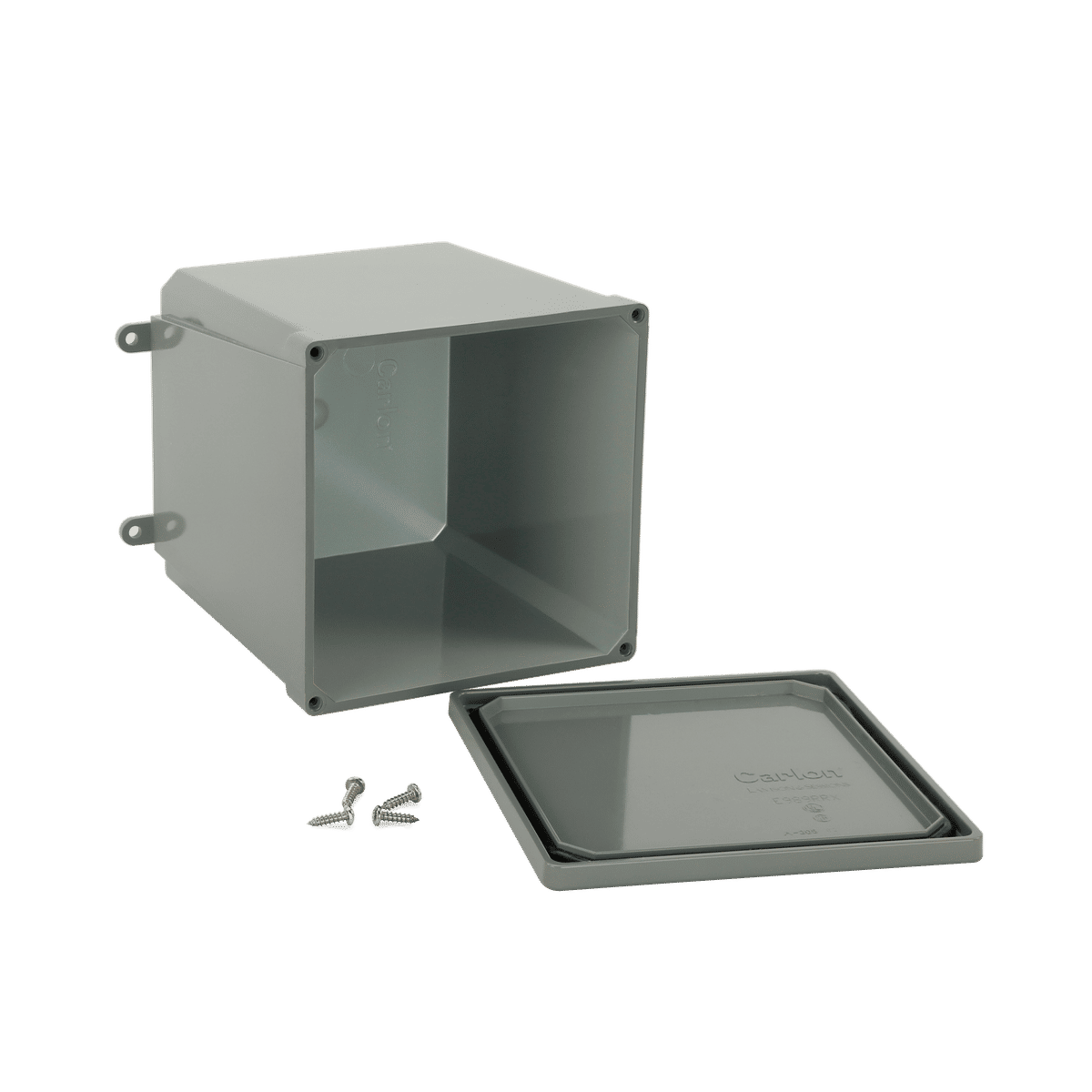

This molded, non-metallic 6" x 6" x 6" outdoor junction box (actual dimensions: 6.25" W x 6.25" H x 6.35" D) can be used in combination with a WarmlyYours snow melting system. This device serves as an intermediary if the cold leads from your snow melting heating elements are too short to reach your relay panel. This junction box can accommodate 1 or 2 cold leads. It features in-ground installation with a NEMA 4X rating to ensure proper protection from the elements.

Specifications

Electrical

Connection Method Hardwired

Installation

Cover Mounting Screw Cover

Identifiers

SKU SM-JBOX-IG-S
UPC (GTIN-12) 34481066859

Product Dimensions

Size 6.25″ x 6.25″ x 6.375″

Warranty / Certifications

Warranty 2 years
Waterproofing NEMA 4X

Customer Questions & Answers

Snow Melting System Junction Boxes has 30 Questions and Answers.

Don't see the answer you're looking for? Post your question

Is it okay to cut the heating cable if it is too long for the application for which it was designed?

Never cut the heating cable. A heating cable will not work if it has been cut. If the heating cable is too long, call WarmlyYours to consult with a technician who will guide you in utilizing the additional length of cable.

11 people found this helpful.  Did you find this helpful? Yes No

How does the electric snow melting system compare to hot water tubing (hydronic) systems?

The material costs are similar. However, electric systems are easier to install, with fewer components and significantly lower maintenance costs. Electric systems will run for a shorter period of time to give the same level of performance but with much higher energy efficiency (typically 95%-98% efficient). Controls and sensors required for the two types of systems are very similar. Electric systems do not usually require slab insulation and do not create the concerns typically associated with hydronic systems. These concerns include, but are not limited to, return temperatures, flue gas venting, waterway shrinkage and property damage caused by leaking pipes or tubes.

8 people found this helpful.  Did you find this helpful? Yes No

Does the factory splice need to be completely embedded during installation?

Yes. The manufacturer's splice that connects the heating element to the cold lead should be entirely embedded in a noncombustible material (like asphalt, concrete, or mortar) within the outdoor surface that is being heated.

7 people found this helpful.  Did you find this helpful? Yes No

May I cross or overlap the heating cable?

Never cross, overlap, or allow the heating cables to touch each other. Doing so will quickly cause a circuit failure due to excessive heat build up. Always follow the product instructions and/or design layout plan to ensure the cable is installed with the correct spacing required for proper operation.

4 people found this helpful.  Did you find this helpful? Yes No

May I cut the cold lead wires?

The electrician may shorten the cold lead wires during the installation. Any lead wire extensions/splices must be made in a junction box in accordance with the installation instructions, and must comply with all national and local electrical codes. Never cut the heating cable.

4 people found this helpful.  Did you find this helpful? Yes No

View all 30 Questions and Answers
