FeelsWarm® Countertop Heater Kit – 11ʺ x 48ʺ – Includes Heater, Plug-in Transformer, and Surface Prep Kit
Part Number: CTHS-1148-KIT
This support page provides publications, manuals, specifications, videos, support articles, and common support questions
This support page provides publications, manuals, specifications, videos, support articles, and common support questions
Support Questions
Showing all 1 questions
Yes, but accommodation for the tail location (a 2“x2“ bump) must be made in the wood. Countertop heaters can go between the wood, corbels, support beams, etc., but the tail location must not get compressed between the stone and the supporting wood.
Documents
Publications
Legacy Documents
Installation
Specifications
Electrical
| Amps | 0.6 A |
| Connection Method | Plug-in |
| Voltage | 18 VDC |
| Watts | 72 W |
Installation
| Countertop Types | Commonly installed underneath granite and stone countertops |
Product Dimensions
| Coverage | 3.67 ft² |
| Installed Thickness | 0.025″ |

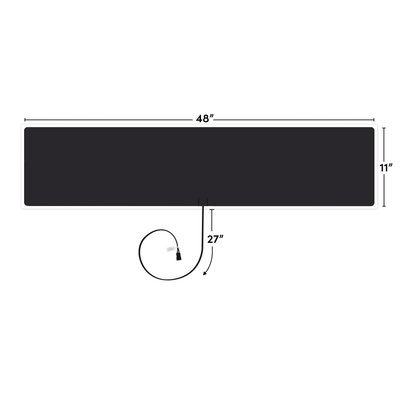

| Size (Overall) | 11" x 48" |
| Weight | 2.5 lbs |
Identifiers
| SKU | CTHS-1148-KIT |
| UPC (GTIN-12) | 881308060565 |
Warranty / Certifications
| Warranty | 3 years for heating element, 2 years for controls/accessories |
