FeelsWarm® Countertop Heater Kit – 11ʺ x 33ʺ – Includes Heater, Plug-in Transformer, and Surface Prep Kit
Part Number: CTHS-1133-KIT
This support page provides publications, manuals, specifications, videos, support articles, and common support questions
This support page provides publications, manuals, specifications, videos, support articles, and common support questions
Common Support Questions
Can I install the countertop heater between supporting wood (ex. corbels, supporting beams, plywood, etc.) and the countertop?
Yes, but accommodation for the tail location (a 2“x2“ bump) must be made in the wood. Countertop heaters can go between the wood, corbels, support beams, etc., but the tail location must not get compressed between the stone and the supporting wood.

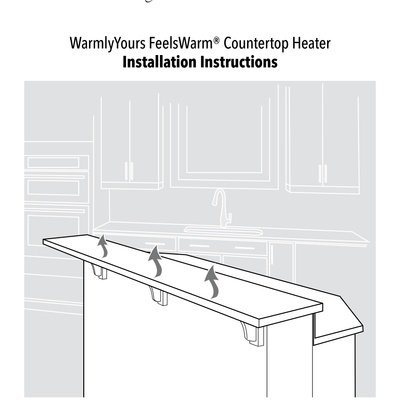

1 person found this helpful. Did you find this helpful? Yes NoPublications and Manuals
Specifications
Electrical
| Amps | 0.4 A |
| Connection Method | Plug-in |
| Voltage | 12 VDC |
| Watts | 48 W |
Installation
| Countertop Types | Commonly installed underneath granite and stone countertops |
Product Dimensions
| Coverage | 2.52 ft² |
| Installed Thickness | 0.025″ |
| Size (Overall) | 11" x 33" |
| Weight | 2.4 lbs |
Identifiers
| SKU | CTHS-1133-KIT |
| UPC (GTIN-12) | 881308060558 |
Warranty / Certifications
| Warranty | 3 years for heating element, 2 years for controls/accessories |
Videos
