Environ™ Flex Roll 240V 1.5′ x 10′, 15 sq.ft. - 0.8A
Features
-
10 Year Warranty under Laminate & Floating Hardwood, 5 Year under Carpet (Us Only)
-
12 Watts Per Sq. Ft
Description

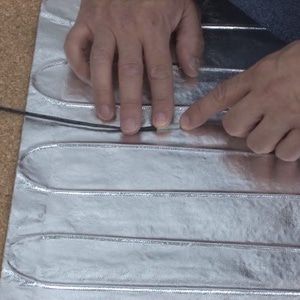

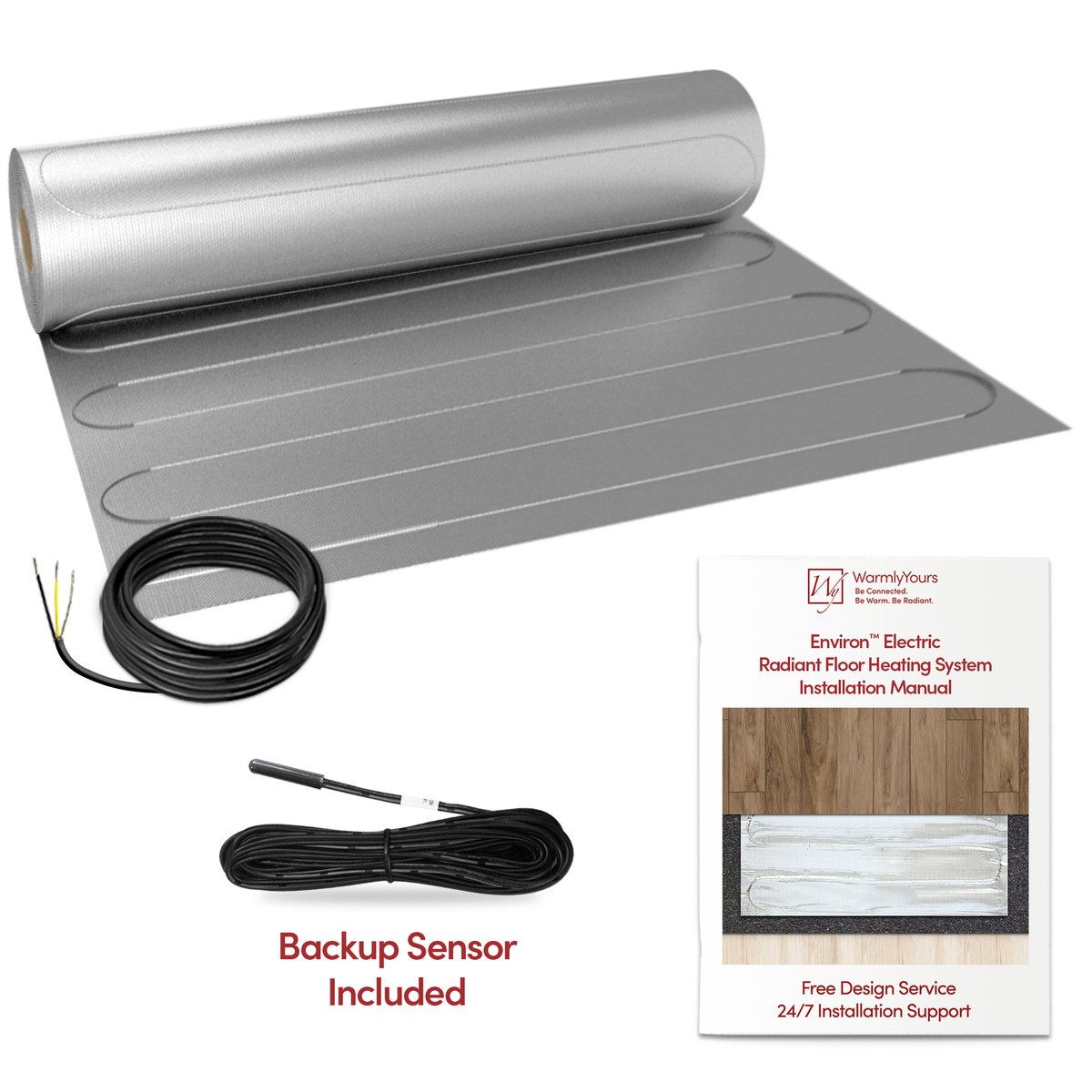

Step into a world of luxury with radiant heating for your carpet (U.S. only), laminate, engineered wood, and floating wood flooring. Each WarmlyYours 240 V 1.5 x 10 ft. Environ™ Flex Roll consists of a fluoropolymer-insulated heating cable between two layers of reinforced, durable aluminum foil. These cut-and-turn rolls provide in field flexibility, and, because no adhesive is needed, installation is simple. The heating cable is uniformly spaced throughout the Environ™ Flex Roll to evenly heat the entire floor at 12 watts per square foot.
Specifications
Electrical
Amps | 0.75 A |
Floor Load | 0.18 kW |
Ohms | 320 Ω |
Thermal Power | 0.18 kW |
Voltage | 240 V |
Watts | 180 W |
Watts Per Sq. Ft. | 12 Watts Per Sq. Ft. |
Warranty / Certifications
Approvals | cULus listed |
Warranty | 10 Year Warranty under Laminate & Floating Hardwood, 5 Year under Carpet (US Only) |
Performance
BTU Per Hour | 614 Btu |
Product Dimensions
Cold Lead Length | 15′ |
Coverage | 15 ft² |
Heating Element Thickness | 1/16″ |
Length | 10′ |
Weight | 2.6 lbs |
Width | 1′ 6″ |
Appearance
Color | Silver |
Logistics
Country of Origin (COO) | India |
Installation
Floor Types | Commonly installed beneath carpet (excluding Canada), floating wood, and laminate |
Identifiers
SKU | ERT240-1.5x10 |
UPC (GTIN-12) | 881308028169 |
Installation Plans
This is a real example of an installation plan that uses this product. If you want to design your own room or have any questions, please contact us.
Engineered Wood (Floating) Subfloor
Wood Voltage
240V Operating Cost
102 cents per hour
This Installation Plan Includes:
Documents & Manuals
Installation
Project Planners
Technical Information
Warranties
Sell Sheets
Catalogs
Customer Questions & Answers
240 V has 81 Questions and Answers.
I have too much Environ Flex Roll, can I shorten the heating wire or heating roll?
No. Never cut the heating cable. The floor heating cable is designed with a very specific resistance in order to consistently maintain heating at a specific wattage per square foot. Trimming the heating cable lowers the resistance of the cable causing the system to overheat. WarmlyYours recommends obtaining a complimentary SmartPlan™ Floor Heating Installation Plan to assure a good installation.
How do I work with my electrician to install WarmlyYours electric floor heating?
While WarmlyYours electric radiant floor heating systems are typically installed by your floor covering contractor, a licensed electrician is recommended for the final thermostat hook-up. With every quote, we provide an Installation Plan layout, together with an electrical plan that has all the info required for the electrician.
How can I determine what I need for my floor heating project and how can I find out what my floor heating system will cost?
You can use the Instant Quote Tool, which gives you many options for your floor heating coverage. Use this interactive tool to design your room online and receive an instant quotation with product recommendations, rough-in and installation kits, cost of your control, etc. Planning your floor heating project is made easy when using our Instant Quote Tool.
Send us your floor plan or fax it to (800) 408-1100 and we will send you a quote, product recommendation and a free custom installation plan for your project.
Is electric floor heating safe and what about EMF?
Our electric radiant floor heating systems have withstood rigorous safety testing and earned the UL listing. They produce much less EMF than common household appliances like your TV or vacuum cleaner. The EPRI (Electric Power Research Institute) tests all electrical devices and publishes the data. Many common household appliances are tested at a distance of 6 inches. The test results indicate that on average, the EMF emitted for the following appliances, measured in Milligauss (mG) units, is:
Vacuum Cleaner: 300 mG
Microwave: 200 mG
Portable Heater: 100 mG
Dishwasher: 20 mG
Washing Machine: 20 mG
WarmlyYours TempZone™ (Twin): 1.8 mG
What type of flooring can I install along with an electric floor heating system?
WarmlyYours’ TempZone™ product is most commonly installed under tile, stone, and marble flooring, but can also be installed under many other popular floor covering options such as hardwood, vinyl and linoleum. We also have our Environ system, which is an electric floor heating product as well and is specially designed for installation under carpet (in the U.S. only), laminate and floating wood. WarmlyYours can accommodate any flooring type with either of the electric radiant floor heating products that we offer. If your flooring type isn't listed here, just give us a call at (800) 875-5285 and we will be happy to discuss it with you.
View all 81 Questions and Answers
Customer Reviews
240 V achieved an average rating of 4.9 stars with 61 reviews by our customers.
Excellent product, quality customer service
Marilyn C., Loomis, CA on 04/16/2024
From planning, to ordering, to installation, WarmlyYours delivered a quality product backed with superior customer service.
Welcome addition to our bathroom
Adam B., Durango, CO on 12/20/2023
Very nice system that warms the floor and has features for time-of-day heat settings. Very happy.
Excellent product - great service
Brent V., Ottawa, ON on 03/17/2023
I found the easy mats, well, easy to install and they work great. The service before purchase and after was amazing. The videos are superb and I was able to get all my questions answered from the videos. Great product and great service. Thanks!
Great product & great service
Brent V., Ottawa, ON on 03/17/2023
The easy mat rolls were installed easily... and are working great Pre-purchase support was excellent and the videos were superbly done and answered any questions I had during the install process. Thanks! Highly recommended.
Great Product - Warm Floor!
Anonymous, Zionsville, IN on 12/29/2022
Ordered 90’ roll operating at 240 Volts. Sales support on ordering was great, they provided a layout that I could prep the electrical and sensors location for during construction. Product arrived on-time. Contacted support during install for help with ohm meter check. Installation was easy and I highly recommend the single roll with one (1) power connection to your thermostat. I installed another floor heating system that needed six (6) pads with cables all running to the T stat and it took a lot more time. My installation was as follows: 3/4” T&G subfloor, 2mm foam underlayment, Environ Flex Roll heating pad, Pergo portfolio wetprotect 10mm flooring. I did have to notch out the subfloor for the temperature sensors, I put in a spare, and the power lead in wire that runs about half way into the foil at the start. Another area I had to notch the subfloor was at the termination or end of the roll. The heating cable terminates in a connector that needs to be notched. If you buy the underlayment from WarmlyYours you will notch that instead of subfloor. Performance: installed fall of 2022. Christmas 2022 saw temperatures of -10 degrees F for three days straight with 35MPH wind. Room was comfortable all the time! The product works and provides even heat throughout the floor. It is great to lay on when it is freezing outside! The room we installed it in has windows on three sides so it really takes the brunt of the winter weather. Thank you WarmlyYours for a great product!
Knowledgeable and helpful
Steve M., Warsaw, MN on 10/28/2022
I started my project done a difficult path. these folks help me out of my dilemma and steered me in the right direction. don’t be afraid to use their assistance they really know their stuff.
Everything went well. Floor is warming nicely.
Thomas G., Canfield, OH on 08/21/2022
Everything went well. Floor is warming nicely.
Great service
Matt R., Lake Zurich, IL on 05/26/2022
I’ve been trying to find an easy way to warm up my son’s bedroom above garage, when I came across WarmlyYours. The radiant heating system was designed by WarmlyYours and installed underneath our new carpet. The whole process was great. We couldn’t be happier. It looks and works great. Thank you.
Excellent, as always
Bernadette S., Beaverton, OR on 04/19/2022
We just moved into a 1965 Daylight Ranch near Portland, OR, and the walk-out basement is where my daughter has her bedroom. Since it's on a concrete slab, with a concrete wall on one side, the room was always a bit on the chilly side, and just the slightest bit of dampness in the air. We decided to install the WarmlyYours Environ Flex Roll, as we had done in 2008 back in our home in NY. Back then, it was installed under a travertine tile kitchen floor, and it ended up being a major selling point. The system is easy to install, as there is a layout diagram and complete instructions included. The electricians who came to install the new line and breaker for the floor were so impressed, I believe they are planning a similar installation in their homes. My daughter's bedroom is now cozy and there's no slight dampness anymore. When we remodel the kitchen here, we will absolutely install a WarmlyYours floor heating system.
Great product!
Lisa P., Beaver Creek, CO on 03/27/2022
Great customer service from purchase to install! And my electric bill was less with the new product! Thank you!
