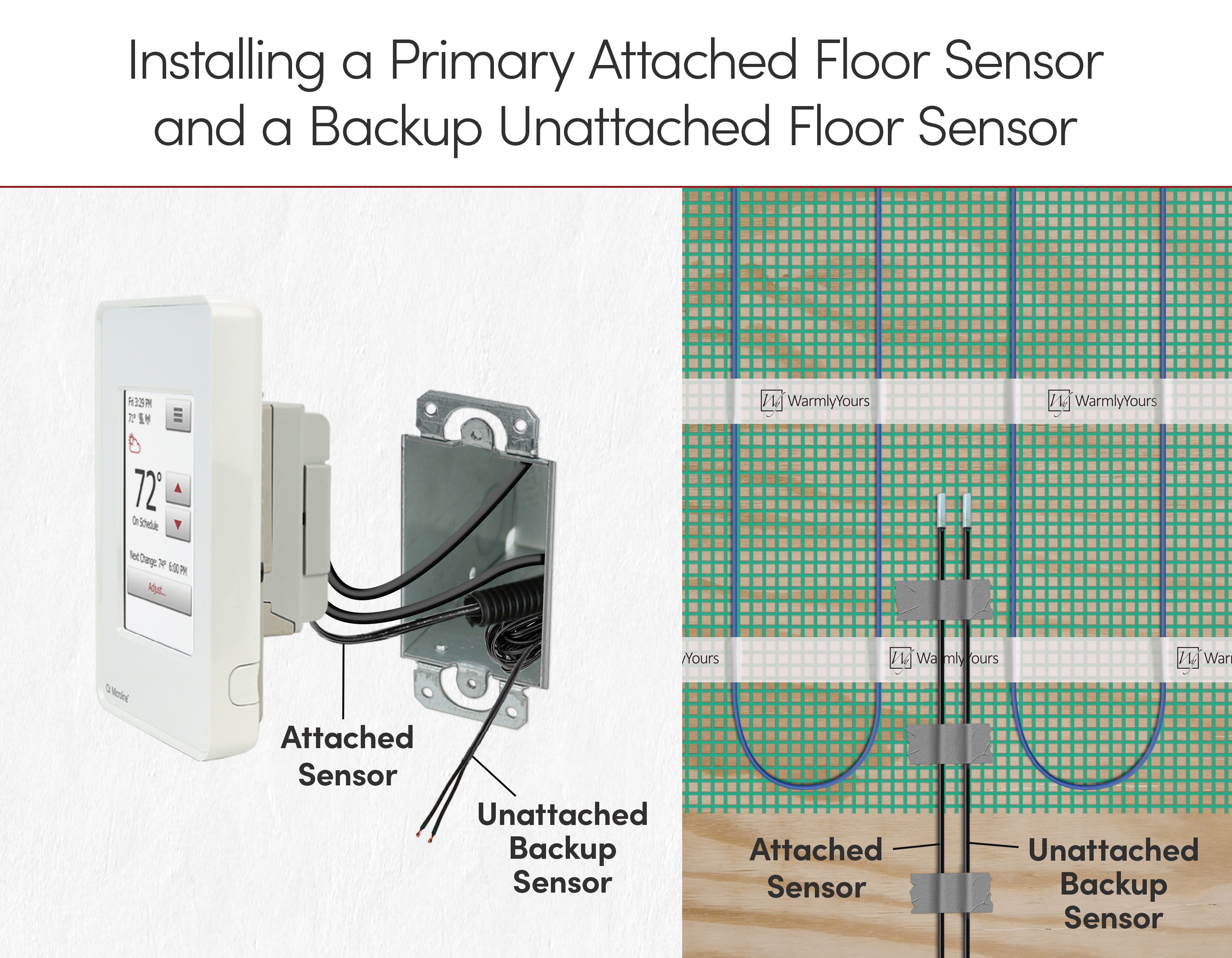

Replacement/Backup Floor Sensor with Standard Sensor Probe, 15' Long, 10k Ohms
This 10k ohms replacement/backup floor sensor, with a standard sensor probe, works with all floor heating controls available from WarmlyYours, including the nSpiration Series. It’s compatible with any electric floor heating thermostat that accepts 10k ohms sensors. It works to accurately sense the temperature reading of radiant floors while operating in a floor-sensing or ambient-sensing/floor-limiting mode. The 15-foot cable offers enough length for optimal thermostat positioning in your room.
Please note that every WarmlyYours thermostat already comes with a complimentary 10k ohms floor sensor.
|Country of Origin (COO)||China|
|Sensor Type (Resistance)||10 kOhm|
Documents & Manuals
- TempZone™ Custom & Standard Mat Wiring Diagram (English)
- WIRING DIAGRAM 120V & 240V Heating Products with PB112D-GA (English)
- Wiring Diagram for TempZone™ Cut & Turn Single Conductor (Multiple rolls) 120V & 240V with SmartStat™, EasyStat™ and Comfort Regulator (English)
- Wiring Diagram for TempZone™ Cut & Turn Twin Conductor (Multiple Rolls) 120V & 240V with SmartStat™, EasyStat™, Comfort Regulator and Power Modules (English)
- nSpire Series Thermostat Wiring Diagram for 120v and 240V Floor Heating Systems (English)
Customer Questions & Answers
Installation and Repair Parts has 21 Questions and Answers.
While WarmlyYours electric radiant floor heating systems are typically installed by your floor covering contractor, a licensed electrician is recommended for the final thermostat hook-up. With every quote, we provide an Installation Plan layout, together with an electrical plan that has all the info required for the electrician.
How can I determine what I need for my floor heating project and how can I find out what my floor heating system will cost?
You can use the Instant Quote Tool, which gives you many options for your floor heating coverage. Use this interactive tool to design your room online and receive an instant quotation with product recommendations, rough-in and installation kits, cost of your control, etc. Planning your floor heating project is made easy when using our Instant Quote Tool.
Send us your floor plan or fax it to (800) 408-1100 and we will send you a quote, product recommendation and a free custom installation plan for your project.
WarmlyYours’ TempZone™ product is most commonly installed under tile, stone, and marble flooring, but can also be installed under many other popular floor covering options such as hardwood, vinyl and linoleum. We also have our Environ system, which is an electric floor heating product as well and is specially designed for installation under carpet (in the U.S. only), laminate and floating wood. WarmlyYours can accommodate any flooring type with either of the electric radiant floor heating products that we offer. If your flooring type isn't listed here, just give us a call at (800) 875-5285 and we will be happy to discuss it with you.
Yes. Unlike the heating cable for electric floor heating, the cold lead wires can be trimmed.
Please keep in mind that you must check your electric floor heating system with a digital ohmmeter in conjunction with a Circuit Check™. Take an initial reading as soon as you take the product out of the box to verify that it is within -5% / +10% of the values stated on the product’s label. This will give you a basis of comparison for future readings. Take a second reading once you have positioned the system to match your custom installation plan. It is also advisable to take an additional reading in the middle of the tile installation, just to make sure that the Circuit Check™ is doing its job. Then, take a final reading when you are finished with the floor installation and are ready to hook up the thermostat.
The Circuit Check™ is a tool developed by WarmlyYours to give you peace of mind and ensure trouble-free installations. Simply hook up the cold leads to the tool while you position the system to match your custom installation plan.
The Circuit Check™ will continuously monitor the continuity of the circuit during the installation of your system and during the installation of your flooring. The Circuit Check™ beeps immediately when a short in the system is detected, alerting you to a potentially damaged cable in the area you are working, before you lay the tile over the electric floor heating system. The WarmlyYours technical support team is available 24/7 to provide assistance if the alarm sounds, or if you would have any questions during your installation.
View all 21 Questions and Answers
Installation and Repair Parts achieved an average rating of 4.9 stars with 33 reviews by our customers.
Warmly staff was very helpful in selecting the correct items
David D., Vashon, WA on 08/11/2023
Warmly staff was very helpful in selecting the correct items to purchase for my project. The instruction booklets were very clear and made installation straight forward. Everything worked without any issues. Thanks
Nick P., Richmond Hill, ON on 05/28/2023
Great product and easy to install.
Anonymous, Albuquerque, NM on 03/06/2023
I enjoy heated floors so much. This is perfect in my small bathroom. Makes for warm feet in the middle of the night, early morning.
I hate my heated floor - Said nobody ever!
Kory N., Portland, OR on 02/19/2023
Customer is super happy with it and the install went flawlessly. Great coverage and no cold spots. With the curb less shower pan the floor is warm everywhere. :)
Great product, great customer service
Caroline Y., Gloucester, ON on 02/14/2023
The team at WarmlyYours is amazing. They are responsive, helpful and professional. The engineered plans are very useful as well and the prices reasonable. We would definitely use them for our next heated floor project.
Great Customer Service
Allen B., Brighton, MI on 01/30/2023
Ordered a new thermostat cable for my new mat. Service was great and the shipping was very quick.
Krista F., Naperville, IL on 01/16/2023
Working with the WarmlyYours products and staff could not be easier! Products are perfect for the new construction projects.
Kerilyn Merritt ROCKS!
John P., Westerly, RI on 12/27/2022
I’m not a big account but Kerilyn treats as if I am. IMO she is a huge asset to the company. All my business with them has been exemplary and will always use them for all my projects!
James S., Gloucester, MA on 11/21/2022
As part of meeting our goal for all electric heat, we found after installing heat pump splits in adjoining rooms, that we still had to kick in the gas heat to bump the kitchen warm enough. Installing WarmlyYours heating elements under a new floor surface did the trick nicely.
Best customer service ever!
Edward T., Spokane, WA on 10/24/2022
To my knowledge this is my first ever review - but WarmlyYours (WY) earned it! My wife and I (66 and 67 years ago) recently (couple months ago) completed our installation of the 847 feet 240 volt floor heating cable (Temp Zone Floor Heating Cable) for a new sunroom we had recently added (About 17' by 17'). We used the Prodeso matt under the cable and we installed 18 by 18 ceramic tiles as the flooring surface. We also purchase the n-spire programable thermostat. Our contact person at WY was Jennifer Stasica (Melus) and she was phenomenal. We went thru several (actually many) design and product options before settling in on the ceramic tile as our flooring option. I had a little trouble getting the thermostat connected but the WY tech team was Johnny on the spot and quickly helped me get the thermo connected. For full disclosure my wife and I are both pretty handy - but the instruction from start (checking cable) – to finish (connecting thermos) are spot on and easy to follow. I also took the time to contact Custom Building Products tech support for their recommendation on the bonding primer (we put down on plywood floor) and best thin sent to use in this application (bonding primer MBP and thin set ProLite Premium Large Format). We used the two-step method for installation, i.e Thinset the Prodeso, lay the cable according to the WY supplied plan, then set wire into Predeso and an finally title onto the covered Prodeso/heating cable. I will not hesitate in using WY for any future heating projects but I am thankful this large project is completed. For a bathroom etc. putting down Temp Zone cable would be an easy project. Thank you again Jennifer - and pass on my thanks to your engineering team for the many renditions we worked thru. PS another reason I waited to do this review was to see how the heated floor performed. No really cold days yet - but on the cooler evenings it is meeting my expectations.
