Snow Melt Mat 240V, 2′ x 40′, 80 sq.ft., 16.7A
- High Heat Output: This embeddable electric heating mat provides nearly 50-watts per sq. ft

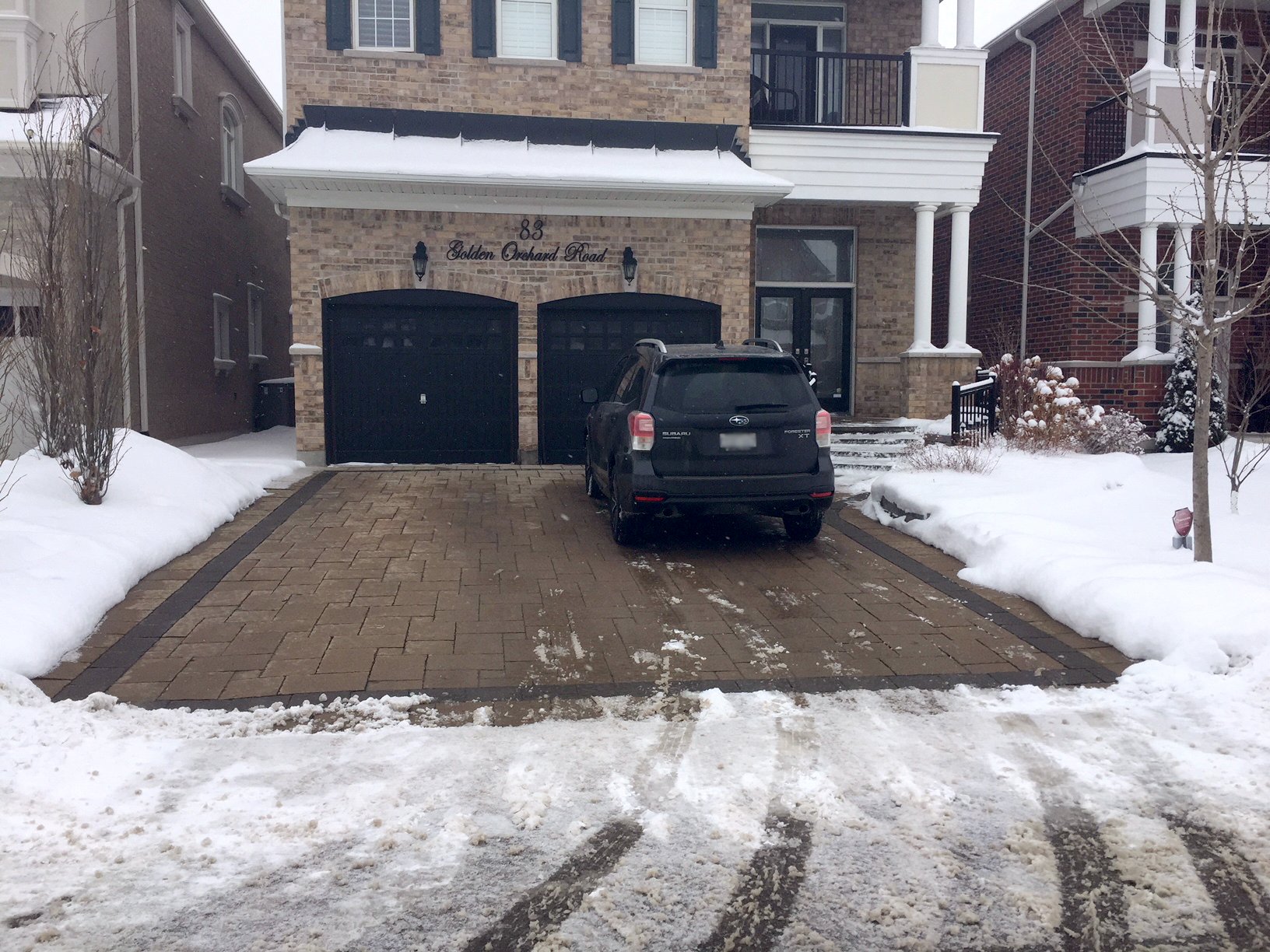

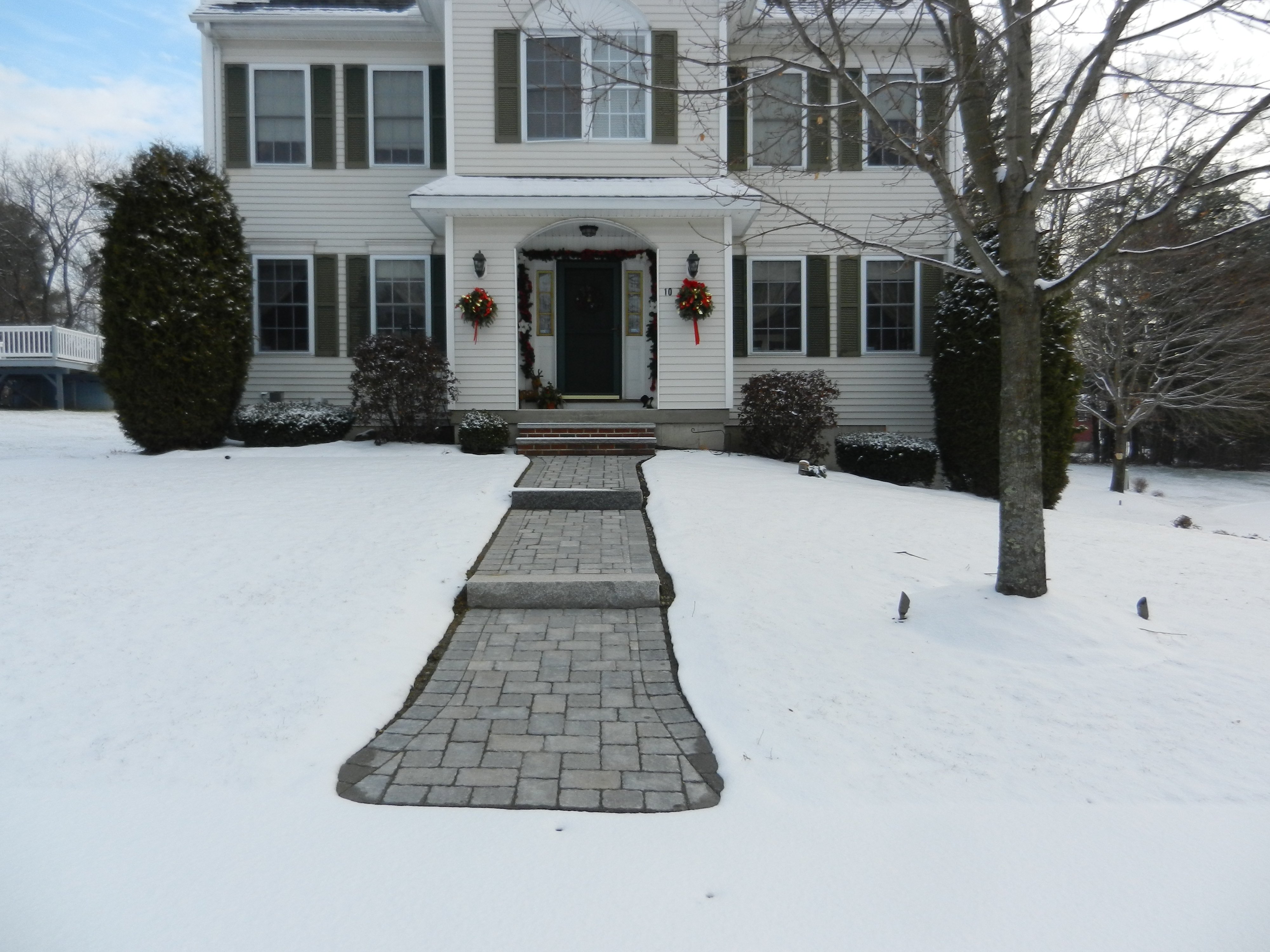

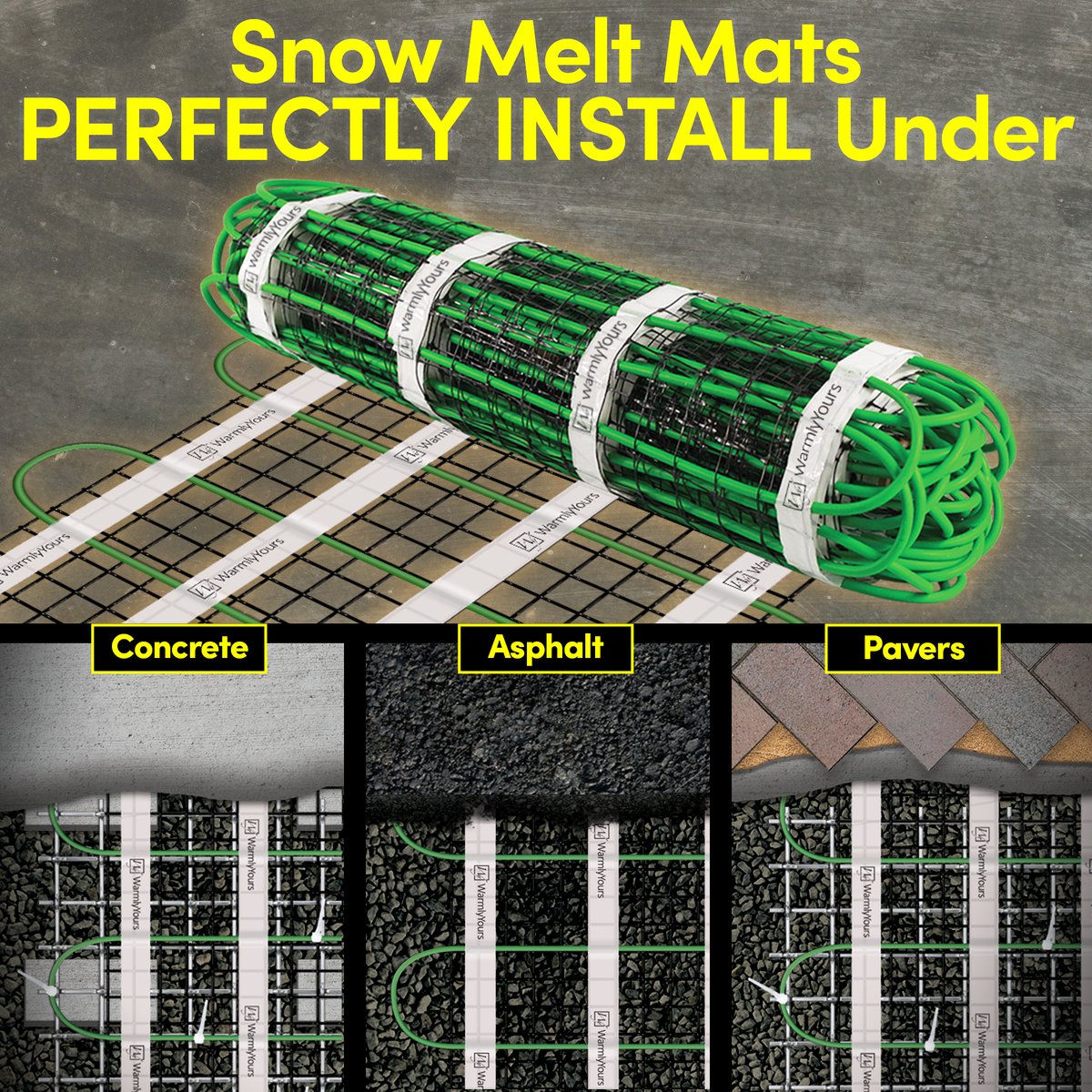

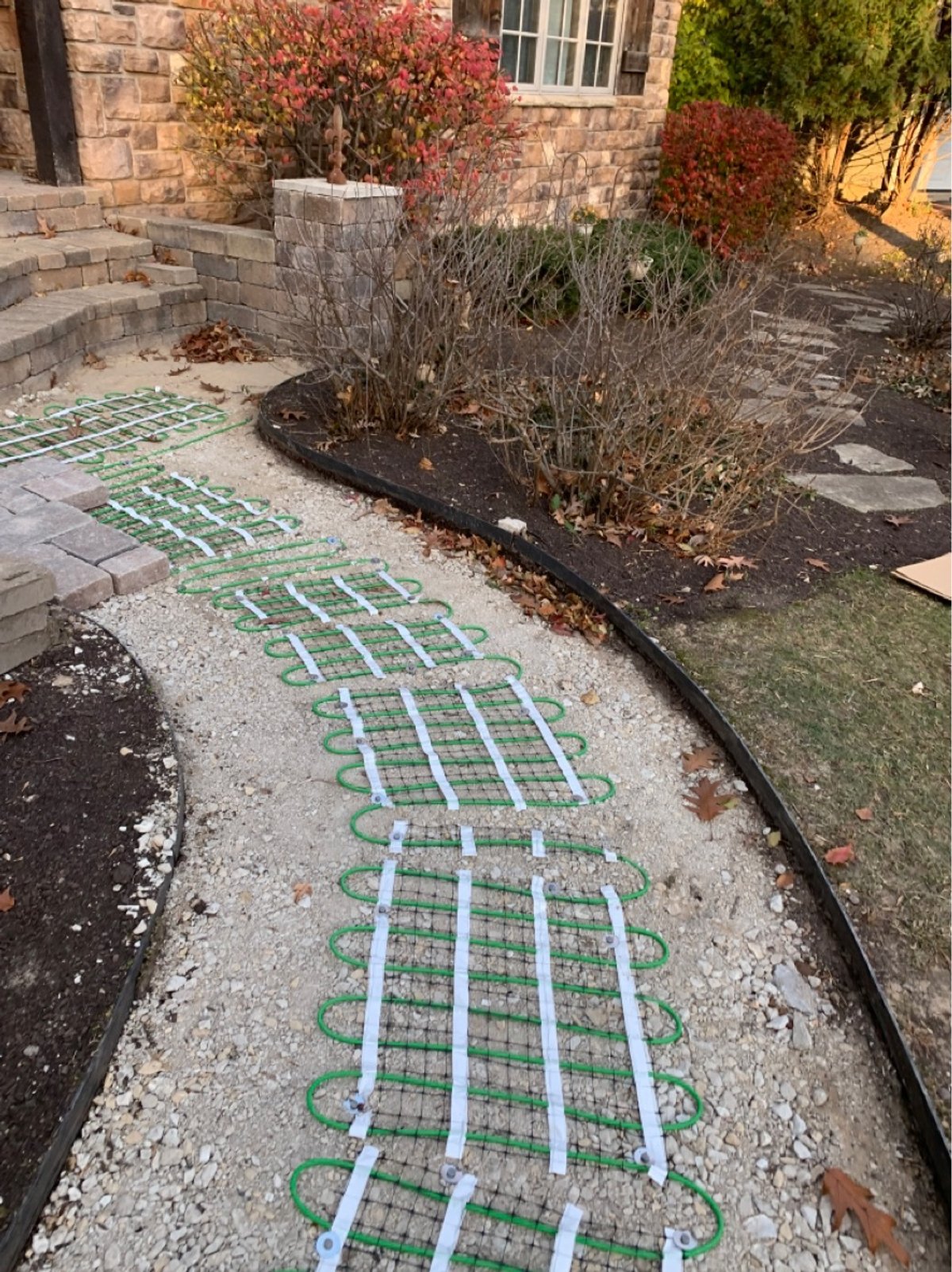

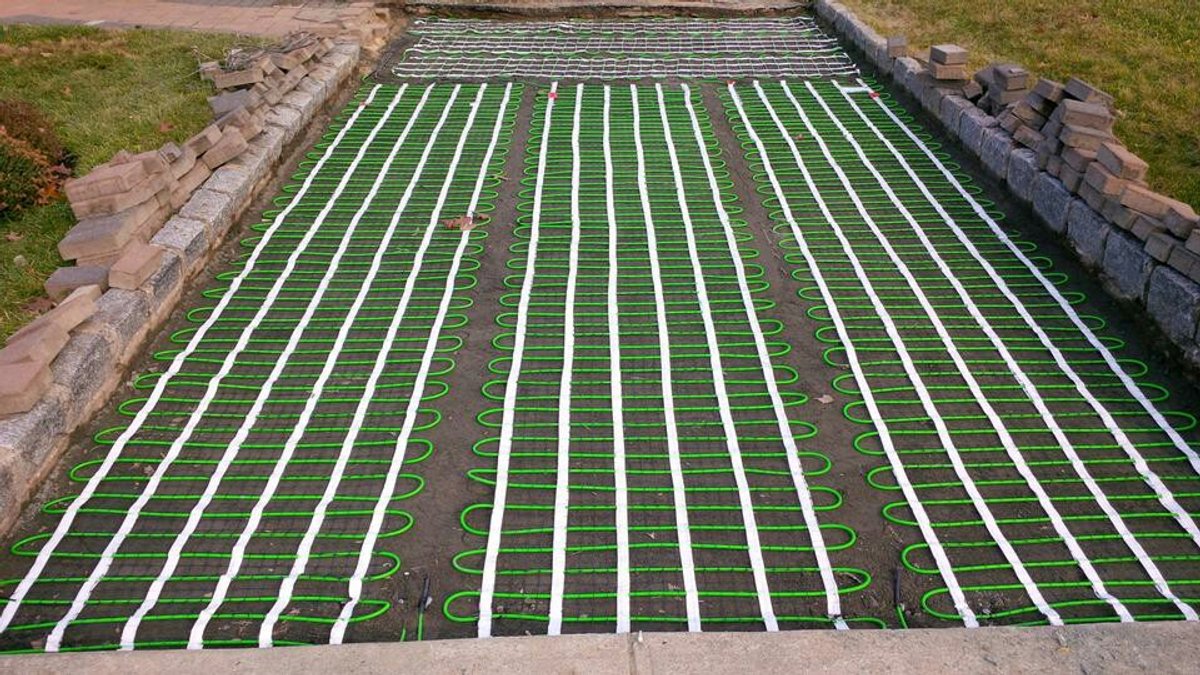

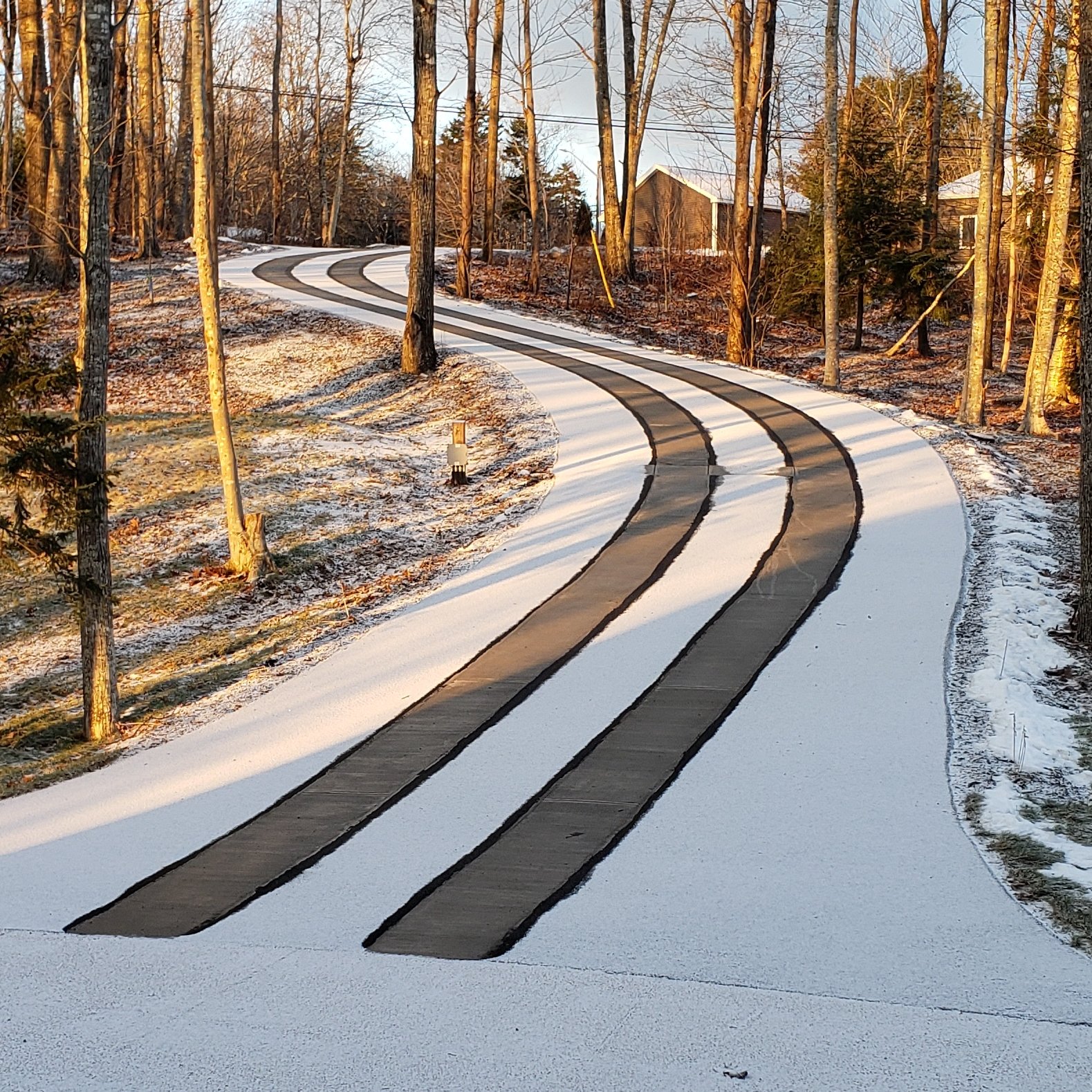

- Embeddable in Concrete, Asphalt, or in Mortar Under Pavers: When you install a mat-based snow melting system within a new driveway, walkway, or patio, you can make sure your outdoor surface will be free of ice and snow all year

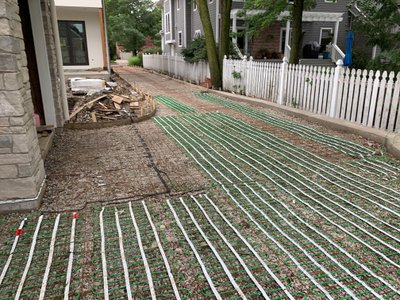

- Even Heating: Snow melting mats come with the heating elements pre-attached to a green mesh in a serpentine pattern with consistent 3” spacing which ensures even heating
- Fast and Easy Installation: Snow melting mats are faster and easier to install than snow melting cables but a bit more expensive
- Installation Support: WarmlyYours offers free SmartPlan™ installation plans, 24/7 phone support, and a 10-year limited warranty
Snow Melt Mats Description

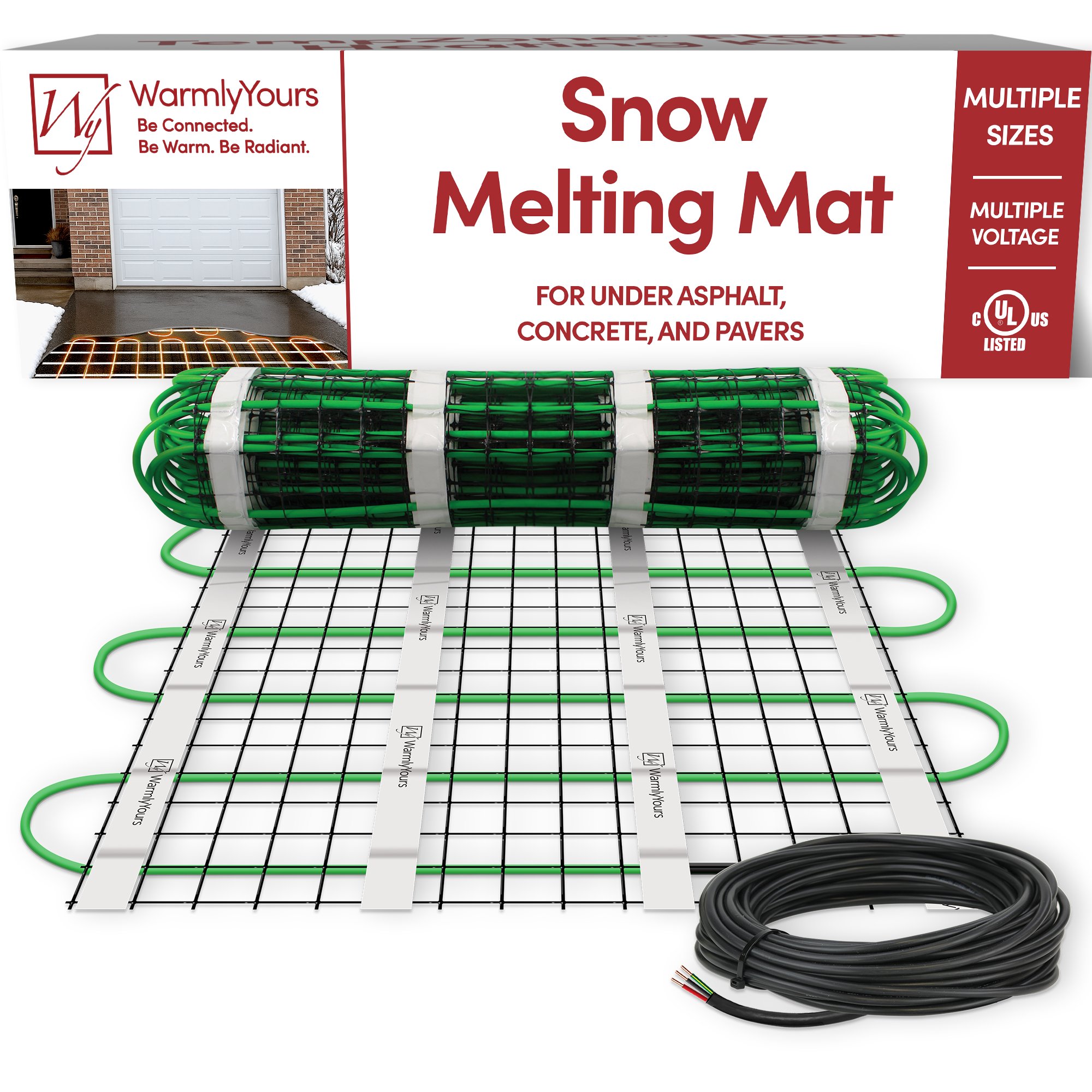

WarmlyYours snows melting mats safely and efficiently melt snow and ice from walkways, patios, and driveways. These 2′ x 40′ 240 VAC snow melting mats provide of coverage. They feature a sturdy, corrosion-resistant, twin-conductor heating element affixed in a serpentine pattern to a polypropylene mesh backing, allowing for easy installation and even distribution of heat in asphalt, concrete or (mortar underneath) paver surfaces. Equipped with a 20-foot (6m) cold lead, WarmlyYours snow melting mats generate 50 watts per square foot for dependable and efficient snow melting performance and are CSA certified for outdoor use in Canadian and U.S. markets.
Warranty / Certifications
|BTU Per Hour||13649|
|Cold Lead Length||20′|
|Heating Element Thickness||0.313″|

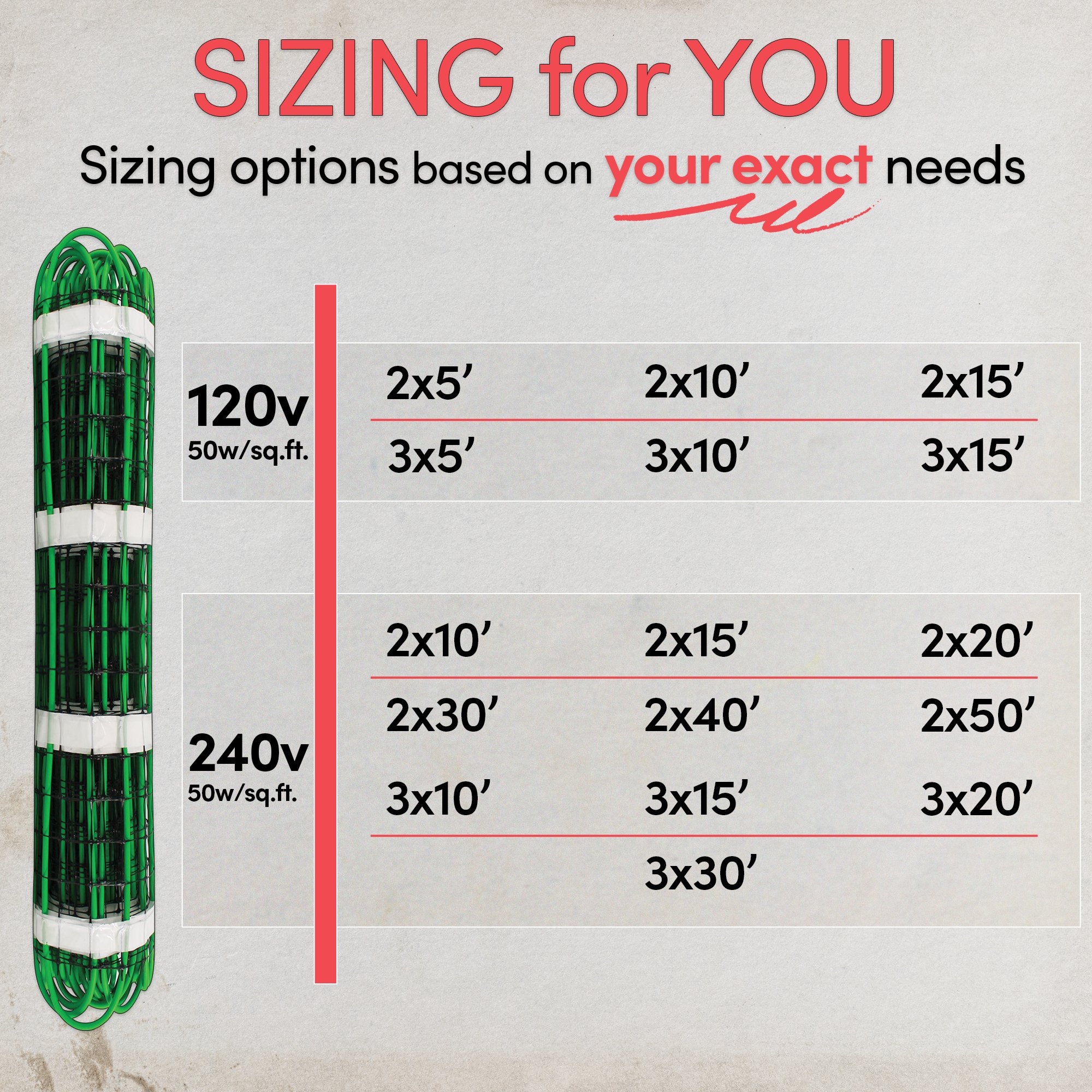

|Size||2′ x 40′|
|Country of Origin (COO)||India|
|Surface Types||Asphalt, concrete or in mortar under pavers|
Documents & Manuals
- Snow Melting Installation Manual (English)
- Manual de Instalación para Sistemas de Derretimiento de Nieve (Spanish)
- Snow Melting & Slab Heating Application Cross Sections (Spanish)
- Snow Melting & Slab Heating Application Cross Sections (English)
- Snow Melting & Slab Heating Application Cross Sections (French)
- Snow Melting Installation Manual (French)
- Outdoor Display Program Sell Sheet for Canada (English)
- Snow Melt Controller Comparison Sheet (French)
- Snow Melting Mat Sell Sheet (English)
Customer Questions & Answers
Snow Melt Mats has 41 Questions and Answers.
Is it okay to cut the heating cable if it is too long for the application for which it was designed?
Never cut the heating cable. A heating cable will not work if it has been cut. If the heating cable is too long, call WarmlyYours to consult with a technician who will guide you in utilizing the additional length of cable.
How does the electric snow melting system compare to hot water tubing (hydronic) systems?
The material costs are similar. However, electric systems are easier to install, with fewer components and significantly lower maintenance costs. Electric systems will run for a shorter period of time to give the same level of performance but with much higher energy efficiency (typically 95%-98% efficient). Controls and sensors required for the two types of systems are very similar. Electric systems do not usually require slab insulation and do not create the concerns typically associated with hydronic systems. These concerns include, but are not limited to, return temperatures, flue gas venting, waterway shrinkage and property damage caused by leaking pipes or tubes.
Does the factory splice need to be completely embedded during installation?
Yes. The manufacturer's splice that connects the heating element to the cold lead should be entirely embedded in a noncombustible material (like asphalt, concrete, or mortar) within the outdoor surface that is being heated.
Should I use mats or cable to install a snow melting system in outdoor stairs?
We suggest using cable to heat stairs as it is easier to route between the separate stairs.
May I cross or overlap the WarmlyYours snow melt heating cable?
When installing outdoor WarmlyYours snow melting cables for your driveway, patio, walkway, terrace, stairs, ramp, etc. - NEVER cross, overlap, or allow the heating cables to touch each other. Doing so will quickly cause a circuit failure due to excessive heat build up. Always follow the installation instructions and/or design layout plan to ensure the cable is installed with the correct spacing required for proper operation.
View all 41 Questions and Answers
Snow Melt Mats achieved an average rating of 4.9 stars with 23 reviews by our customers.
Great Customer Service for an Excellent Product
Richard K., Lakewood, NJ on 03/17/2023
Our experience with WarmlyYours was great from the beginning. They were easy to work with and provided a custom plan and all the necessary hardware to accomplish the job. We changed the design in the process and we were helped every step of the way. The system was on just this week and everything functioned accordingly.
Must have this if you live in a snowy region
Anonymous, Colorado Springs, CO on 01/03/2023
Works great! No more salt or shoveling!
Mary knows her stuff. If she doesn't know , she calls you bac
Ken S., Commerce Township, MI on 09/28/2022
Mary knows her stuff. If she doesn't know , she calls you back within minutes with an answer.
Good quality product
John E., Lakewood, CO on 06/21/2022
WarmlyYours is a good quality product. The mat was installed this spring. I haven't connected it to power yet. Technical support through the process was excellent . The product shipped and arrived on time. The price seemed a little high but sales staff worked with me to eliminate items I didn't really need to reduce the overall costs to a more palatable level. Recommend it!
Very good service Thanks Roy
Rubes S., Ottawa, ON on 09/06/2021
Very good service Thanks Roy
Product was delivered promptly
Fredrock I., Niagara Falls, NY on 02/15/2021
Product was delivered promptly. It was a pleasure working with Pedro and the rest of the team!
Online Information Availability and Clarity
Jim M., Richmond Hill, ON on 02/15/2021
As a P. Eng I like to know all the technical details, product availability, product manual availability and pricing before I will consider buying a product. All this information was easy to access online with the WarmlyYours products.
Response from WarmlyYours:
Thank you for the 5-star review Jim. I'm happy you found everything you needed and I wanted to let you know that our tech team can also review your project in detail with you to make sure all goes according to plan! Reach out to me directly at firstname.lastname@example.org if we can be of further help. - Julia (Owner)
Kerilyn was especially helpful when I needed extra assistance
Bryan B., West Orange, NJ on 02/15/2021
Customer service is a key factor in customer satisfaction.
Just What I Needed
Scott B., Sunriver, OR on 02/15/2021
I needed a small area heated to melt snow that comes off the roof by our front door. The 3x5 mat was just right. The website write-up was accurate, ie I got just what I expected. It was easy to install (wiring can be the trickiest part, but that's not a WarmlyYours issue -- I wired it to an inside manual switch). All in all, it was what I needed, easy to install, one or two phone discussions were helpful, and it works great.
Great customer service!
Deacon D., Tooele, UT on 02/15/2021
My sales rep. was amazing, super helpful and efficient.
