Ice dams and heavy snow pose a major threat to any roof, especially a unique glass one. Thomas Patrick Homes needed to protect this stunning architectural feature in Naperville, IL, from harsh winters. A WarmlyYours Ice Shield deicing system was installed to automatically prevent ice buildup, ensuring water flows freely and protecting the home from costly leaks and structural damage.
Project Details
- Location: Naperville,Illinois
- Heated Space Type: Glass Roof & Gutters
- Size: 250 ft. Long
- Watts: 2500 W
- Volts: 120 V
- Amps: 21 A
- Operating Cost: Approx. $0.43 per hour (while active)
- Products Used: Ice Shield Self-Regulating Heating Cable (250’), Plug-in Conversion Kit, Aluminum Roof Clips, Double-Sided Tape Pads
A Clear Solution for a Glass Roof
Custom builder Thomas Patrick Homes faced a unique challenge with a new construction in Naperville, Illinois. The home featured a beautiful, modern glass roof—an architectural highlight that is particularly vulnerable to the heavy snow and ice common in Illinois winters. Without a proper solution, ice dams could form, leading to water backing up, causing dangerous leaks and putting stress on the glass structure.

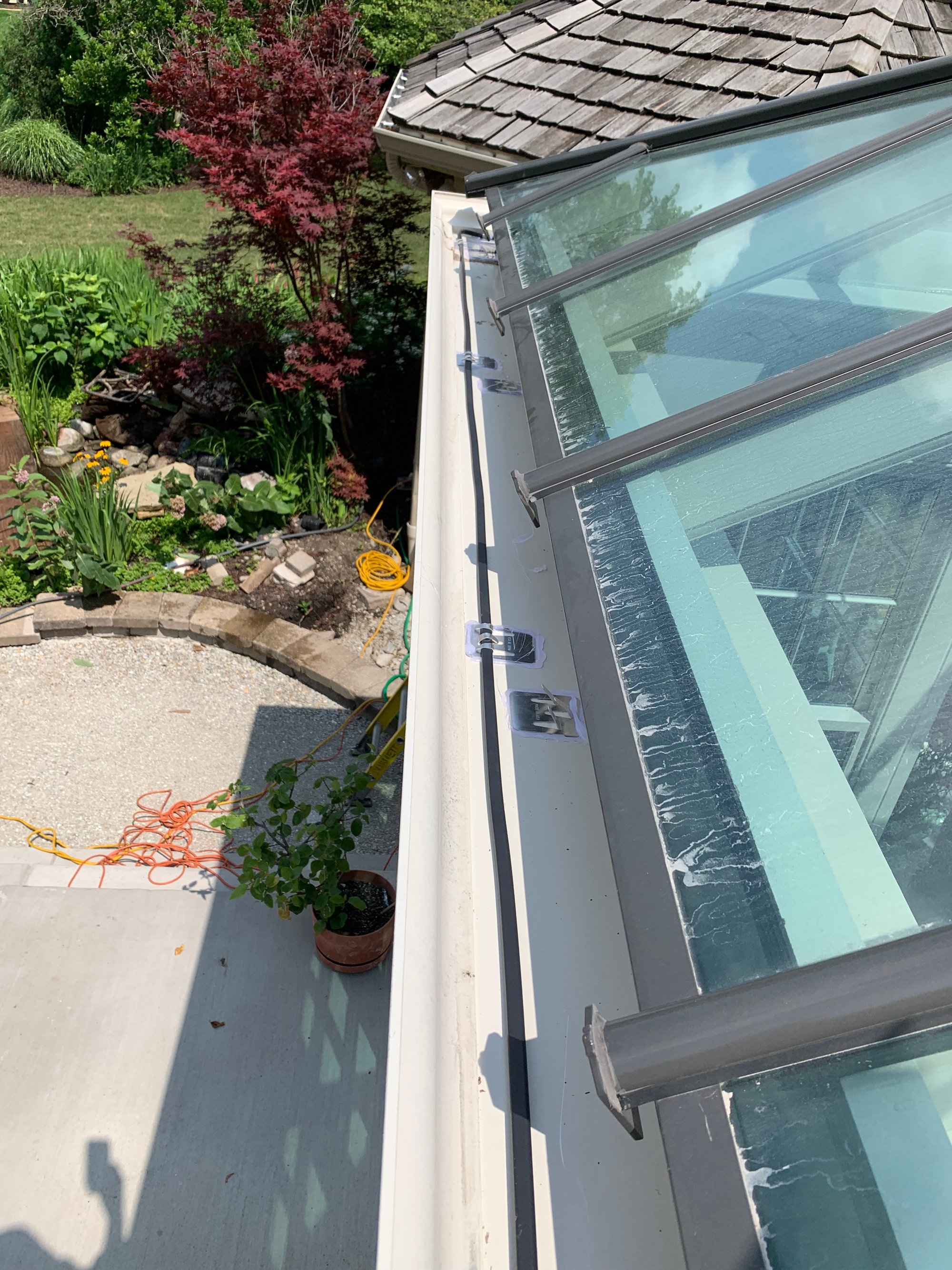

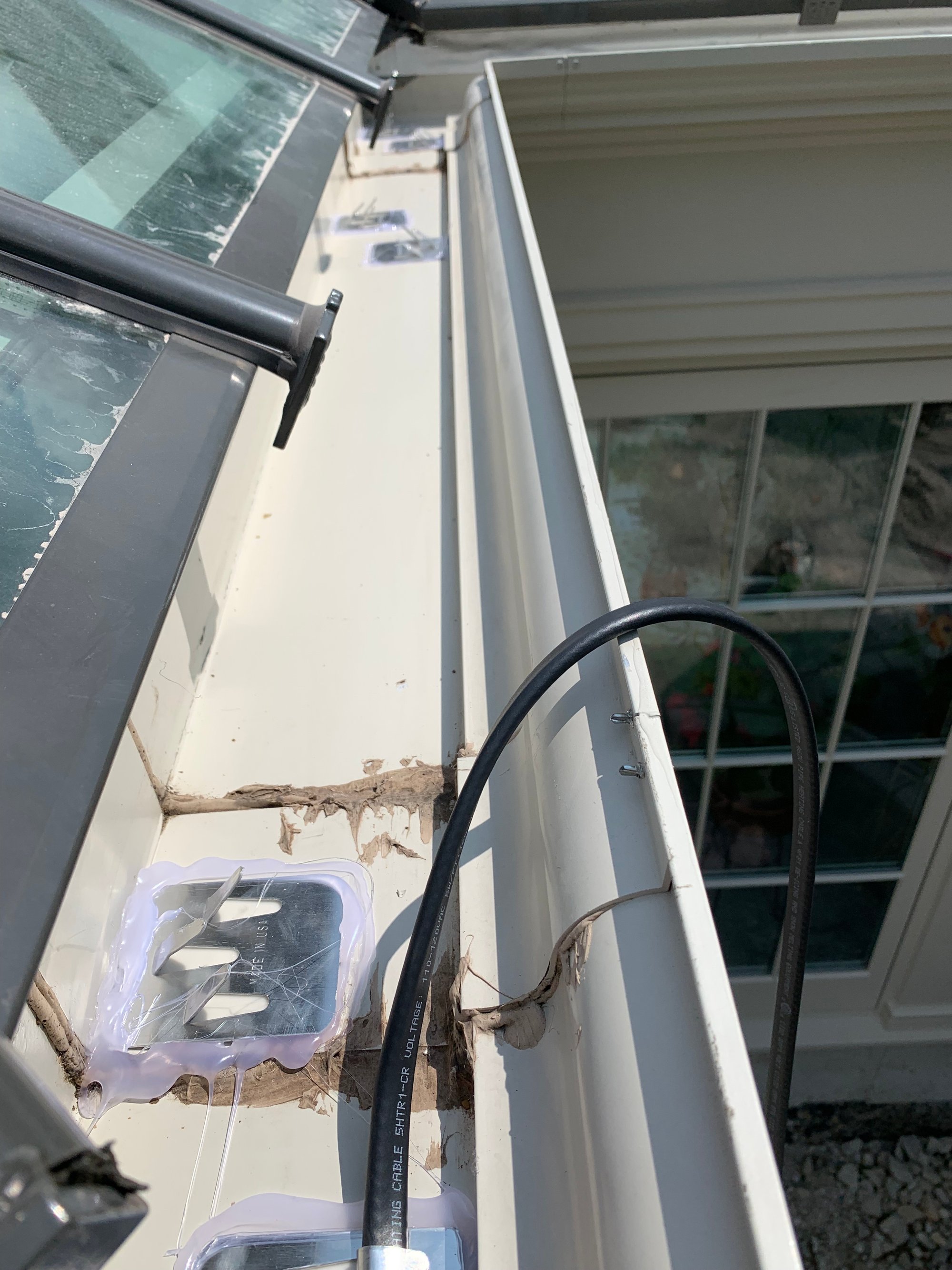

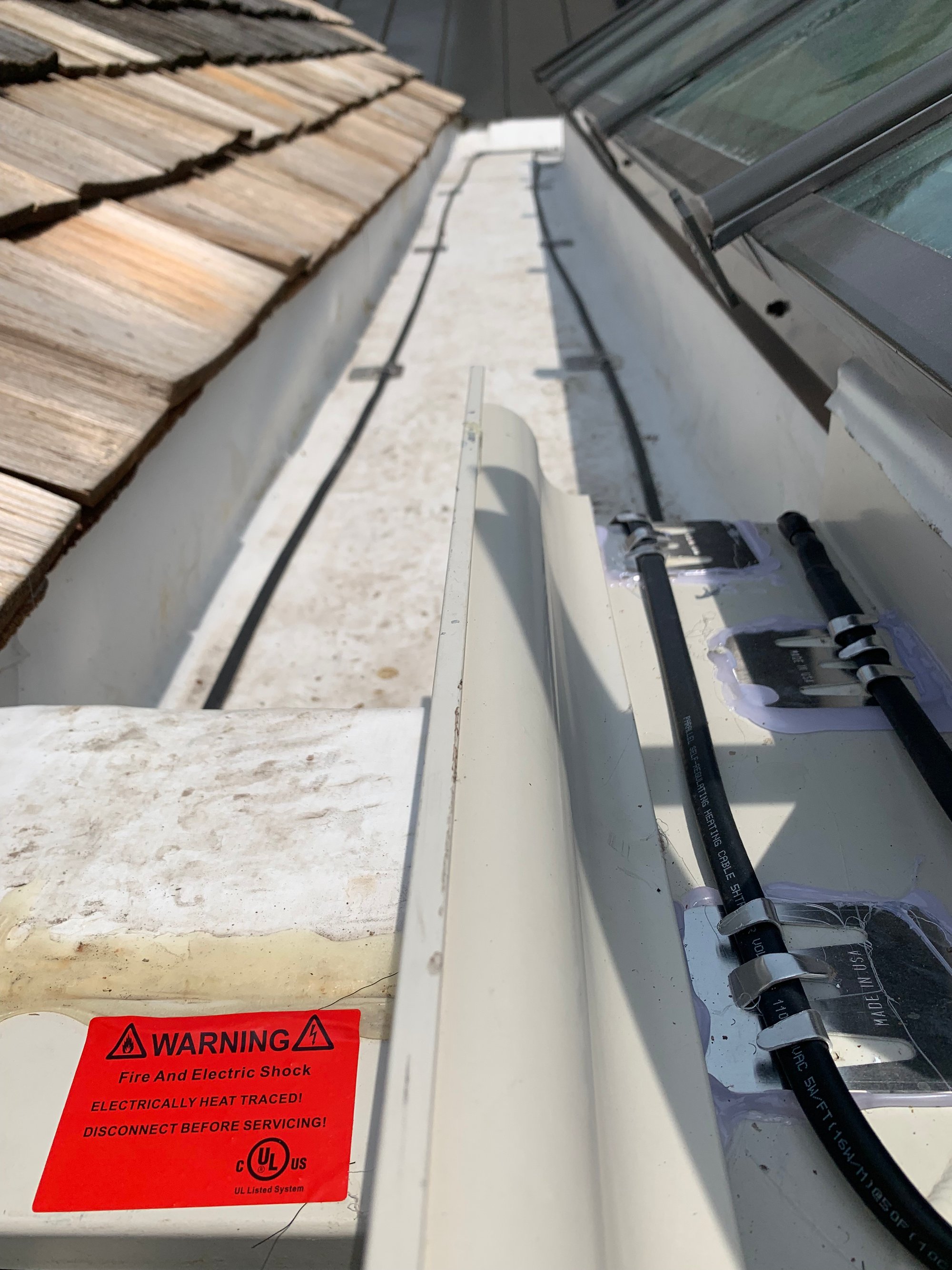

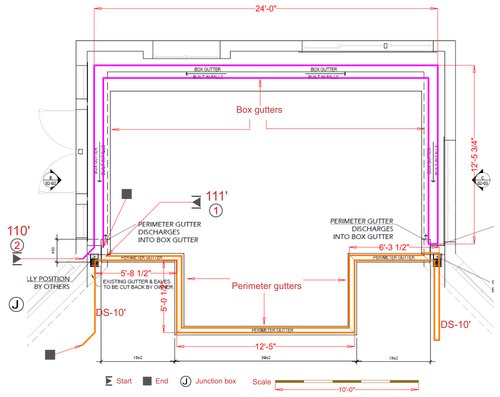

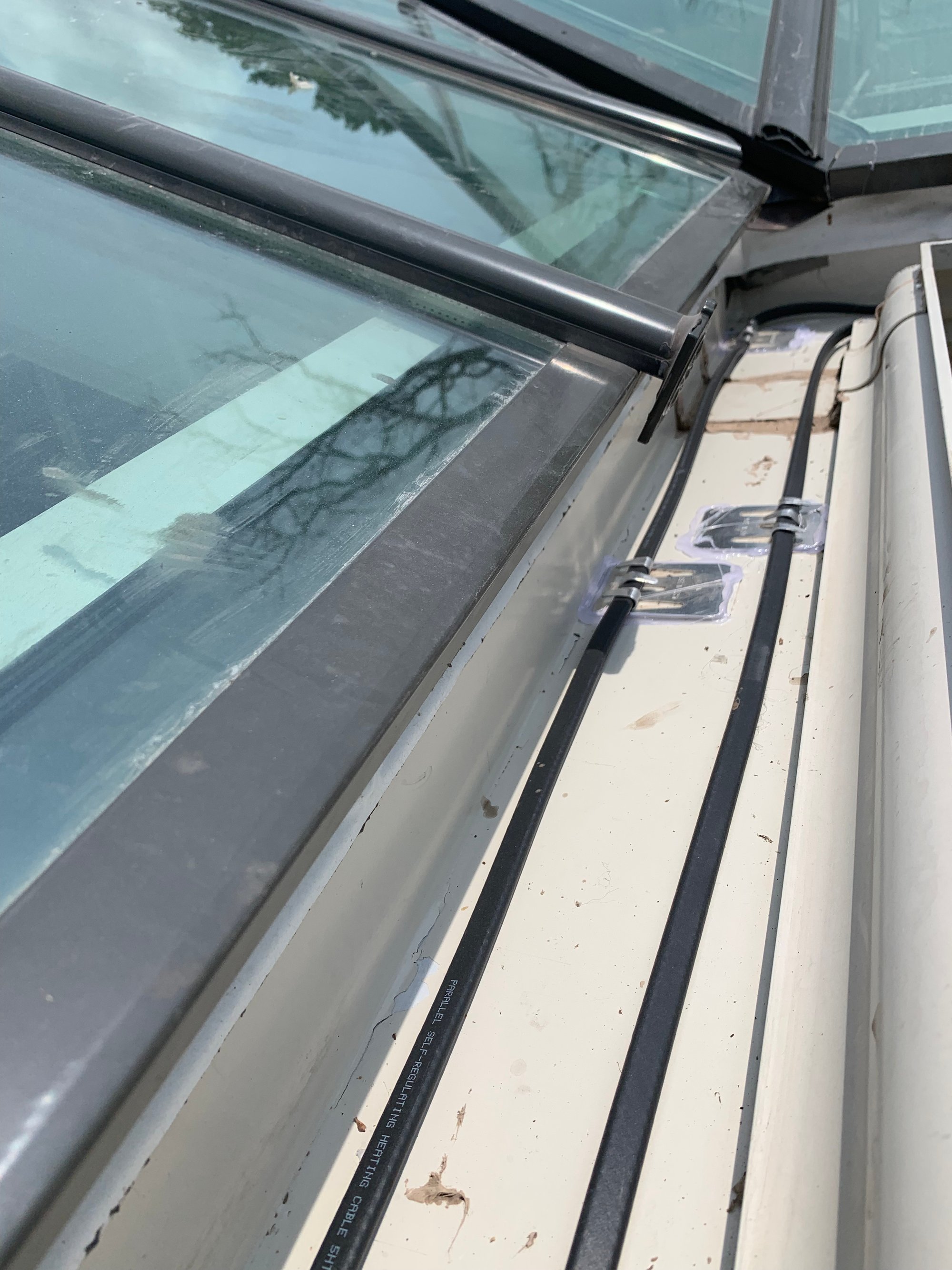

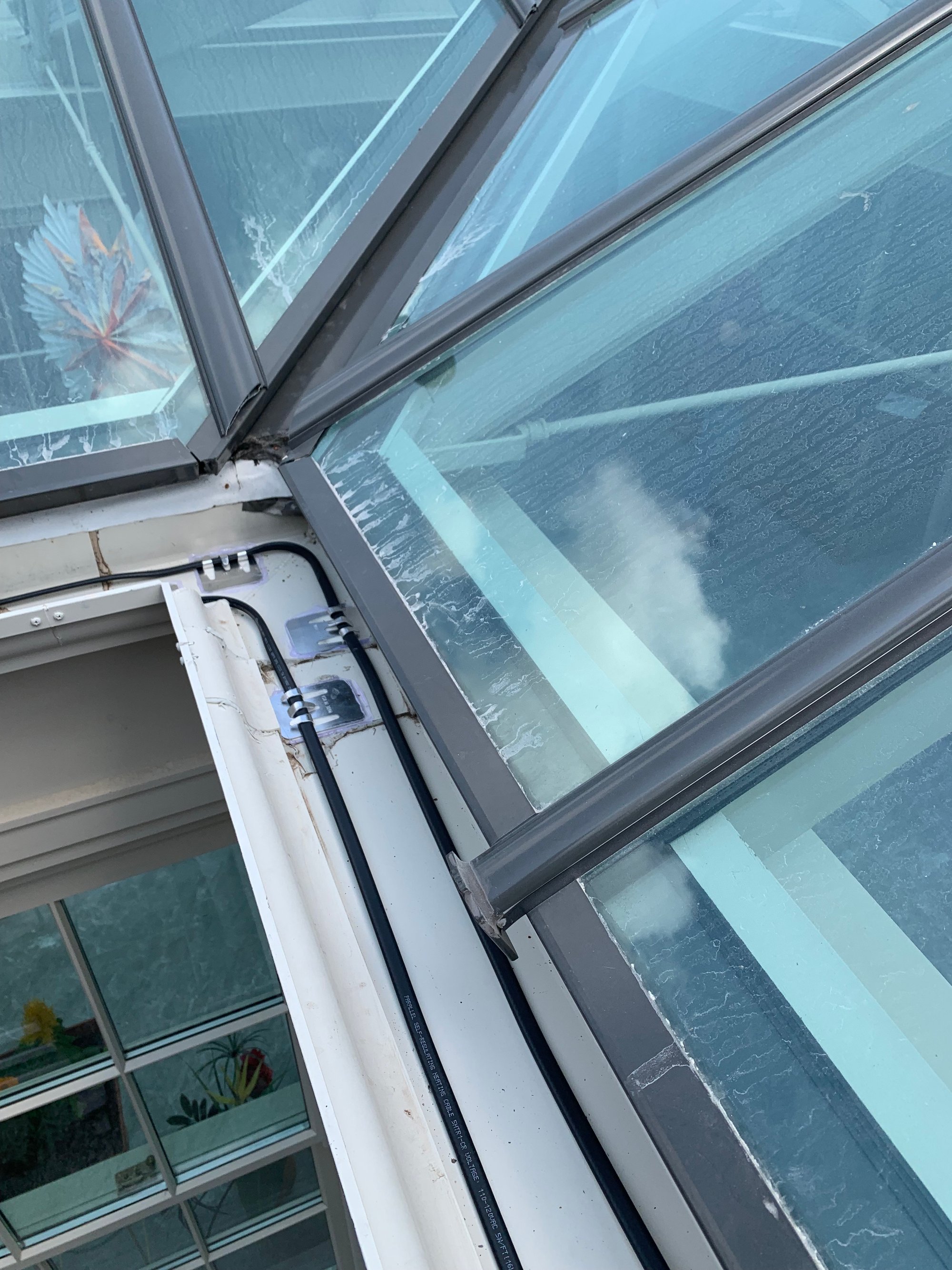

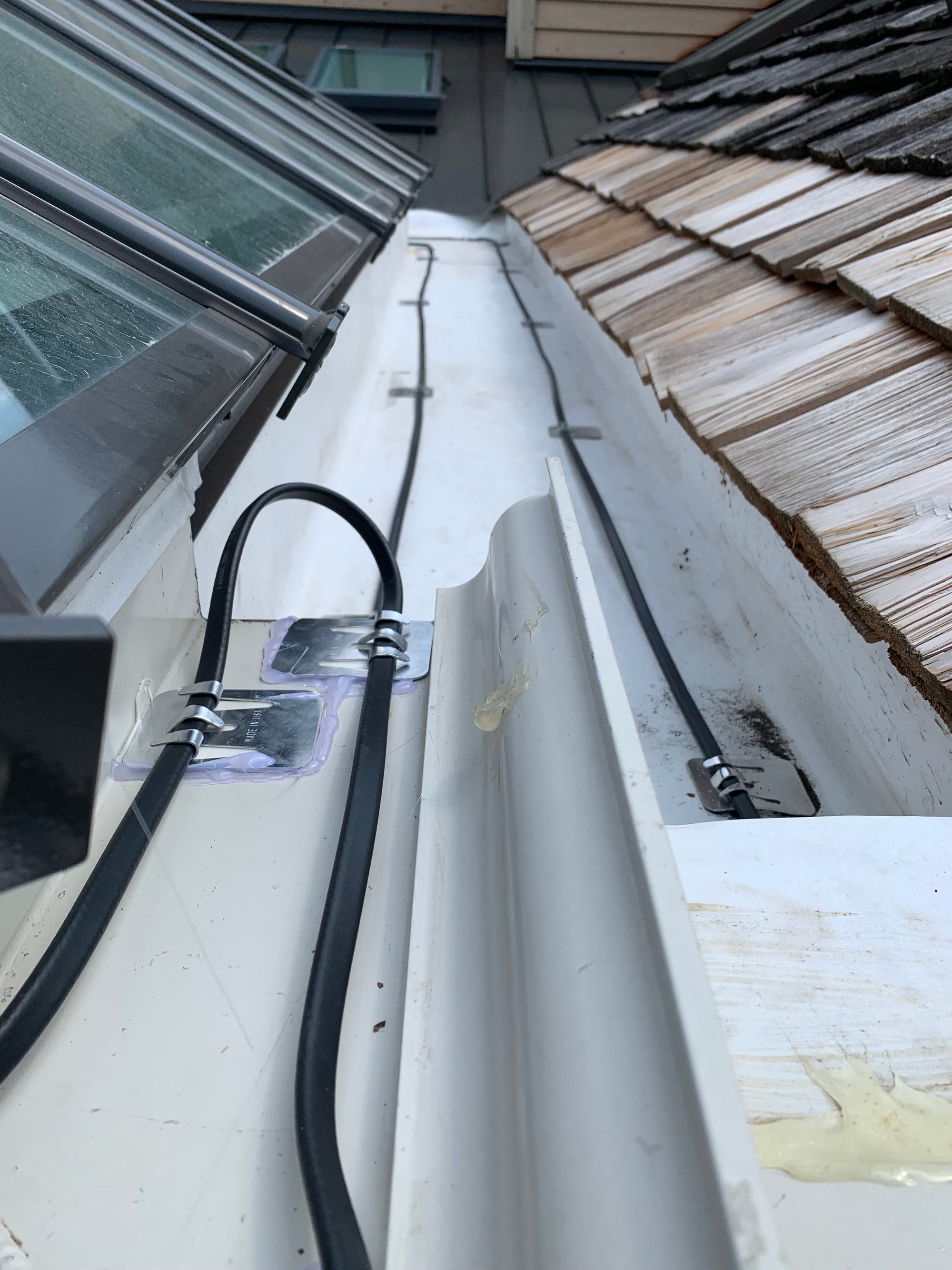

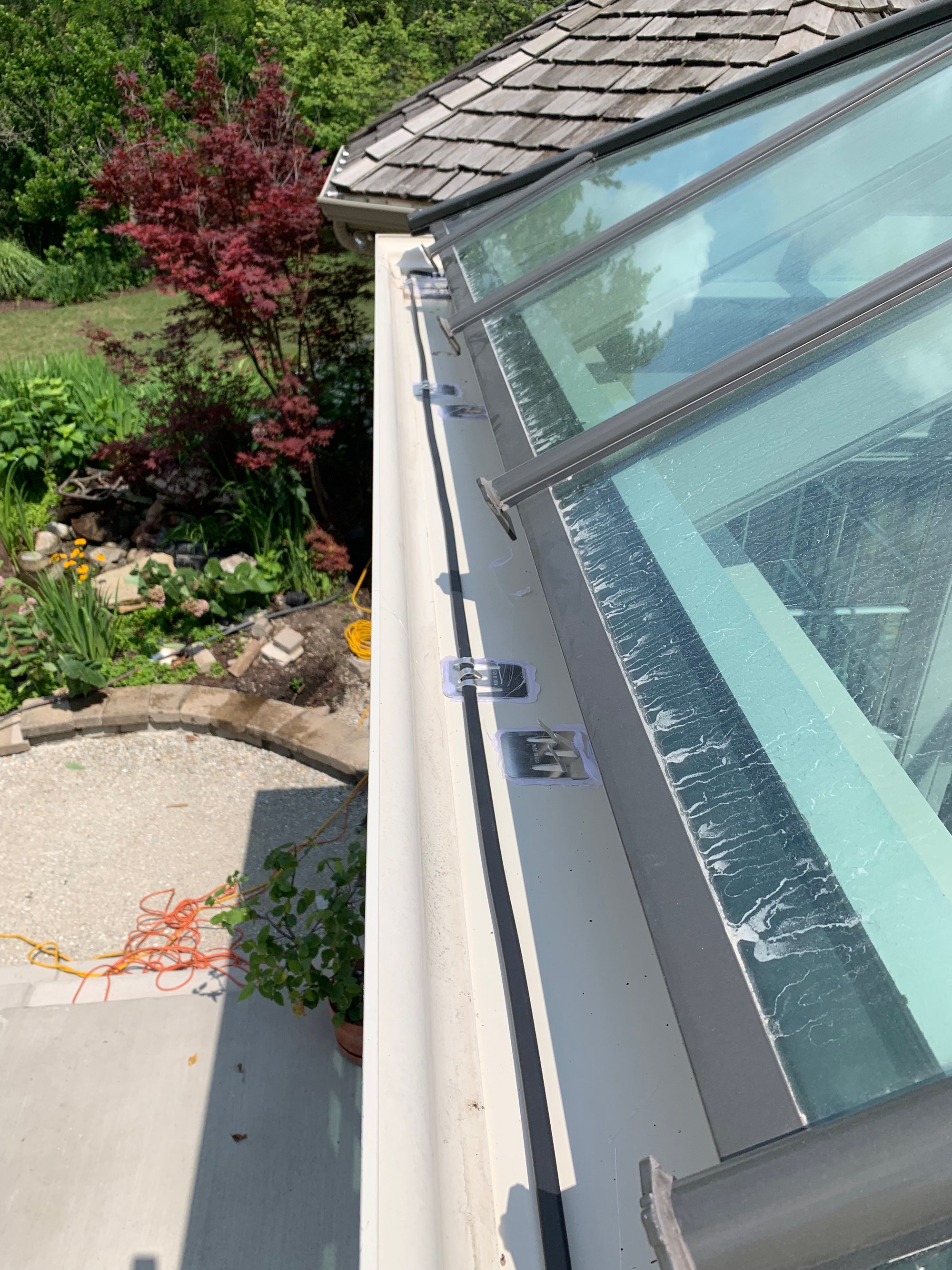

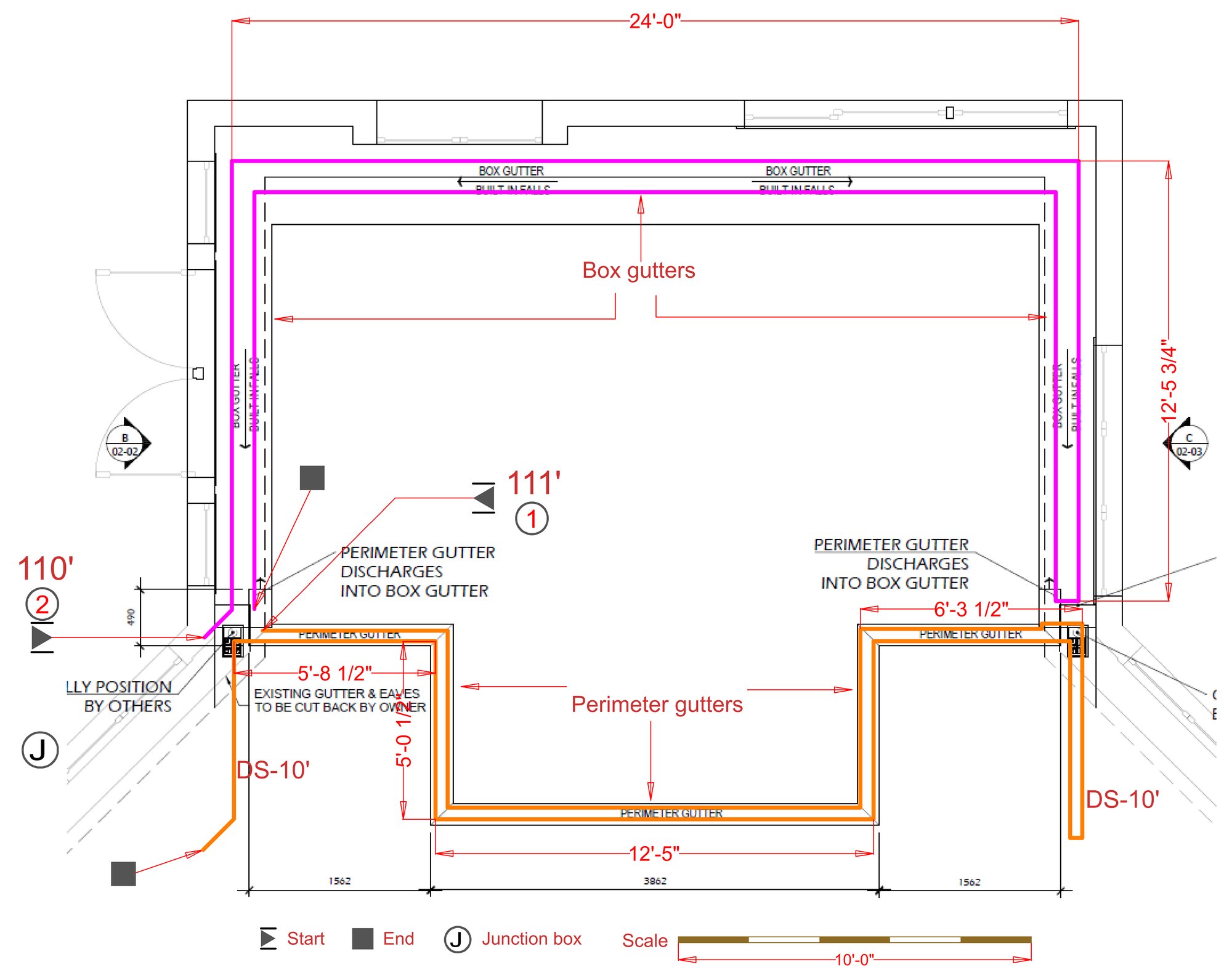

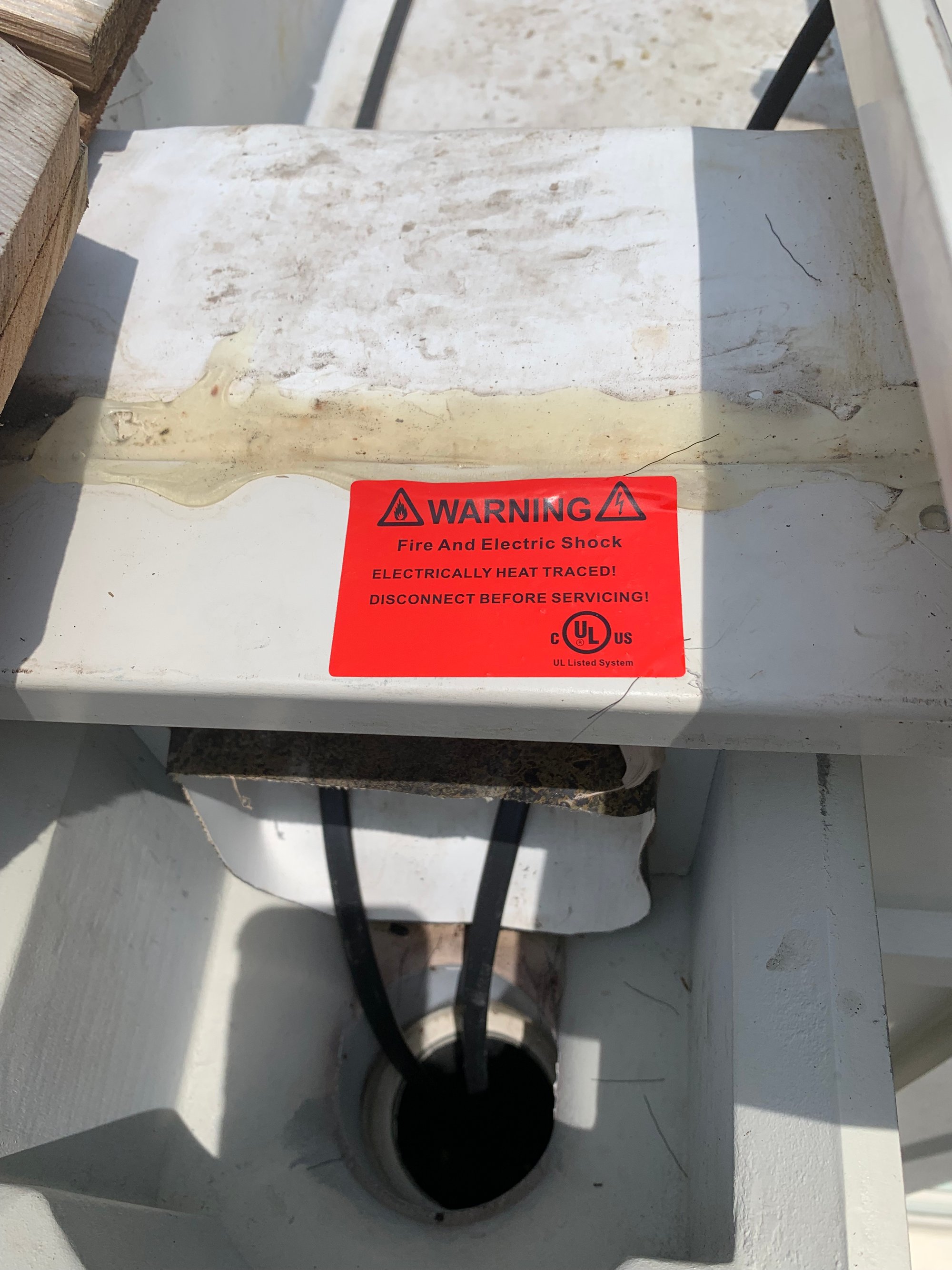

To provide automated, reliable protection, a 250-foot WarmlyYours Ice Shield deicing system was chosen. The self-regulating heating cable was strategically installed along the roof edges and in the gutters. This type of cable is ideal because it automatically adjusts its heat output based on the ambient temperature, providing more power when it's cold and icy, and less when it's milder, maximizing energy efficiency.
Now, the homeowners can enjoy their stunning glass roof year-round without worrying about winter weather. The system provides crucial peace of mind, activating only when needed to melt ice and snow. This ensures proper drainage, prevents damaging ice dams, and protects the long-term integrity of the home’s unique design.
Featured Products
- Ice Shield Roof and Gutter Deicing Cable (ET-SR-120-05-0250): Our heavy-duty, self-regulating cable is the core of the system. It automatically varies its heat output to efficiently melt snow and ice without overheating, making it safe for all roof types, including this glass and metal structure.

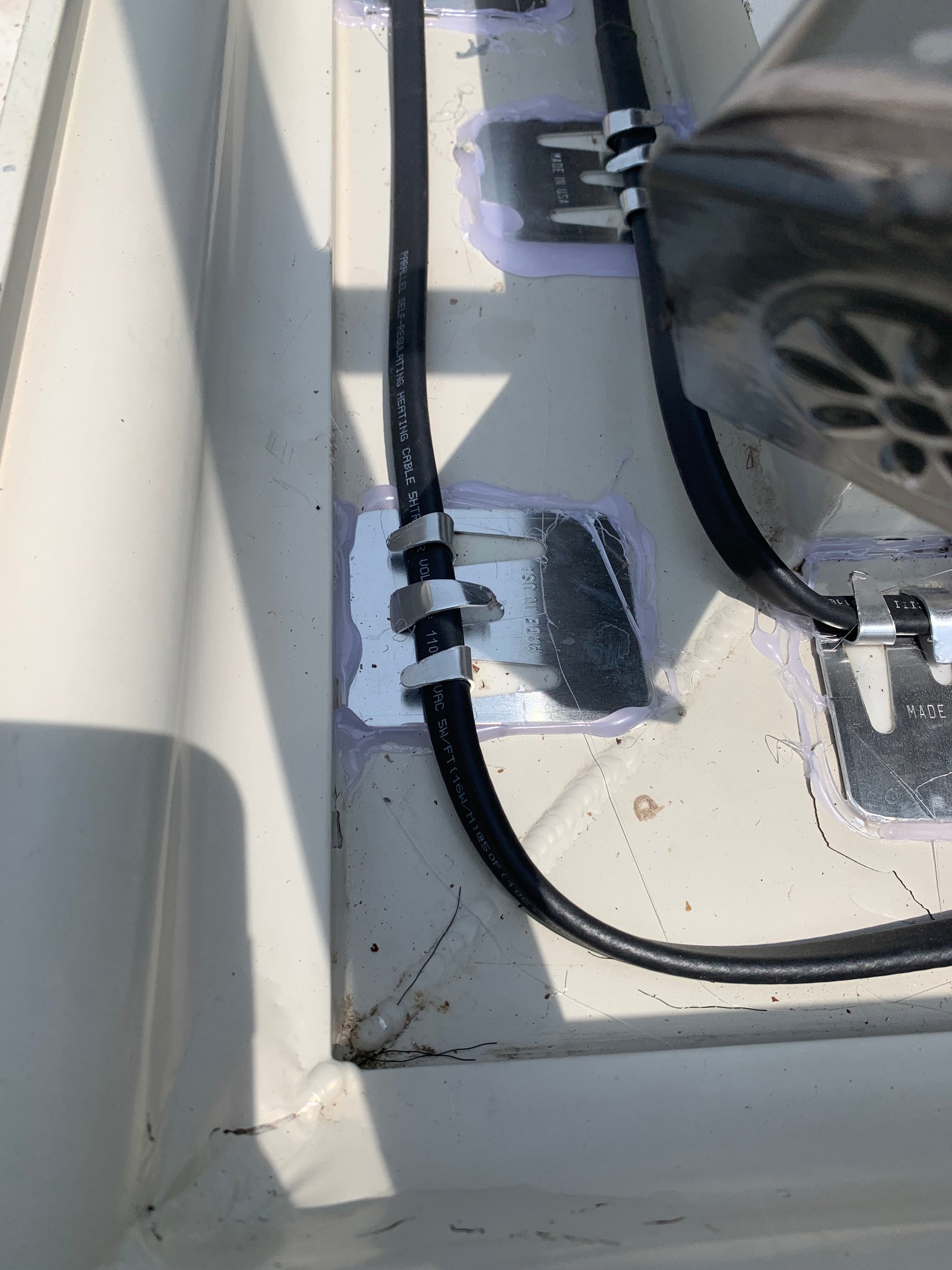

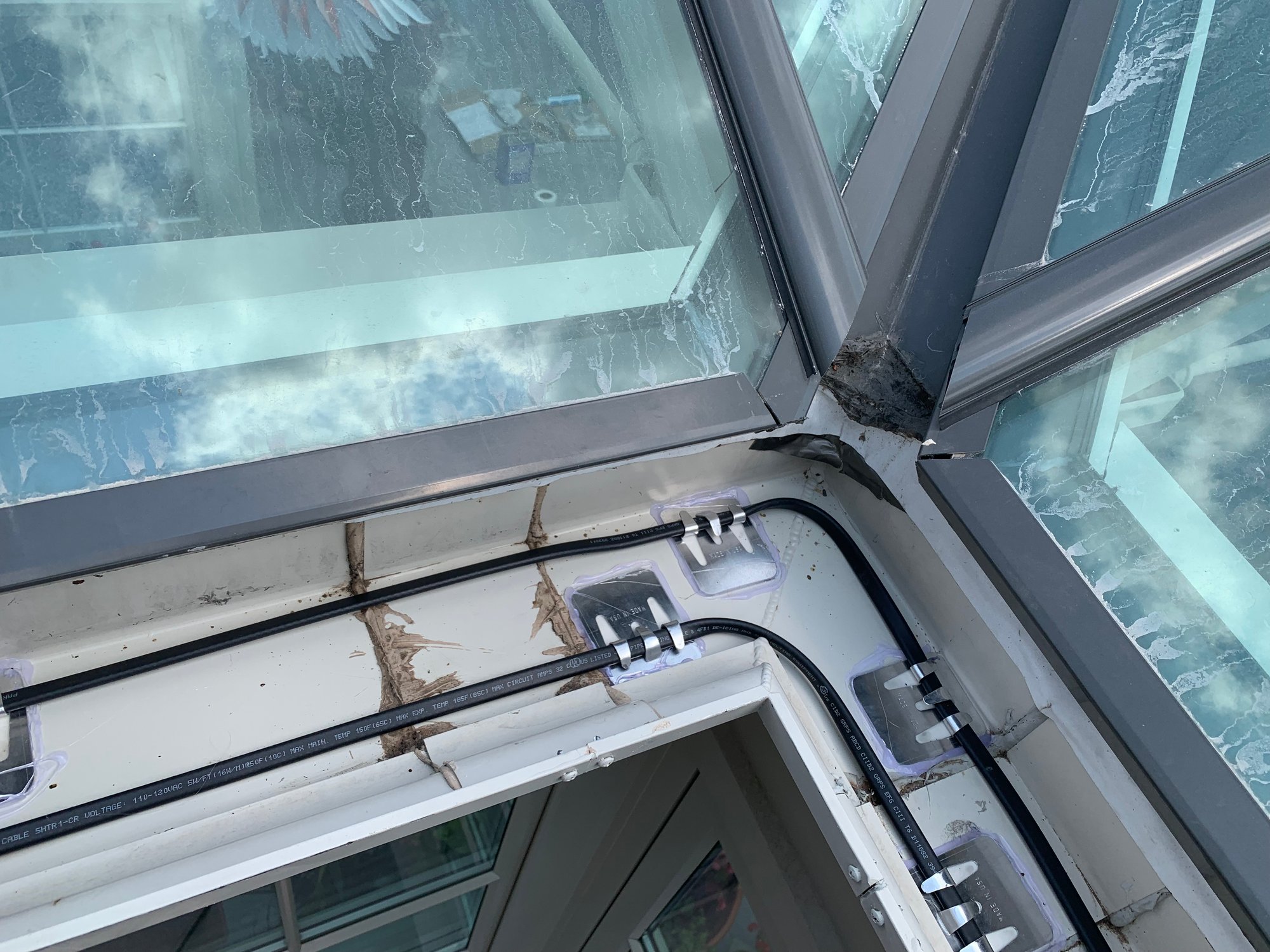

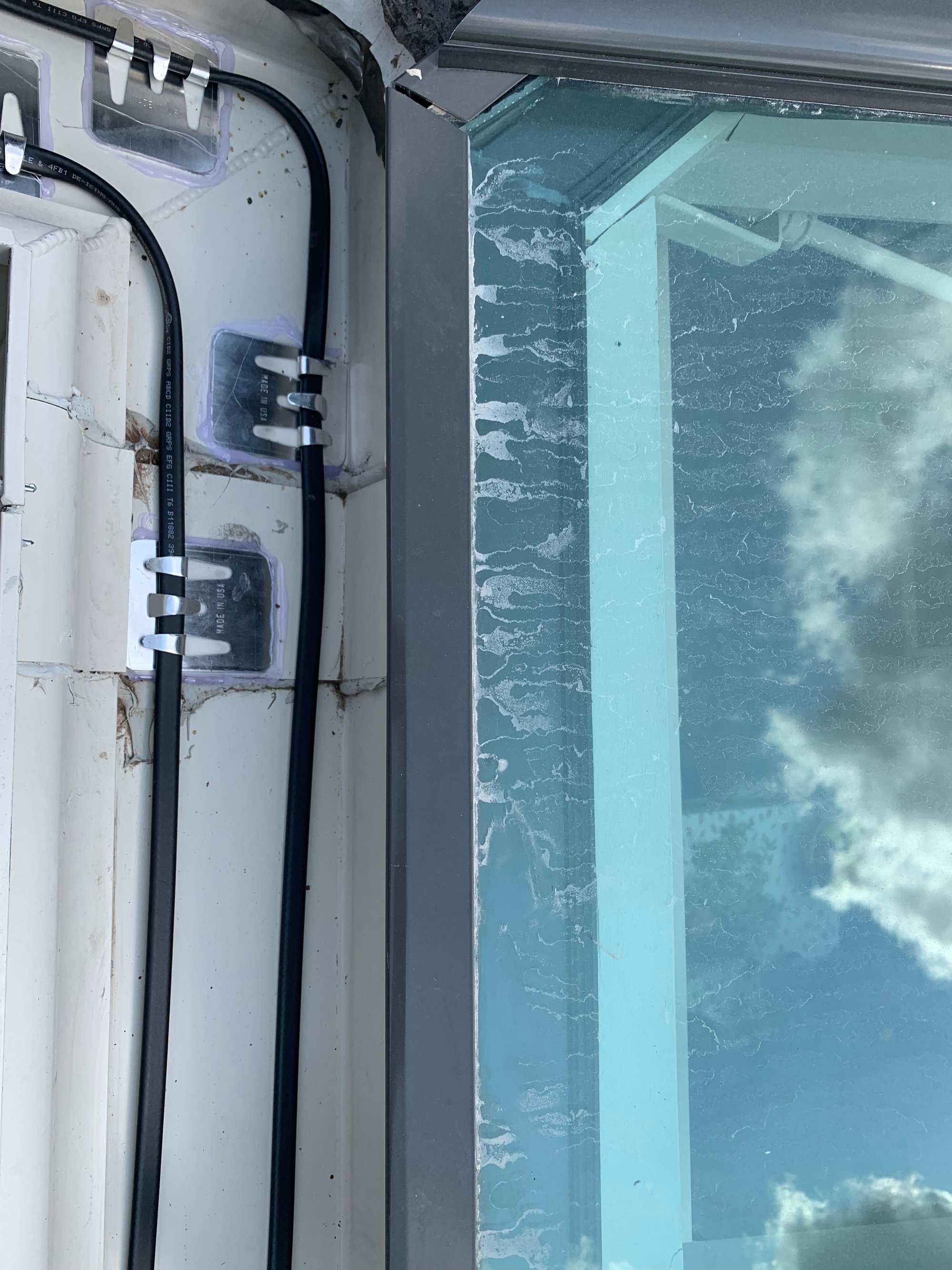

- Installation Accessories: The system was secured using durable Aluminum 3-prong Roof Clips (ET-CL-AL-P25) and Double-Sided Tape Pads (ET-VHB-PAD-P25) to ensure a secure, lasting installation on the unique roof surface.

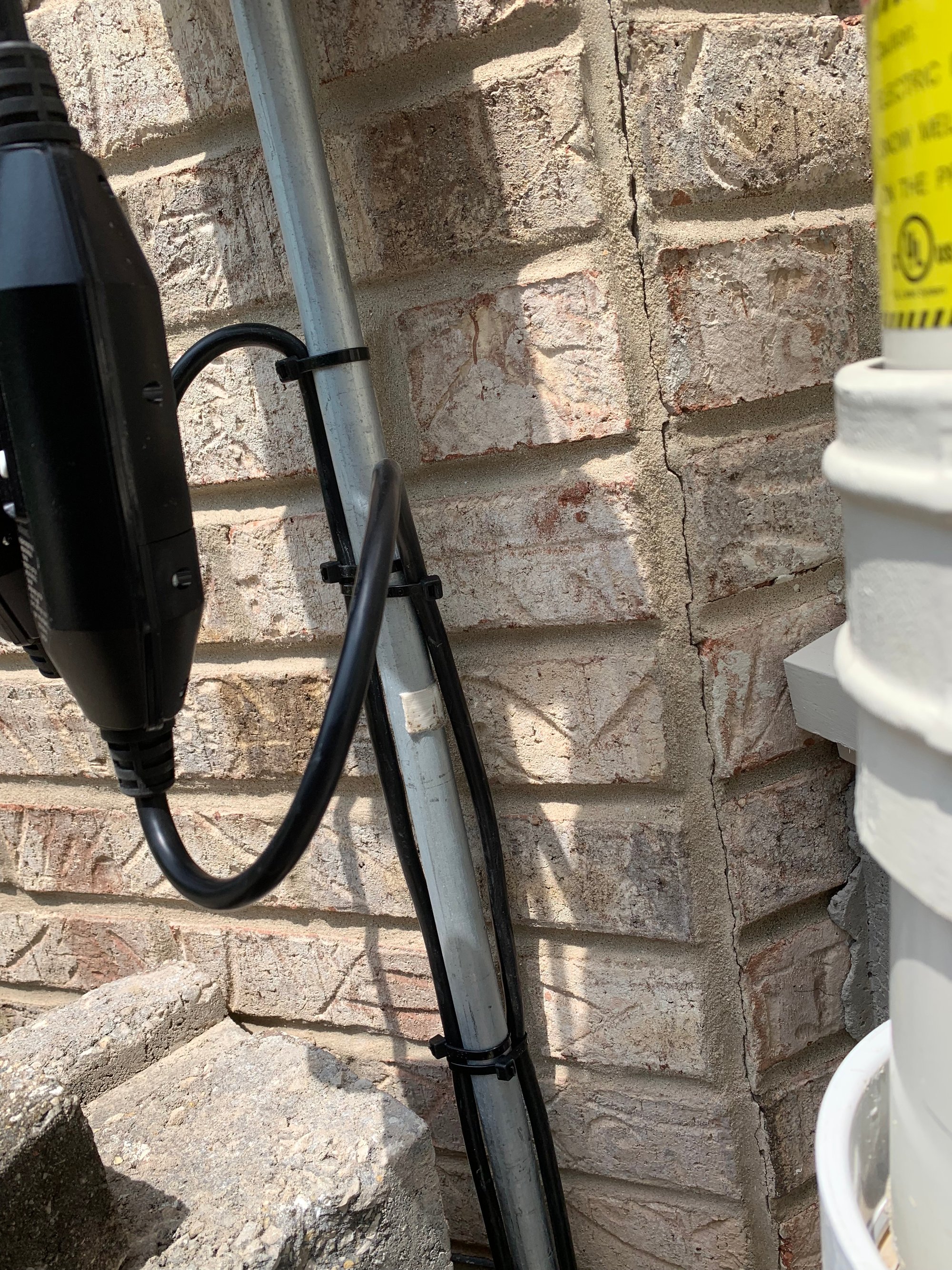

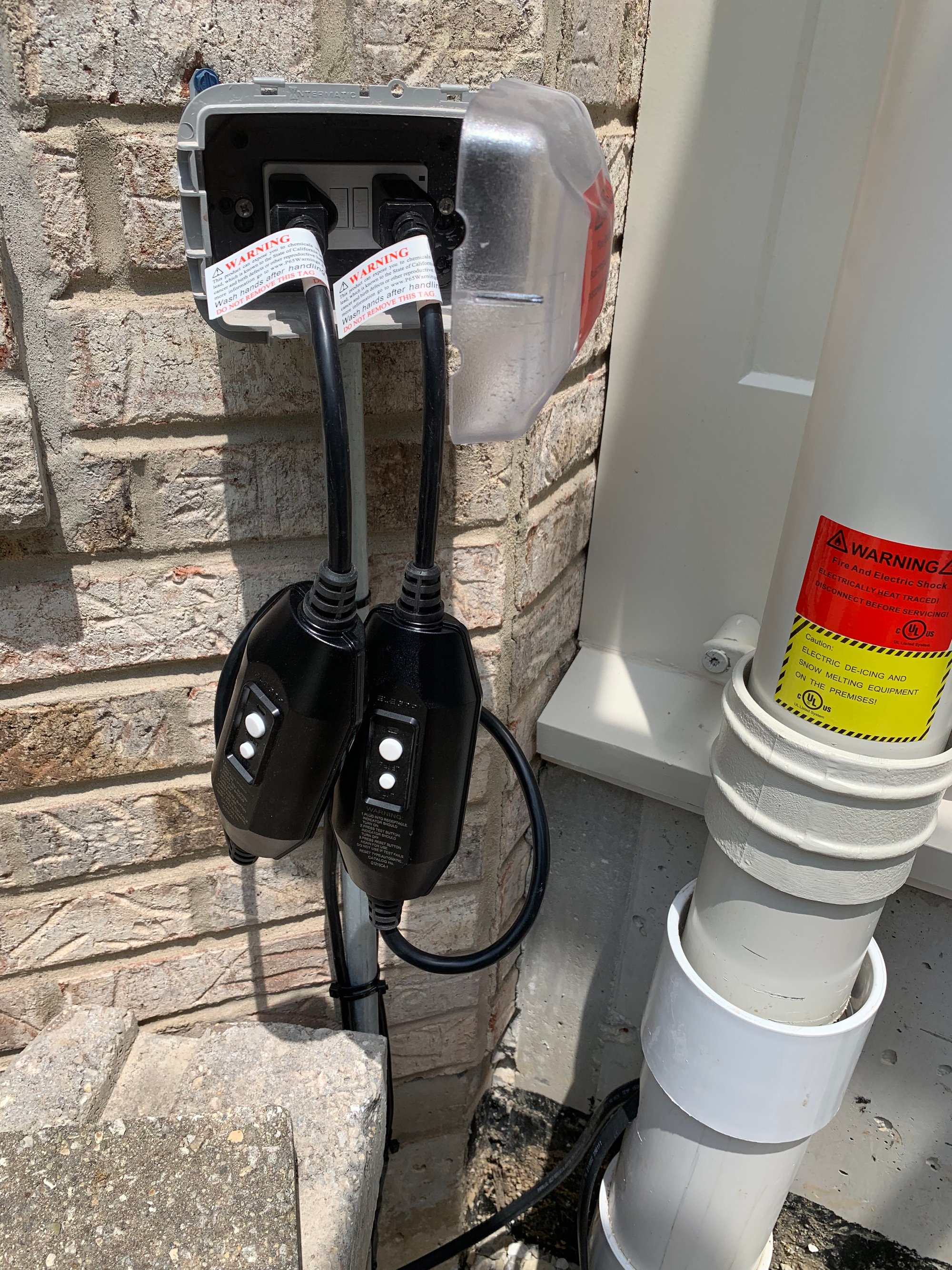

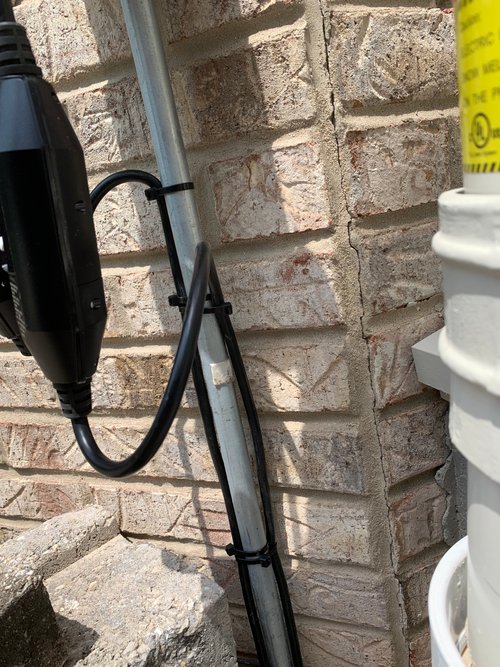

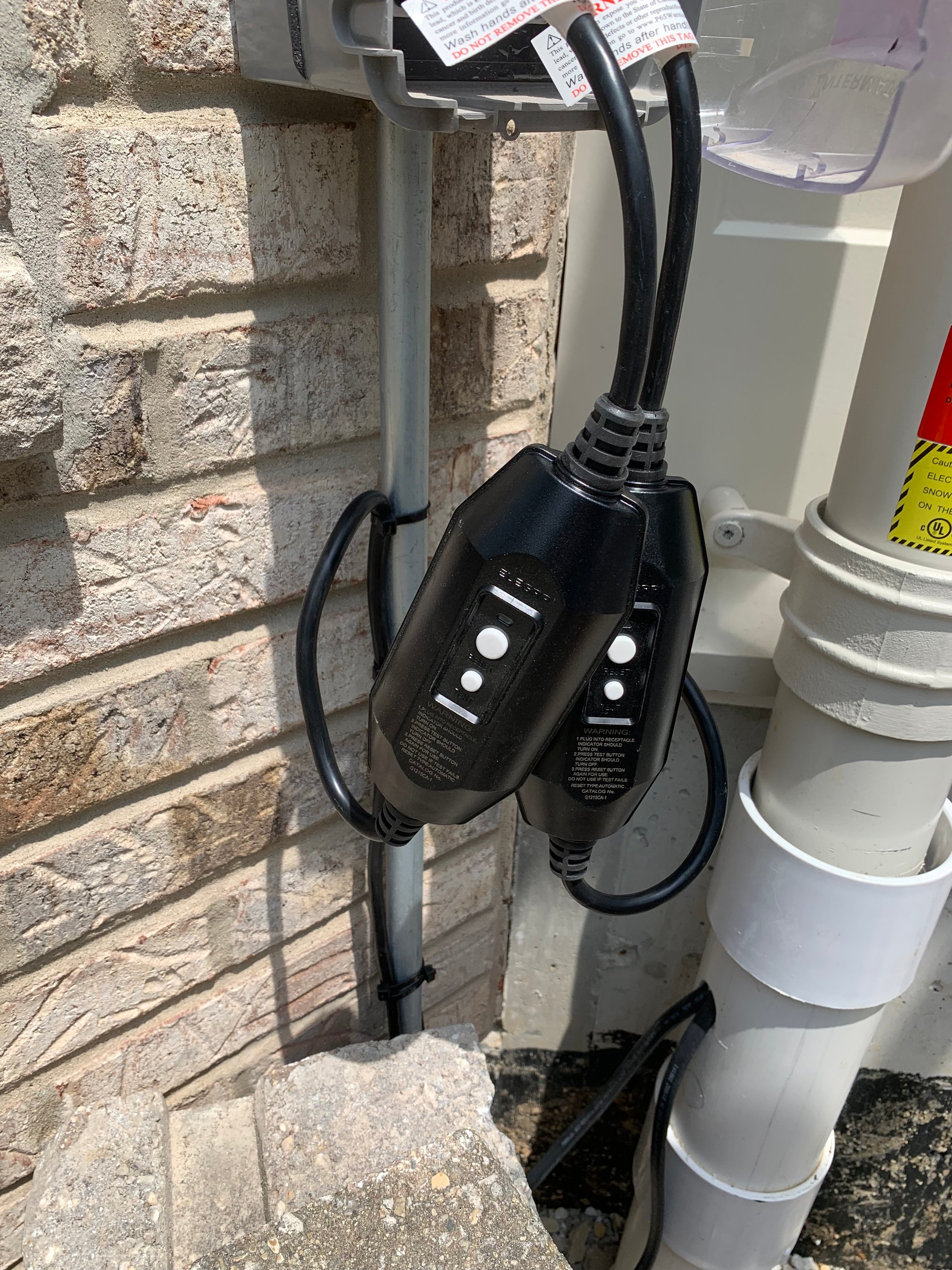

- Plug-in Conversion Kit (SR-PLUG-KIT): This kit provides a simple, GFEP-protected connection, making the installation process straightforward and safe.
