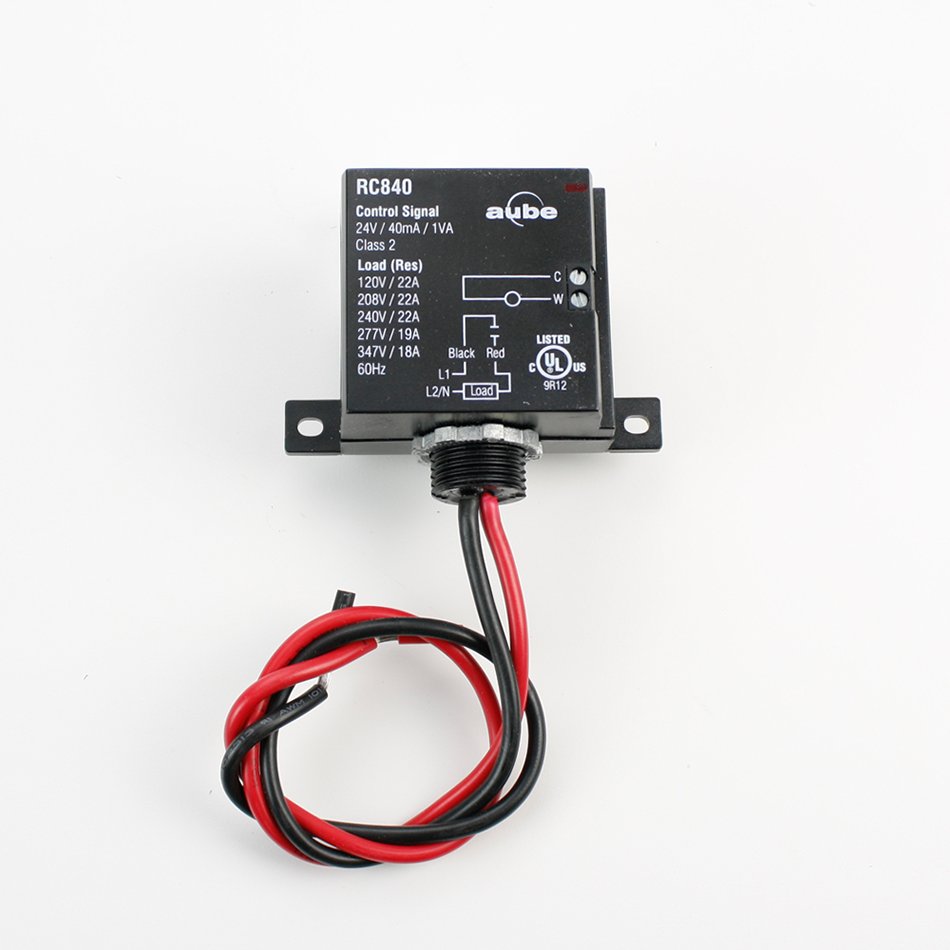

Additional dual-voltage relay 120V/240V


Part Number: INTEGRATION-RELAY-DUAL
This support page provides publications, manuals, specifications, support articles, and common support questions


question-mark
Common Support Questions (7)

publication
Publications and Manuals (8)

specifications
Specifications (8)

Articles (1)

Related Items (1)

Similar Items (4)

Create a new Support Request

Common Support Questions


5 mA GFCI breakers, sized by a local electrician in compliance with local electrical codes.

Need more help? View support options

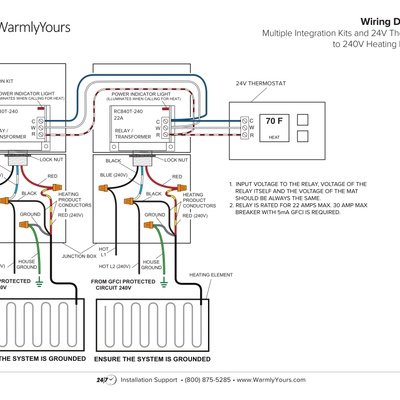

If multiple Integration Kits are needed, we suggest using 240V Integration Kits and 240V heating elements. See our support area for the appropriate diagram.

Need more help? View support options

That depends on which thermostat you buy, how big a space that will be heated, and the voltage available and voltage of the heating elements.

Need more help? View support options

WarmlyYours suggests contacting the manufacturer of the home automation system to determine compatibility or how it recommends operating an electric floor heating system.

Need more help? View support options

If the smart thermostat cannot process a floor sensor reading, it is not compatible and the integration kit will not resolve this.

Need more help? View support options


Publications and Manuals



Specifications


Electrical

Connection Single pole, 2 wires
Connection Method Hardwired
Maximum Load (Resistive Only) 22 amps
Transformer Ratings 24 VAC / 1.2 VA / Class 2

Controls

Control Signal 24VAC / 40mA / 1.2VA

Identifiers

Ground Fault Protection (GFCI) No
SKU INTEGRATION-RELAY-DUAL

Warranty / Certifications

Warranty 3 years
