The breaker and wire sizes are selected based on the total amperage of the WarmlyYours heating system connected to a single thermostat. This information is on the WarmlyYours heating system's installation plan, electrical plan, or UL label. Based on guidelines from the National Electrical Code: loads up to 16 Amps may utilize 12 gauge wire with a 20-Amp breaker, and loads up to 12 Amps - 14 gauge wire with a 15-Amp breaker. Local code and/or other factors may change these guidelines.
Need more help? View support options
Press on the door for 3 seconds until 'MAN' is shown on the display. Press on the door for 3 seconds until 'AUTO' is shown on the display.
Need more help? View support options
The T1033 can hold up to 7 programs.
Need more help? View support options
Assure there is power to the timer. If there is power to the timer, then make sure the ON/OFF button is pushed all the way to the right - ON position. If this doesn't resolve the issue, press the RESET button using a paper clip. If none of these steps resolve the issue, then contact WarmlyYours at (800) 875-5285 to order a replacement controller.
Need more help? View support options
The ground wire in the floor mat must be connected directly to the ground wire of the supply or to the house ground wire.
Need more help? View support options
All thermostats are mandated at 42" height for handicap accessibility, most private residences are mounted at 52-60".
Please see this video on how to install a WarmlyYours nSpiration Series thermostat: https://www.warmlyyours.com/video-media/wire-nspiration-thermostat-to-electric-floor-heating-roll
Need more help? View support options

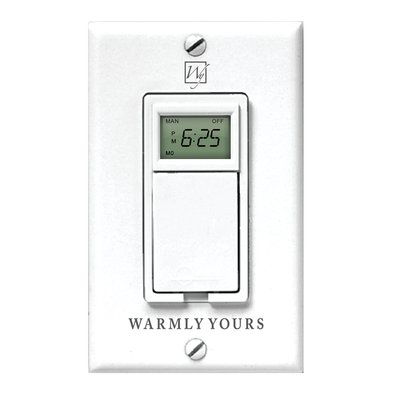

Connection | Single pole, 2 wires, hot & neutral |
Connection Method | Hardwired |
Maximum Load (Resistive Only) | 2400 W - 120 V, 20 A Never use this much |
Supply | 120 VAC, 50/60Hz |
Voltage | 120 VAC |
Country of Origin (COO) | China |
Depth | 1.7“ |
Length | 4“ |
Width | 1.5“ |
Display | Large white backlit display with night light mode |
Manual Override | Works like an ordinary on/off switch |
SKU | T1033-B |
UPC (GTIN-12) | 881308045722 |
Warranty | Limited 2-year warranty and lifetime technical support |
