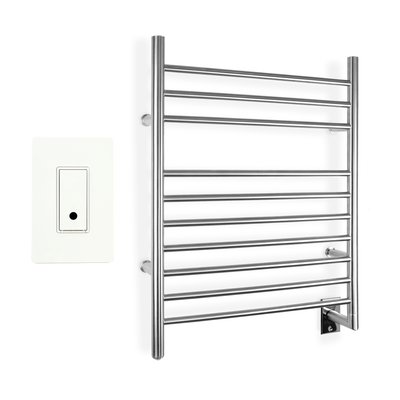

Infinity - Hardwired with WeMo Wi-Fi Switch (TW-F10BS-HW-WL)
Part Number: TW-F10BS-HW-WLPast Model
This product is discontinued.
This support page provides publications, manuals, specifications, videos, and support articles
This product is discontinued.
This support page provides publications, manuals, specifications, videos, and support articles
Jump to
Documents
Technical Information
Sell Sheets
Installation
Wiring Diagrams
- PLS750C Programmable Timer Towel Warmer Wiring Diagram (English)
- Wiring Diagram for Towel Warmers with Hardwired WeMo Wi-Fi Switch (English)
Technical Support
- TOWEL WARMER SWITCH REPLACEMENT TROUBLESHOOTING (English)
- Towel Warmer Power Switch Replacement Instructions (English)
Publications
Operation Manuals
Technical Specifications
Specifications
Electrical (TW-F10BS-HW)
| Amps | 1.25 A |
| Connection Method | Hardwired |
| Ingress Protection (IPxx) Rating | IP44 |
| Ohms | 96 Ω |
| On/Off Switch | Yes |
| Thermal Power | 0.15 kW |
| Voltage | 120 V |
| Watts | 150 W |
Warranty / Certifications (TW-F10BS-HW)
| Approvals | cULus listed |
| ETL Listing Number | 5008694 |
| Warranty | 2 years |
Performance (TW-F10BS-HW)
| Average Surface Temperature | 149°F / 65°C |
| BTU Per Hour | 512 Btu |
| Heat-up Time | 15-20 minutes |
| TempSmart Safety Limit | 149°F - 167°F / 65°C - 75°C |
| Towel Capacity | 1-2 |
Appearance (TW-F10BS-HW)
| Bar Arrangement | 2 Groups of 3 and 7 |
| Bar Shape | Round |
| Cord Color | White |
| Finish | Brushed Stainless Steel |
| Finish Application | None (bare steel) |
| Mounting Method | Wall Mounted |
| Steel Type | 304-stainless steel |
| Style | Classic |
| Towel Bars | 10 |
Product Dimensions (TW-F10BS-HW)
| Bar Thickness (Radius) | 0.37″ |
| Depth | 4¾″ |
| Height | 32″ |
| Mounting Footprint | 22 ⅜“ (568mm) W x 15 ¼“ (388mm) H |
| Size Classification | Standard |
| Weight | 10.6 lbs |
| Width | 23⅝″ |
Electrical (CO-WM-SW-F7C030)
| Connection | 4 wires |
| Connection Method | Hardwired |
| Maximum Current | 15 A |
| Maximum Load (Resistive Only) | 15Amps |
| Voltage | 120 V |
Identifiers (CO-WM-SW-F7C030)
| Ground Fault Protection (GFCI) | No |
| SKU | CO-WM-SW-F7C030 |
| UPC (GTIN-12) | 881308049355 |
Thermostat (CO-WM-SW-F7C030)
| Has Floor Sensor | n |
Appearance (CO-WM-SW-F7C030)
| Mounting Method | In-wall, single-gang box |
Logistics (TW-F10BS-HW)
| Package Contents | Towel Warmer, installation manual and hardware kit |
Identifiers (TW-F10BS-HW)
| SKU | TW-F10BS-HW |
| Towel Warmer Collection Name | Classic Collection |
| UPC (GTIN-12) | 881308057725 |
Product Dimensions (CO-WM-SW-F7C030)
| Weight | 0.3 lbs |
