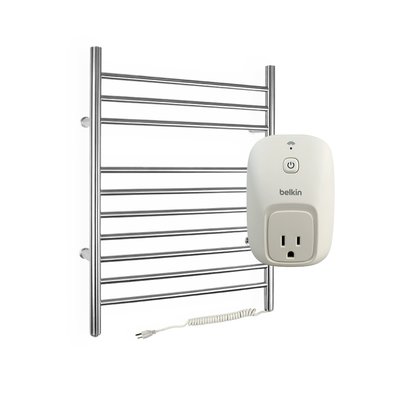

Infinity - Plug-In with WeMo Plug-In Switch (TW-F10BS-PL-WS)
Part Number: TW-F10BS-PL-WSPast Model
This product is discontinued.
This support page provides publications, manuals, specifications, videos, and support articles
This product is discontinued.
This support page provides publications, manuals, specifications, videos, and support articles
Jump to
Documents
Technical Information
Sell Sheets
Installation
Technical Support
- TOWEL WARMER SWITCH REPLACEMENT TROUBLESHOOTING (English)
- Towel Warmer Power Switch Replacement Instructions (English)
Publications
Operation Manuals
Wiring Diagrams
Technical Specifications
Specifications
Electrical (TW-F10BS-PL)
| Amps | 1.25 A |
| Connection Method | Plug-in |
| Cord Length | 70″ |
| Ingress Protection (IPxx) Rating | IP44 |
| Ohms | 96 Ω |
| On/Off Switch | Yes |
| Plug-Type | NEMA 5-15 (Type B) |
| Thermal Power | 0.15 kW |
| Voltage | 120 V |
| Watts | 150 W |
Warranty / Certifications (TW-F10BS-PL)
| Approvals | cULus listed |
| ETL Listing Number | 5008694 |
| Warranty | 2 years |
Performance (TW-F10BS-PL)
| Average Surface Temperature | 149°F / 65°C |
| BTU Per Hour | 512 Btu |
| Heat-up Time | 15-20 minutes |
| TempSmart Safety Limit | 149°F - 167°F / 65°C - 75°C |
| Towel Capacity | 1-2 |
Appearance (TW-F10BS-PL)
Product Dimensions (TW-F10BS-PL)
| Bar Thickness (Radius) | 0.37″ |
| Depth | 4¾″ |
| Height | 32″ |
| Mounting Footprint | 22 ⅜“ (568mm) W x 15 ¼“ (388mm) H |
| Size Classification | Standard |
| Weight | 10.6 lbs |
| Width | 23⅝″ |
Electrical (CO-SW-WFR-WM)
| Connection Method | Plug-in |
| Maximum Current | 15 A |
| Maximum Load (Resistive Only) | 15Amp |
| Voltage | 120 V |
Identifiers (CO-SW-WFR-WM)
| Ground Fault Protection (GFCI) | No |
| SKU | CO-SW-WFR-WM |
| UPC (GTIN-12) | 881308040536 |
Thermostat (CO-SW-WFR-WM)
| Has Floor Sensor | n |
Logistics (TW-F10BS-PL)
| Package Contents | Towel Warmer, installation manual and hardware kit |
Identifiers (TW-F10BS-PL)
| SKU | TW-F10BS-PL |
| Towel Warmer Collection Name | Classic Collection |
| UPC (GTIN-12) | 881308011062 |
Product Dimensions (CO-SW-WFR-WM)
| Weight | 0.6 lbs |
