Ember Glass Radiant Panel Heater - Black - 800W - 47ʺ x 24ʺ - Dual Connection

Need help? Call our experts at 800-875-5285
What Size Panel Do I Need?
What Size Panel Do I Need?

A radiant heat panel is a great way to add supplemental heat to a room—not unlike a wall mounted space heater. The table below will help you identify the typical room size* that a radiant heat panel can help warm up, based on wattage/heat output.

Radiant Panel Wattage* Warming Coverage
300W Ember 43 sq. ft.
500W Ember 71 sq. ft.
600W Ember (Glass Only) 86 sq. ft.
700W Ember 100 sq. ft.
800W Ember (Glass Only) 114 sq. ft.

*This estimation is based on installing a radiant panel in a typical/average room. One factor that will impact the actual results is a room's degree of heat loss, which can be impacted by a number of factors including ceiling height, number of windows, and insulation level.

To get a free Heat Loss Calculation based on your room:

Heat Loss Calculator

Learn more about Radiant Heat Panels
Support Page
Oversized Shipping

Features

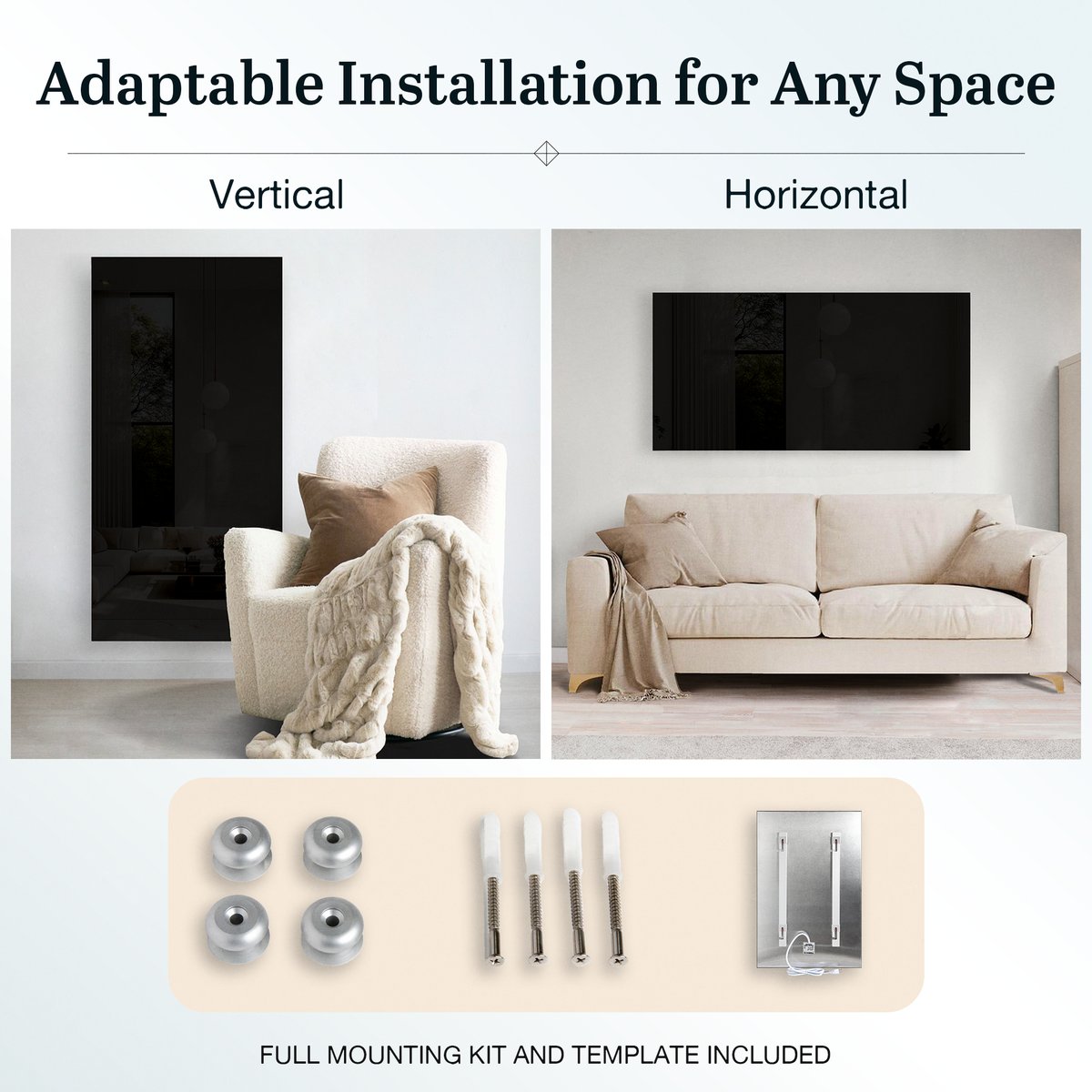

  • Wall mounted: this 47” x 24” infrared heating panel can be installed vertically or horizontally on your wall
  • High heat output: this panel heater delivers an impressive heat output of 2,728 BTUs per hour
  • Energy efficient: it only costs approximately 8 cents per hour on average to run this electric wall heater
  • Dual connection: can be hardwired to a thermostat or plug-in a standard outlet (120 VAC)
  • Covered by a 5-year limited warranty

Ember Glass Radiant Panels Description

Taking its name from the aftereffects of a fire, Ember radiant panels emit heat without a flame. In fact, they emit enough heat to act as a primary or supplementary heating source for a room. Unlike convection heating, this 3.9- by 2-foot black panel heats the surfaces and objects in a room instead of the air. This allows the warmth to be stored longer within the materials before being released slowly and evenly into the air. As a result, the ambient air temperature will be cooler, but those in the room will feel warmer. To deliver even heat, the panels can be mounted to a wall. These radiant panels benefit allergy sufferers because they do not circulate dust or other allergens into the air. They can also be used as towel warmers when towel bars are attached to a vertically mounted panel located in a dry area of your bathroom. Plus, they are unique in that that they have one of the highest possible efficiency rates and consume the least amount of energy possible*.

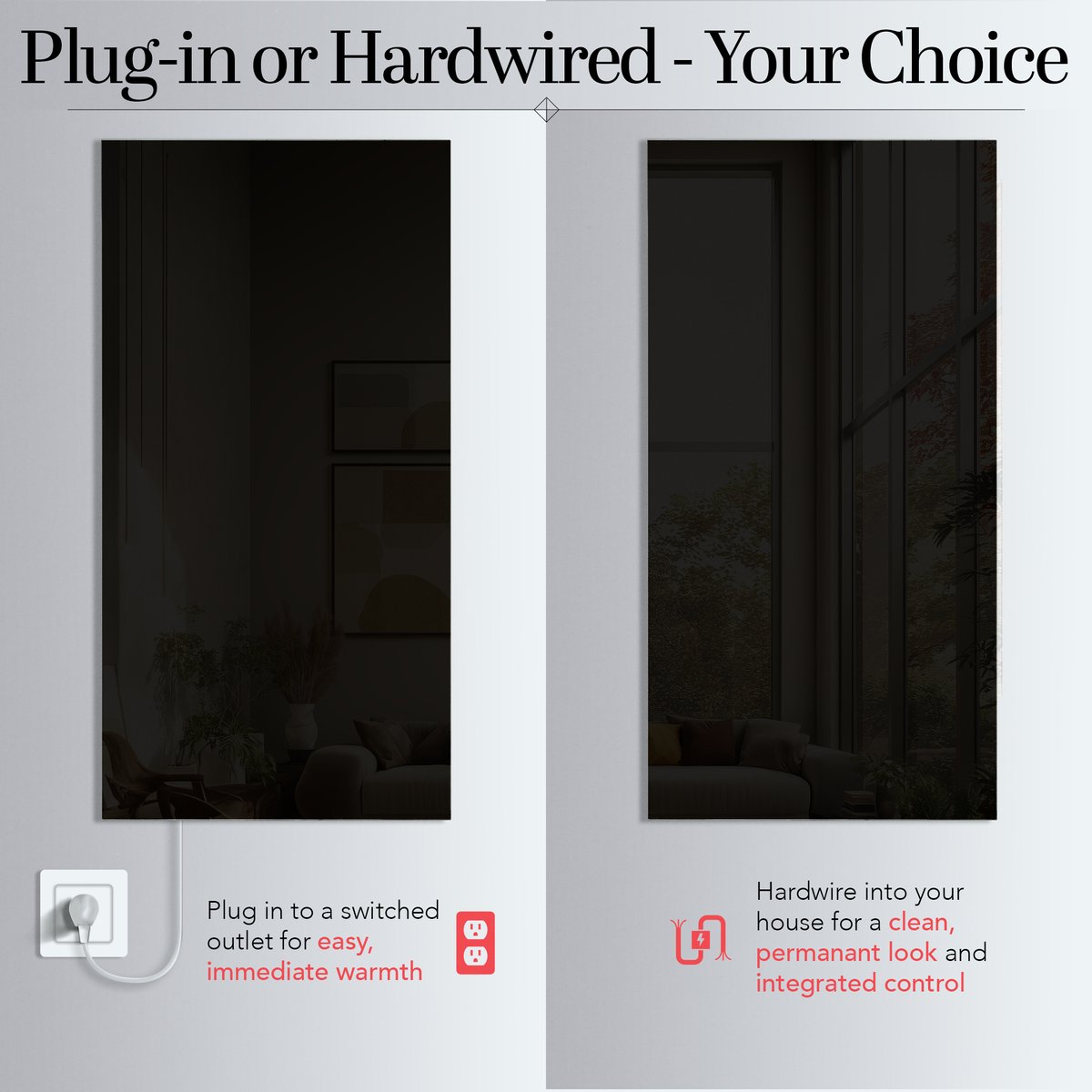

These panels are also dual connection, meaning they can be used “as is” to plug into a standard 120 VAC outlet or they can be modified by a licensed electrician to have a hardwired 120 VAC electrical connection.

Note: Towel bars must be purchased separately.

* Infrapower Manufacturing Ltd.

Features:

  • Wall Mounted: This 47” x 24” radiant panel can be installed vertically or horizontally on your wall
  • Dual Connection: Can be hardwired to a thermostat or plug-in a standard outlet (120 VAC)
  • High Heat Output: This infrared heating panel puts out 2,728 BTUs per hour
  • Low Operating Cost: It only costs roughly $0.10 per hour to run this model (based on a national average electrical cost of 12 cents per kWh)
  • Safe and Stylish: This radiant panel is not only more aesthetically pleasing than a propane space heater but it’s also safer
  • 5-year Warranty: This product is covered by a 5-year limited warranty

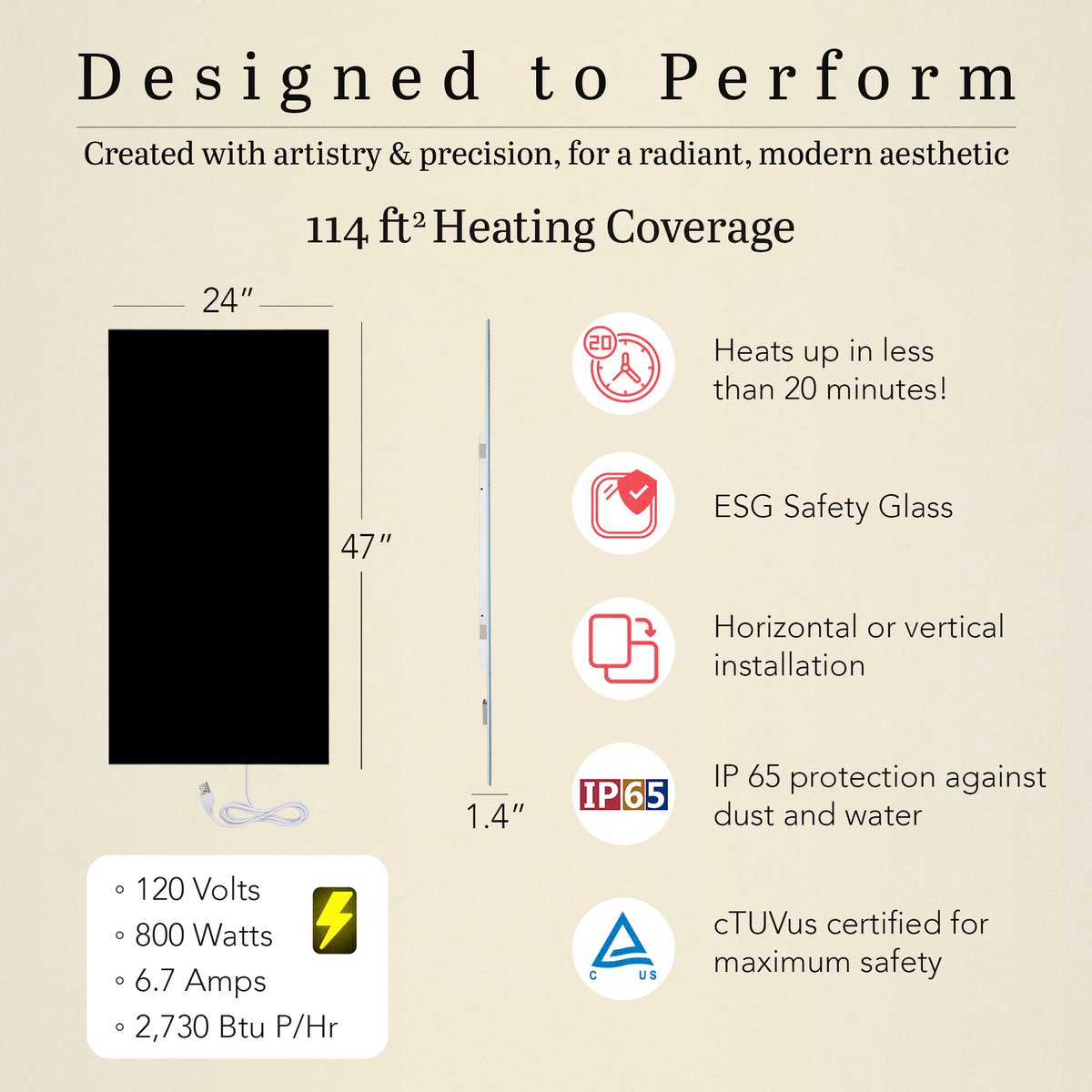

Specifications

Electrical

Amps 6.7 A
Connection Method Plug-in or Hardwired
Cord Length 6′
Ohms 17.91 Ω
On/Off Switch No
Plug-Type NEMA 5-15 (Type B)
Thermal Power 0.8 kW
Voltage 120 V
Watts 800 W

Warranty / Certifications

Approvals cTUVus certified
Ingress Protection (IPxx) Rating IP65
RoHS Compliance 2002/95/EC (RoHS 1)
Warranty 5 years

Performance

Average Surface Temperature 194 °F
BTU Per Hour 2730 Btu
Heating Coverage 114 ft²
Surface Safety Limit 248 °F

Product Dimensions

Depth 1.375″
Depth with Towel Bar Accessory 4.5″
Height 47.2″
Length 47.2″
Weight 40.7 lbs
Width 23.6″

Appearance

Finish Glass Black
Model Ember Glass Black - 47″ x 24″
Size 47″ x 24″ - 800W

Installation

Mounting Locations Wall
Mounting Orientation Horizontal or Vertical

Identifiers

SKU IP-EM-GLS-BLK-0800
UPC (GTIN-12) 881308039165

Frequently Asked Questions

The heater is very hot during use (up to 120° C or 248° F).

27 people found this helpful.  Did you find this helpful? Yes No

Radiant heat travels through air, and typically heats up objects closer to the panel first and then the rest of the room later. Infrared heating from the panel can be easily detected from about 3-4 feet. Ideally, the radiant panel should be aimed onto the area with more use, since that will be the surface that will warm up first.

23 people found this helpful.  Did you find this helpful? Yes No

Only the Ember Flex radiant panels can be mounted from the ceiling and they come with all of the necessary hardware to accomplish this.

None of the radiant panel heaters from the Ember Glass or Ember Mirror lines can be mounted from the ceiling.

22 people found this helpful.  Did you find this helpful? Yes No

Sunrooms can be very cold during the winter months. While a furnace may push some warm air into the room, the large number of windows, exterior walls, and other causes of heat loss in a sunroom will typically keep it from having a comfortable temperature level. Floor heating and radiant panels will add radiant heat, which the human body absorbs faster than other forms of heat, to the room so that it feels warm even at lower temperatures.

17 people found this helpful.  Did you find this helpful? Yes No

The startup heating time for this infrared heating system is approximately 5 to 10 minutes. However, your room will not feel warmer immediately because the cold objects in the room (furniture, walls, ceilings, floors, etc.) need to warm up first. Once these surfaces are heated via infrared heating, the warmth will spread throughout the room.

13 people found this helpful.  Did you find this helpful? Yes No
