nSpire Touch Programmable Thermostat (White) with Austrian Crystals - Golden Shadow


nSpire Touch Programmable Thermostat (White) with Austrian Crystals - Golden Shadow
Support Page
  • Crystal Pattern: Golden Shadow
  • Program up to 6 setting changes for each day of the week
  • It’s never been easier to set up a radiant heating system according to your preferences and schedule
  • With an included floor sensor, your system can cycle on and off and continuously adjust to save energy
  • With its crystal-clear 3.5” full color touchscreen display, the nSpire Touch is as easy to operate as it is to look at

nSpire Touch Programmable Thermostat Description

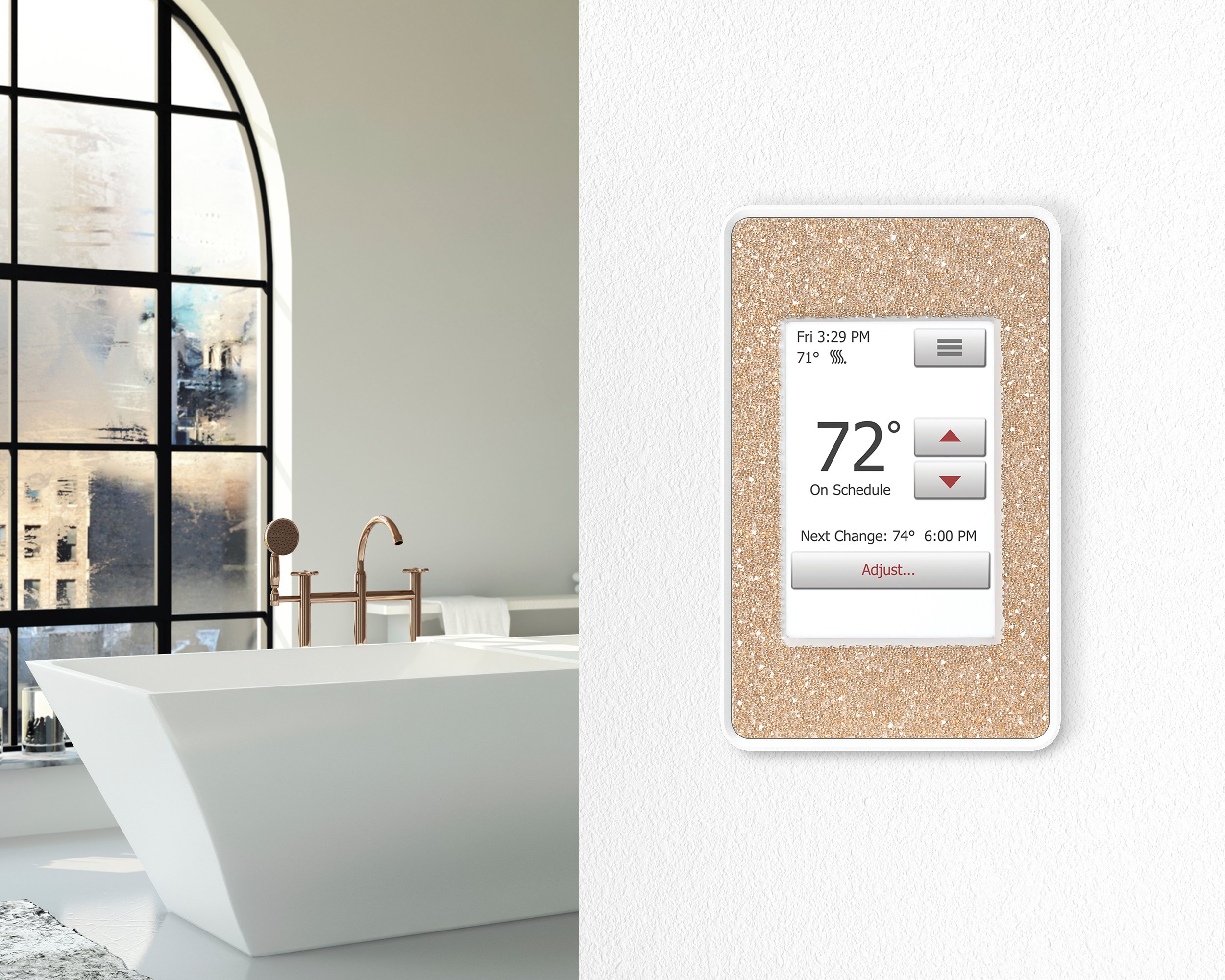

In addition to being reliable and easy-to-use, this thermostat is a bold and uncompromising design element that will help you make your mark on your home’s decor. This nSpire Touch comes with gorgeous Austrian crystals securely adhered to the entire surface of the thermostat’s faceplate. The design on this thermostat is “Golden Shadow”, which comes with several different gold shades which creates a breathtaking depth of color and reflection when exposed to light. This finish pairs particularly well with fixtures that have bronze (oil-rubbed or satin), brass (polished or satin), or copper hardware.

Additionally, the programmable (up to 6 separate events per day) nSpire Touch features a 3.5” full color touchscreen for easy operation. With an integrated Install Wizard, it’s never been easier to set up a radiant heating system according to your preferences and schedule.

The nSpire Touch allows you maximum control over the floor temperature with 6 programmable events for each day of the week, which is great for “Goldilocks households” where there will be frequent adjustments to the temperature or thermostat’s schedule until it’s “just right.”

This dual voltage (120V/240V) thermostat puts the control where it belongs, at your fingertips. Includes a 10k ohms floor sensor with 15' lead.

Features:

  • Crystal Pattern: Golden Shadow
  • 3.5” Touchscreen: The crystal-clear full color touchscreen display is easy to navigate and provides an energy log for tracking usage
  • Included Floor Sensor: This thermostat comes with a complimentary 10k ohm floor sensor
  • Integrated Install Wizard: the easy-programming options make set up a breeze
  • Programmable: You can set 6 separate temperature events per day, which means you can customize your comfort while cutting down on operating cost
  • 3-year Warranty: Limited 3-year warranty and lifetime technical support
  • Safe: This thermostat comes with a Child-Lock function, built-in self-testing GFCI, and is cULus listed
  • Radiant Heating Thermostat: You can use the nSpire Touch to control both electric floor heating systems and hardwired radiant panels

Specifications

Warranty / Certifications

Approvals cULus listed
Ingress Protection (IPxx) Rating IP20
Warranty Limited 3-year warranty and lifetime technical support

Electrical

Battery 5-year battery backup of clock and calendar
Connection 4 wires, double pole
Connection Method Hardwired
Dual Voltage t
Ground Fault Protection GFCI, Class A, 5 mA
Maximum Current 15 A
Maximum Power 1800 W @ 120 V, 3120 W @ 208 V, 3600 W @ 240 V
Supply 120 VAC - 50/60Hz, 240 VAC - 50/60Hz

Appearance

Color Golden Shadow

Logistics

Country of Origin (COO) Malaysia

Product Dimensions

Depth 2″
Installed Depth 0.75″
Length 5.125″

Controls

Display Backlit Display
Display Size 2″ W x 3″ H (3.5″ Diagonal)
Languages English, French, Spanish

Thermostat

Floor Sensor Compatibility 10k ohms, 12k ohms and custom
Included Floor Sensor 10k ohms, 15' lead
Temperature Rise Limit in Laminate Floor Protection ~10°F/hr (~5.58°C/hr)

Identifiers

SKU UDG4-4999-SC-FB-GS
UPC (GTIN-12) 881308065669

Customer Questions & Answers

nSpire Touch Programmable Thermostat has 26 Questions and Answers.

Don't see the answer you're looking for? Post your question

How do I work with my electrician to install WarmlyYours electric floor heating?

While WarmlyYours electric radiant floor heating systems are typically installed by your floor covering contractor, a licensed electrician is recommended for the final thermostat hook-up. With every quote, we provide an Installation Plan layout, together with an electrical plan that has all the info required for the electrician.

32 people found this helpful.  Did you find this helpful? Yes No

How can I determine what I need for my floor heating project and how can I find out what my floor heating system will cost?

You can use the Instant Quote Tool, which gives you many options for your floor heating coverage. Use this interactive tool to design your room online and receive an instant quotation with product recommendations, rough-in and installation kits, cost of your control, etc. Planning your floor heating project is made easy when using our Instant Quote Tool.

Send us your floor plan or fax it to (800) 408-1100 and we will send you a quote, product recommendation and a free custom installation plan for your project.

22 people found this helpful.  Did you find this helpful? Yes No

What type of flooring can I install along with an electric floor heating system?

WarmlyYours’ TempZone™ product is most commonly installed under tile, stone, and marble flooring, but can also be installed under many other popular floor covering options such as hardwood, vinyl and linoleum. We also have our Environ system, which is an electric floor heating product as well and is specially designed for installation under carpet (in the U.S. only), laminate and floating wood. WarmlyYours can accommodate any flooring type with either of the electric radiant floor heating products that we offer. If your flooring type isn't listed here, just give us a call at (800) 875-5285 and we will be happy to discuss it with you.

21 people found this helpful.  Did you find this helpful? Yes No

How do I know if I am installing my electric floor heating system properly?

Please keep in mind that you must check your electric floor heating system with a digital ohmmeter in conjunction with a Circuit Check™. Take an initial reading as soon as you take the product out of the box to verify that it is within -5% / +10% of the values stated on the product’s label. This will give you a basis of comparison for future readings. Take a second reading once you have positioned the system to match your custom installation plan. It is also advisable to take an additional reading in the middle of the tile installation, just to make sure that the Circuit Check™ is doing its job. Then, take a final reading when you are finished with the floor installation and are ready to hook up the thermostat.

The Circuit Check™ is a tool developed by WarmlyYours to give you peace of mind and ensure trouble-free installations. Simply hook up the cold leads to the tool while you position the system to match your custom installation plan.

The Circuit Check™ will continuously monitor the continuity of the circuit during the installation of your system and during the installation of your flooring. The Circuit Check™ beeps immediately when a short in the system is detected, alerting you to a potentially damaged cable in the area you are working, before you lay the tile over the electric floor heating system.
 The WarmlyYours technical support team is available 24/7 to provide assistance if the alarm sounds, or if you would have any questions during your installation.

10 people found this helpful.  Did you find this helpful? Yes No

How much does it cost to run an electric floor heating system?

The answer to this question will depend on a whole host of variables related to electric floor heating, including, but not limited to, the run time (for supplemental heating, we usually recommend between 4-8 hours per day), the electric radiant floor heating system you're using, the total square footage, and your local electrical cost. Typically, the cost is just a few cents a day.

To figure out how much electric floor heating might cost to run for you, make sure to use our interactive Operating Cost Calculator.

8 people found this helpful.  Did you find this helpful? Yes No
