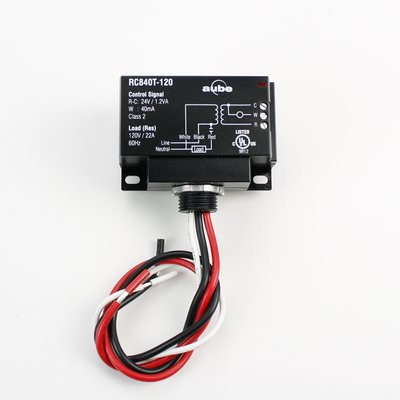

Relay with built-in transformer 120V+Floor Sensor


Part Number: INTEGRATION-KIT-PLUS-120V
This support page provides publications, manuals, specifications, support articles, and common support questions


question-mark
Common Support Questions (10)

publication
Publications and Manuals (17)

specifications
Specifications (14)

Articles (3)

Related Items (1)

Similar Items (4)

Create a new Support Request

Shop Now

Common Support Questions


The breaker and wire sizes are selected based on the total amperage of the WarmlyYours heating system connected to a single thermostat. This information is on the WarmlyYours heating system's installation plan, electrical plan, or UL label. Based on guidelines from the National Electrical Code: loads up to 16 Amps may utilize 12 gauge wire with a 20-Amp breaker, and loads up to 12 Amps - 14 gauge wire with a 15-Amp breaker. Local code and/or other factors may change these guidelines.

Need more help? View support options

All thermostats are mandated at 42" height for handicap accessibility, most private residences are mounted at 52-60".

Please see this video on how to install a WarmlyYours nSpiration Series thermostat: https://www.warmlyyours.com/video-media/wire-nspiration-thermostat-to-electric-floor-heating-roll

Need more help? View support options

5 mA GFCI breakers, sized by a local electrician in compliance with local electrical codes.

Need more help? View support options

Solution:

The ground wire in the floor mat must be connected directly to the ground wire of the supply or to the house ground wire.


Need more help? View support options

That depends on which thermostat you buy, how big a space that will be heated, and the voltage available and voltage of the heating elements.

Need more help? View support options

WarmlyYours suggests contacting the manufacturer of the home automation system to determine compatibility or how it recommends operating an electric floor heating system.

Need more help? View support options

If the smart thermostat cannot process a floor sensor reading, it is not compatible and the integration kit will not resolve this.

Need more help? View support options

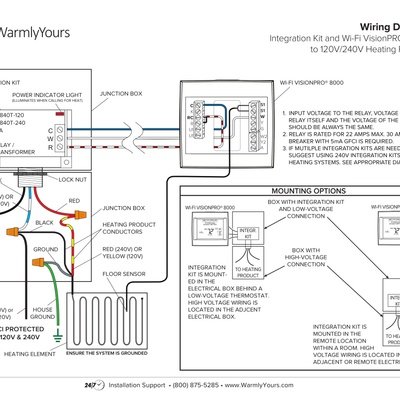

If multiple Integration Kits are needed, we suggest using 240V Integration Kits and 240V heating elements. See our support area for the appropriate diagram.

Need more help? View support options


Publications and Manuals



Specifications


Electrical

Connection Single pole, 3 wires
Connection Method Hardwired
Maximum Load (Resistive Only) 22 amps
Sensor Type (Resistance) 10 kOhm
Transformer Ratings 24 VAC / 1.2 VA / Class 2
Voltage 120 V

Controls

Control Signal 24VAC / 40mA / 1.2VA

Logistics

Country of Origin (COO) China

Identifiers

Ground Fault Protection (GFCI) No
SKU INTEGRATION-KIT-PLUS-120V
UPC (GTIN-12) 881308037901

Product Dimensions

Length 15′
Width 0.1″

Warranty / Certifications

Warranty 3 years
