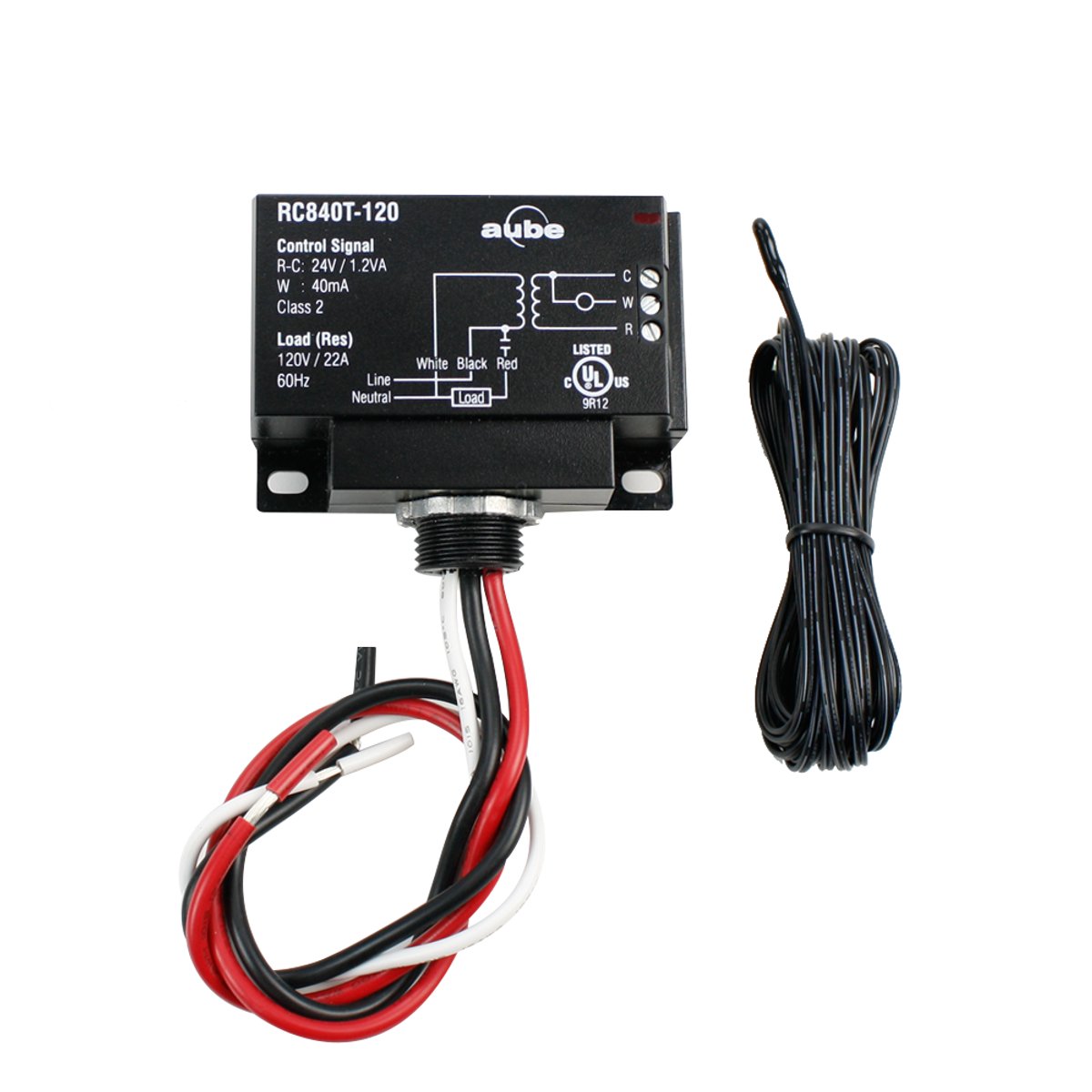

Relay with built-in transformer 120V+Floor Sensor

$135
Need help? Call our experts at (800) 875-5285
Support Page
Jump to

Features

  • Connects floor heating to smart systems
  • Built-in transformer for voltage compatibility
  • Available with or without floor sensor
  • Supports 120V and 240V systems
  • Ensures precise temperature control

Floor Heating Home Automation Integration Kits Description

Adding a floor temperature sensor means enhanced control of your radiant floor heating system. The WarmlyYours 120 V Integration Kit+ is designed for you to connect your TempZone™ or Environ™ system to third-party thermostats or home automation systems that allow for a floor temperature sensor. The 120 V Integration Kit+ has all the same features as the 120 V electric heating relay. It operates at a resistive load of 22 amps at 120 V and features a built-in 24V/1.2VA/Class 2 transformer, as well as a 10 kilohm floor temperature sensor. This low-current relay has epoxy soundproofing for virtually noiseless operation. This 120 V Integration Kit features 3-wire, single-pole switching and a 12 AWG terminal wire. It includes a heating command indicator light to provide at-a-glance verification of relay operation. A terminal board connection facilitates installation. The Integration Kit+ is C-UL-US Listed and carries a 3-year warranty against manufacturer defects.

Specifications

Electrical (INTEGRATION-KIT-120V)

Connection Single pole, 3 wires
Connection Method Hardwired
Maximum Load (Resistive Only) 22 amps
Transformer Ratings 24 VAC / 1.2 VA / Class 2
Voltage 120 V

Controls (INTEGRATION-KIT-120V)

Control Signal 24VAC / 40mA / 1.2VA

Identifiers (INTEGRATION-KIT-120V)

Ground Fault Protection (GFCI) No
SKU INTEGRATION-KIT-120V
UPC (GTIN-12) 881308030216

Product Dimensions (INTEGRATION-KIT-120V)

Length 0.1″
Weight 0.8 lbs
Width 0.1″

Product Dimensions (FH-BACKUP-SENSOR)

Length 15′
Weight 0.1 lbs
Width 0.1″

Identifiers (FH-BACKUP-SENSOR)

SKU FH-BACKUP-SENSOR
UPC (GTIN-12) 881308055943

Electrical (FH-BACKUP-SENSOR)

Sensor Type (Resistance) 10 kOhm

Warranty / Certifications (INTEGRATION-KIT-120V)

Warranty 3 years

Warranty / Certifications (FH-BACKUP-SENSOR)

Warranty 10 Year Warranty under Laminate & Floating Hardwood, 5 Year under Carpet (US Only)

Frequently Asked Questions

Showing all 5 questions

Most low voltage HVAC thermostats are OK to use with tile floors. If you are heating wood, vinyl, carpet, or any other flooring products that have a "maximum temperature" limit, then low voltage HVAC thermostats are not recommended UNLESS they have an input for a floor sensor. Check with the low voltage HVAC thermostat manufacturer about floor sensor inputs first, before buying a third-party integration kit for these types of flooring products.

Was this helpful? Yes No

nJoin unit is designed to work with nSpire series thermostats. If you would like to use third-party thermostat or controller, we recommend using our Integration kits that will receive “call for heat” and activate the floor heating.

Was this helpful? Yes No

WarmlyYours suggests contacting the manufacturer of the home automation system to determine compatibility or how it recommends operating an electric floor heating system.

Was this helpful? Yes No

If the smart thermostat cannot process a floor sensor reading, it is not compatible and the integration kit will not resolve this.

Was this helpful? Yes No

22 Amps.

Was this helpful? Yes No
