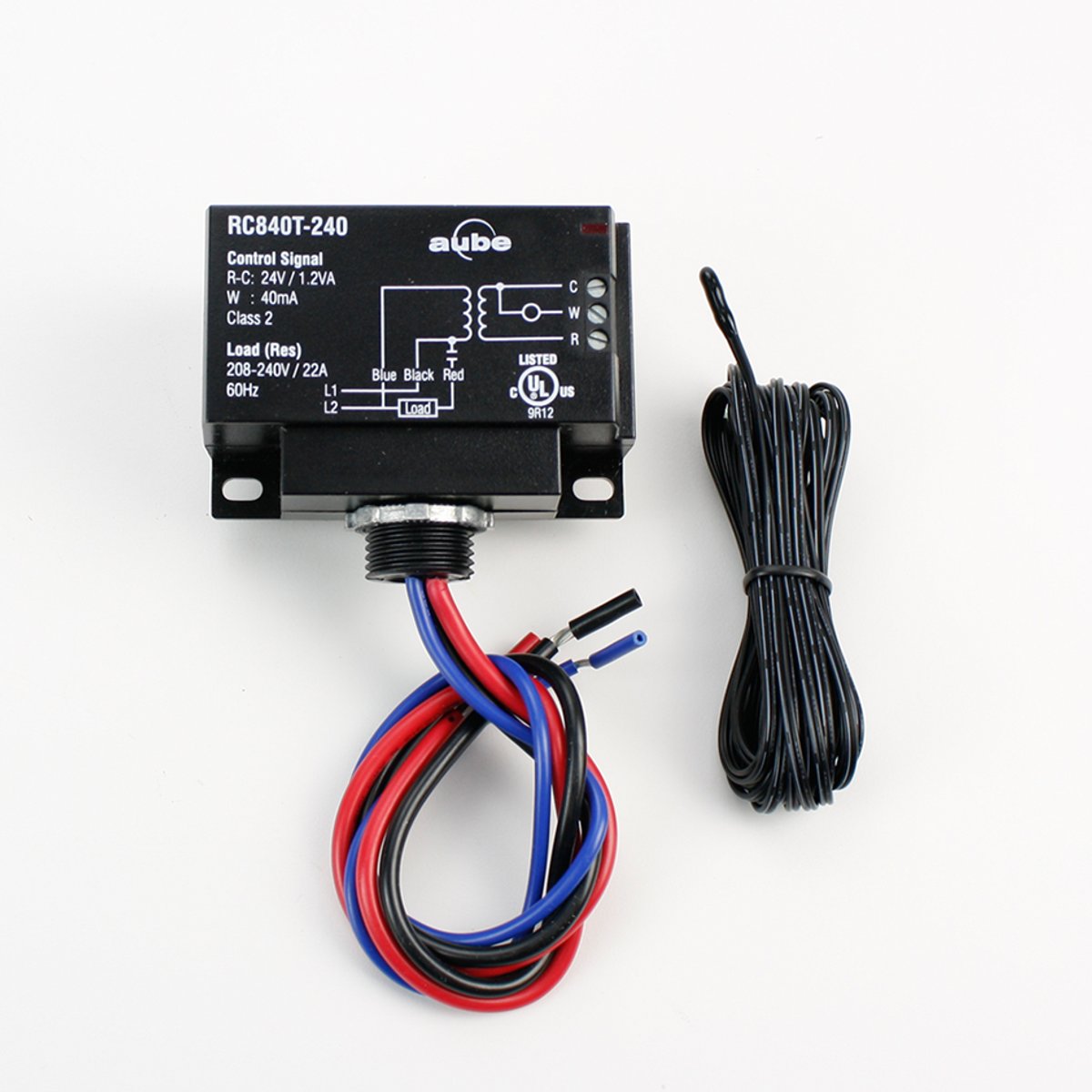

Relay with built-in transformer 240V+Floor Sensor

$160
Need help? Call our experts at (800) 875-5285
Support Page
Jump to

Features

  • Connects floor heating to smart systems
  • Built-in transformer for voltage compatibility
  • Available with or without floor sensor
  • Supports 120V and 240V systems
  • Ensures precise temperature control

Floor Heating Home Automation Integration Kits Description

WarmlyYours electric floor heating systems can easily be integrated with your home automation system or third-party thermostat. The 240 V Integration Kit+ includes all the features of the 240 V Integration Kit, plus a 10 kilohm floor temperature sensor to give you even better control of your TempZone™ or Environ™ radiant heating system. The 240 V Integration Kit+ includes an electric heating relay with a built-in 24V/1.2VA/Class 2 transformer. This integration kit includes 3-wire, double-pole switching and a 12 AWG terminal wire, and operates at a resistive load of 22 amps at 240 V. The kit features a terminal board connection to make the installation process easy. Epoxy soundproofing ensures quiet operation of the relay, and a quick glance at the heating command indicator light confirms relay operation. Because of the low current consumption of the relay, a single thermostat can control multiple relays. The Integration Kit+ is C-UL-US Listed for safety and comes with a 3-year warranty against manufacturer defects.

Specifications

Electrical (INTEGRATION-KIT-240V)

Connection Double Pole, three wire
Connection Method Hardwired
Maximum Load (Resistive Only) 22 amps
Transformer Ratings 24 VAC / 1.2 VA / Class 2
Voltage 240 V

Controls (INTEGRATION-KIT-240V)

Control Signal 24VAC / 40mA / 1.2VA

Identifiers (INTEGRATION-KIT-240V)

Ground Fault Protection (GFCI) No
SKU INTEGRATION-KIT-240V
UPC (GTIN-12) 881308047535

Product Dimensions (INTEGRATION-KIT-240V)

Length 0.1″
Weight 0.9 lbs
Width 0.1″

Product Dimensions (FH-BACKUP-SENSOR)

Length 15′
Weight 0.1 lbs
Width 0.1″

Identifiers (FH-BACKUP-SENSOR)

SKU FH-BACKUP-SENSOR
UPC (GTIN-12) 881308055943

Electrical (FH-BACKUP-SENSOR)

Sensor Type (Resistance) 10 kOhm

Warranty / Certifications (INTEGRATION-KIT-240V)

Warranty 3 years

Warranty / Certifications (FH-BACKUP-SENSOR)

Warranty 10 Year Warranty under Laminate & Floating Hardwood, 5 Year under Carpet (US Only)

Frequently Asked Questions

Showing all 5 questions

Most low voltage HVAC thermostats are OK to use with tile floors. If you are heating wood, vinyl, carpet, or any other flooring products that have a "maximum temperature" limit, then low voltage HVAC thermostats are not recommended UNLESS they have an input for a floor sensor. Check with the low voltage HVAC thermostat manufacturer about floor sensor inputs first, before buying a third-party integration kit for these types of flooring products.

Was this helpful? Yes No

nJoin unit is designed to work with nSpire series thermostats. If you would like to use third-party thermostat or controller, we recommend using our Integration kits that will receive “call for heat” and activate the floor heating.

Was this helpful? Yes No

WarmlyYours suggests contacting the manufacturer of the home automation system to determine compatibility or how it recommends operating an electric floor heating system.

Was this helpful? Yes No

If the smart thermostat cannot process a floor sensor reading, it is not compatible and the integration kit will not resolve this.

Was this helpful? Yes No

22 Amps.

Was this helpful? Yes No
