Radiant Comfort for a Cozy Tiny Room in Pennington, NJ

This project involved installing a WarmlyYours TempZone™ Cable electric radiant floor heating system beneath nailed hardwood flooring in a 75 sq. ft. room in Pennington, NJ. The homeowner sought a reliable, energy-efficient solution to eliminate the chill often associated with this type of flooring and provide consistent, luxurious comfort. WarmlyYours delivered a discreet, high-value system that enhances the room's usability, adds energy efficiency, and boosts the home's overall appeal.

Project Details

Location: Pennington, NJ
Heated Space Type: Other (e.g., small living area, large walk-in closet, study)
Square Footage: 75 sq. ft. (Heated Area)
Watts: 1,122 W
Volts: 120 V
Amps: 9 A
Products Used: TempZone™ Floor Heating Cable, Integration Relay Kit
Operating Cost Per Hour: ≈$0.14
Operating Cost Per Day (8 hours): ≈$1.12
Operating Cost Per Month (30 days): ≈$33.60

Project Information

The homeowner in Pennington, NJ, faced a common issue: a smaller, frequently used room with nailed hardwood floors that remained uncomfortably cool, especially during the colder months. Traditional forced-air heating often struggled to keep the floor surface warm, diminishing the room's appeal and comfort. The challenge was to integrate a reliable heating system that would work seamlessly under the finished flooring without significant renovation or adding bulky equipment.

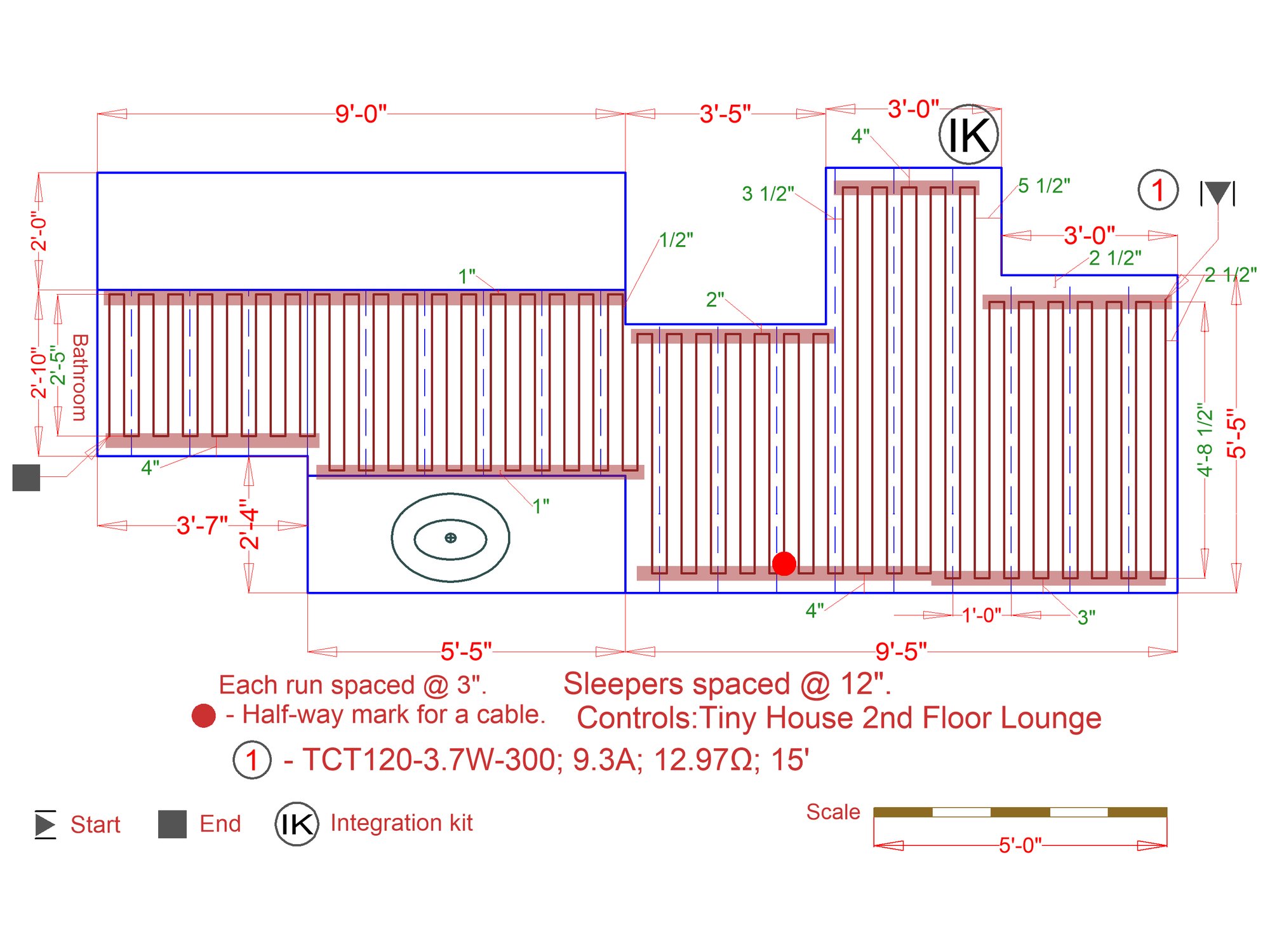

The solution was the WarmlyYours TempZone™ Cable system. The custom-designed 120V cable provided 75 sq. ft. of targeted radiant floor warming. The cable system was laid out with a precise 3.0-inch spacing to ensure even heat distribution across the entire surface. This system, paired with an Integration Relay Kit, provides efficient control over the high amperage needed to heat the room. The installation process was straightforward for the installer, allowing the heating element to be secured and the hardwood flooring to be laid on top. The outcome is a warm, comfortable room where the temperature is consistent and the floor is invitingly warm to the touch. This upgrade dramatically increased the room's comfort level and added tangible value through energy efficient heating.

Featured Products

TempZone™ Floor Heating Cable

The core of this radiant floor heating project is the TempZone™ Floor Heating Cable. This highly flexible, robust heating cable is ideal for custom-shaped rooms and installations beneath various flooring types, including the nailed hardwood floors used here. It delivers even, consistent heat from the floor up, is low-profile, and is designed for maximum energy efficiency and long-term reliability.

Integration Relay Kit

Given the system's amperage (9 A), an Integration Relay Kit was included. This device allows a single thermostat to safely and effectively control a heating system that exceeds its built-in capacity. It ensures proper current handling, allowing for a reliable and high-performance heated floor system.

Circuit Check

The Circuit Check is an essential tool included with every WarmlyYours system. This monitor is used during and immediately after installation to ensure the heating cable's electrical resistance remains within acceptable limits. It provides constant monitoring to alert the installer to any potential damage to the cable before the flooring is installed, guaranteeing the integrity and longevity of your new TempZone Cable system

Project Gallery

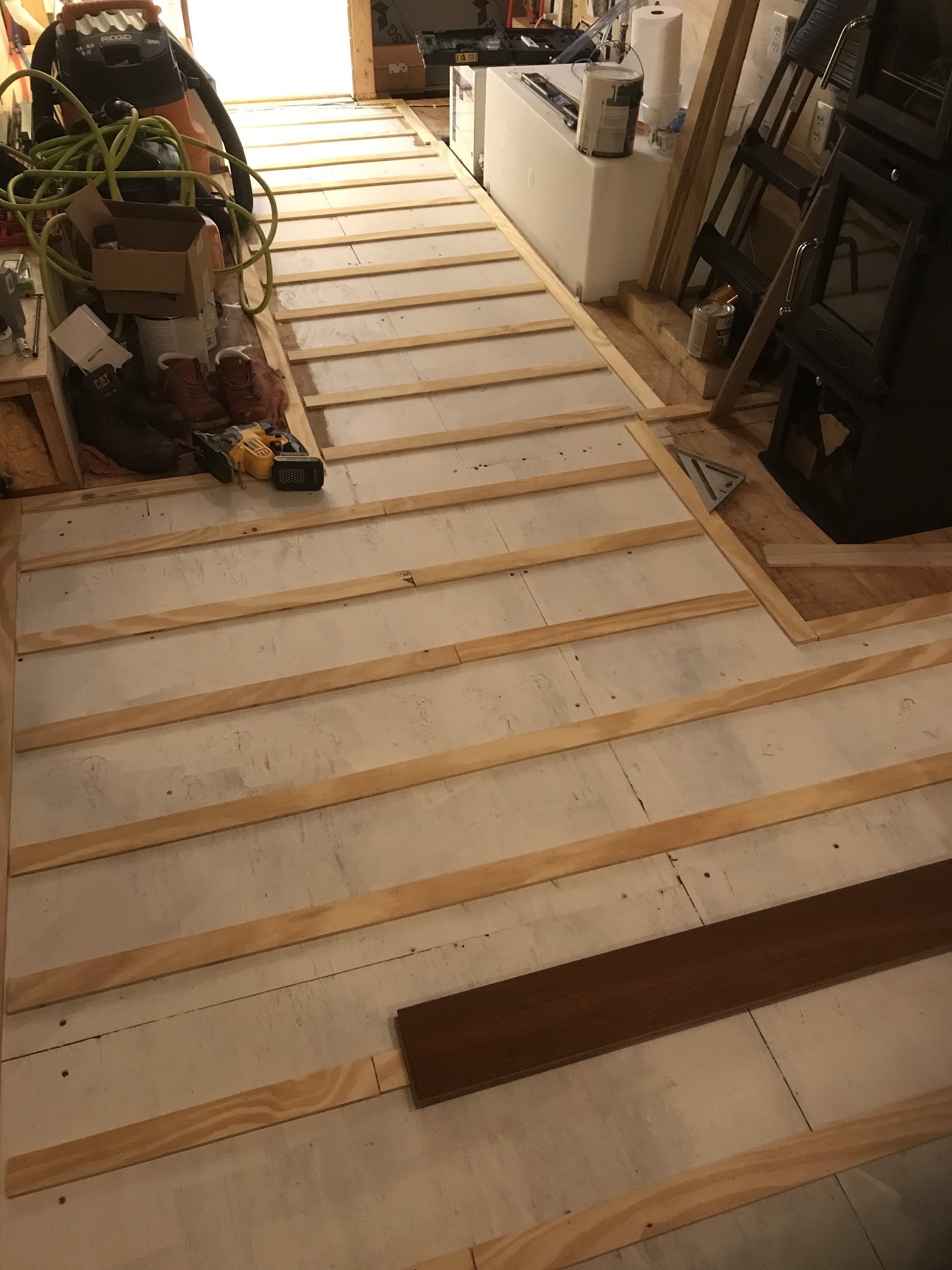

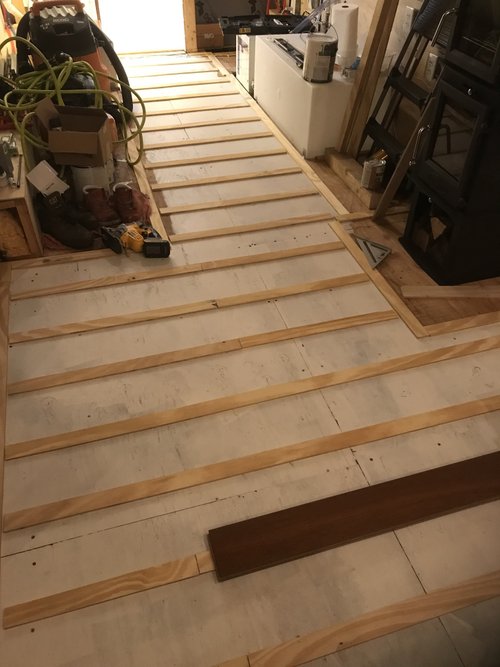

Tiny Living Living Large - Installing TempZone Cable with Sleepers 2

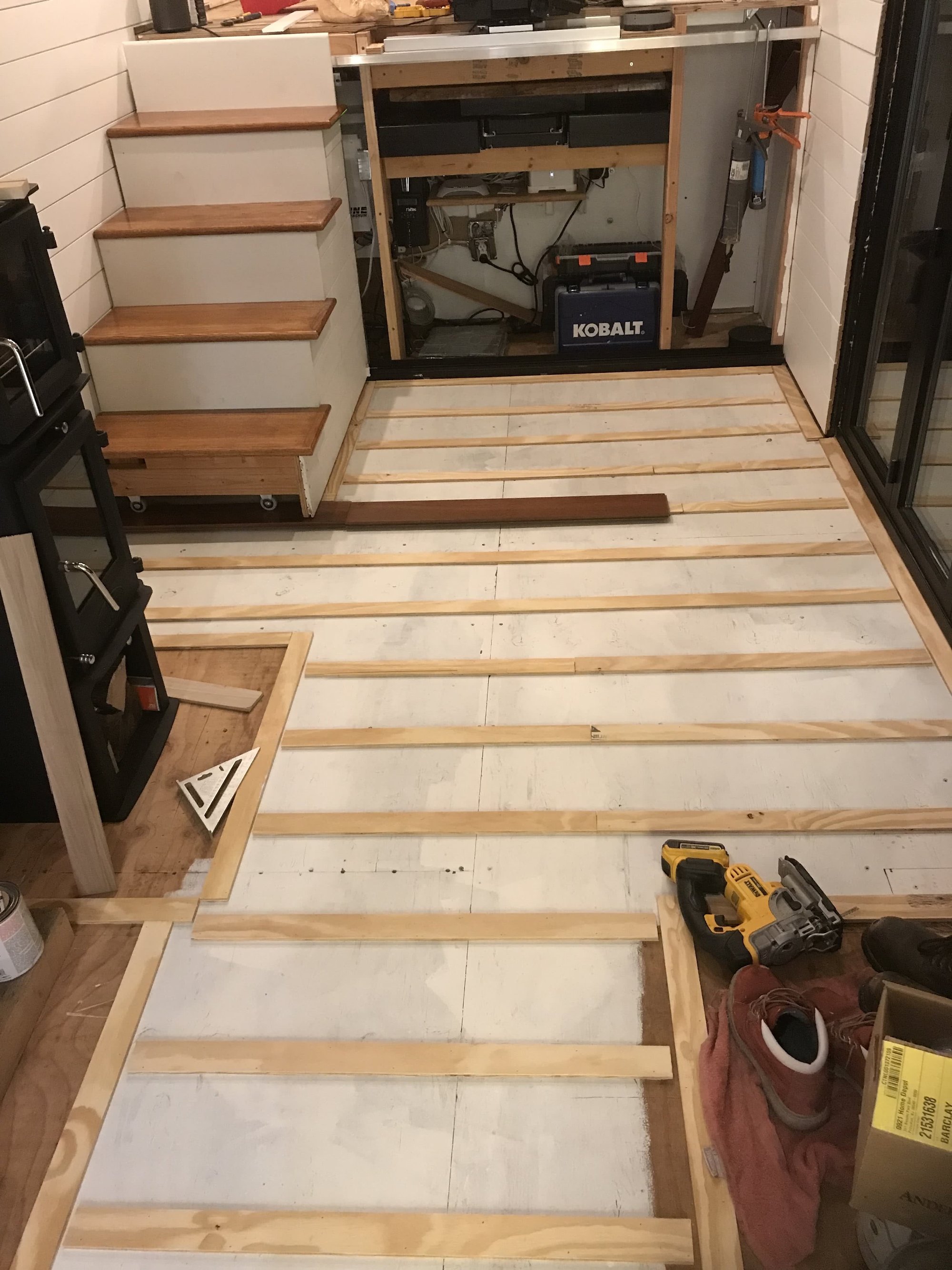

Tiny Living Living Large - Installing TempZone Cable with Sleepers 3

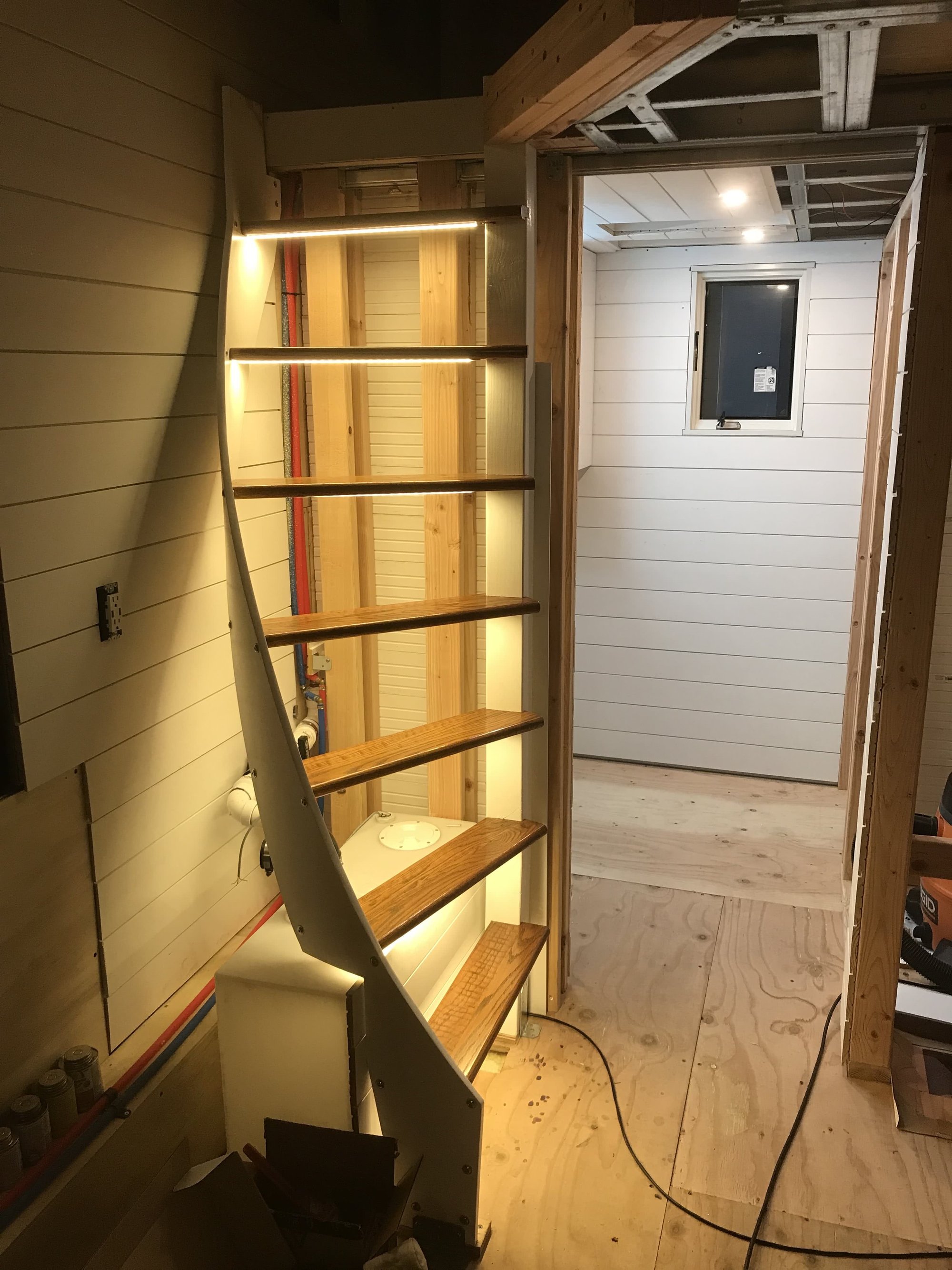

Tiny Living Living Large - Staircase in Tiny Home with Floor Heating

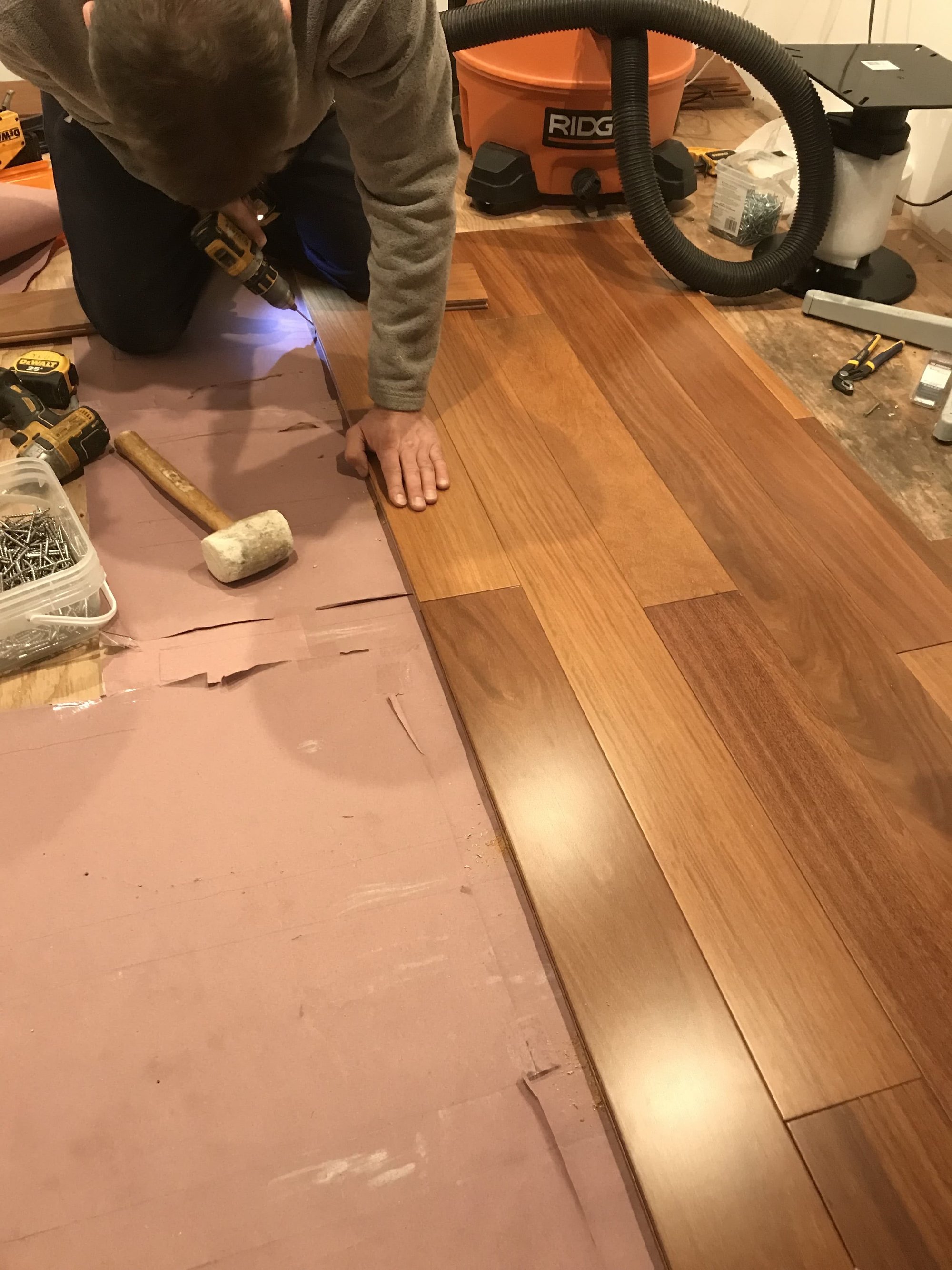

Tiny Living Living Large -Installing wood floor over floor heating

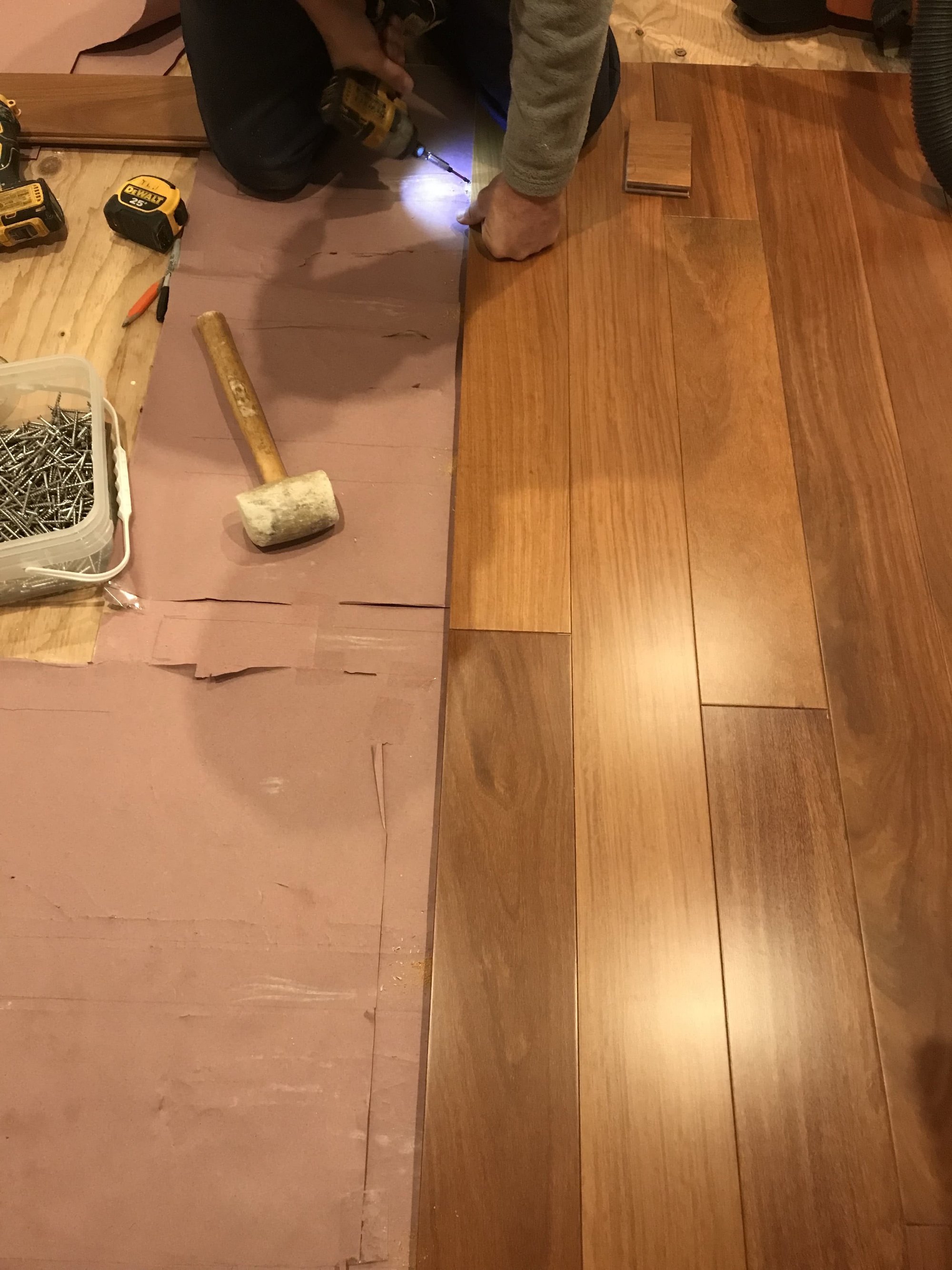

Tiny Living Living Large -Installing wood floor over floor heating 2

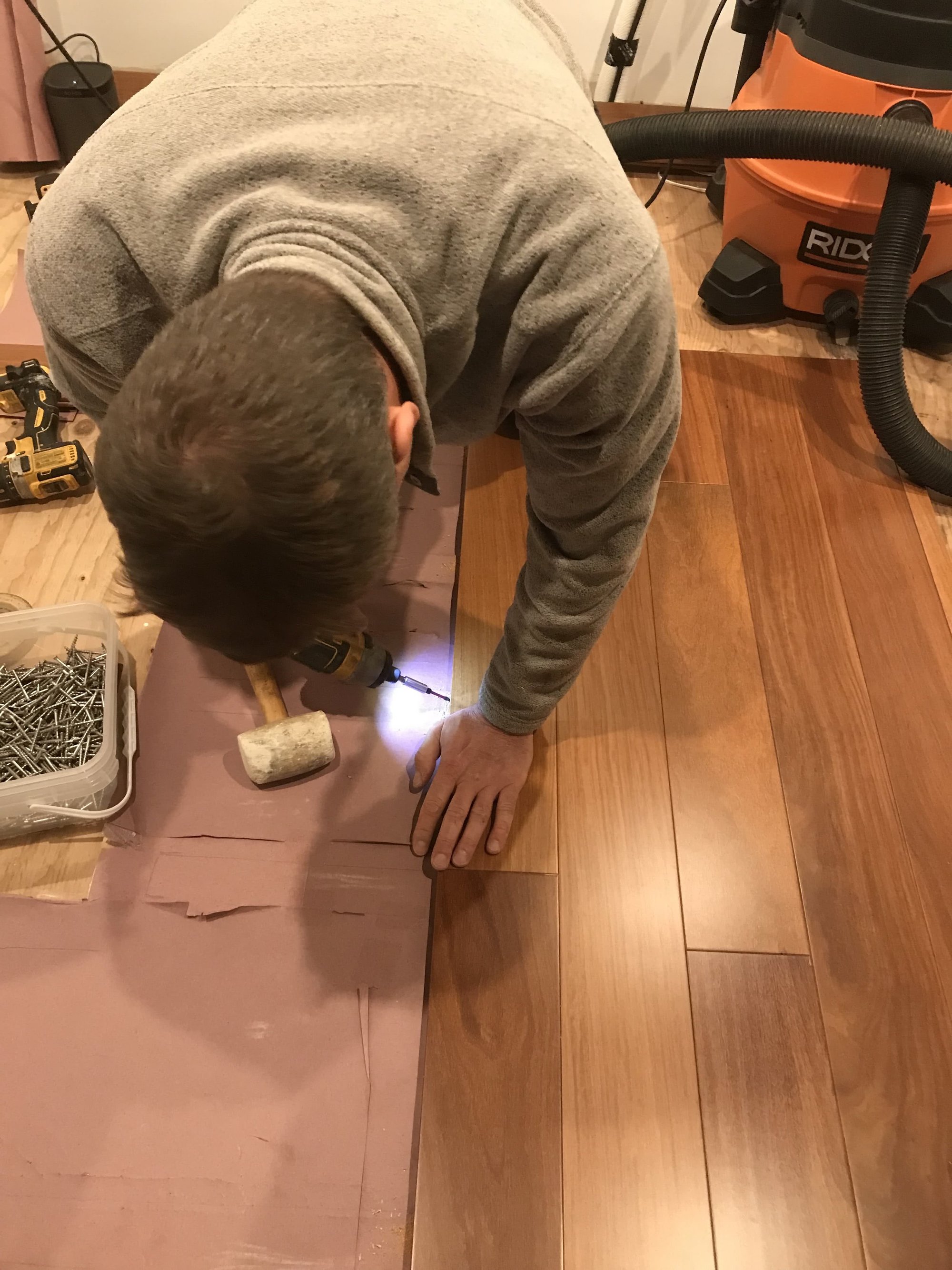

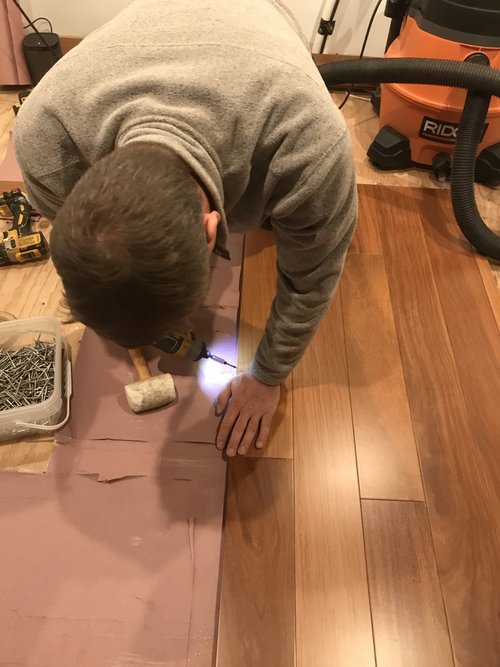

Tiny Living Living Large -Installing wood floor over floor heating 3

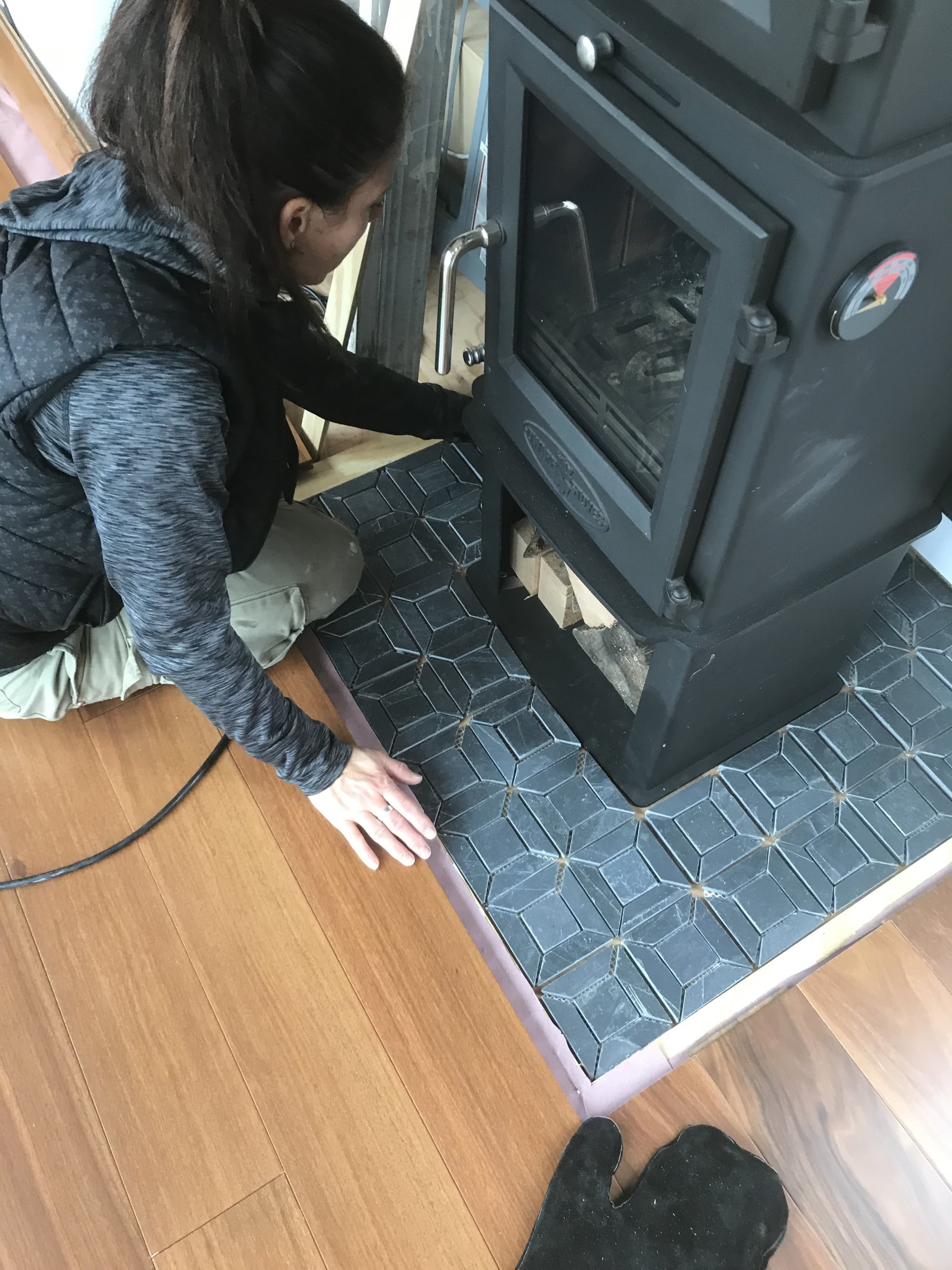

Tiny Living Living Large - Fireplace for tiny home with Floor Heating

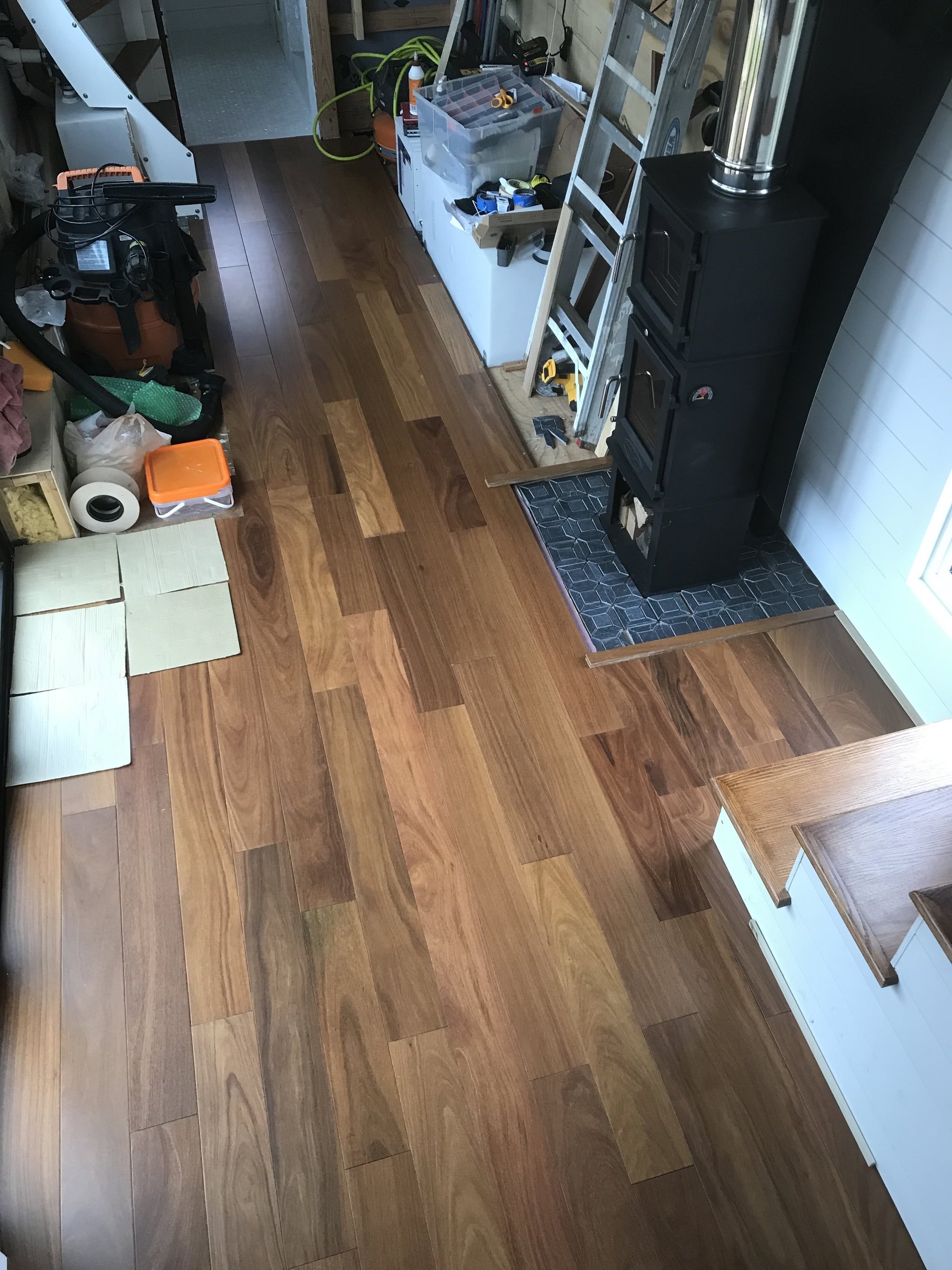

Tiny Living Living Large - Fireplace for tiny home with Floor Heating 2

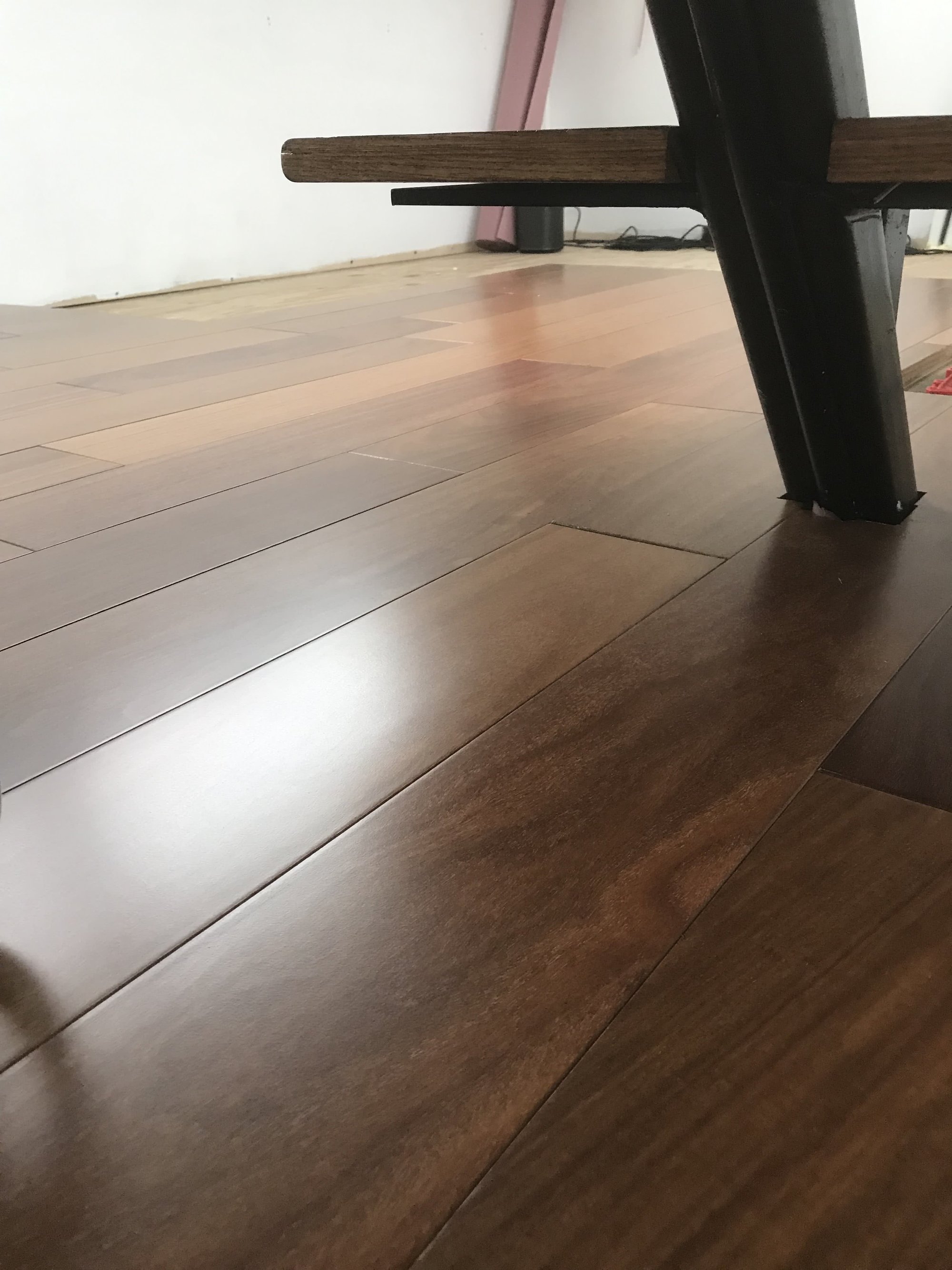

Tiny Living Living Large - Wood floor in tiny home with floor heating

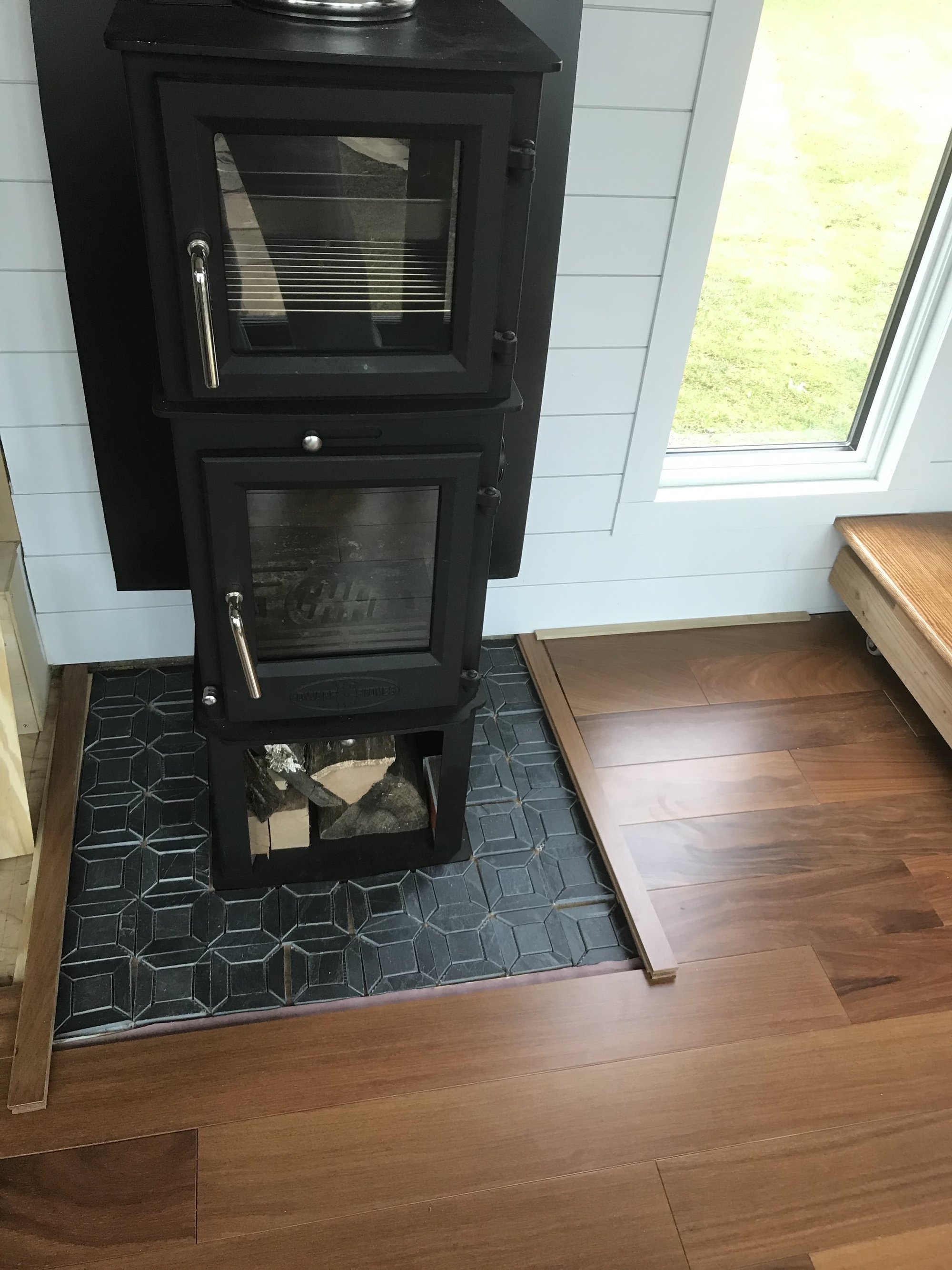

Tiny Living Living Large - Wood floor in tiny home with floor heating copy

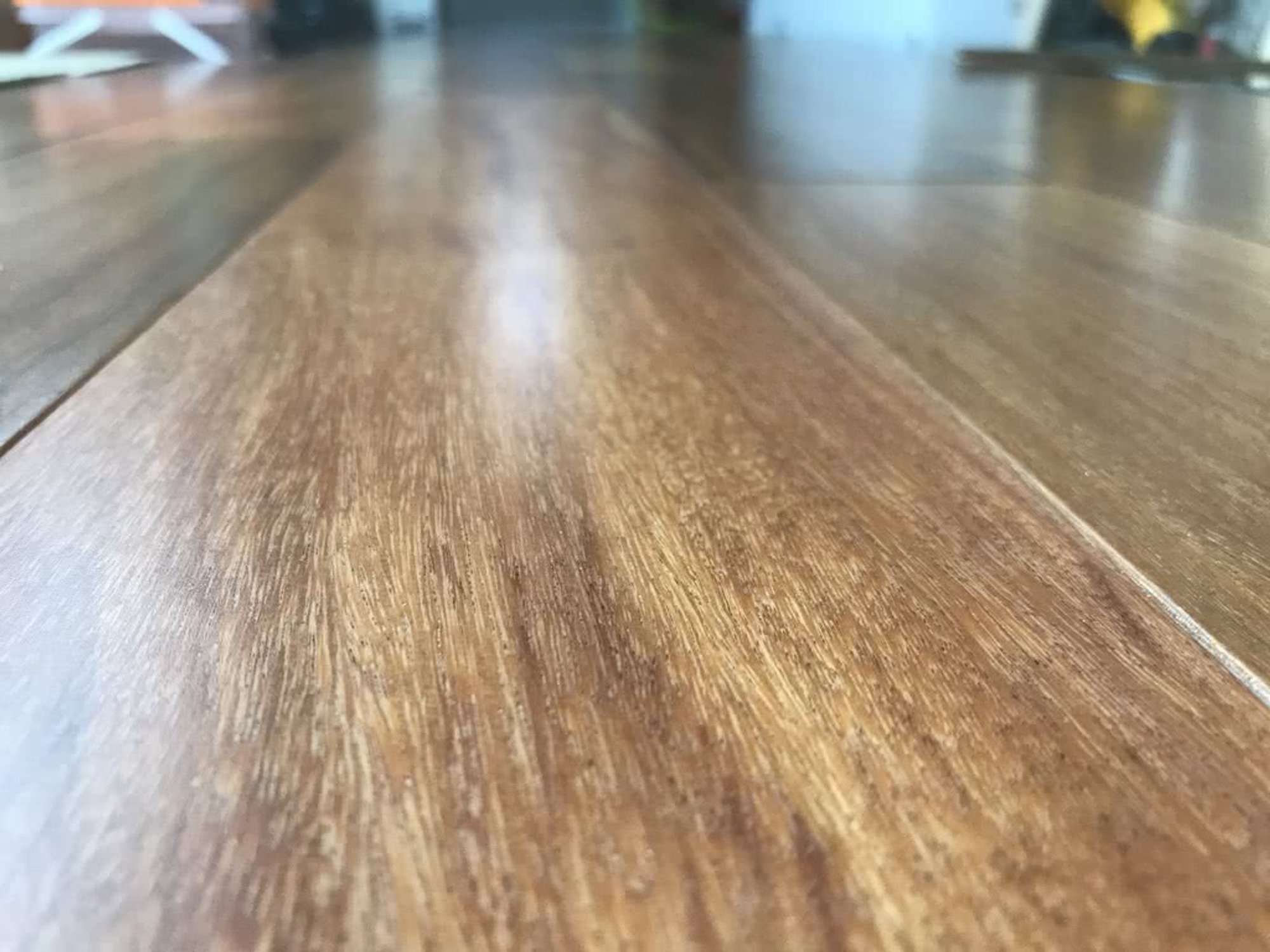

Tiny Living Living Large - Wood floor in tiny home with floor heating 3

Frequently Asked Questions

How much does it cost to run heated floors in a small living area in Pennington, NJ?

The operating cost for this 75 sq. ft. electric radiant floor heating system is highly economical. Based on 1,122 Watts of power, it costs approximately $0.14 per hour to run. Even running for an average of 8 hours a day, the daily cost is only about $1.12, or less than $34 per month. This makes heated floors a very affordable upgrade for daily comfort.

Can radiant heating replace the main heating system in this space?

Yes, in many cases, a WarmlyYours TempZone™ system can serve as the primary heat source (also known as "floor warming" when used as a secondary source). For this room, a heat-loss calculation is required to confirm, but a full-coverage system like this one is designed to provide sufficient heat output to make the room comfortable, effectively solving the problem of a chilly floor and potentially reducing reliance on the central heating system.

What type of flooring works best with this system?

Electric radiant floor heating works exceptionally well with nearly all types of flooring. While materials like tile and stone are excellent conductors, hardwood floors are also compatible, as demonstrated by this project. The system is installed beneath the hardwood, providing gentle, consistent warmth. WarmlyYours systems are specially designed to protect temperature-sensitive flooring, ensuring the new heated floor is both comfortable and safe for the material.

Is electric radiant floor heating energy efficient?

Yes, electric radiant floor heating is an energy efficient heating method. Unlike forced-air systems that heat the air (which rises and results in heat loss), radiant floor heating warms objects and people directly. This allows the homeowner to set the thermostat lower while still feeling comfortable, leading to significant energy savings and a lower overall operating cost.
