TempZone™ Cable Fixing Strips, 1′
TempZone™ 3.7-Watt Floor Heating Cable Description

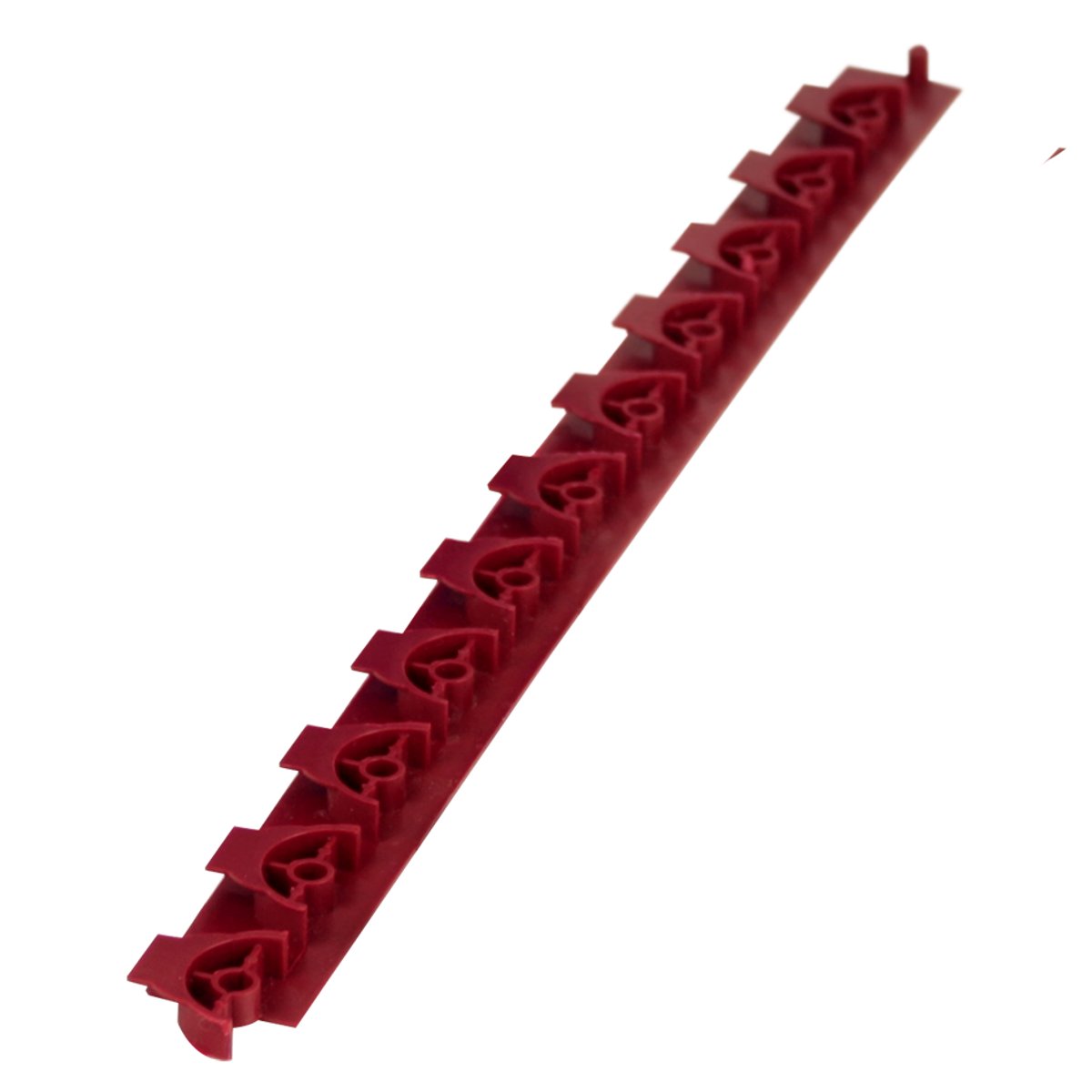

A cost-effective alternative to using the Prodeso Membrane, TempZone™ Cable Fixing Strips are used for securing TempZone™ Floor Heating Cable in place on floors at predetermined spacing. These plastic strips enable you to keep the heating cable secured in position, uniformly positioned across the floor, while you install the floor adhesive. The cable fixing strips are 1” x 11½” x ¼”,
Every order of TempZone™ Heating Cable (without the Prodeso Membrane) will include a complimentary minimum quantity of fixing strips for installation. Additional strips can be purchased.
Specifications
Product Dimensions
| Height | ¼″ |
| Length | 11½″ |
| Weight | 0.03 lbs |
| Width | 1″ |
Cabling Specs
| Ideal Cable Spacing | 4″ |
Identifiers
| SKU | TC-STRIP-PL |
| UPC (GTIN-12) | 881308031114 |
Accessories and Parts
Feel free to chat us if you have any questions about these items.
Documents
Project Planners
- Floor Heating Request for Quotation Form (English)
- Heated Tile Substrate Compatibility & Risk Map (English)
Technical Information
Wiring Diagrams
Frequently Asked Questions
Showing all 2 questions
Waterproofing for the room is in the layer above the floor heating system. The layers for waterproofing this type of floor are:
- subfloor
- thinset
- uncoupling membrane
- tempzone heating cable
- waterproofing tape for seams and corners
- thinset or self leveling cement
- tile floor
Please keep in mind that you must check your electric floor heating system with a digital ohmmeter in conjunction with a Circuit Check™. Take an initial reading as soon as you take the product out of the box to verify that it is within -5% / +10% of the values stated on the product’s label. This will give you a basis of comparison for future readings. Take a second reading once you have positioned the system to match your custom installation plan. It is also advisable to take an additional reading in the middle of the tile installation, just to make sure that the Circuit Check™ is doing its job. Then, take a final reading when you are finished with the floor installation and are ready to hook up the thermostat.
The Circuit Check™ is a tool developed by WarmlyYours to give you peace of mind and ensure trouble-free installations. Simply hook up the cold leads to the tool while you position the system to match your custom installation plan.
The Circuit Check™ will continuously monitor the continuity of the circuit during the installation of your system and during the installation of your flooring. The Circuit Check™ beeps immediately when a short in the system is detected, alerting you to a potentially damaged cable in the area you are working, before you lay the tile over the electric floor heating system. The WarmlyYours technical support team is available 24/7 to provide assistance if the alarm sounds, or if you would have any questions during your installation.
