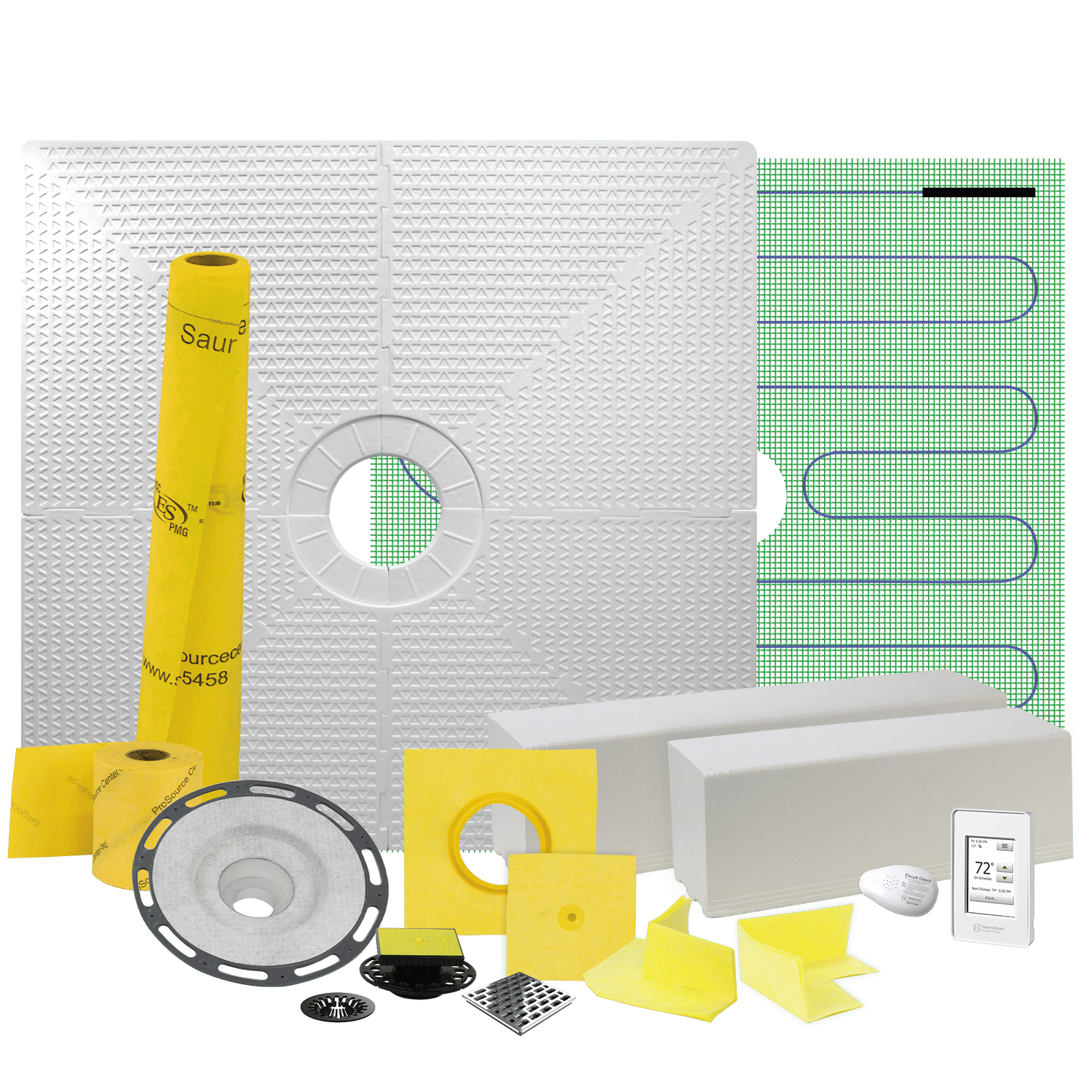

Pro GEN II 48ʺ x 48ʺ Floor Heating and Shower Waterproofing Kit with Center Drain and PVC Flange
Part Number: SH-272446-PVC-EFHPast Model
This support page provides publications, manuals, specifications, videos, and support articles
This support page provides publications, manuals, specifications, videos, and support articles
Documents
Installation

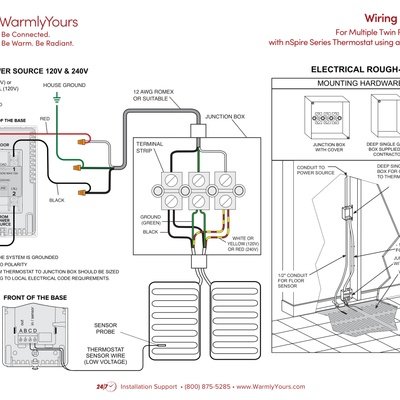

Wiring Diagrams
Specifications
Electrical (TRT120-4.0x4.0)
| Amps | 2 A |
| Floor Load | 0.24 kW |
| Ohms | 60 Ω |
| Ohms Per Ft | 15 Ohm/ft |
| Thermal Power | 0.24 kW |
| Voltage | 120 V |
| Watts | 240 W |
| Watts Per Sq. Ft. | 15 Watts Per Sq. Ft. |
Warranty / Certifications (TRT120-4.0x4.0)
| Approvals | cULus listed |
| Warranty | 25 Year Warranty |
| Wet Location Listed | US, Canada |
Warranty / Certifications (UDG4-4999-WY)
| Approvals | cULus listed |
| Ingress Protection (IPxx) Rating | IP20 |
| UL File Number | E157297 |
| Warranty | Limited 3-year warranty and lifetime technical support |
Performance (TRT120-4.0x4.0)
| BTU Per Hour | 819 Btu |
Electrical (UDG4-4999-WY)
| Battery | 5-year battery backup of clock and calendar |
| Connection | 4 wires, double pole |
| Connection Method | Hardwired |
| Ground Fault Protection | GFCI, Class A, 5 mA |
| Ground Fault Protection (GFCI) | Class A, 5 mA |
| Maximum Current | 15 A |
| Maximum Load (Resistive Only) | 1800 W - 120 V, 15 A / 3600 W - 240 V, 15 A |
| Maximum Load (Resistive Only) | 15 A |
| Maximum Power | 1800 W @ 120 V, 3120 W @ 208 V, 3600 W @ 240 V |
| Supply | 120 VAC - 50/60Hz, 240 VAC - 50/60Hz |
Electrical (SS-01)
| Battery Cell Size | AAA |
| Battery Composition | Alkaline |
| Battery Included | Yes |
| Battery Required | Yes |
| Number of Batteries Included | 3 |
| Number of Batteries Required | 3 |
Product Dimensions (TRT120-4.0x4.0)
| Cold Lead Length | 22′ |
| Coverage | 16 ft² |
| Drain Hole Diameter | 5″ |
| Heating Element Thickness | 1/8″ |
| Length | 4′ |
| Weight | 2.8 lbs |
| Width | 4′ |
Appearance (UDG4-4999-WY)
| Color | White |
Product Dimensions (SS-01)
| Depth | 2″ |
| Length | 2″ |
| Weight | 0.2 lbs |
| Width | 3″ |
Product Dimensions (UDG4-4999-WY)
| Depth | 2″ |
| Installed Depth | 0.75″ |
| Length | 5.125″ |
| Weight | 0.8 lbs |
| Width | 3.25″ |
Controls (UDG4-4999-WY)
| Display | Backlit Display |
| Display Size | 2″ W x 3″ H (3.5″ Diagonal) |
| Languages | English, French, Spanish |
Performance (SH-270077)
| Drain Assembly Pressure Rating | 780 psi |
Thermostat (UDG4-4999-WY)
| Floor Sensor Compatibility | 10k ohms, 12k ohms and custom |
| Included Floor Sensor | 10k ohms, 15' lead |
| Maximum Ambient Temperature Setting | 77 °F |
| Maximum Floor Temperature Setting | 104 °F |
| Minimum Ambient Temperature Setting | 32 °F |
| Minimum Floor Temperature Setting | 41 °F |
| Temperature Rise Limit in Laminate Floor Protection | ~10°F/hr (~5.58°C/hr) |
Installation (TRT120-4.0x4.0)
| Floor Types | Tile, Marble, Stone, Vinyl, LVT, LVP, Wood, Bamboo, Carpet, and more |
Construction (SH-271337)
| Grate Cover Steel Type | Stainless Steel |
Product Dimensions (SH-271337)
| Grate Size | 3.75” x 3.75” |
| Weight | 0.25 lbs |
Performance (SH-172094-108)
| Membrane Permeability | 0.07 perm |
Performance (SH-172097)
| Membrane Permeability | 0.07 perm |
Performance (SH-172098)
| Membrane Permeability | 0.07 perm |
Performance (SH-156278)
| Membrane Permeability | 0.07 perm |
Performance (SH-269603)
| Membrane Permeability | 0.07 perm |
Performance (SH-265414)
| Membrane Permeability | 0.07 perm |
Logistics (TRT120-4.0x4.0)
| Package Contents | (1) TempZone Shower Mat 120V 48″ x 48″ with Center Drain Hole 16 Sq. Ft. 2.0A (TRT120-4.0x4.0); 1x Floor Heating Sensor (FH-BACKUP-SENSOR) |
| UNSPSC Code | 40101830 |
Identifiers (SS-01)
| SKU | SS-01 |
| UPC (GTIN-12) | 881308010638 |
Identifiers (TRT120-4.0x4.0)
| SKU | TRT120-4.0x4.0 |
| UPC (GTIN-12) | 881308022044 |
Identifiers (UDG4-4999-WY)
| SKU | UDG4-4999-WY |
| UPC (GTIN-12) | 881308051228 |
Identifiers (SH-172094-108)
| SKU | SH-172094-108 |
| UPC (GTIN-12) | 857937008223 |
Identifiers (SH-172097)
| SKU | SH-172097 |
| UPC (GTIN-12) | 857937008124 |
Identifiers (SH-172098)
| SKU | SH-172098 |
| UPC (GTIN-12) | 857937008131 |
Identifiers (SH-156278)
| SKU | SH-156278 |
| UPC (GTIN-12) | 857937008100 |
Identifiers (SH-269603)
| SKU | SH-269603 |
| UPC (GTIN-12) | 857937008117 |
Identifiers (SH-176652)
| SKU | SH-176652 |
| UPC (GTIN-12) | 881308059767 |
Identifiers (SH-246503)
| SKU | SH-246503 |
| UPC (GTIN-12) | 857937008247 |
Identifiers (SH-271337)
| SKU | SH-271337 |
| UPC (GTIN-12) | 865705000232 |
Identifiers (SH-265414)
| SKU | SH-265414 |
| UPC (GTIN-12) | 857937008186 |
Identifiers (SH-270077)
| SKU | SH-270077 |
| UPC (GTIN-12) | 881308060992 |
Construction (SH-176652)
| Shower Pan Density | 3.5 lb/ft³ |
Warranty / Certifications (SS-01)
| Warranty | 10 Year Warranty under Laminate & Floating Hardwood, 5 Year under Carpet (US Only) |
Product Dimensions (SH-172097)
| Weight | 0.01 lbs |
Product Dimensions (SH-172098)
| Weight | 0.01 lbs |
Product Dimensions (SH-156278)
| Weight | 0.01 lbs |
Product Dimensions (SH-269603)
| Weight | 0.01 lbs |
Product Dimensions (SH-176652)
| Weight | 4 lbs |
Product Dimensions (SH-246503)
| Weight | 1.75 lbs |
Product Dimensions (SH-265414)
| Weight | 0.04 lbs |
Product Dimensions (SH-270077)
| Weight | 1.75 lbs |
