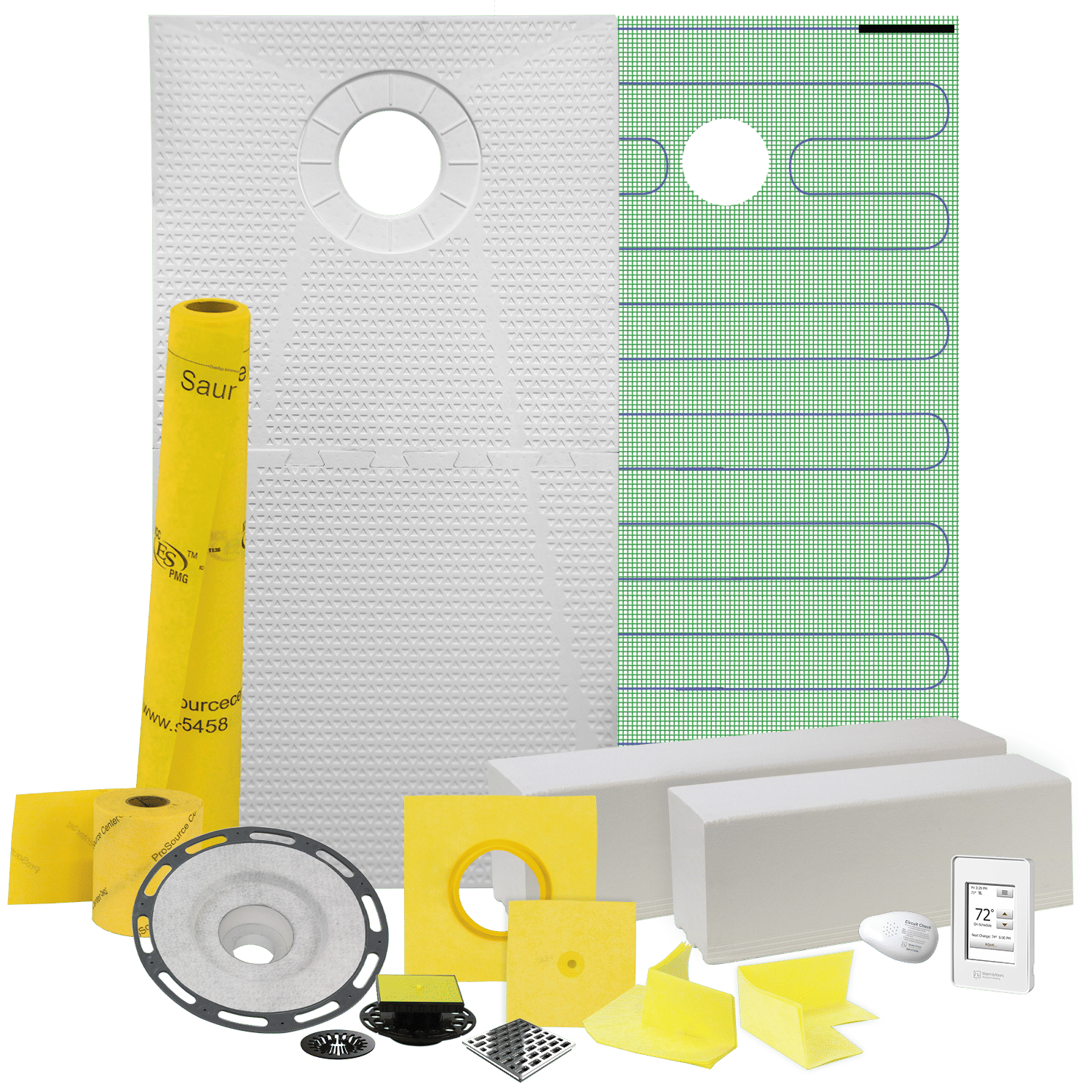

Pro GEN II 32ʺ x 60ʺ Floor Heating and Shower Waterproofing Kit with Offset Drain and PVC Flange
Part Number: SH-272455-PVC-EFHPast Model
This support page provides publications, manuals, specifications, and support articles
This support page provides publications, manuals, specifications, and support articles
Documents
Installation
Wiring Diagrams
Specifications
Electrical (TRT120-2.7O5.0)
| Amps | 1.67 A |
| Floor Load | 0.2 kW |
| Ohms | 72 Ω |
| Ohms Per Ft | 14.4 Ohm/ft |
| Thermal Power | 0.2 kW |
| Voltage | 120 V |
| Watts | 200 W |
| Watts Per Sq. Ft. | 15 Watts Per Sq. Ft. |
Warranty / Certifications (UDG4-4999-WY)
| Approvals | cULus listed |
| Ingress Protection (IPxx) Rating | IP20 |
| Warranty | Limited 3-year warranty and lifetime technical support |
Warranty / Certifications (TRT120-2.7O5.0)
| Approvals | cULus listed |
| Warranty | 25 Year Warranty |
| Wet Location Listed | US, Canada |
Performance (TRT120-2.7O5.0)
| BTU Per Hour | 682 Btu |
Electrical (UDG4-4999-WY)
| Battery | 5-year battery backup of clock and calendar |
| Connection | 4 wires, double pole |
| Connection Method | Hardwired |
| Ground Fault Protection | GFCI, Class A, 5 mA |
| Ground Fault Protection (GFCI) | Class A, 5 mA |
| Maximum Current | 15 A |
| Maximum Load (Resistive Only) | 1800 W - 120 V, 15 A / 3600 W - 240 V, 15 A |
| Maximum Load (Resistive Only) | 15 A |
| Maximum Power | 1800 W @ 120 V, 3120 W @ 208 V, 3600 W @ 240 V |
| Supply | 120 VAC - 50/60Hz, 240 VAC - 50/60Hz |
Product Dimensions (TRT120-2.7O5.0)
| Cold Lead Length | 22′ |
| Coverage | 13.3 ft² |
| Drain Hole Diameter | 5″ |
| Heating Element Thickness | 1/8″ |
| Length | 5′ |
| Weight | 2.2 lbs |
| Width | 32″ |
Appearance (UDG4-4999-WY)
| Color | White |
Product Dimensions (UDG4-4999-WY)
| Depth | 2″ |
| Installed Depth | 0.75″ |
| Length | 5.125″ |
| Weight | 0.8 lbs |
| Width | 3.25″ |
Product Dimensions (SS-01)
| Depth | 2″ |
| Length | 2″ |
| Weight | 0.2 lbs |
| Width | 3″ |
Controls (UDG4-4999-WY)
| Display | Backlit Display |
| Display Size | 2″ W x 3″ H (3.5″ Diagonal) |
| Languages | English, French, Spanish |
Performance (SH-270077)
| Drain Assembly Pressure Rating | 780 psi |
Thermostat (UDG4-4999-WY)
| Floor Sensor Compatibility | 10k ohms, 12k ohms and custom |
| Included Floor Sensor | 10k ohms, 15' lead |
| Maximum Ambient Temperature Setting | 77 °F |
| Maximum Floor Temperature Setting | 104 °F |
| Minimum Ambient Temperature Setting | 32 °F |
| Minimum Floor Temperature Setting | 41 °F |
| Temperature Rise Limit in Laminate Floor Protection | ~10°F/hr (~5.58°C/hr) |
Installation (TRT120-2.7O5.0)
| Floor Types | Tile, Marble, Stone, Vinyl, LVT, LVP, Wood, Bamboo, Carpet, and more |
Construction (SH-271337)
| Grate Cover Steel Type | Stainless Steel |
Product Dimensions (SH-271337)
| Grate Size | 3.75” x 3.75” |
| Weight | 0.25 lbs |
Performance (SH-172094-108)
| Membrane Permeability | 0.07 perm |
Performance (SH-265414)
| Membrane Permeability | 0.07 perm |
Performance (SH-269603)
| Membrane Permeability | 0.07 perm |
Performance (SH-156278)
| Membrane Permeability | 0.07 perm |
Performance (SH-172097)
| Membrane Permeability | 0.07 perm |
Performance (SH-172098)
| Membrane Permeability | 0.07 perm |
Logistics (TRT120-2.7O5.0)
| Package Contents | (1) TempZone Shower Mat 120V 32″ x 60″ with Offset Drain Hole 13.3 Sq. Ft. 1.7A (TRT120-2.7O5.0); 1x Floor Heating Sensor (FH-BACKUP-SENSOR) |
| UNSPSC Code | 40101830 |
Identifiers (SH-203271)
| SKU | SH-203271 |
| UPC (GTIN-12) | 881308059774 |
Identifiers (SH-172094-108)
| SKU | SH-172094-108 |
| UPC (GTIN-12) | 857937008223 |
Identifiers (SH-265414)
| SKU | SH-265414 |
| UPC (GTIN-12) | 857937008186 |
Identifiers (SH-271796)
| SKU | SH-271796 |
| UPC (GTIN-12) | 857937008254 |
Identifiers (SH-191421)
| SKU | SH-191421 |
| UPC (GTIN-12) | 857937008230 |
Identifiers (SH-270077)
| SKU | SH-270077 |
| UPC (GTIN-12) | 881308060992 |
Identifiers (SH-269603)
| SKU | SH-269603 |
| UPC (GTIN-12) | 857937008117 |
Identifiers (SH-156278)
| SKU | SH-156278 |
| UPC (GTIN-12) | 857937008100 |
Identifiers (SH-271337)
| SKU | SH-271337 |
| UPC (GTIN-12) | 865705000232 |
Identifiers (UDG4-4999-WY)
| SKU | UDG4-4999-WY |
| UPC (GTIN-12) | 881308051228 |
Identifiers (SS-01)
| SKU | SS-01 |
| UPC (GTIN-12) | 881308010638 |
Identifiers (TRT120-2.7O5.0)
| SKU | TRT120-2.7O5.0 |
| UPC (GTIN-12) | 881308061227 |
Identifiers (SH-172097)
| SKU | SH-172097 |
| UPC (GTIN-12) | 857937008124 |
Identifiers (SH-172098)
| SKU | SH-172098 |
| UPC (GTIN-12) | 857937008131 |
Construction (SH-203271)
| Shower Pan Density | 3.5 lb/ft³ |
Warranty / Certifications (SS-01)
| Warranty | 10 Year Warranty under Laminate & Floating Hardwood, 5 Year under Carpet (US Only) |
Product Dimensions (SH-203271)
| Weight | 6 lbs |
Product Dimensions (SH-265414)
| Weight | 0.04 lbs |
Product Dimensions (SH-271796)
| Weight | 1 lbs |
Product Dimensions (SH-191421)
| Weight | 1.4 lbs |
Product Dimensions (SH-270077)
| Weight | 1.75 lbs |
Product Dimensions (SH-269603)
| Weight | 0.01 lbs |
Product Dimensions (SH-156278)
| Weight | 0.01 lbs |
Product Dimensions (SH-172097)
| Weight | 0.01 lbs |
Product Dimensions (SH-172098)
| Weight | 0.01 lbs |
