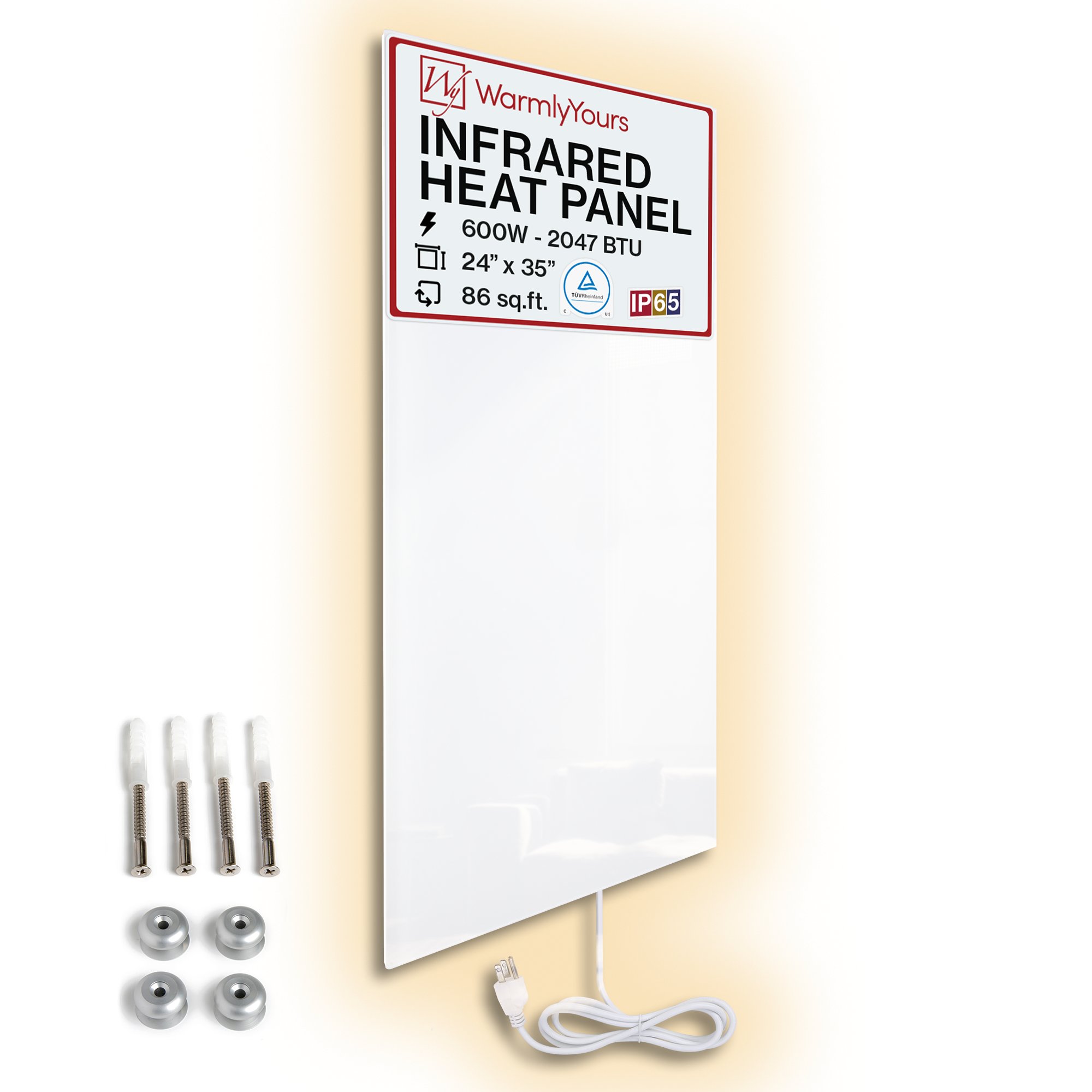

Ember Glass Radiant Panel Heater - White - 600W - 35ʺ x 24ʺ - Dual Connection
What Size Panel Do I Need?
A radiant heat panel is a great way to add supplemental heat to a room—not unlike a wall mounted space heater. The table below will help you identify the typical room size* that a radiant heat panel can help warm up, based on wattage/heat output.
| Radiant Panel Wattage* | Warming Coverage |
|---|---|
| 300W Ember | 43 sq. ft. |
| 500W Ember | 71 sq. ft. |
| 600W Ember (Glass Only) | 86 sq. ft. |
| 700W Ember | 100 sq. ft. |
| 800W Ember (Glass Only) | 114 sq. ft. |
*This estimation is based on installing a radiant panel in a typical/average room. One factor that will impact the actual results is a room's degree of heat loss, which can be impacted by a number of factors including ceiling height, number of windows, and insulation level.
To get a free Heat Loss Calculation based on your room:
Features
-
Wall mounted: this 35” x 24” infrared heating panel can be installed vertically or horizontally on your wall
-
High heat output: this panel heater delivers an impressive heat output of 2,046 BTUs per hour
-
Energy efficient: it only costs approximately 6 cents per hour on average to run this electric wall heater
-
Dual connection: can be hardwired to a thermostat or plug-in a standard outlet (120 VAC)
-
Covered by a 5-year limited warranty
Notices
Quebec Repairability Notice
Avis important pour les consommateurs du Québec:
WarmlyYours n’offre pas de services de réparation pour ce produit. Aucune pièce de rechange n’est disponible pour le panneau en verre ou en aluminium, l’élément chauffant, les supports de montage ou la connexion électrique. Si votre panneau Ember tombe en panne pendant la période de garantie, nous remplacerons l’unité complète conformément à notre politique de garantie. Notre équipe d’assistance technique est disponible 24h/24 et 7j/7 par téléphone pour toute aide à l’installation ou au dépannage. Pour plus de détails, consultez notre politique de retour. Cet avis est fourni conformément à la Loi sur la protection du consommateur du Québec, article 39 (telle qu’amendée en 2025).
Important Notice for Québec Consumers:
WarmlyYours does not provide repair services for this product. No replacement parts are available such as the glass or aluminum panel, heating element, mounting brackets, or wiring connection. If your Ember panel fails within the warranty period, we will replace the entire unit according to our warranty policy. Our technical support team is available 24/7 by phone for installation and troubleshooting assistance. For full details, see our Return Policy. This notice is provided in accordance with Québec’s Consumer Protection Act, section 39 (as amended in 2025).
Ember Glass Radiant Panels Description

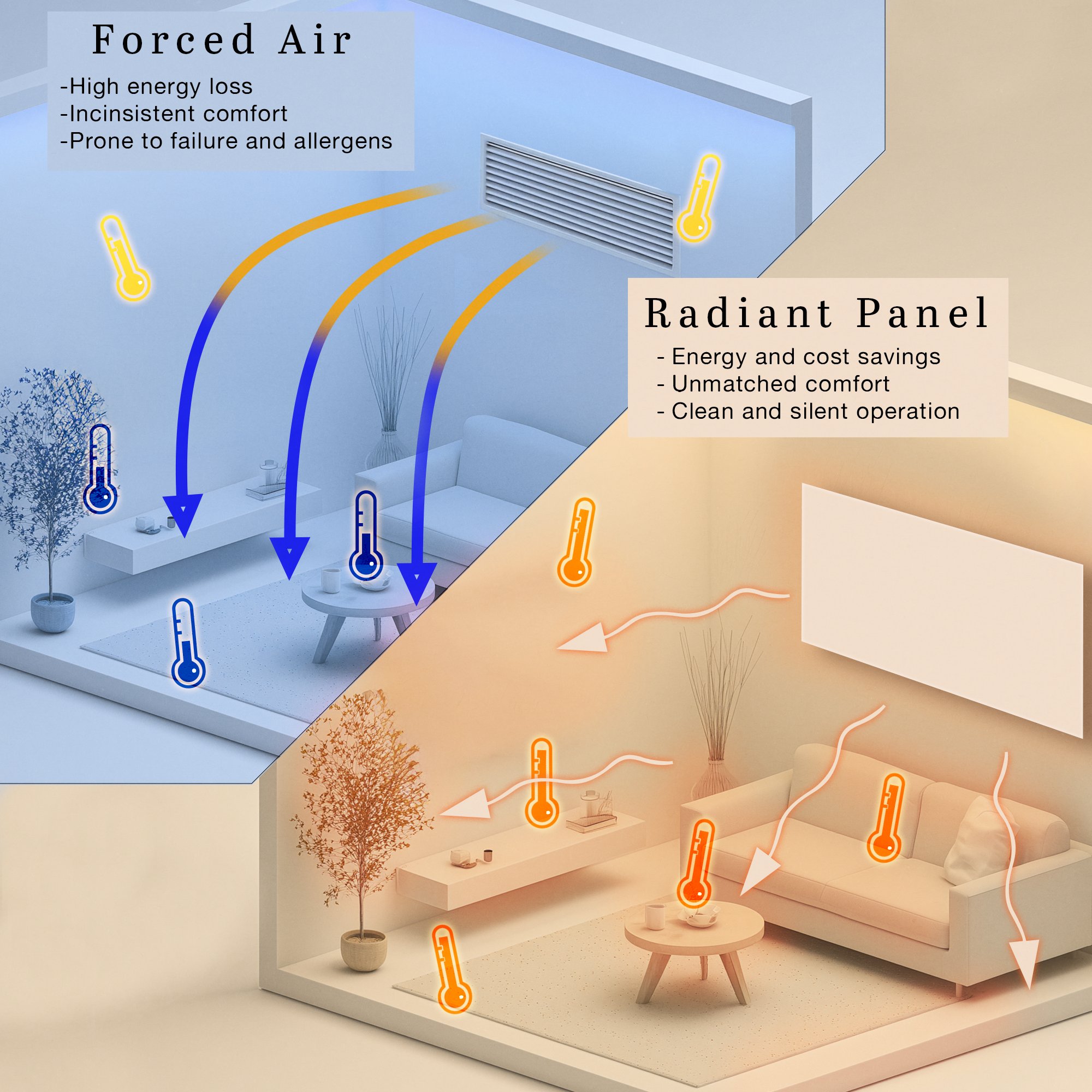

As the seasons change from summer to fall to winter, Ember radiant panels allow homeowners to retain the warmth of the sun – indoors. Like the sun, Ember radiant panels emit infrared waves to heat the surfaces and objects in a room instead of the air. By doing this, warmth is stored longer and released slowly and more evenly into the air. Additionally, the ambient air temperature might be cooler, but you will feel warmer. Without taking up much wall space, this 2.9- by 2-foot white Ember radiant panel can be mounted to any wall in a home to bring supplementary or primary heat to a room. Unlike convection heating, this panel does not circulate dust or other allergens into the air. Plus, it can be multi-functional. Use the Ember radiant panel to heat up a room, or attach towel bars to a vertically mounted unit to create a unique, stylish towel warmer.
These panels are also dual connection, meaning they can be used “as is” to plug into a standard 120 VAC outlet or they can be modified by a licensed electrician to have a hardwired 120 VAC electrical connection.
Note: Towel bars must be purchased separately.
Features:
- Wall Mounted: This 35” x 24” radiant panel comes with DIY-friendly plug-in connection (120 VAC) and can be installed vertically or horizontally on your wall
- Dual Connection: Can be hardwired to a thermostat or plug-in a standard outlet (120 VAC)
- High Heat Output: This infrared heating panel puts out 2,046 BTUs per hour
- Low Operating Cost: It only costs roughly $0.07 per hour to run this model (based on a national average electrical cost of 12 cents per kWh)
- Safe and Stylish: This radiant panel is not only more aesthetically pleasing than a propane space heater but it’s also safer
- 5-year Warranty: This product is covered by a 5-year limited warranty
Specifications
Electrical
| Amps | 5 A |
| Connection Method | Plug-in or Hardwired |
| Cord Length | 6′ |
| Ohms | 24 Ω |
| On/Off Switch | No |
| Plug-Type | NEMA 5-15 (Type B) |
| Thermal Power | 0.6 kW |
| Voltage | 120 V |
| Watts | 600 W |
Warranty / Certifications
| Approvals | cTUVus certified |
| Ingress Protection (IPxx) Rating | IP65 |
| RoHS Compliance | 2002/95/EC (RoHS 1) |
| Warranty | 5 years |
Performance
| Average Surface Temperature | 194 °F |
| BTU Per Hour | 2047 Btu |
| Heating Coverage | 86 ft² |
| Surface Safety Limit | 248 °F |
Product Dimensions
| Depth | 1.375″ |
| Depth with Towel Bar Accessory | 4.5″ |
| Height | 35.4″ |
| Length | 35.4″ |
| Weight | 30.8 lbs |
| Width | 23.6″ |
Appearance
| Finish | Glass White |
| Model | Ember Glass White - 35″ x 24″ |
| Size | 35″ x 24″ - 600W |
Installation
| Mounting Locations | Wall |
| Mounting Orientation | Horizontal or Vertical |
Identifiers
| SKU | IP-EM-GLS-WHT-0600 |
| UPC (GTIN-12) | 881308039172 |
Controls
A great control is the secret to any great heating system.
Accessories and Parts
Feel free to chat us if you have any questions about these items.
Documents
Installation
Wiring Diagrams
Warranties
Sell Sheets
Catalogs
Frequently Asked Questions
Radiant heat travels through air, and typically heats up objects closer to the panel first and then the rest of the room later. Infrared heating from the panel can be easily detected from about 3-4 feet. Ideally, the radiant panel should be aimed onto the area with more use, since that will be the surface that will warm up first.
Only the Ember Flex radiant panels can be mounted from the ceiling and they come with all of the necessary hardware to accomplish this.
None of the radiant panel heaters from the Ember Glass or Ember Mirror lines can be mounted from the ceiling.
Sunrooms can be very cold during the winter months. While a furnace may push some warm air into the room, the large number of windows, exterior walls, and other causes of heat loss in a sunroom will typically keep it from having a comfortable temperature level. Floor heating and radiant panels will add radiant heat, which the human body absorbs faster than other forms of heat, to the room so that it feels warm even at lower temperatures.
The startup heating time for this infrared heating system is approximately 5 to 10 minutes. However, your room will not feel warmer immediately because the cold objects in the room (furniture, walls, ceilings, floors, etc.) need to warm up first. Once these surfaces are heated via infrared heating, the warmth will spread throughout the room.
