Plug-in Conversion Kit with GFEP for Self-Regulating Heating Cable (Includes End-Seal Kit)

Need help? Call our experts at 800-875-5285
Support Page

Ice Shield: Self-Regulating Roof and Gutter Deicing Systems Description

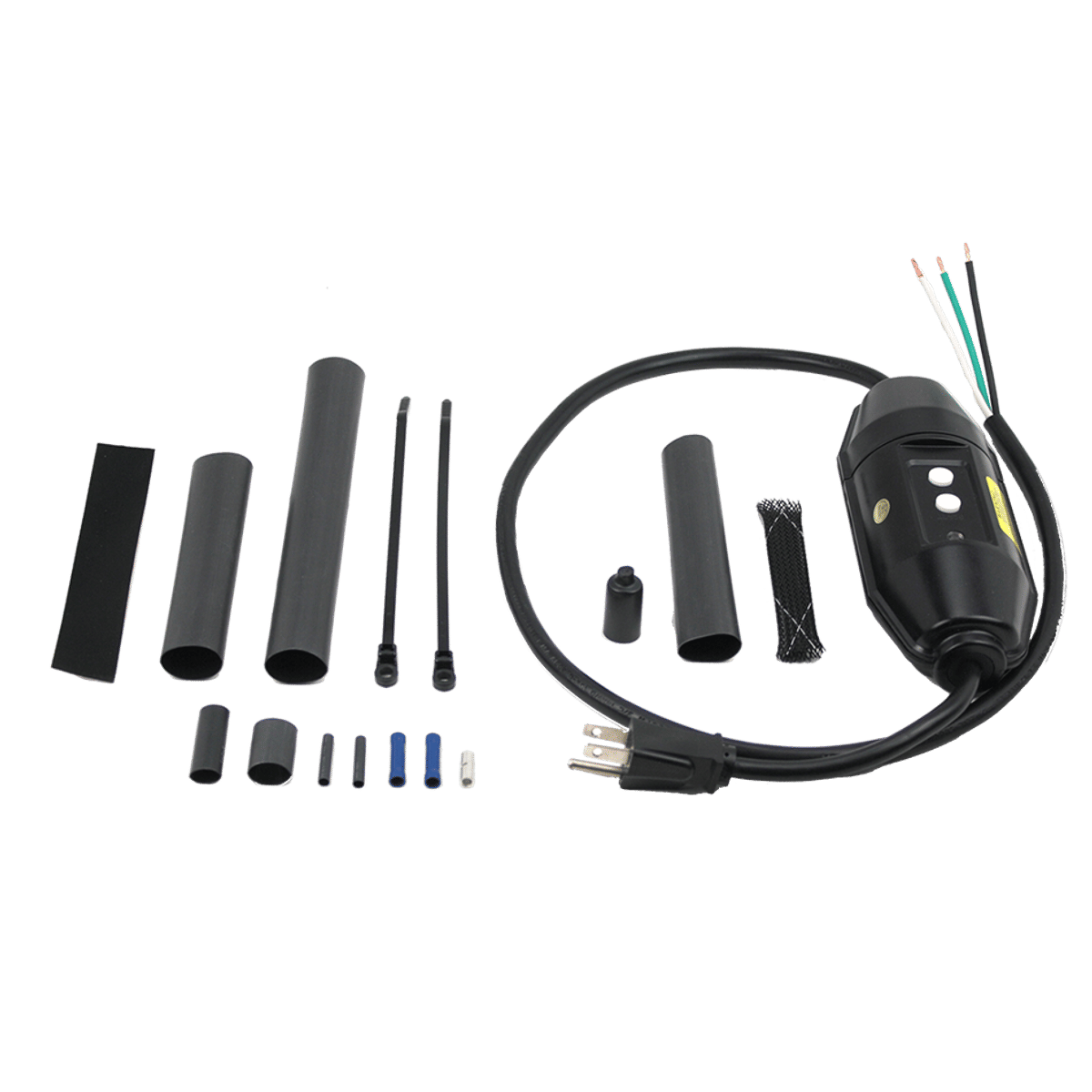

The SR-PLUG-KIT Plug-in Conversion Kit with Ground Fault Equipment Protection (GFEP) for Self-Regulating Heating Cable (part #JSR08) includes materials to facilitate plug-in installation for self-regulating (otherwise hardwired) roof & gutter de-icing or pipe freeze protection systems. This kit provides ground-fault protection and is cULus Listed for 120V (only) ET-SR or PT-SR series cables. An end-termination kit is included. One required for each individual run of cable.

Specifications

Warranty / Certifications

Approvals cULus listed

Product Dimensions

Length 9″
Weight 0.2 lbs
Width 7″

Electrical

Maximum Cable Length 140′
Maximum Load (Resistive Only) 15 A
Voltage 120 V

Identifiers

SKU SR-PLUG-KIT
UPC (GTIN-12) 881308056063

Frequently Asked Questions

Electric-resistance heating cables and systems have no polarity. This includes all current WarmlyYours heating elements.

14 people found this helpful.  Did you find this helpful? Yes No

Our self-regulating heating product is designed to be cut to length at the jobsite by an installer where it can then be end-capped with accessories (sold separately).
However, our constant wattage kits contain heating elements that cannot be shortened or altered in any way.

12 people found this helpful.  Did you find this helpful? Yes No

GFEP is the National Electric Code (NEC) required protection for fixed outdoor deicing and snow-melting equipment, which may be accomplished by using circuit breakers equipped with ground-fault equipment protection (GFEP) of 30 mA. It is important to understand that this required equipment protection is NOT the same as a 5 mA GFCI used for personal protection.

10 people found this helpful.  Did you find this helpful? Yes No

We do not recommend leaving the cable on all year long. It's an unnecessary use of energy to run the cable during warm weather and it could actually cause the heating cables to overheat if they're left on during very warm weather.

7 people found this helpful.  Did you find this helpful? Yes No

 Cable length needed depends on the sizes and areas of the roof that need to be deiced (roof with gutter, downspouts, valleys, and/or dormers). Our best recommendation is for you to give us a call (1-800-875-5285) and we can help you identify what measurements will need to be taken. Alternatively, you can
measure the dimensions of the aforementioned areas and refer to the installation manual to get an idea of how much cable you'll need.

6 people found this helpful.  Did you find this helpful? Yes No
