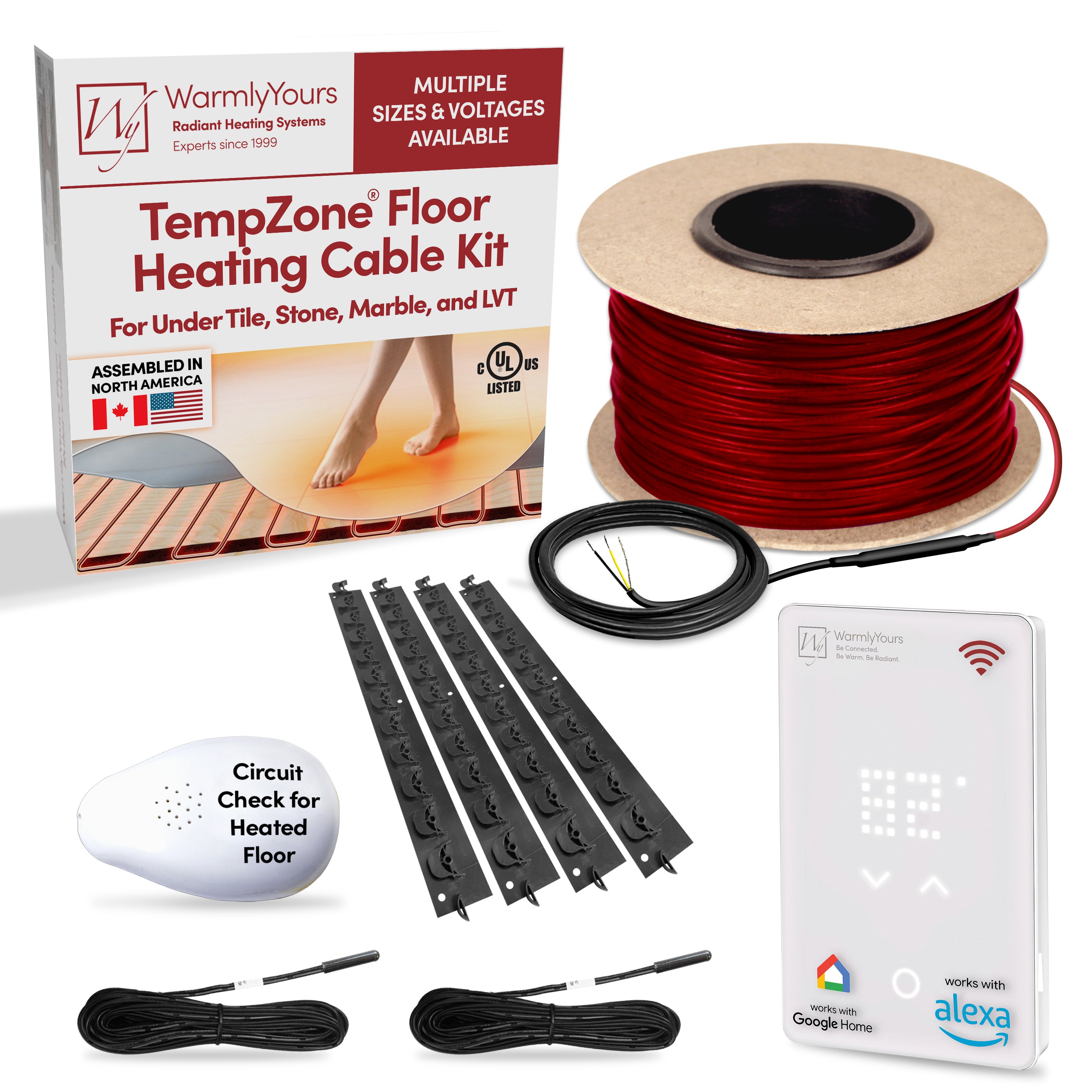

TempZone Cable Kit 95 ft (31.7 sqft @ 4 in spacing) with nJoy WiFi LED Touch Programmable Thermostat, 240V, 3.7/ft, 1.53A




Request a Free Product Sample
Support Page

TempZone Cable Kits with Fixing Strips and nJoy WiFi Thermostat Description

Specifications

Electrical (TCT240-3.7W-095)

Amps 1.53 A
Cold Lead Wire Gauge 17 AWG
Floor Load 0.37 kW
Ohms 156.4444 Ω
Ohms Per Ft 1.647 Ohm/ft
Thermal Power 0.37 kW
Voltage 240 V
Watts 368 W
Watts Per Sq. Ft at 3.75 Inch Spacing Up to 12
Watts Per Sq. Ft. 9 to 15
Watts Per Sq. Ft. at 3 Inch Spacing Up to 15
Watts Per Sq. Ft. at 4 Inch Spacing Up to 11
Watts Per Sq. Ft. at 5 Inch Spacing Up to 9

Controls (UWG5-4999-WY)

App Languages English, French, Spanish

Warranty / Certifications (TCT240-3.7W-095)

Approvals cULus listed
Warranty 25 Year Warranty
Wet Location Listed US, Canada

Warranty / Certifications (UWG5-4999-WY)

Approvals cULus listed
FCC ID XPYNINAW106
Hardware Version Identification Number (HVIN) NINA-W156
IC Certification Number 8595A-NINAW106
Ingress Protection (IPxx) Rating IP20
Warranty Limited 3-year warranty and lifetime technical support

Performance (TCT240-3.7W-095)

BTU Per Hour 1256 Btu

Electrical (UWG5-4999-WY)

Battery 5 year battery backup of clock and calendar
Connection 4 wires, double pole
Connection Method Hardwired
Ground Fault Protection GFCI, Class A, 5 mA
Maximum Current 15 A
Maximum Power 1800 W @ 120 V, 3120 W @ 208 V, 3600 W @ 240 V
Supply 120 VAC, 208 VAC, 240 VAC (50/60Hz)

Connectivity (UWG5-4999-WY)

Bluetooth® Version 4.2 (BDR/EDR/BLE)
Security TLS 1.3
Wi-Fi IEEE Standards 802.11 b/g/n
Wi-Fi Radio Frequency Bands 2.4 GHz
WiFi Encryption WPA, WPA2, WPA3
Works with Hey Google or Amazon Alexa

Product Dimensions (TCT240-3.7W-095)

Cold Lead Length 15′
Coverage 31.7 ft²
Coverage at 3 Inch Spacing 23.8 ft²
Coverage at 3.5 Inch Spacing 27.7 ft²
Coverage at 3.75 Inch Spacing 29.7 ft²
Coverage at 4 Inch Spacing 31.7 ft²
Coverage at 5 Inch Spacing 39.6 ft²
Heating Element Thickness 3/16″
Length 95′
Weight 4 lbs

Appearance (TCT240-3.7W-095)

Color Red

Appearance (UWG5-4999-WY)

Color White Acrylic
Display LED Light Through

Product Dimensions (UWG5-4999-WY)

Depth 1.73″
Installed Depth 0.46″
Length 4.98″
Weight 0.4 lbs
Width 3.09″

Installation (TCT240-3.7W-095)

Fixing Strips at 3 inch spacing 30
Fixing Strips at 4 inch spacing 30
Fixing Strips at 5 inch spacing 40
Floor Types Tile, Marble, Stone, Vinyl, LVT, LVP, Wood, Bamboo, Carpet, and more
Ideal Cable Spacing with Competitor's Membrane 3.5″
Ideal Cable Spacing with Fixing Strips 4″
Ideal Cable Spacing with Prodeso Membrane 3.75″

Thermostat (UWG5-4999-WY)

Floor Sensor Compatibility 10k ohms, 12k ohms and custom
Includes Floor Sensor 10k ohms, 15′ lead
Maximum Ambient Temperature Setting 77 °F
Maximum Floor Temperature Setting 104 °F
Minimum Ambient Temperature Setting 32 °F
Minimum Floor Temperature Setting 41 °F

Logistics (TCT240-3.7W-095)

Package Contents (1) TempZone Floor Heating Cable 240V 3.7W/ft 95 ft 1.5A (TCT240-3.7W-095); 1x Floor Heating Sensor (FH-BACKUP-SENSOR)
UNSPSC Code 40101830

Identifiers (TCT240-3.7W-095)

SKU TCT240-3.7W-095
UPC (GTIN-12) 881308049126

Identifiers (UWG5-4999-WY)

SKU UWG5-4999-WY
UPC (GTIN-12) 881308076771
