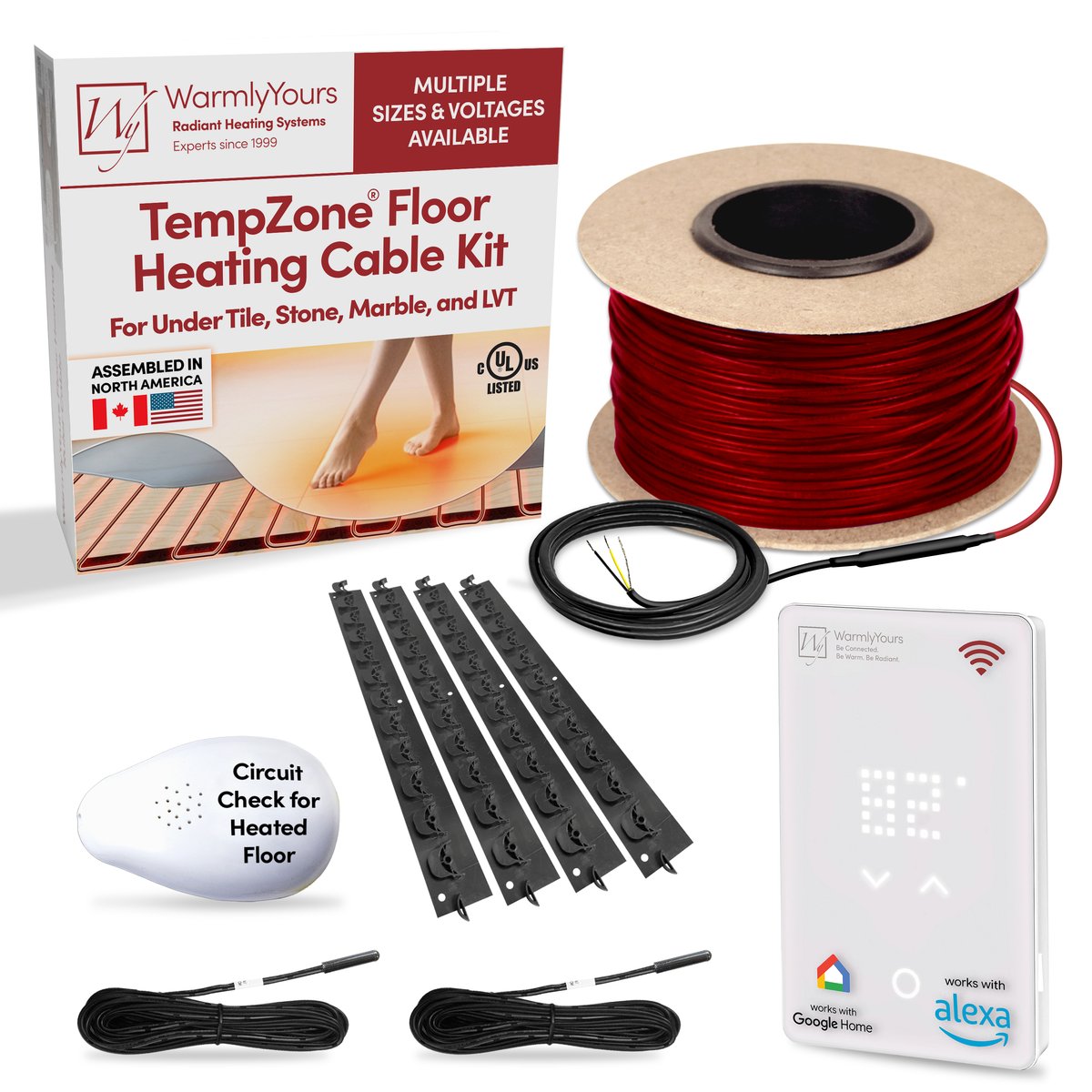

TempZone Cable Kit 355 ft (118.3 sqft @ 4 in spacing) with nJoy WiFi LED Touch Programmable Thermostat, 240V, 3.7/ft, 5.53A
TempZone Cable Kits with Fixing Strips and nJoy WiFi Thermostat Description
Specifications
Electrical (TCT240-3.7W-355)
| Amps | 5.53 A |
| Cold Lead Wire Gauge | 17 AWG |
| Floor Load | 1.33 kW |
| Ohms | 43.438 Ω |
| Ohms Per Ft | 0.122 Ohm/ft |
| Thermal Power | 1.33 kW |
| Voltage | 240 V |
| Watts | 1326 W |
| Watts Per Sq. Ft at 3.75 Inch Spacing | Up to 12 |
| Watts Per Sq. Ft. | 9 to 15 |
| Watts Per Sq. Ft. at 3 Inch Spacing | Up to 15 |
| Watts Per Sq. Ft. at 4 Inch Spacing | Up to 11 |
| Watts Per Sq. Ft. at 5 Inch Spacing | Up to 9 |
Controls (UWG5-4999-WY)
| App Languages | English, French, Spanish |
Warranty / Certifications (TCT240-3.7W-355)
| Approvals | cULus listed |
| Warranty | 25 Year Warranty |
| Wet Location Listed | US, Canada |
Warranty / Certifications (UWG5-4999-WY)
Performance (TCT240-3.7W-355)
| BTU Per Hour | 4524 Btu |
Electrical (UWG5-4999-WY)
| Battery | 5 year battery backup of clock and calendar |
| Connection | 4 wires, double pole |
| Connection Method | Hardwired |
| Ground Fault Protection | GFCI, Class A, 5 mA |
| Maximum Current | 15 A |
| Maximum Power | 1800 W @ 120 V, 3120 W @ 208 V, 3600 W @ 240 V |
| Supply | 120 VAC, 208 VAC, 240 VAC (50/60Hz) |
Connectivity (UWG5-4999-WY)
| Bluetooth® | Version 4.2 (BDR/EDR/BLE) |
| Security | TLS 1.3 |
| Wi-Fi IEEE Standards | 802.11 b/g/n |
| Wi-Fi Radio Frequency Bands | 2.4 GHz |
| WiFi Encryption | WPA, WPA2, WPA3 |
| Works with | Hey Google or Amazon Alexa |
Product Dimensions (TCT240-3.7W-355)
| Cold Lead Length | 15′ |
| Coverage | 118.3 ft² |
| Coverage at 3 Inch Spacing | 88.8 ft² |
| Coverage at 3.5 Inch Spacing | 103.5 ft² |
| Coverage at 3.75 Inch Spacing | 110.9 ft² |
| Coverage at 4 Inch Spacing | 118.3 ft² |
| Coverage at 5 Inch Spacing | 147.9 ft² |
| Heating Element Thickness | 3/16″ |
| Length | 355′ |
| Weight | 10.4 lbs |
Appearance (TCT240-3.7W-355)
| Color | Red |
Appearance (UWG5-4999-WY)
| Color | White Acrylic |
| Display | LED Light Through |
Product Dimensions (UWG5-4999-WY)
| Depth | 1.73″ |
| Installed Depth | 0.46″ |
| Length | 4.98″ |
| Weight | 0.4 lbs |
| Width | 3.09″ |
Installation (TCT240-3.7W-355)
Thermostat (UWG5-4999-WY)
| Floor Sensor Compatibility | 10k ohms, 12k ohms and custom |
| Includes Floor Sensor | 10k ohms, 15′ lead |
| Maximum Ambient Temperature Setting | 77 °F |
| Maximum Floor Temperature Setting | 104 °F |
| Minimum Ambient Temperature Setting | 32 °F |
| Minimum Floor Temperature Setting | 41 °F |
Logistics (TCT240-3.7W-355)
| Package Contents | (1) TempZone Floor Heating Cable 240V 3.7W/ft 355 ft 5.5A (TCT240-3.7W-355); 1x Floor Heating Sensor (FH-BACKUP-SENSOR) |
| UNSPSC Code | 40101830 |
Identifiers (TCT240-3.7W-355)
| SKU | TCT240-3.7W-355 |
| UPC (GTIN-12) | 881308049195 |
Identifiers (UWG5-4999-WY)
| SKU | UWG5-4999-WY |
| UPC (GTIN-12) | 881308076771 |
Documents
Installation
- Connecting the nJoy Thermostat with a Mobile Device (English)
- Setting Up the nJoy UWG5-4999 without an App (English)
- nJoy Startup Guide UWG5-4999-WY (English, French)
- nJoy Startup Guide UWG5-4999-WY (English, Spanish)
Operation Manuals
- nJoy WiFi LED Touch Thermostat User Manual (English)
- nJoy WiFi LED Touch Thermostat User Manual (French)
- nJoy WiFi LED Touch Thermostat User Manual (Spanish)
Project Planners
Wiring Diagrams
Frequently Asked Questions
Showing all 5 questions
Our electric radiant floor heating systems have withstood rigorous safety testing and earned the UL listing. They produce much less EMF than common household appliances like your TV or vacuum cleaner. The EPRI (Electric Power Research Institute) tests all electrical devices and publishes the data. Many common household appliances are tested at a distance of 6 inches. The test results indicate that on average, the EMF emitted for the following appliances, measured in Milligauss (mG) units, is:
Vacuum Cleaner: 300 mG
Microwave: 200 mG
Portable Heater: 100 mG
Dishwasher: 20 mG
Washing Machine: 20 mG
WarmlyYours TempZone™ (Twin): 1.8 mG
Since most Luxury Vinyl Tile (LVT) manufacturer's set a maximum temperature for radiant floor heating, the system should have little to no effect on the rubber/cork backing.
Pre-attached backing can act as an insulating layer though, meaning it can prevent the radiant heating from efficiently directing heat up through the floor. Please check with the manufacturer for the r-value of the product. Look for an assembled plank with an r-value of less than 1. The lower the r-value, the better!
The breaker and wire sizes are selected based on the total amperage of the WarmlyYours heating system connected to a single thermostat. This information is on the WarmlyYours heating system's installation plan, electrical plan, or UL label. Based on guidelines from the National Electrical Code: loads up to 16 Amps may utilize 12 gauge wire with a 20-Amp breaker, and loads up to 12 Amps - 14 gauge wire with a 15-Amp breaker. Local code and/or other factors may change these guidelines.
