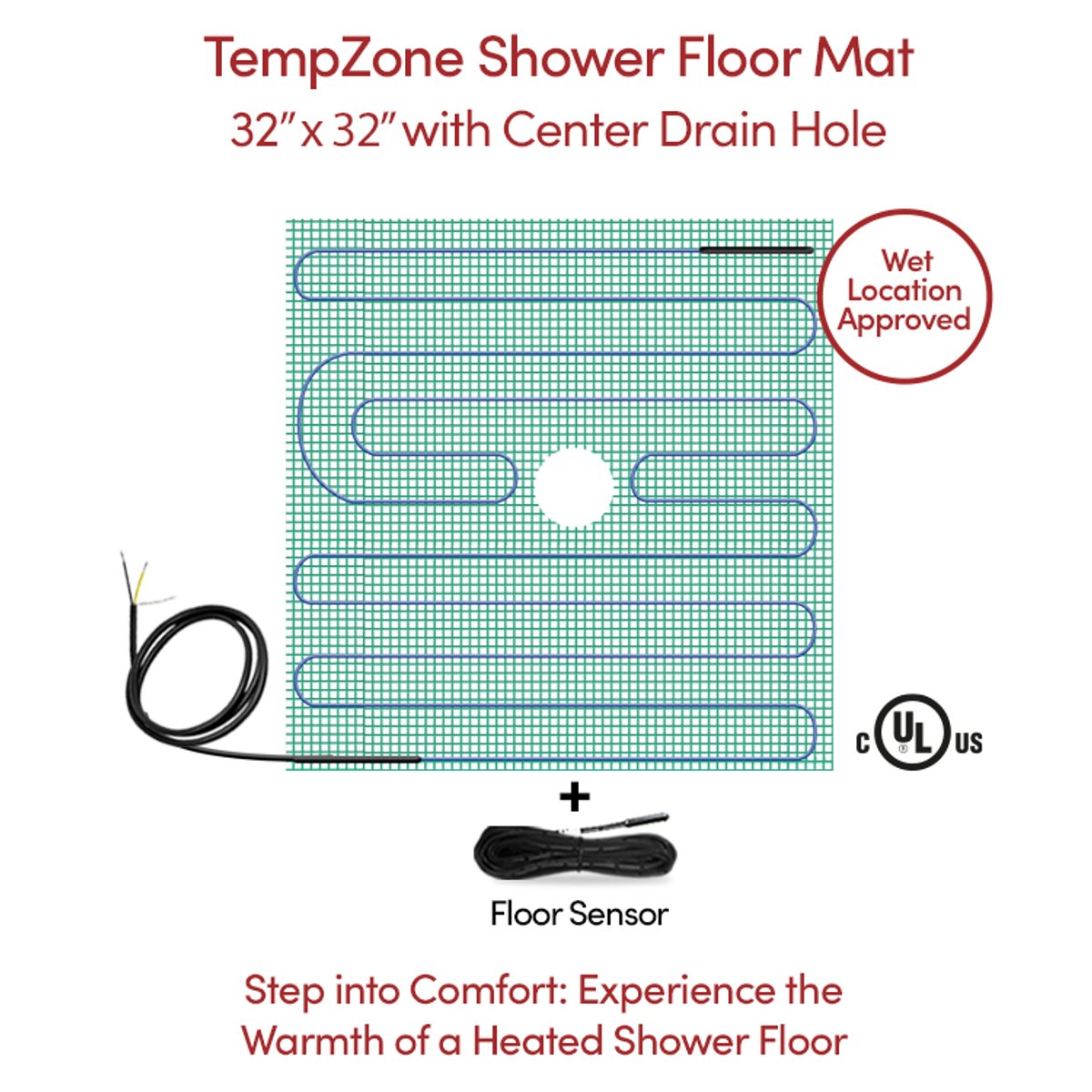

TempZone™ Shower Mat 120V 32″ x 32″ with Center Drain Hole, 7.1 Sq. Ft., 0.9A


TempZone™ Shower Mat 120V 32″ x 32″ with Center Drain Hole, 7.1 Sq. Ft., 0.9A




Get an Instant Quote
Support Page

Features

  • 25 Year Warranty

  • 15 Watts Per Sq. Ft

  • 1/8'' Super thin rolls or mats to fit any room shape

TempZone™ Shower Floor Mats Description

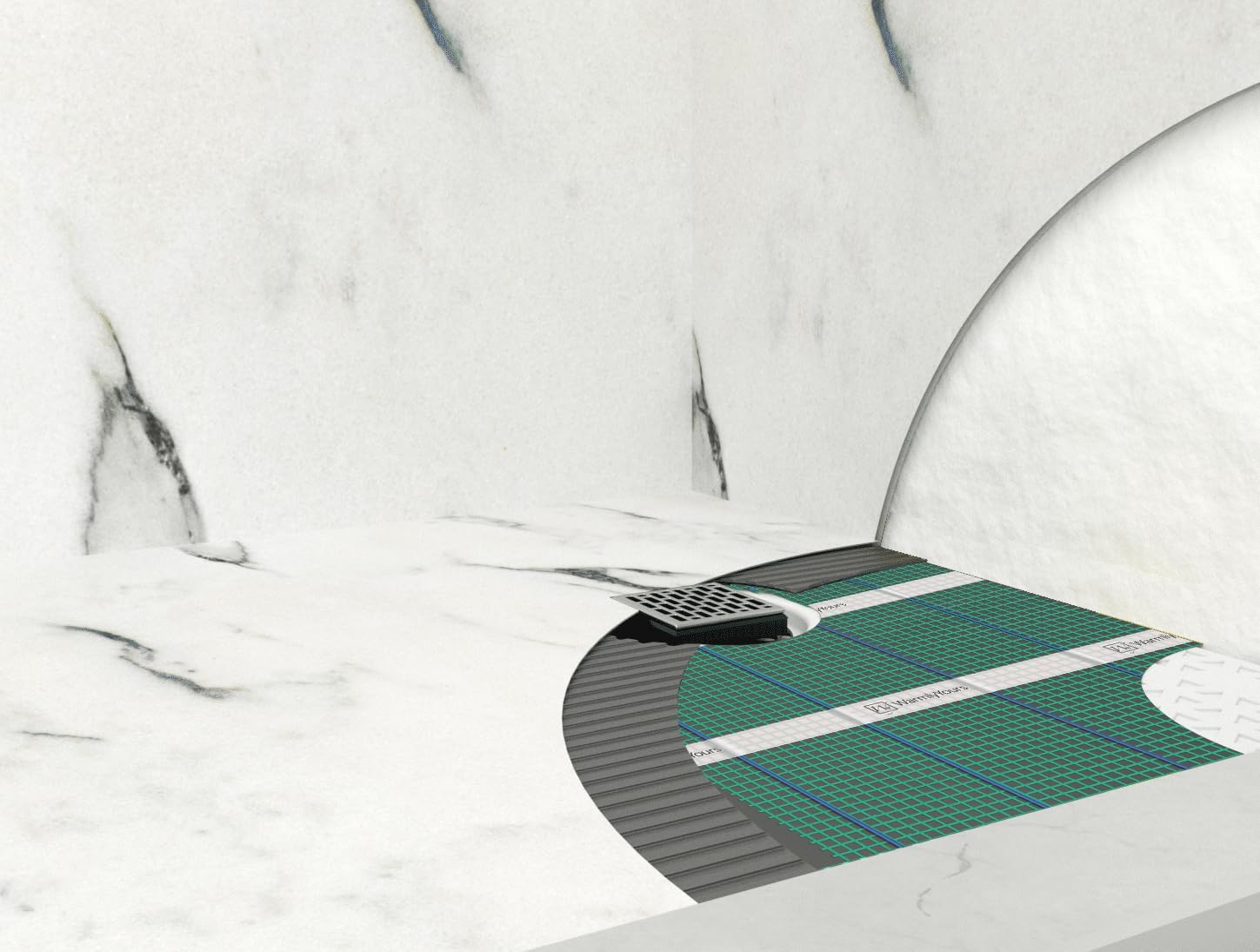

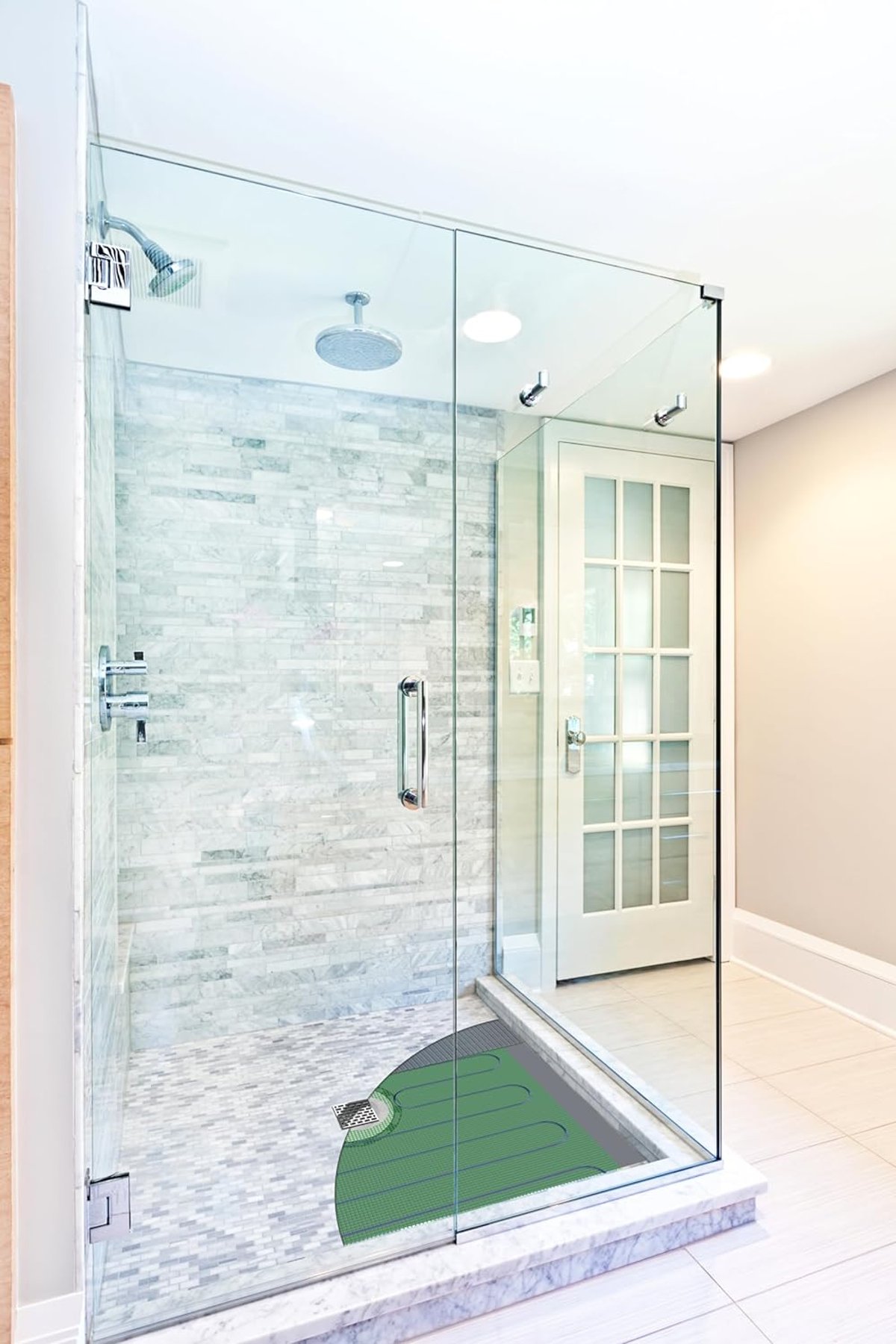

The TempZone™ Shower Floor Mats ensure that your first step into your shower is a warm and soothing experience. Engineered to cover traditional shower floors, these mats are designed for use in wet locations and feature a wire-free drain for fast and easy installation under tile and stone surfaces. The 120V 32" X 32"TempZone™ Shower Floor Mats generate 15 watts per sq. ft. to provide 7.1 sq. ft. of heating coverage. UL Listed, they include a heating cable 1/8 in. thick and a 14AWG cold lead. WarmlyYours backs all our shower floor mats, and our entire TempZone™ line, with a 25-year No Nonsense™ Warranty covering parts and labor.

Specifications

Electrical

Amps 0.89 A
Floor Load 0.11 kW
Ohms 135.084 Ω
Ohms Per Ft 50.656 Ohm/ft
Thermal Power 0.11 kW
Voltage 120 V
Watts 107 W
Watts Per Sq. Ft. 15 Watts Per Sq. Ft.

Warranty / Certifications

Approvals cULus listed
Warranty 25 Year Warranty
Wet Location Listed US, Canada

Performance

BTU Per Hour 365 Btu

Product Dimensions

Cold Lead Length 22′
Coverage 7.11 ft²
Drain Hole Diameter 5″
Heating Element Thickness 1/8″
Length 2′ 8″
Weight 1.9 lbs
Width 2′ 8″

Logistics

Country of Origin (COO) India

Installation

Floor Types Tile, Marble, Stone, Vinyl, LVT, LVP, Wood, Bamboo, Carpet, and more

Identifiers

SKU TRT120-2.7x2.7
UPC (GTIN-12) 881308022051

Customer Questions & Answers

TempZone™ Shower Floor Mats has 69 Questions and Answers.

Don't see the answer you're looking for? Post your question

How do I work with my electrician to install WarmlyYours electric floor heating?

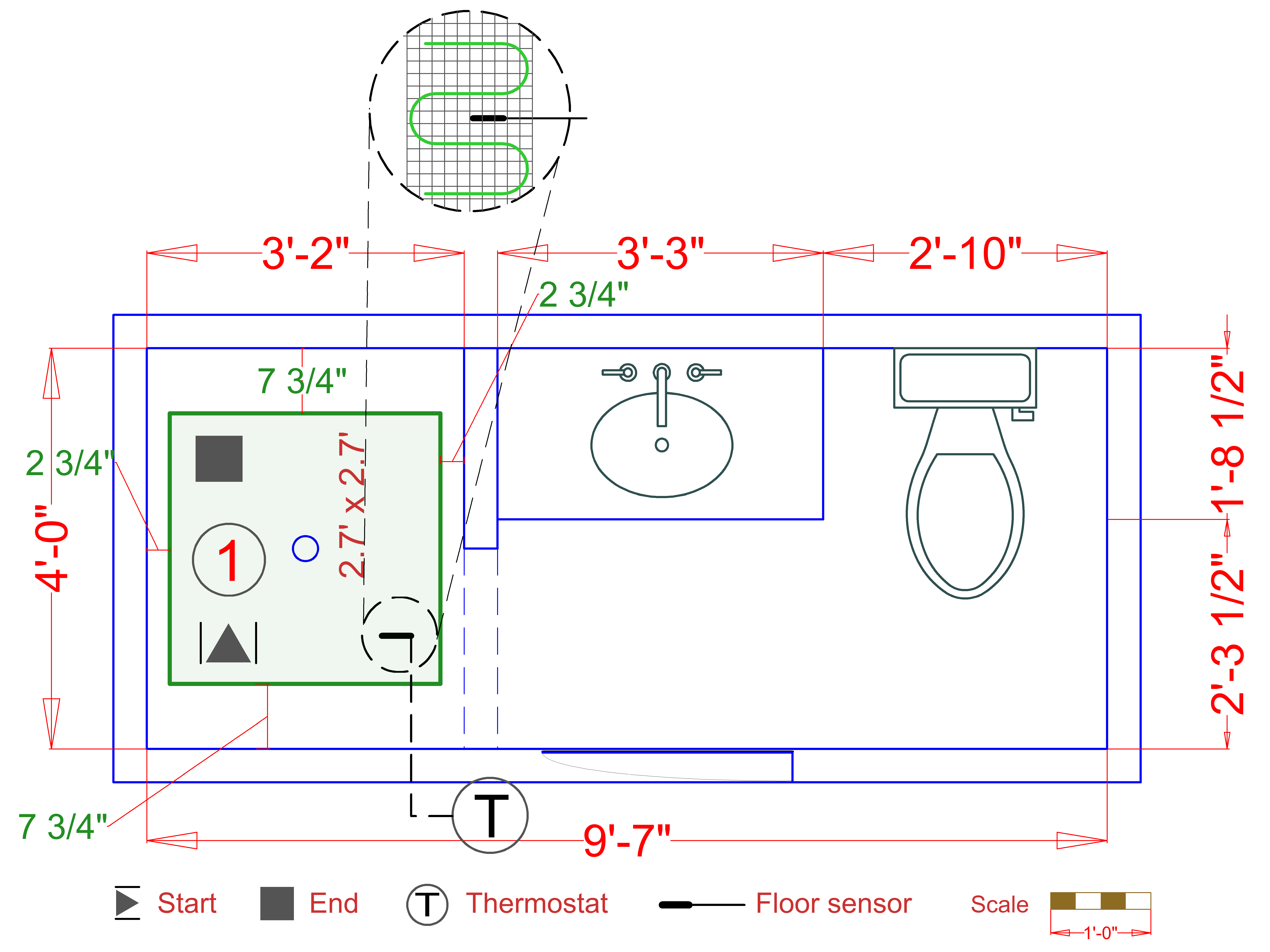

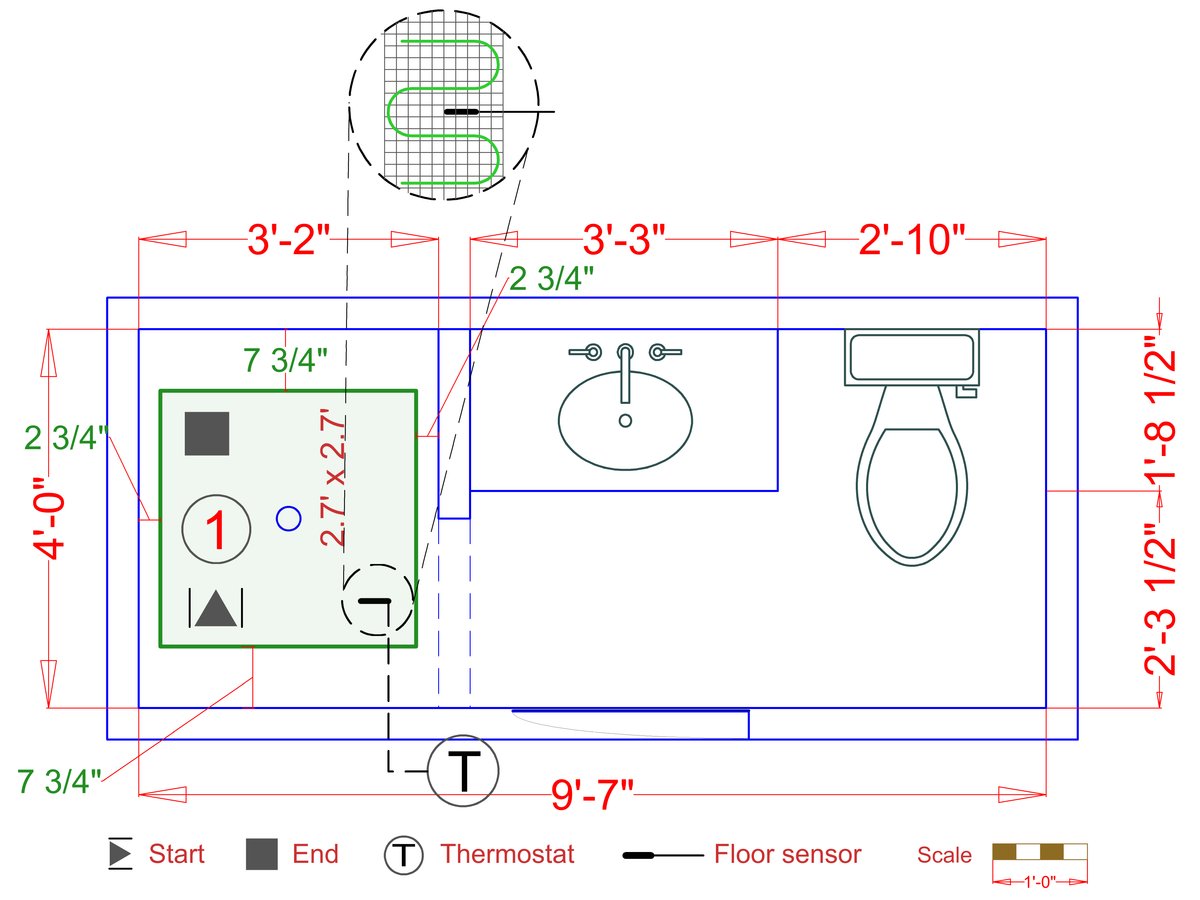

While WarmlyYours electric radiant floor heating systems are typically installed by your floor covering contractor, a licensed electrician is recommended for the final thermostat hook-up. With every quote, we provide an Installation Plan layout, together with an electrical plan that has all the info required for the electrician.

35 people found this helpful.  Did you find this helpful? Yes No

How can I determine what I need for my floor heating project and how can I find out what my floor heating system will cost?

You can use the Instant Quote Tool, which gives you many options for your floor heating coverage. Use this interactive tool to design your room online and receive an instant quotation with product recommendations, rough-in and installation kits, cost of your control, etc. Planning your floor heating project is made easy when using our Instant Quote Tool.

Send us your floor plan or fax it to (800) 408-1100 and we will send you a quote, product recommendation and a free custom installation plan for your project.

29 people found this helpful.  Did you find this helpful? Yes No

Is electric floor heating safe and what about EMF?

Our electric radiant floor heating systems have withstood rigorous safety testing and earned the UL listing. They produce much less EMF than common household appliances like your TV or vacuum cleaner. The EPRI (Electric Power Research Institute) tests all electrical devices and publishes the data. Many common household appliances are tested at a distance of 6 inches. The test results indicate that on average, the EMF emitted for the following appliances, measured in Milligauss (mG) units, is:

Vacuum Cleaner: 300 mG

Microwave: 200 mG

Portable Heater: 100 mG

Dishwasher: 20 mG

Washing Machine: 20 mG

WarmlyYours TempZone™ (Twin): 1.8 mG

27 people found this helpful.  Did you find this helpful? Yes No

What voltage does WarmlyYours floor heating systems utilize?

The floor heating systems are offered in both 120 volt and 240 volt for the North American market. A 208 volt breaker panel can also accommodate our 240 volt floor heating system. It is important to note that the energy consumption will be the same: a 240 volt system will not cost more to operate than a 120 volt system. You are billed in kilowatts, and the 120 volt and 240 volt systems use the same amount of kilowatts. WarmlyYours often specifies a 120 volt system in smaller projects while a 240 volt system is typically recommended for larger projects (120 square feet of electric floor heating coverage or more). The benefit of switching to a 240 volt system is the reduction in amperage. Our programmable thermostat can control a radiant floor system up to 15 amps. The 120 volt system will reach 15 amps at 120 square feet of electric floor heating coverage. However, the 240 volt system will reach 15 amps at 240 square feet of electric floor heating coverage, allowing a much larger system to be connected to the thermostat. For installations over 240 square feet, a relay contactor or power modules are needed.

22 people found this helpful.  Did you find this helpful? Yes No

What type of flooring can I install along with an electric floor heating system?

WarmlyYours’ TempZone™ product is most commonly installed under tile, stone, and marble flooring, but can also be installed under many other popular floor covering options such as hardwood, vinyl and linoleum. We also have our Environ system, which is an electric floor heating product as well and is specially designed for installation under carpet (in the U.S. only), laminate and floating wood. WarmlyYours can accommodate any flooring type with either of the electric radiant floor heating products that we offer. If your flooring type isn't listed here, just give us a call at (800) 875-5285 and we will be happy to discuss it with you.

24 people found this helpful.  Did you find this helpful? Yes No

View all 69 Questions and Answers

Customer Reviews

TempZone™ Shower Floor Mats achieved an average rating of 4.5 stars with 4 reviews by our customers.

Have you used this product before? Leave a review

Seat warmer

Anonymous, Columbia, MD on 02/15/2021

This product was installed in a shower. Unfortunately, it only seems to hear half of the seat!

Amazing product and customer service top of the Line. I love this company. very professional

Brother G., Lafayette, CO on 02/15/2021

I will definitely be using WarmlyYours in the on the next project The bench warmer only uses 40 watts and gets to 108 degrees, very toasty!

Easy install, would buy again no problem

Gregory T., Oshawa, ON on 11/19/2020

Easy install, would buy again no problem

The Warmly Yours Heating element is a superior quality produc

Coastal I., Huntington, NY on 09/04/2012

The WarmlyYours Heating element is a superior quality product. Ordering is expedited, especially when utilizing the services of our Sales Supervisor Matthew Caruso, a real credit to the WarmlyYours organization. Delivery is always on time or ahead of schedule. The products always arrvie properly packaged and contain all of the necessary parts and instructions. Most of all, our clients only see the ease of use and a product that completely does what its advertised to do.

View all customer reviews
