For homeowners in the snow-belt of Elmhurst, Illinois, the winter challenge of constant shoveling and salting was eliminated with the installation of a comprehensive, custom-designed radiant heating system. WarmlyYours's heavy-duty Snow Melt PowerMats were embedded directly into the new concrete driveway and walkway, providing an efficient and reliable way to maintain clear, slip-free surfaces. This solution not only delivers year-round comfort and safety but also significantly increases the home's value and curb appeal, proving that luxury and practicality can go hand-in-hand.
Project Details
- Location: Elmhurst, Illinois
- Heated Space Type: Full Driveway and Walkway (Outdoor Snow Melting)
- Square Footage (Heated): 430 sq. ft.
- Flooring/Surface Type: New Concrete (Installation in new pour)
- System Power: 21,518 Watts (21.52 kW), 240 Volts, 90 Amps
- Operating Cost Per Hour: $3.63
- Cost Calculation: Based on the average residential electricity rate in Elmhurst, IL, of 14.44 cents per kWh (as of November 2025).
- Hourly Cost: 21.52 kW$0.1444kWh approx $3.11
- Daily Breakdown (8 hours of operation): $3.63/hour times 8 hours approx $29.04 day
- Monthly Breakdown (10 days of operation/month): $29.04/times 10 approx $290.40/month
Automated Winter Comfort and Safety

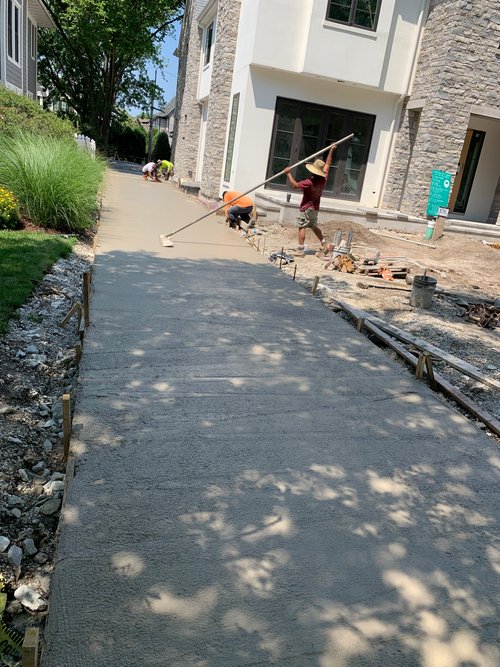

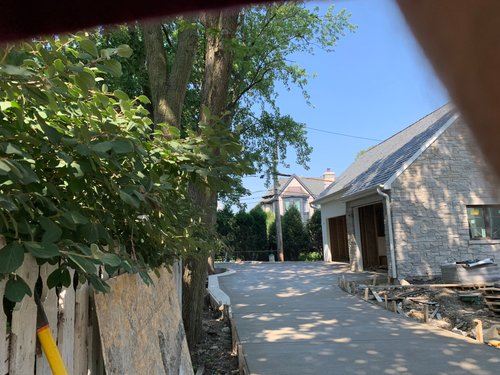

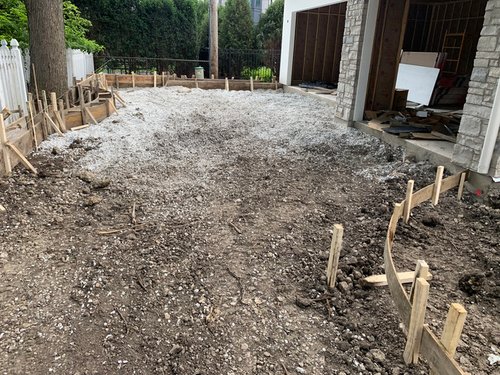

The Elmhurst home, situated in an area prone to significant snowfall, was undergoing a complete driveway and walkway replacement. The homeowners saw this as the perfect opportunity to implement a permanent, hassle-free snow removal solution. The constant need for timely shoveling and the risk of icy slips were major concerns they wanted to eliminate.

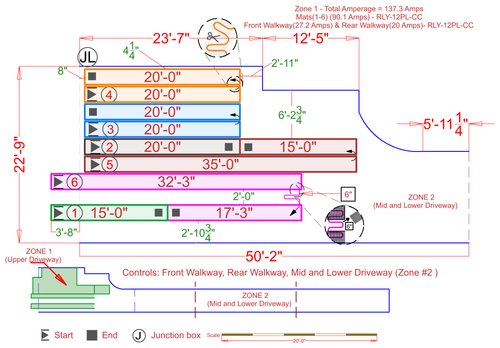

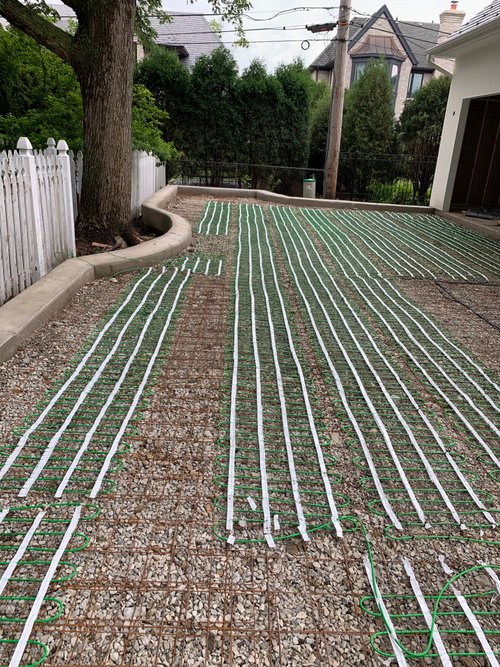

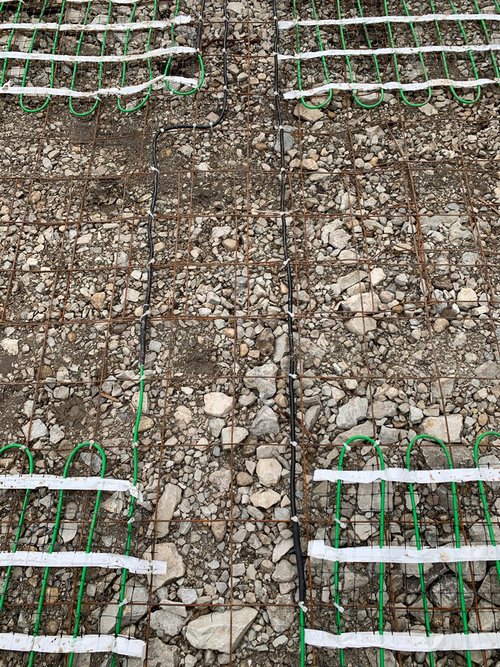

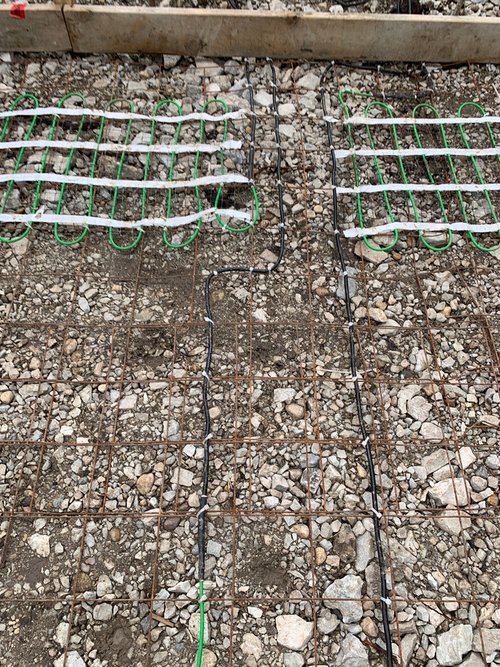

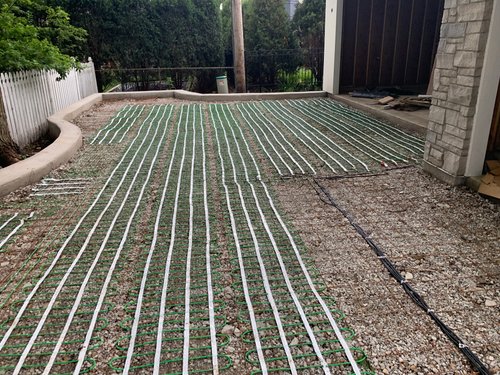

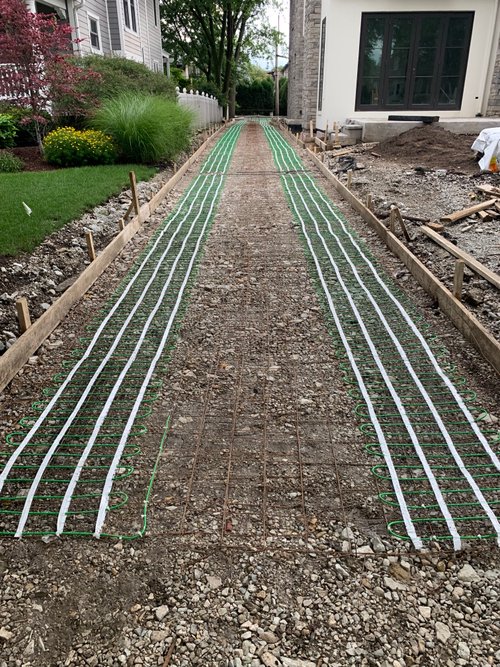

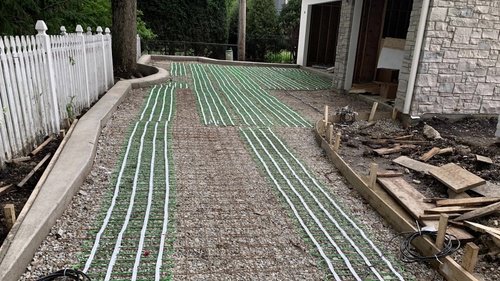

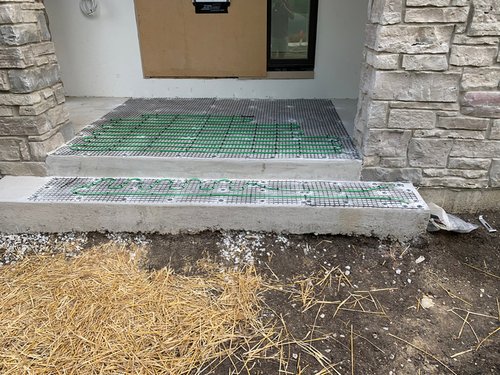

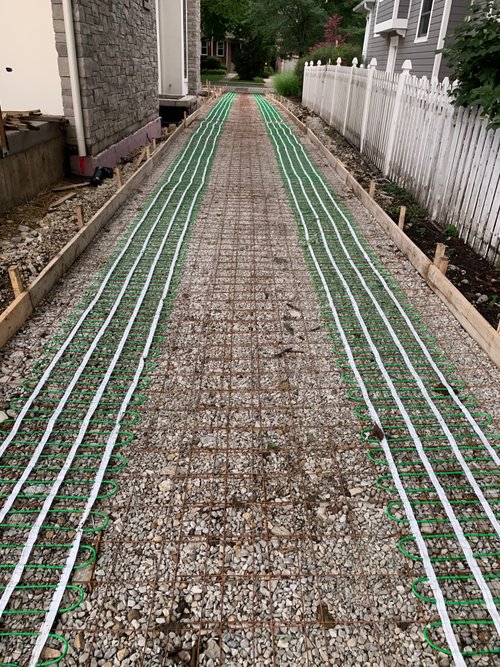

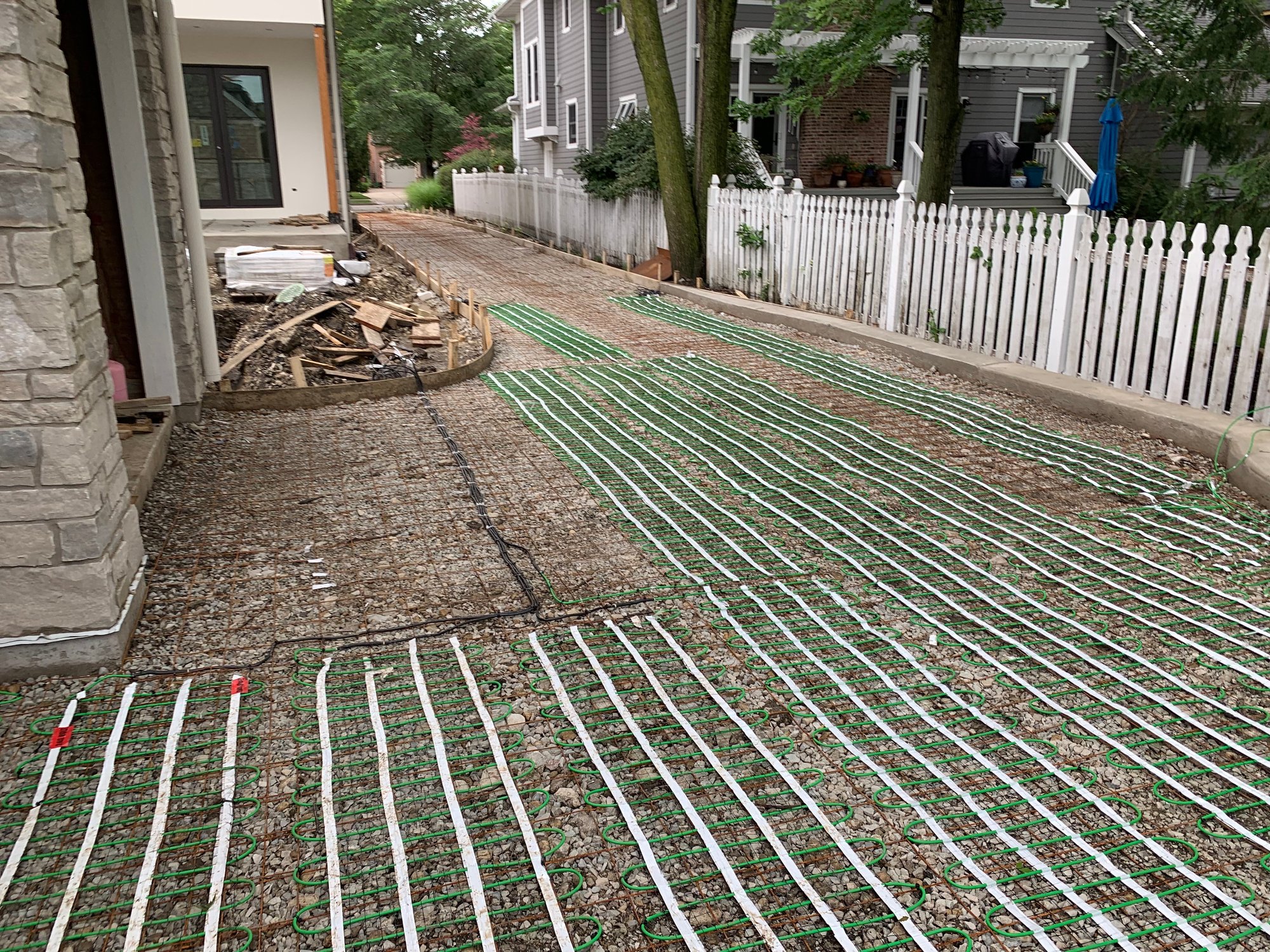

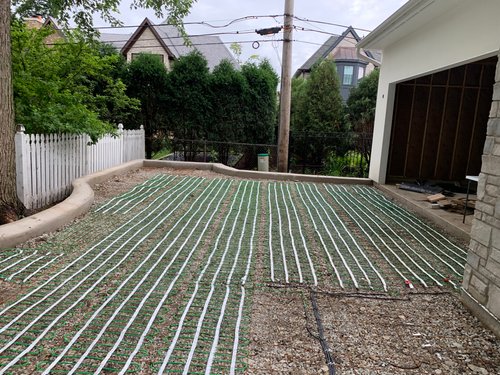

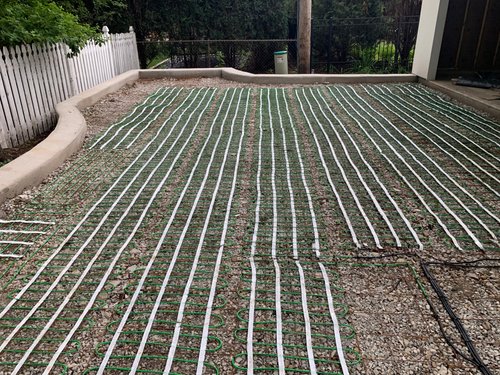

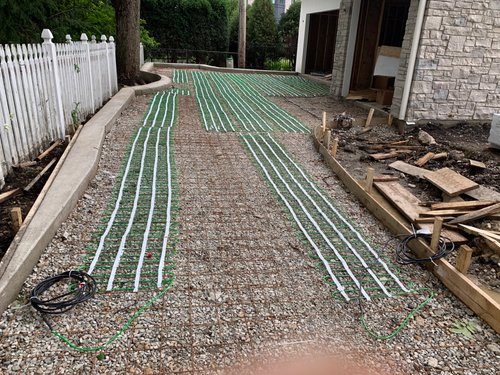

WarmlyYours partnered with the installer to design a customized plan featuring the robust Snow Melt PowerMat system. This system was strategically placed under the new concrete surface, with a primary focus on the tire tracks for maximum efficiency, but with coverage also extending across the main walkway. This targeted approach ensured that all high-traffic and critical areas would be cleared automatically.

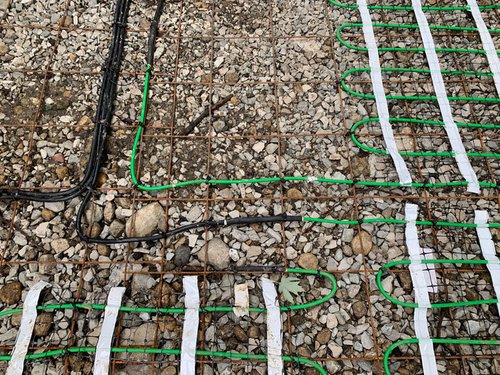

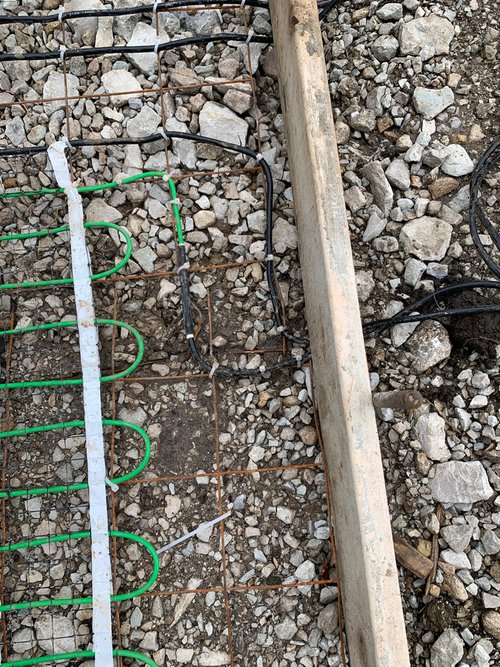

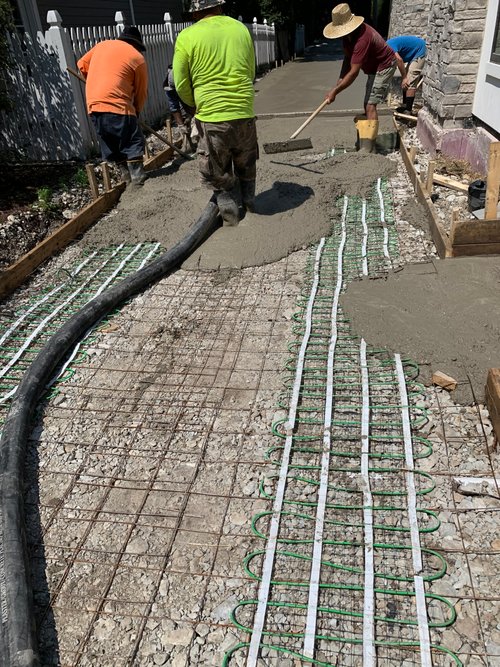

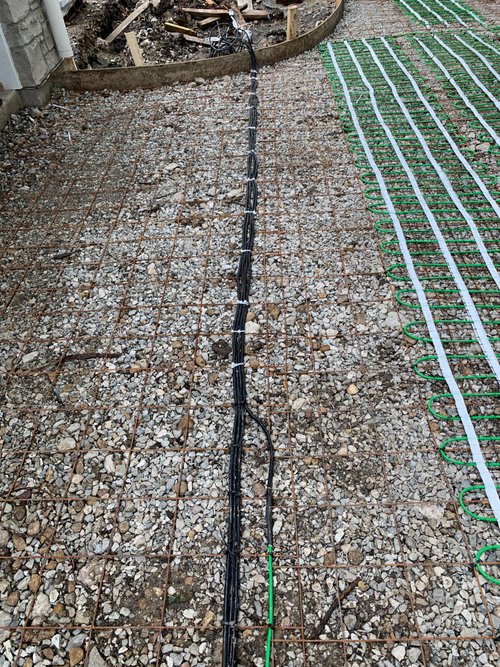

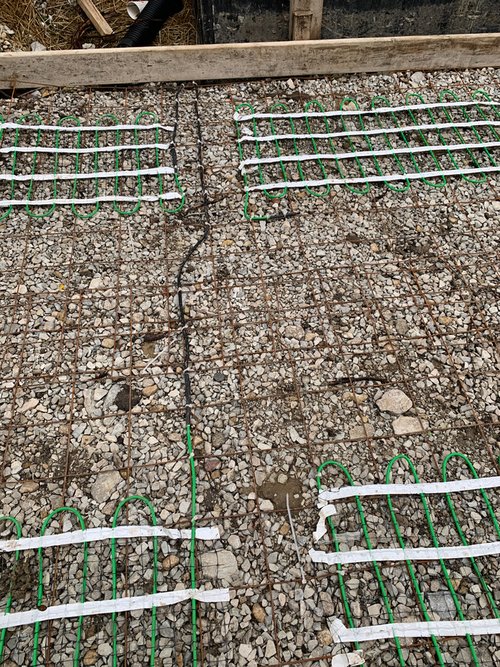

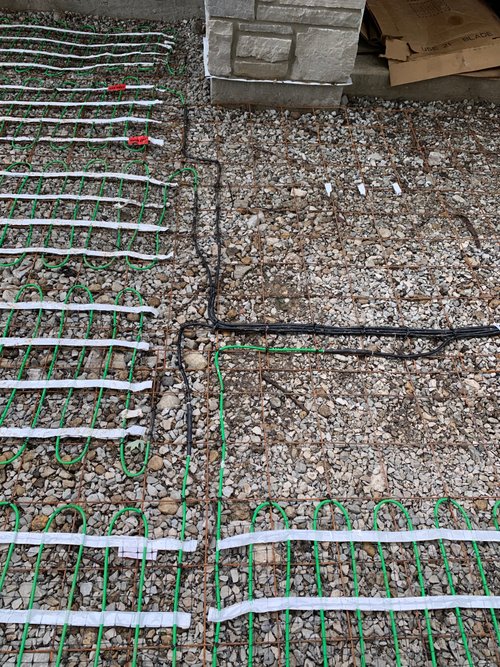

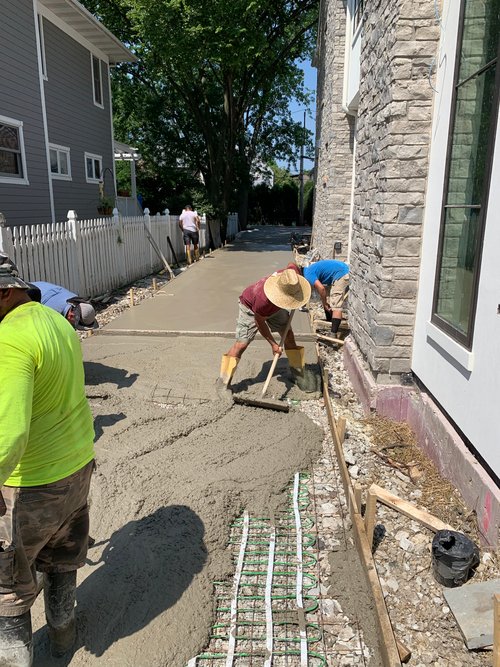

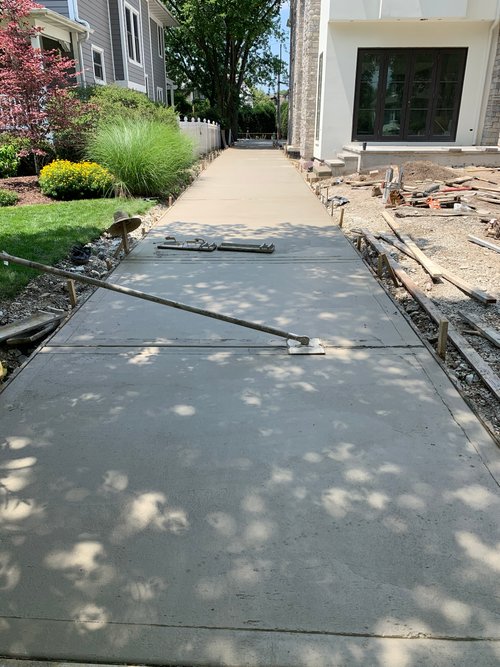

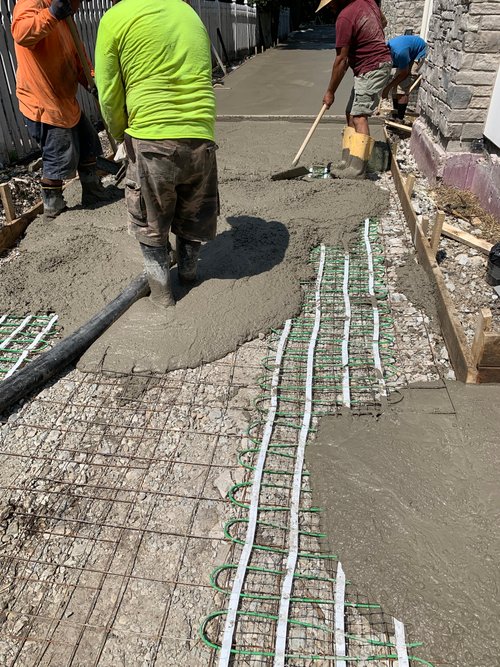

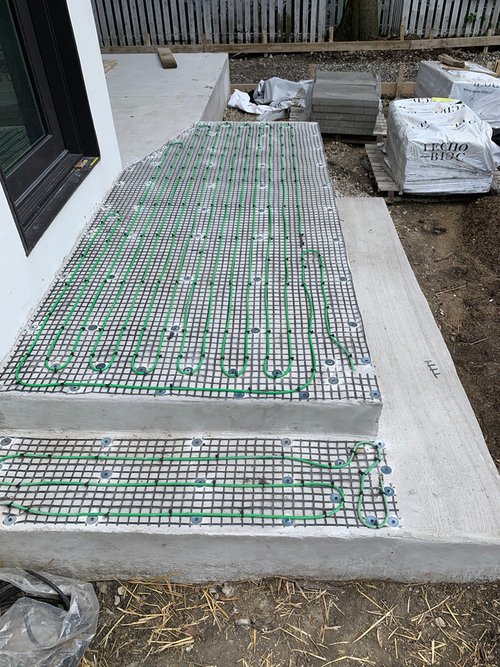

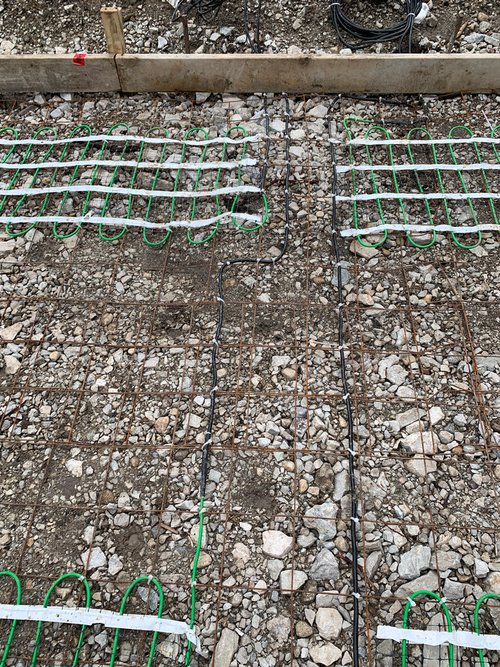

Installation was streamlined thanks to the mat design, which ensures consistent radiant heating spacing and an efficient setup before the concrete pour. The entire system is controlled by the advanced ZoneBraker Touchscreen Multi-Zone Snow and Ice Melting Controller, allowing the homeowners to manage the extensive coverage area effectively. The result is a truly hands-off winter experience—clear pathways and a functional driveway, all at the touch of a button, ensuring safety and convenience for years to come.
Featured Products

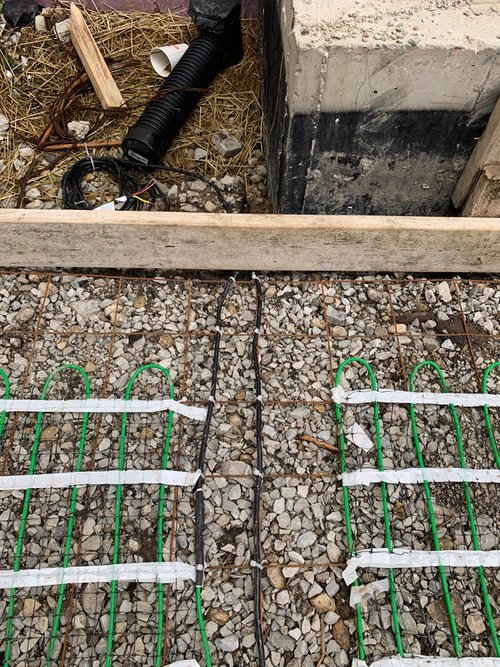

- Snow Melt PowerMat 240V : Heavy-duty electric snow melting mats designed for embedment in concrete, asphalt, or under pavers. The twin-conductor heating element is pre-spaced at 3-inch intervals on a durable mesh for fast, even heat distribution (50W/sq. ft.). Ideal for new construction/pours.
- ZoneBraker Touchscreen Multi-Zone Snow and Ice Melting Controller : The ultimate control for large projects. This sophisticated, multi-zone touchscreen control allows the homeowner to manage up to four independent heating zones, ensuring the highest efficiency by cycling power to different areas. Features an intuitive screen, upper-limit temperature sensor, and automated operation.
- Outdoor Snow Melting Junction Box - Large : An essential component for safely connecting the heating mats' cold leads to the main power line in a durable, waterproof, in-ground enclosure.
