This project brought luxurious, energy-efficient comfort to a master bathroom in Martinez, California, where the homeowners were tired of cold tile underfoot. By installing a custom-designedTempZone™ electric radiant floor heating system under the new tile flooring, WarmlyYours provided a silent, invisible solution that ensured consistent, gentle floor warming. The installation of 61 sq. ft. of coverage instantly added a layer of everyday luxury and significant value to the home, emphasizing both comfort and efficiency.
Project Details
| Location | Martinez, CA |
| Heated Space Type | Master Bathroom |
| Heated Square Footage | 61 sq. ft. (Full Coverage) |
| Watts | 750 W |
| Volts | 120 V |
| Amps | 7A |
| Operating Cost Per Hour | $0.04 per hour |
| Flooring Type | Tile, Marble or Stone |
| Products Used | TempZone™ Custom Mat, nSpire Touch Thermostat |

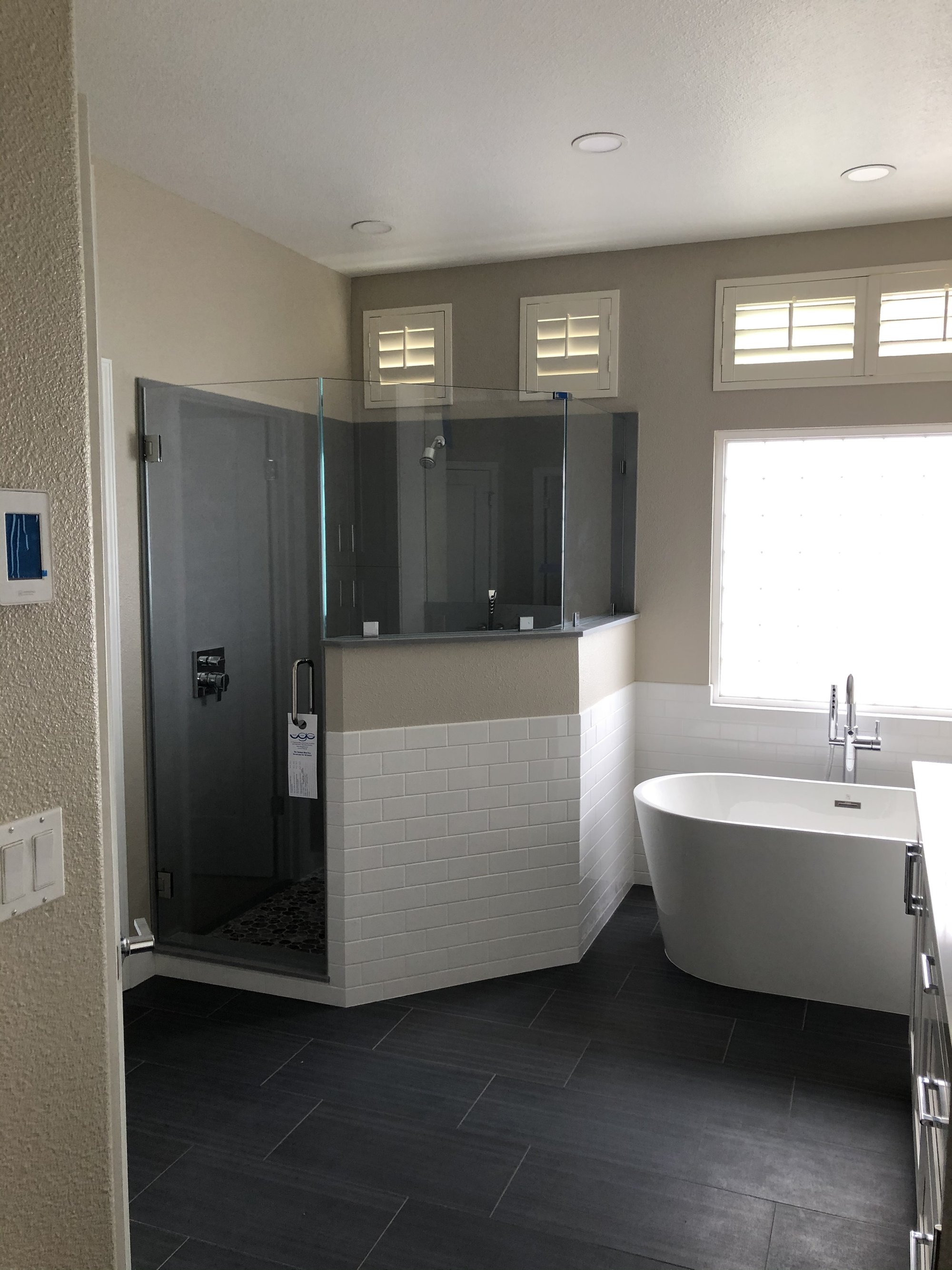

Bringing Luxurious Warmth to a Martinez Master Bathroom
The primary challenge for this Martinez, CA homeowner was the famously cold feeling of tile flooring in the master bathroom, a major deterrent to comfort, especially during cooler mornings. Seeking a permanent solution beyond temporary rugs or space heaters, they chose to upgrade with WarmlyYours electric floor heating.

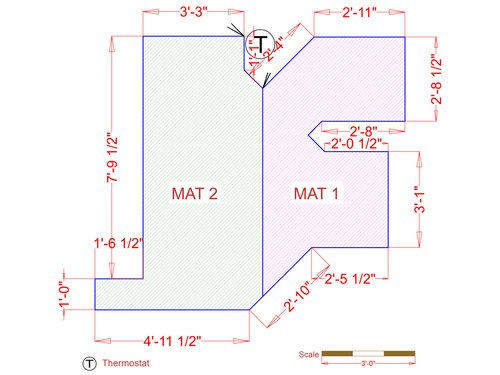

The solution involved a custom-designed TempZone™ Custom Mat system. Custom mats are precisely engineered to fit the exact dimensions and curves of a specific room, drastically simplifying the installation process for the installer. Because the heating cable is pre-spaced on a fiberglass mesh, the installation was quicker and ensured perfect coverage across the full 61 sq. ft. of the floor. The system was placed directly over a wood subfloor and encapsulated in thin-set mortar before the new tile was laid. This process of using in-floor heating permanently solved the problem of cold tile, transforming the master bath into a warm, inviting oasis that enhances the daily routine. The resulting radiant floor heating system is a silent, energy-efficient comfort upgrade that adds a premium, spa-like feel to the home.
Featured Products
- TempZone™ Custom Mat (120V): The heart of the system. This electric radiant heating mat is made to a specific shape and size to ensure maximum coverage in irregular rooms, drastically cutting installation time while providing even, reliable in-floor heating beneath the tile surface.
- nSpire Touch Thermostat: A sleek, programmable control with a 3.5” color touchscreen. It features an integrated self-testing GFCI and provides maximum control over the floor temperature with 4 programmable events for each day, ensuring the floor is warm exactly when needed for optimal energy-efficient heating.
- Circuit Check (SS-01): Essential for a successful installation, this tool constantly monitors the heating cable during the installation process to ensure its integrity before and after the flooring is laid.
