Hawthorn Woods Bedrooms & Living Room Smart Install with Floating Engineered Wood Floors Project

Project Information:

Bedroom 2:

System and Components:

This project utilized 2 Environ Flex Rolls to cover the 170 sq. ft. area. The rolls are designed for easy installation under floating floors. The system is controlled by an nSpire Touch Thermostat, which is a programmable thermostat with a built-in Class A GFCI for safety. 🌡️ An electrical rough-in kit was also included to provide all necessary components for the electrical connections.

Heating Rolls:
2 x Environ™ Flex Roll 120V 1.5′ x 45′ (67.5 sq. ft. each)
Accessories:
1 x nSpire Touch Thermostat (White)
2 x Circuit Check
1 x Electrical Rough-in Kit

Bedroom 3:

System and Components:

This project utilized 2 Environ Flex Rolls to cover the 120 sq. ft. area. The rolls are designed for easy installation under floating floors. The system is controlled by an nSpire Touch Thermostat, which is a programmable thermostat with a built-in Class A GFCI for safety. 🌡️ An electrical rough-in kit was also included to provide all necessary components for the electrical connections.

Heating Rolls:
2 x Environ™ Flex Roll 120V 1.5′ x 40′ (60 sq. ft. each)
Accessories:
1 x nSpire Touch Thermostat (White)
2 x Circuit Check
1 x Electrical Rough-in Kit

Living Room:

System and Components:

This project utilized 4 Environ Flex Rolls to cover the 420 sq. ft. area. The rolls are designed for easy installation under floating floors. The system is controlled by an nSpire Touch Thermostat, which is a programmable thermostat with a built-in Class A GFCI for safety. 🌡️ An electrical rough-in kit was also included to provide all necessary components for the electrical connections.

Heating Rolls:
2 x Environ™ Flex Roll 240V 1.5′ x 90′ (135 sq. ft. each)

1 x Environ™ Flex Roll 240V 1.5′ x 60′ (90 sq. ft. each)

1 x Environ™ Flex Roll 240V 1.5′ x 40′ (60 sq. ft. each)

Accessories:
1 x nSpire Touch Thermostat (White)
2 x Circuit Check
1 x Electrical Rough-in Kit

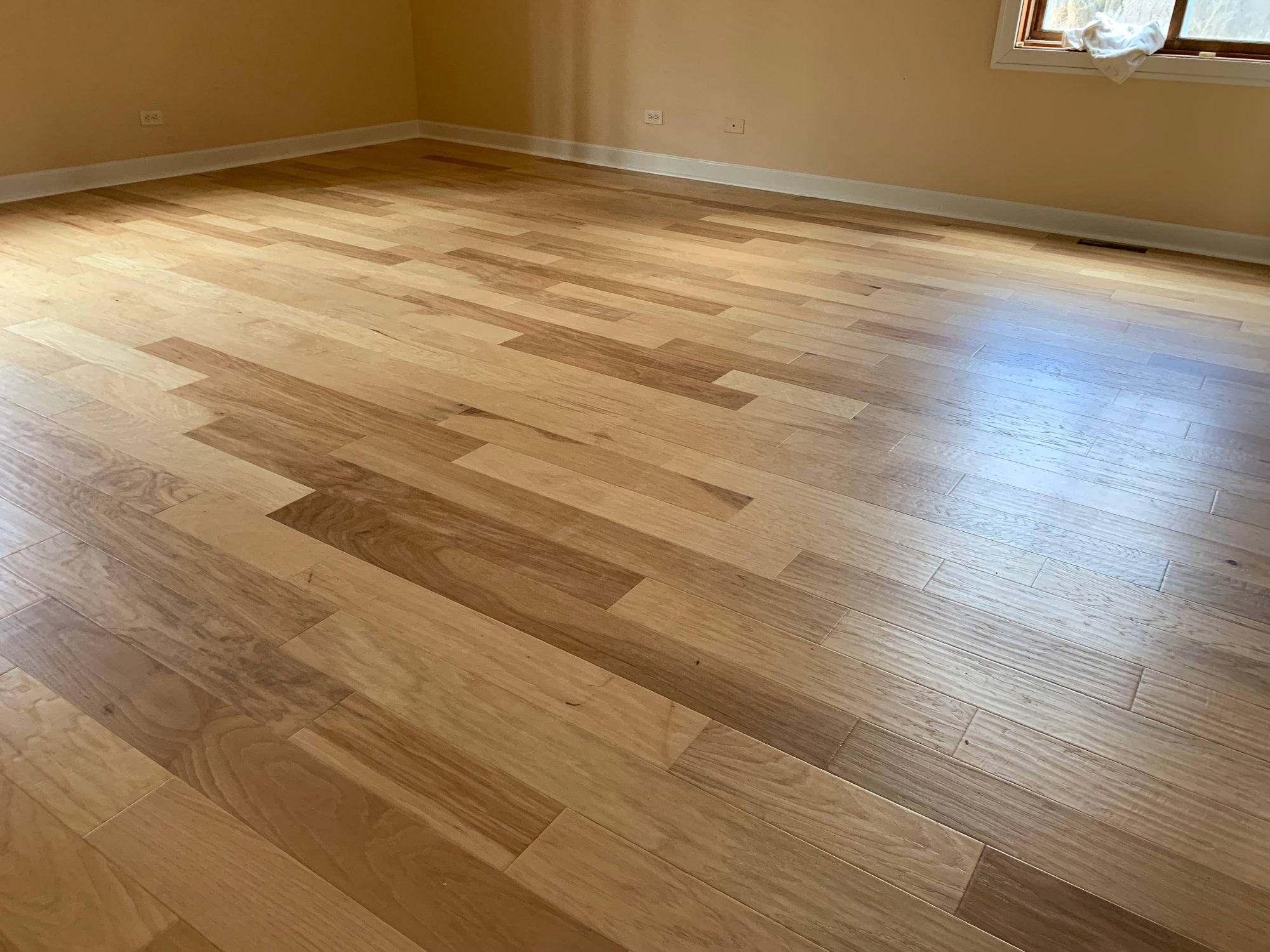

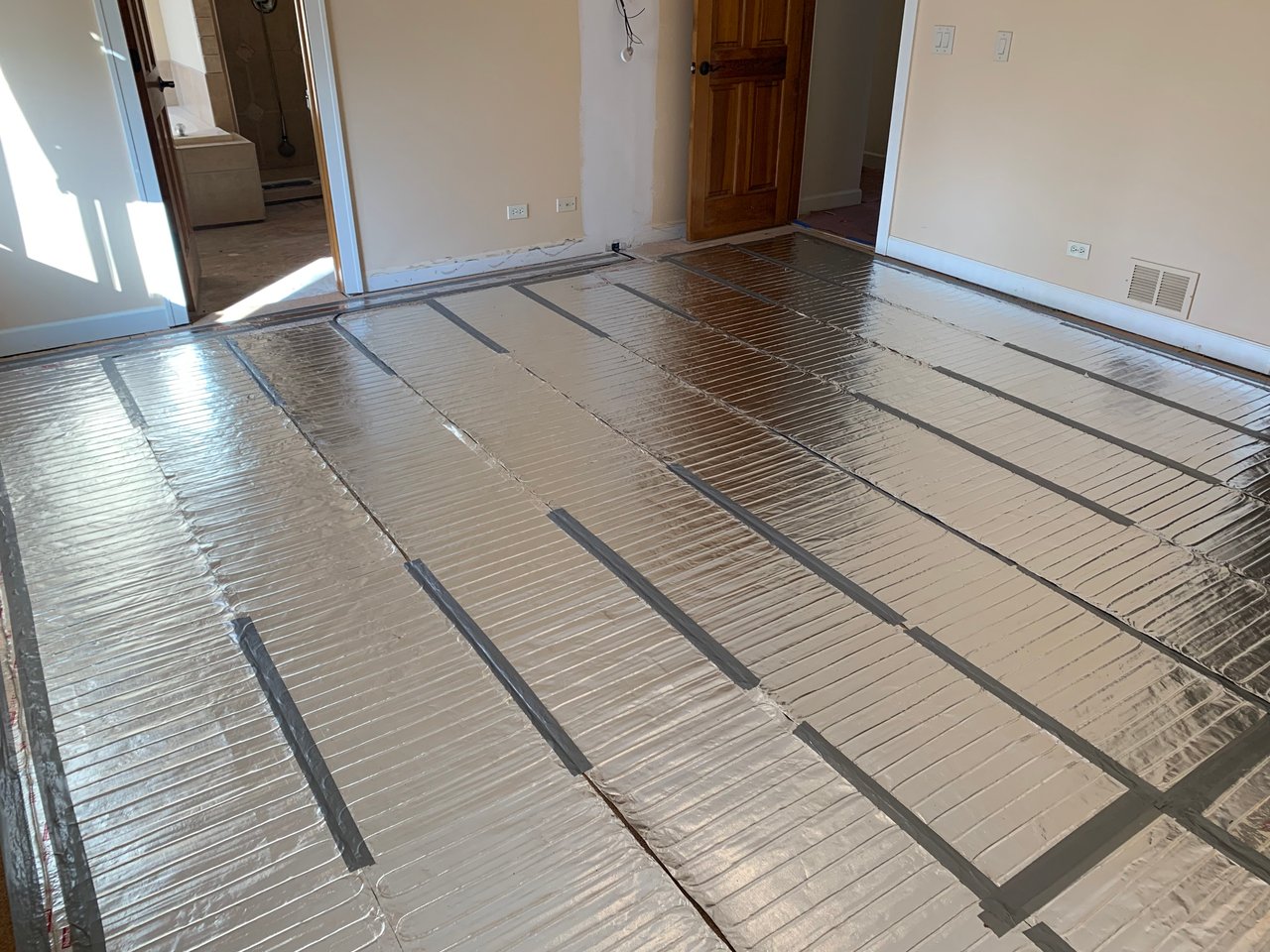

Master BedRoom:

System and Components:
This project utilized two Environ Flex Rolls to cover the 210 sq. ft. area. The rolls are designed for easy installation under floating floors. The system is controlled by an nSpire Touch Thermostat, which is a programmable thermostat with a built-in Class A GFCI for safety. 🌡️ An electrical rough-in kit was also included to provide all necessary components for the electrical connections.

Heating Rolls:
1 x Environ™ Flex Roll 240V 1.5′ x 90′ (135 sq. ft. each)

1 x Environ™ Flex Roll 240V 1.5′ x 50′ (75 sq. ft. each)

Accessories:
1 x nSpire Touch Thermostat (White)
2 x Circuit Check
1 x Electrical Rough-in Kit
