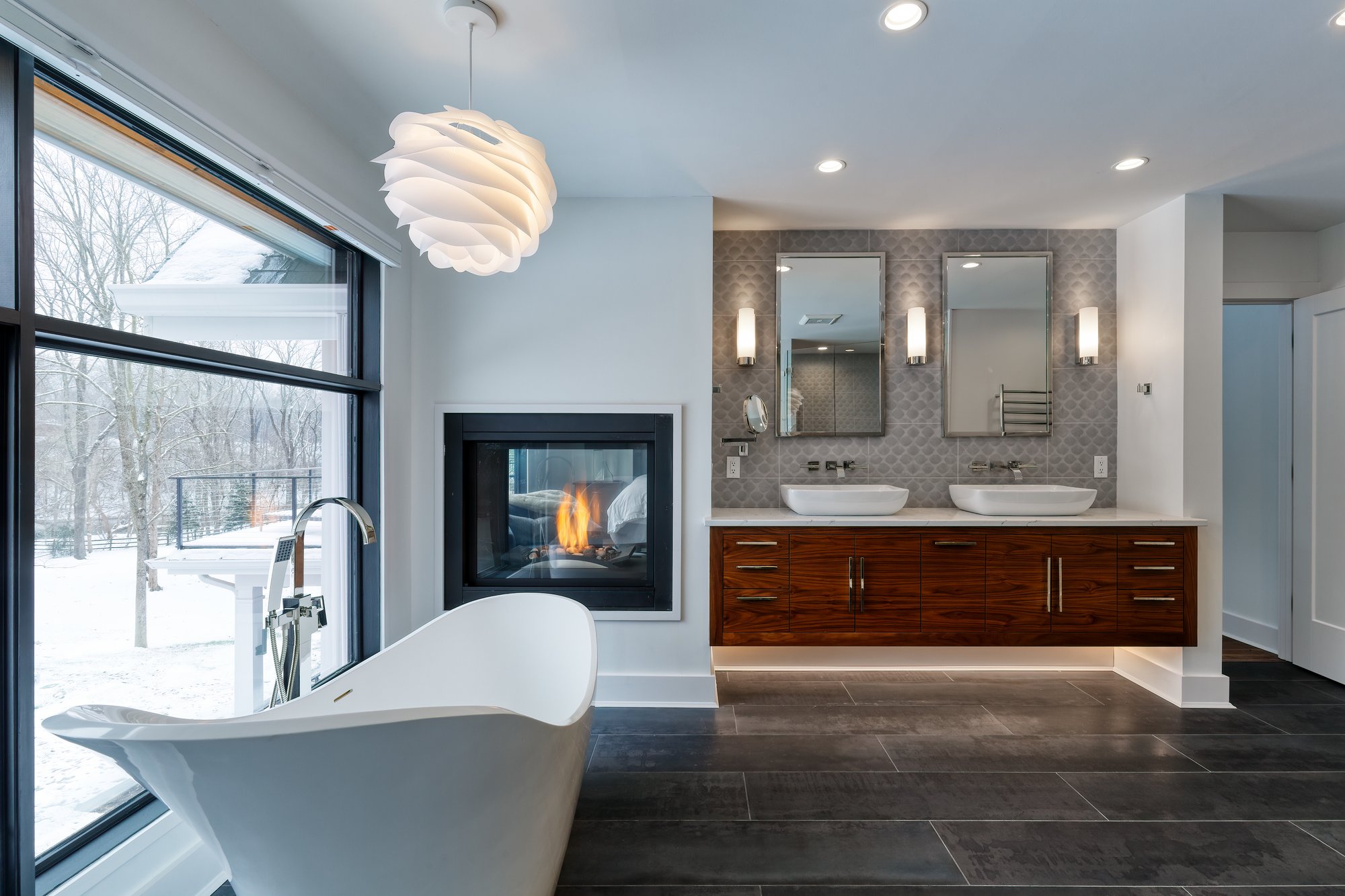

This stunning 105 sq. ft. master bathroom in Cincinnati, built by Michaelson Homes, featured beautiful (but cold) tile. To match the luxury of the room's fireplace, WarmlyYours installed a TempZone™ electric floor heating system. This solution transformed the bathroom into a true spa-like retreat, adding exceptional comfort and value by infusing the cold tile with consistent, energy-efficient warmth.
Project Details
- Location: Cincinnati, OH
- Heated Space Type: Master Bathroom
- Square Footage: 105 sq. ft.
- System Specs: 1575 Watts, 120 Volts, 13.2 Amps
- Operating Cost: ~$0.25 per hour
- Products Used: TempZone™ Flex Roll, nSpire Touch Thermostat
A Spa Experience to Match a Fireside View
When Michaelson Homes designed this master bathroom, "luxury" was the guiding principle. The room is spacious, features elegant tile, and even includes a cozy fireplace. However, one element detracted from the spa-like feel: the cold, hard floor. In a 105 sq. ft. space, even with a fireplace, stone floors can remain uncomfortably chilly, especially on cold Cincinnati mornings.

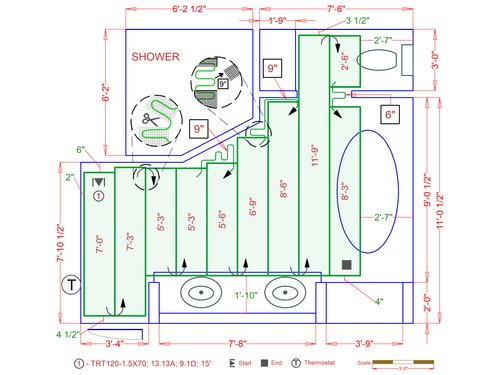

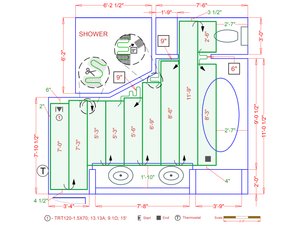

To solve this, a TempZone™ electric floor heating system was chosen. The 105 sq. ft. TempZone™ Flex Roll was installed to provide complete coverage, ensuring there would be no cold spots. The system was laid out over the wood subfloor, and the Circuit Check™ was used to ensure the roll was free of damage before, during, and after the tile flooring was installed over it.
The result is a seamless integration of comfort and luxury. The radiant floor heating provides silent, even warmth that rises from the floor, perfectly complementing the heat from the fireplace. The homeowner now enjoys a truly luxurious master retreat, where the comfort of a warm floor is guaranteed. The system is controlled by the nSpire Touch programmable thermostat, which allows the heating to be scheduled for optimal comfort and energy efficiency.
Featured Products
- TempZone™ Flex Rolls: Our most popular in-floor heating product, these rolls are ideal for large, rectangular areas. They install quickly and easily, providing 15 watts per sq. ft. of power for cozy, even heating.
- nSpire Touch Thermostat: This programmable thermostat features a 3.5” color touchscreen, a Class A GFCI for safety, and an intuitive wizard to help you set a custom heating schedule for maximum comfort and energy savings.
- Circuit Check™: A must-have for installation, this alarm continuously monitors the heating element for damage, ensuring a perfect installation from start to finish.
